1080P 60FPS 2K 48MP HDMI USB индустриальная электронная цифровая видеомикроскопическая камера TF Recorder + 180X 300X 100X C mount Lens on.

1080P 60FPS 2K 48MP HDMI USB индустриальная электронная цифровая видеомикроскопическая камера TF Recorder + 180X 300X 100X C mount Lens on.

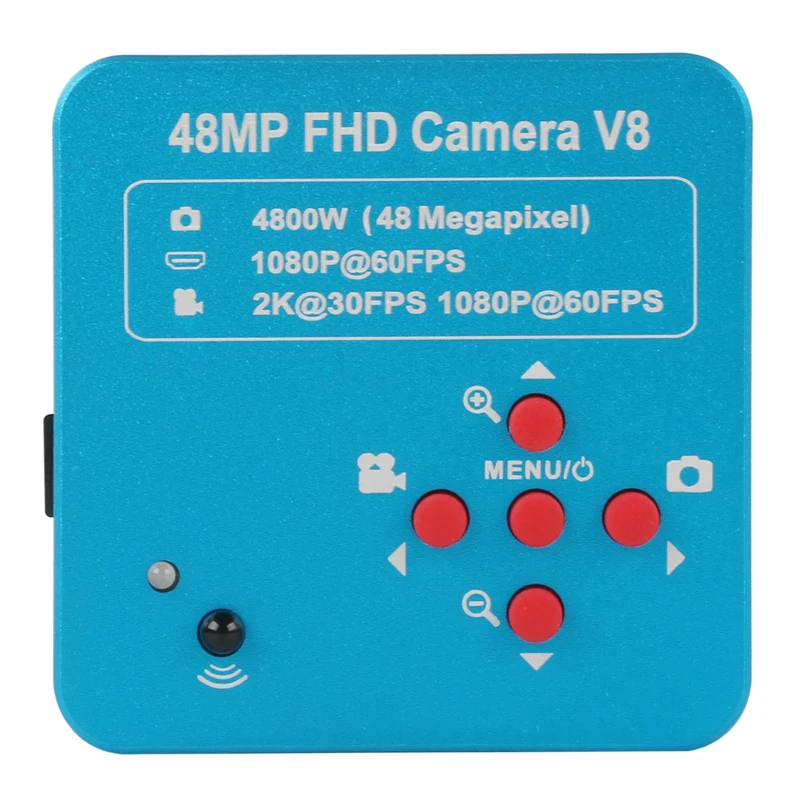

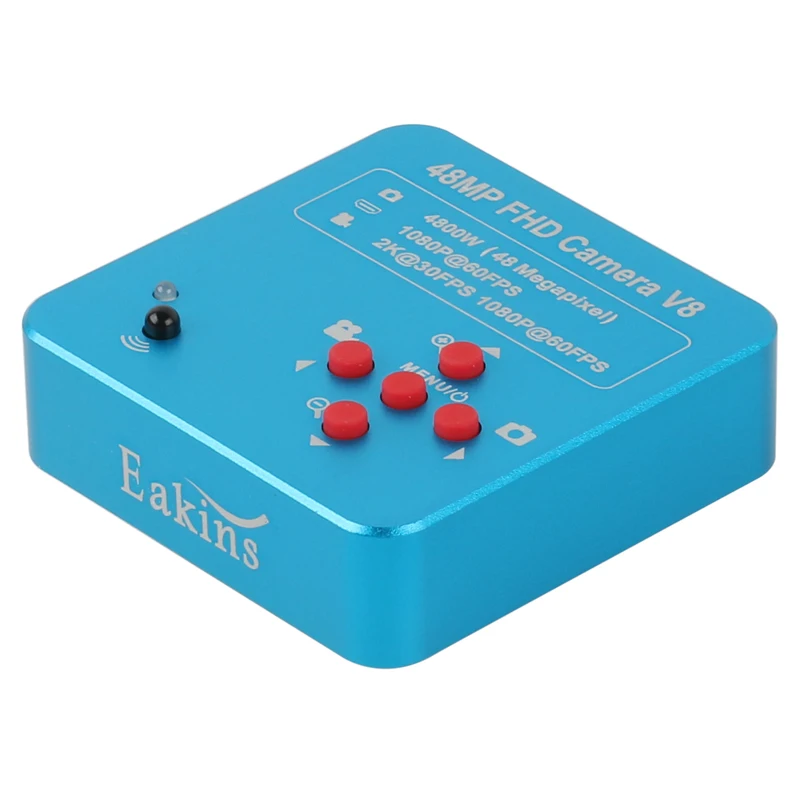

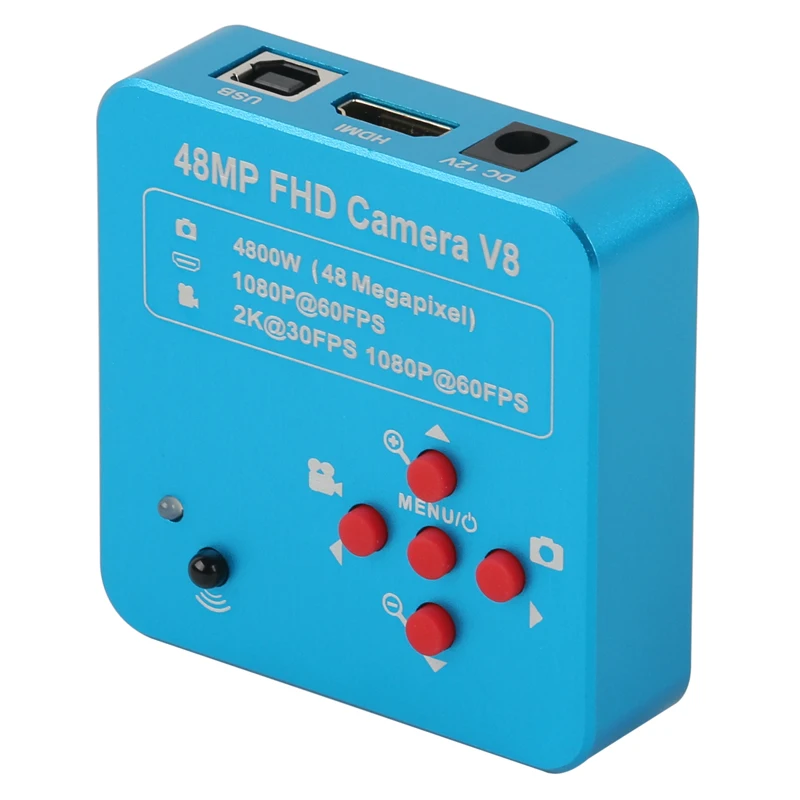

Software download address  ://share.weiyun.com/5cl0kWU Module:FHD216Sensor Panasonic:38 MegaPixelOptical format:1/2.3 inchpixel size:1.335μm x1.335μmInterface:HDMI(Type A).USB(Type B).TF CardImage resolution:21MegaPixelVideo record resolution:2K@30FPS 1080p@60FPSHDMI resoltion:1920*1080p 60FPSCan output with USB at the same timeHDMI scale:Support 4:3,16:9,16:10 screenUSB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPSCan output with HDMI at the same timeTF card:MAX 64GBAWB:WB color correction/Auto/ManualR.G.B value setting independentExposure:Auto/Manual.AE value can setCross lines:8lines.Can set color& width& positionScale mark lines:2lines.Dotted lines:2lines.Can set color& width& positionSharpness Contrast Color gain:SupportMono Negative:SupportMirror:Horizontal vertical mirrorLanguage:English/simplified ChineseDigital Zoom:SupportIR remoter:SupportVoltage in:DC 12V 55-21mm sizePower consumption:MAX 0.15W  12V,0.12ALens interface:C/CS口Net weight:180gGross weight:400gCamera size:74*74*35mmPackaging size:160*100*80mmQuestions Solutions:LCD no video or flicker1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.2.Check lens cover. Increase the lighting.LCD have black bar Image warp1.change resolution of LCD2.change resolution of cameraHave dirty spot1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser  180X C-MOUNT LensWorking distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)(180x maximum working distance 16CM)  300X C-MOUNT LensWorking distance: 95mm
Zoom c-mount Lens
1X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
Size: 248mm(L) * 50mm(DIA)(300x maximum working distance 11CM)  100X C-MOUNT LensMagnification Power by 0.12 - 2X (about 8X - 100X on the display)Work distance: 100mmVisual field :2.4mm-32mmSize: 115mm(L) * 40mm(DIA)Weight: 210g  56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)

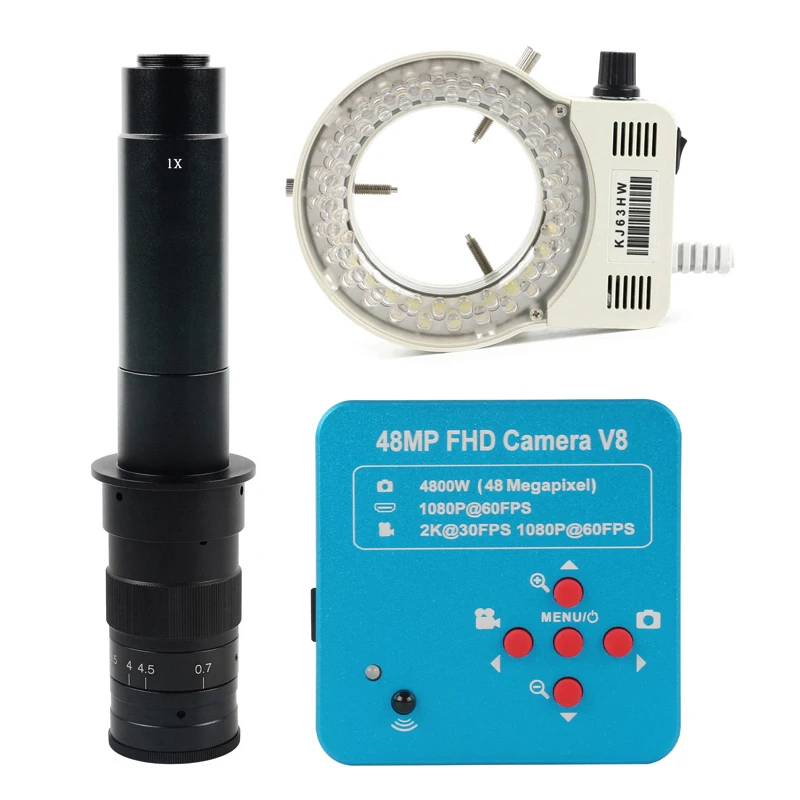

Working Distance: 27mm-45mm  Package incluede:1 x Microscope Camera1 x Power Adapter (AU/EU)1 x IR remoter1 x Usb Lines1 x HDMI Lines1 x Paper Manual1 x 8G TF CardOptional accessories incluede:1 x C-MOUNT Lens(100X or 180X or 300X)56 LED Adjustable Microscope Ring Light
