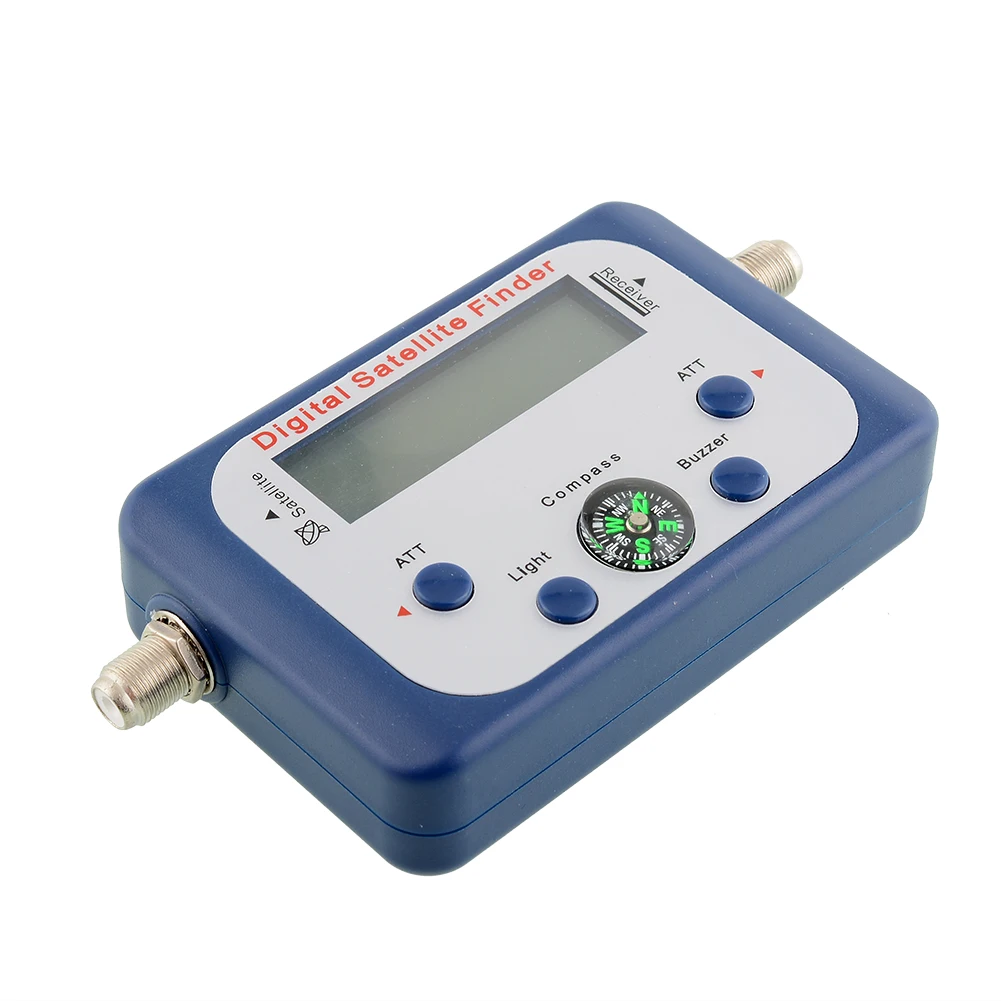

Portable Digital Satellite Signal Meter Finder Satfinder | Электроника

Description:
Brand new and high quality.
Frequency Range: 950-2150MHz
Supply Voltage: 13-18V DC
Input Level Range: -40dBm~ -10dBm
Operating Temperature: 0-40
Impedance: 75Ω.
Use LCD to display the satellite signal intensity.
Built-in signal alert buzzer.
With LCD backlight / buzzer and attenuation control function.
DC pass to LNB.
ATT increasing key. If the incoming signal is too strong,(the thermometer-scales shows max and the signal strength value shows 99) it can easily be attenuated by enabling this "attenuation" funtion, it reduces the incoming signal to a lower level. There are four step attenuation totally.

HOW TO CONNECT:
1. connect a jumper cable from the LNB to the "Satellite" port on the digital SATFINDER.
2. connect the cable from your satellite receiver to the "Receiver" port on the digital SATFINDER.

NOTICE:
1. To avoid a continuous full scale reading, do not use the digital SATFINDER directly in front of the dish.
2. When using a LNB with gain higher than 60dB, insert a 5dB attenuator between the LNB/LNBF and the digital SATFINDER.
3. In case no satellite receiver is at hand a 13-18V DC power supply with F-connector can be connected on the "Receiver" side of the digital SATFINDER to power the SATFINDER.

Package includes:
1 x Digital Satellite Finder
