HDMI/VGA/2AV+Reversing Driver Board+DC 12V1A Power Supply +7inch 800*480 AT070TN90 AT070TN92 AT070TN94 LCD Display 165*100MM | Компьютеры

7" LCD Screen+ Driver Board+DC 12V1A Power Supply

Specification Details:
1.Power Supply(5~24V)
2.HDMI
3.VGA Connector
4.AV1
5.AV1+AV2
6.Keyboard
7.TTL Signal 50Pin
8.LVDS Signal 1/2 ch 6bit 8bit
9.12V Backlight

* LCD Monitor control board supports HDMI&VGA, 2AV input sources
* Power Supply 12V
*System: PAL/NTSC
* PRESET MODE FOR PC-RGB INPUTS:640*480, 800*600, 1024*600,1024*768,
1280*1024
* OSD Language:Simple-Chinese,Original Chinese,Korean,Japanese,English,
French,German,Spanish,Italian,Russian
* OSD Control - Menu, Down, Up, Source,Power 5Keys
* Input:HDMI1.1
* VGA--PC-RGB (15 pin D-SUB )
AV1
AV2 Input (Support Reverse Priority)(for rear view camera)
* Chromatic System PAL/NTSC Auto Switch
* Dimension:90mm*70mm*10
* Applications:Mobile NB Car system Digital Photo frame Multimedia applications and Others AV system

7" TFT Hig-Resolution Display Module 1080P
* LCD size: 7.0 inch(Diagonal)
* Resolution: 800×3(RGB)×480
* Display mode: Normally White, Transmissive
* Dot pitch: 0.0642(W)×0.1790(H) mm
* Active area: 154.08(W)×85.92(H) mm
* Module size: 164.9(W)×100.0(H)×5.7(D) mm
* Surface treatment: Anti-Glare

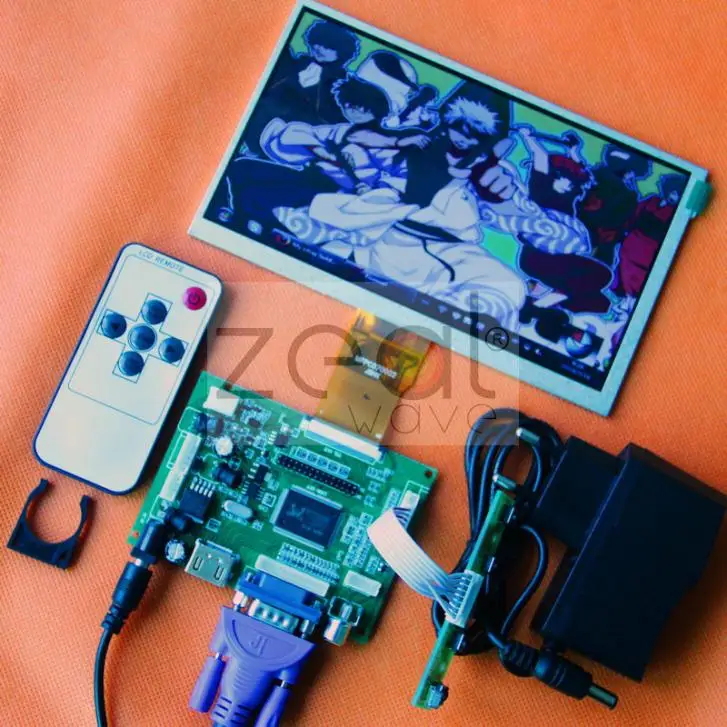

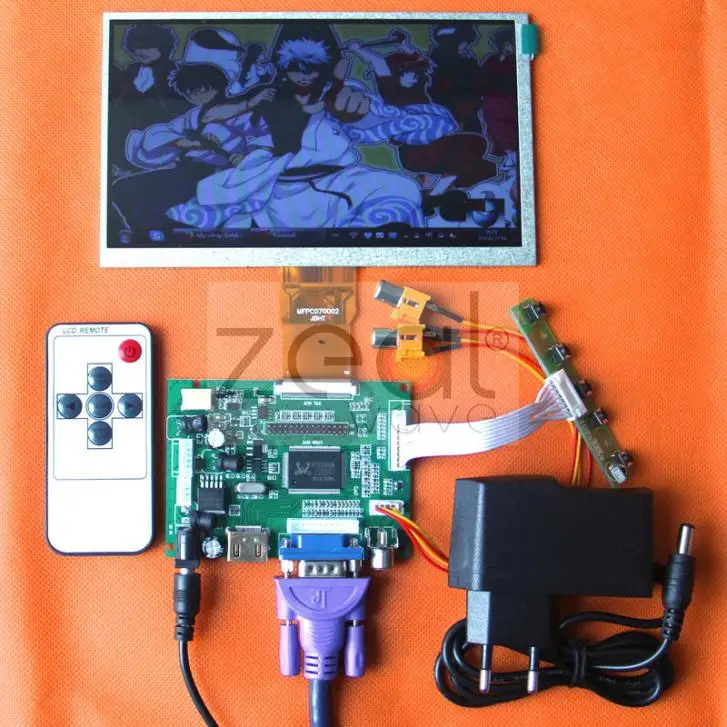

What you will receive:
1x 7" TFT LCD Module(800*480 Resolution)
1x Key Board
All the other necessary Cable
1× HDMI+VGA+2AV Controller Board VS-TY2662-V1 (Support Automatically switch to AV2 )
1× 7inch 800* 480  Lcd Panel ,LCD Thickness=3mm
    Lcd Panel with touch panel: Thickness=5mm
1× Keyboard with Wire
1× 12V1A DC Power supply(
Please leave a message to tell me what you need power type)
1× Remote Control(Without batteries)
