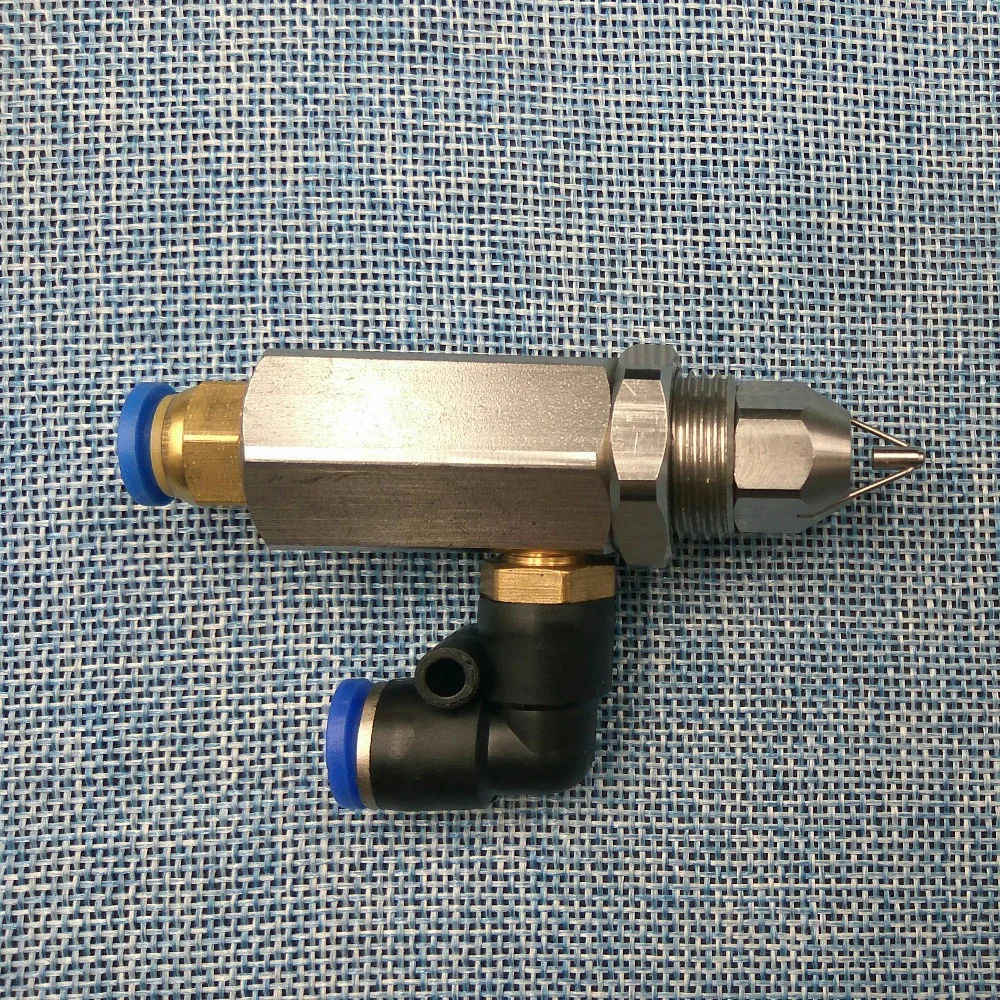

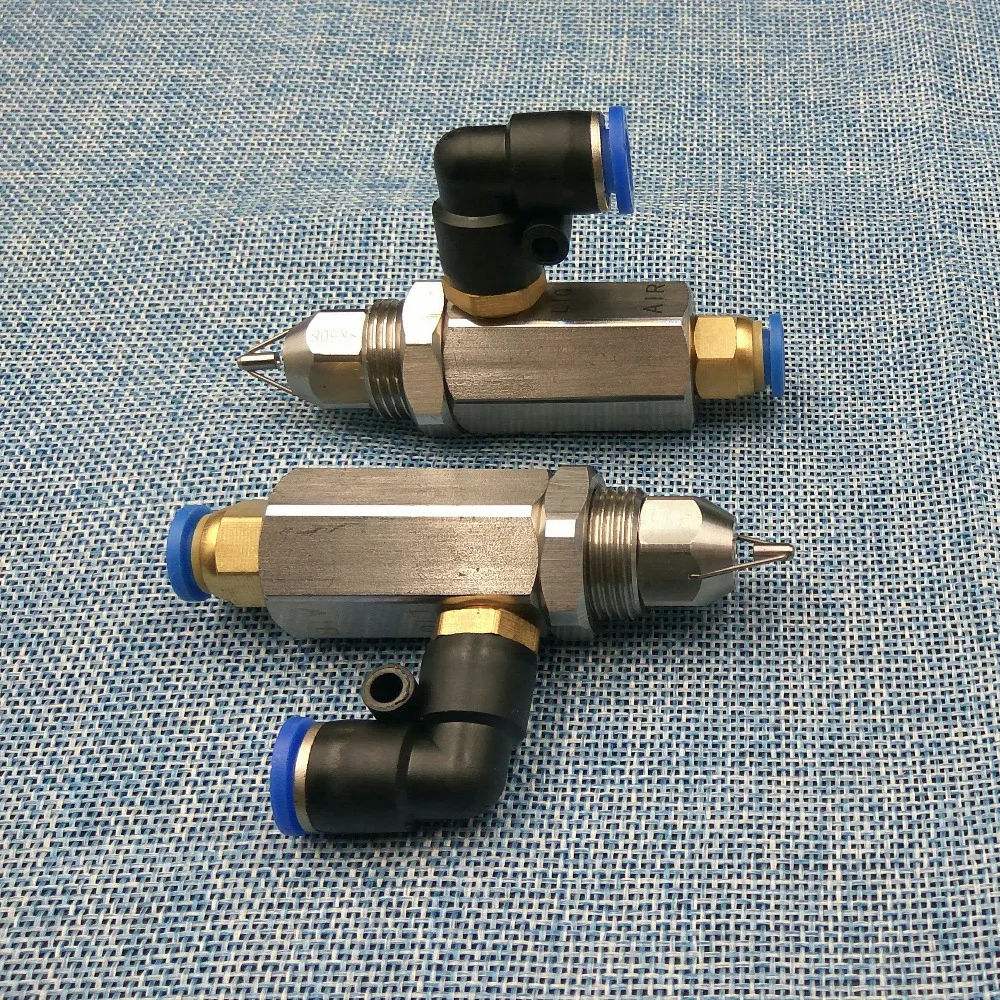

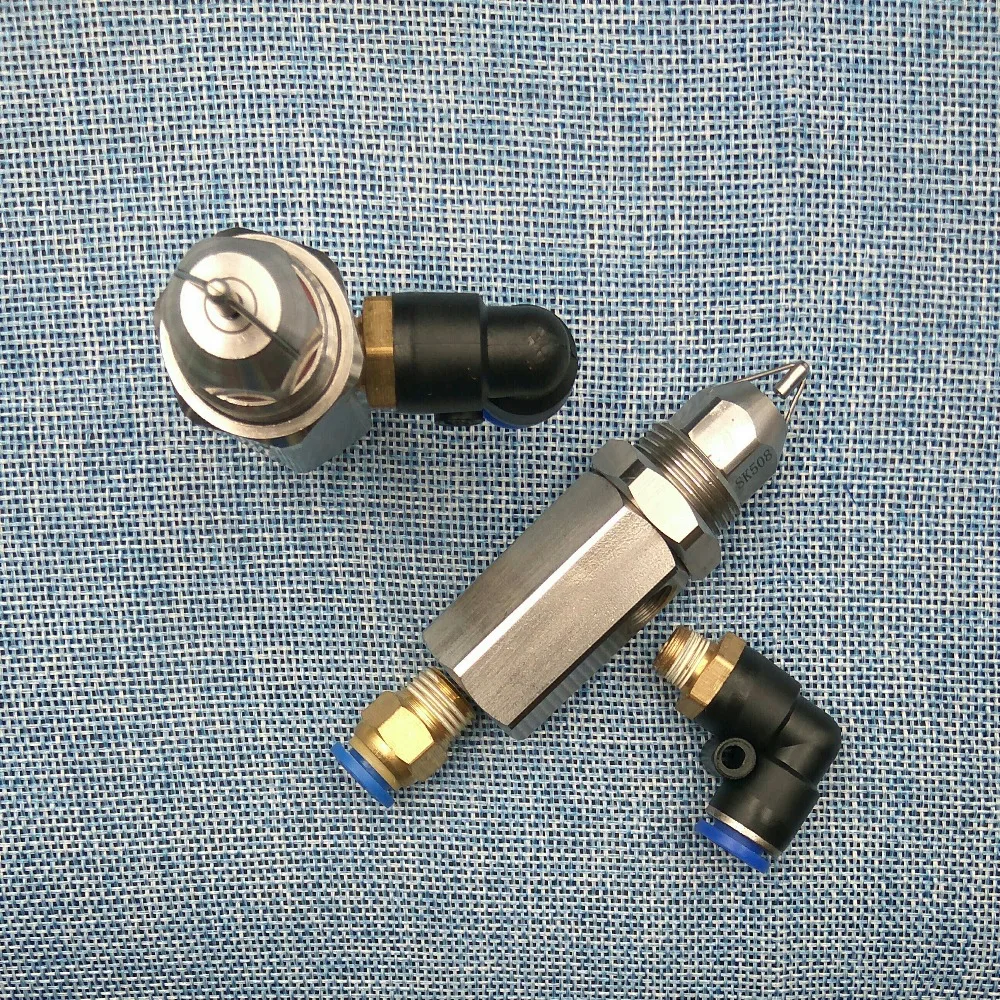

Product:Stainless steel Ultrasonic Dry Mist Air Atomizing Nozzle

     This ultrasonic nozzle through compressed air or piezoelectric transducers produce high frequency of vibration to atomize the liquid into fine mist droplet, the drop sizes range from 1-10 microns, dust particles collide with water drops of an equivalent size for optimum dust capturing.

The nozzle through two Steps below to finish atomization:

·  Step 1, Preliminary atomization: Fine water stream was sheared by high-speed flowing air.

·  Step 2, Fine particle water mist: The initial atomized water droplets mixed high-speed air flow,impinging on the vibrating head.

1. Ultrasonic atomizing nozzles could creat extremely fine droplets- "dry fog", with droplets size 1-10 Microns.

2. The average droplets are small and uniform which is very important for the dust suppression.

3. The vibration of the impinging head and high-speed air can avoid the dust adhere to the spray hole.

​

Performance data

Installation

     The ultrasonic atomizing nozzle can connect by the two different adapters, common types and thin-wall types.

· Common types

     Common types can be welded or other methods to Fix at the working point water inlet thread is G1/8, Air inlet thread is G1/4.

·The thin-wall types

     The thin-wall types install on the thin wall, the bottom thread fit into the thin wall openings, and use the caps to fix it on the wall.

Application

1. Reduce fugitive dust from a variety of material handling points, including conveyor transfer points, trippers, reclaimers, crushers, screens, truck dumps, railcar loading/unloading, and ash silo discharge chutes.

2. Fire fighting

3. Cooling system

4. Humidifying

5. Gas scrubber
