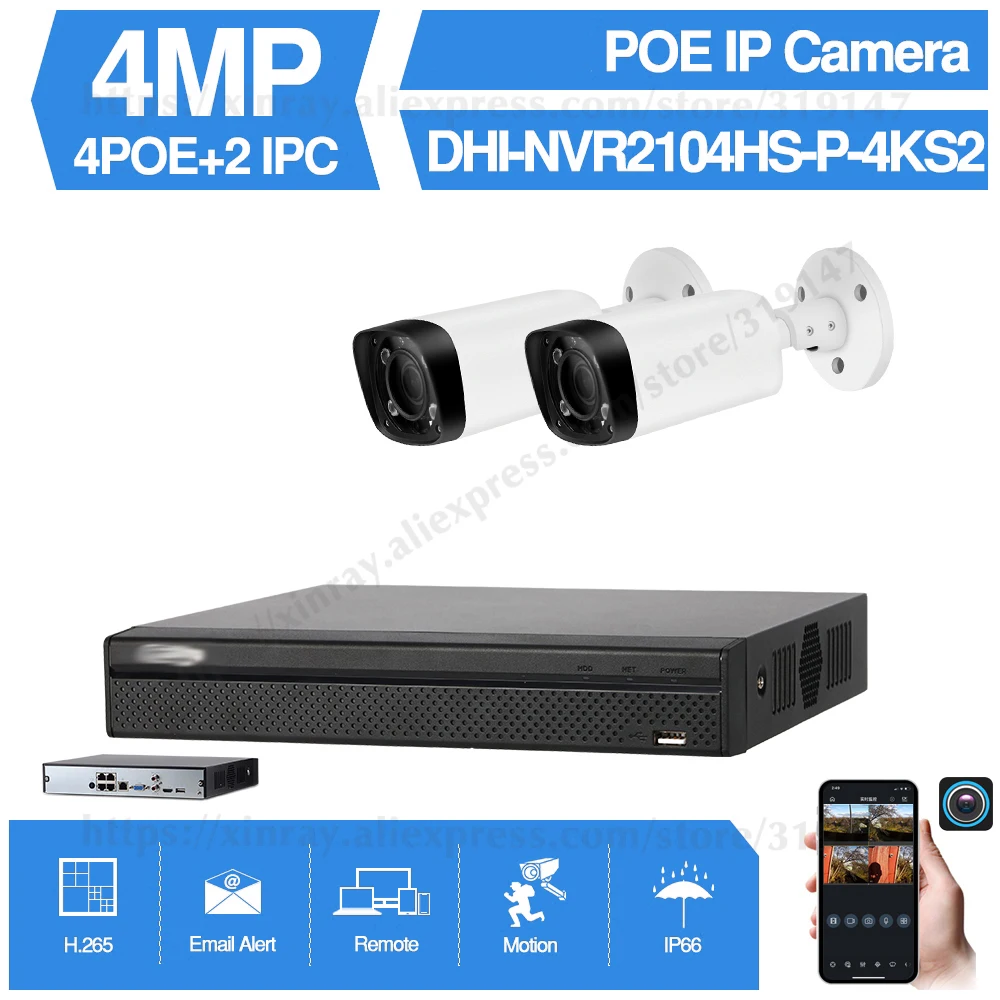

Dahua 4MP 4+2/4 Security CCTV Kits Original NVR NVR2104HS-P-4KS2 2/4PCS IP Camera IPC-HFW4431R-Z Motor Zoom Surveillance System



1.this kit come with Dahua (China) original network vedio recorder , it support many kinds of IP camera in our store .

2.we provide express sever for many country if you order much in our store for free .As different country has different shipping rules,we could send items via express shipping for free,Besides,if your shipping cost is too high,Hope you kindly understand that we could not remove the shipping cost for you.

3.this NVR support update the firmware ,camera don't support update the firmware .

4.This camera is OEM from Dahua .the old original model stop production , but many buyers still need it , so we OEM from Dahua for the buyers . All function are the same but without logo ,same camera same function same software .

IPC-HFW4431R-ZNVR2104HS-P-4KS24MP Night VF Lens IP Camera IPC-HFW4431R-Z:
> 1/3” 4Megapixel progressive scan CMOS
> 2.7~12mm VF lens, Motorized Zoom,Auto focus
> Support H.265&H.264 dual codec
> Max 20fps@4M(2592×1520), 25/30fps@3M(2304×1296),
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Supported mobile APP
> Max. IR Range 80m
> Multi-languageChinese,English,Spanish,French. Russian.4 Channel Compact 1U 4PoE Lite 4K H.265 Network Video Recorder
> H.265/H.264 codec decoding
> Max 80Mbps incoming bandwidth
> Up to 8Mp resolution preview&playback
> Up to 1ch@8MP/4ch@1080P decoding

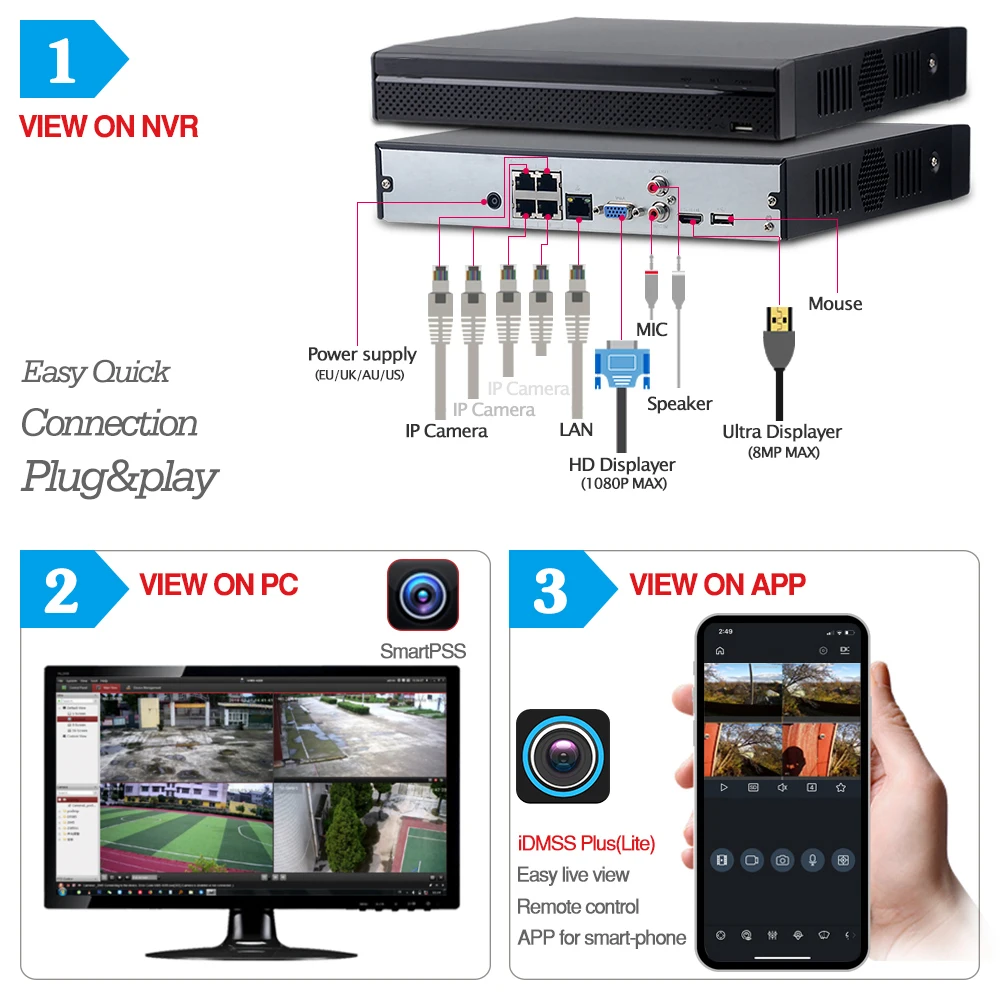

> HDMI/VGA simultaneous video output
> Support IPC UPnP, 4PoE ports

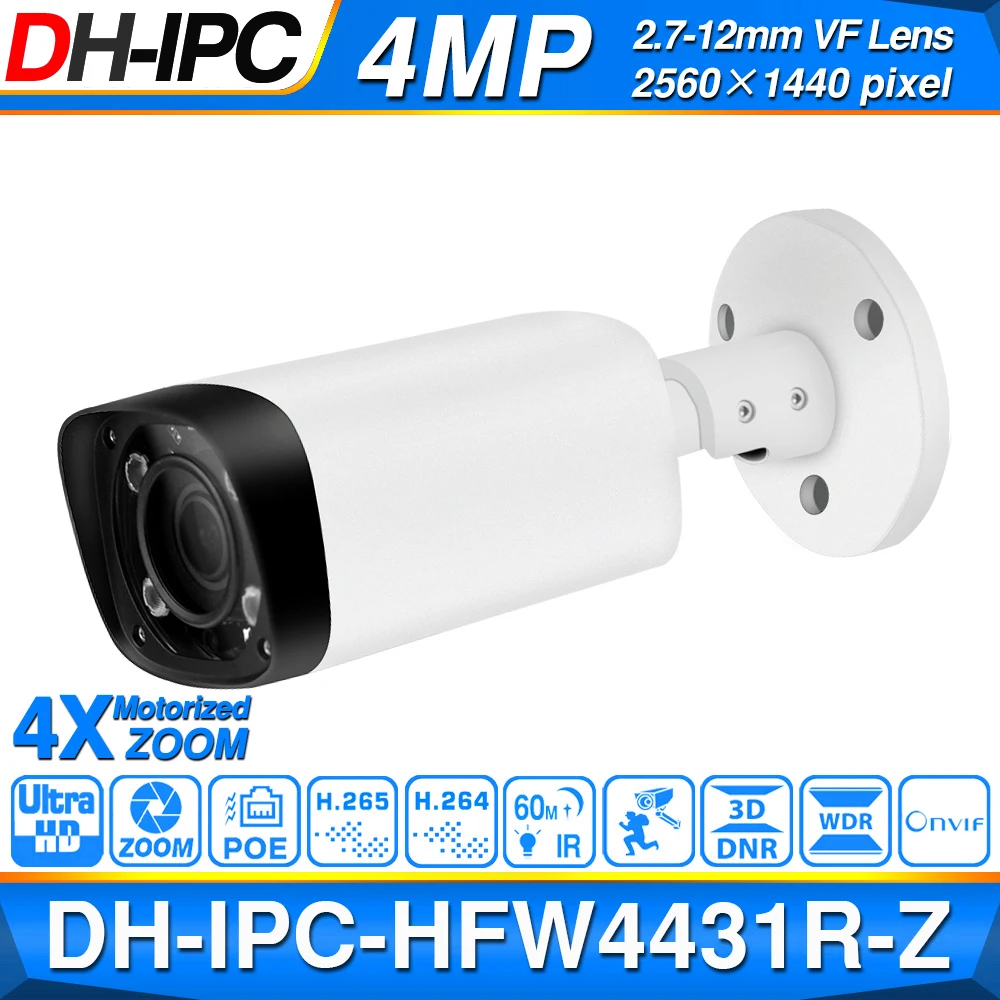

Model IPC-HFW4431R-Z
1.Camera
Camera : 1/3” 4Megapixel progressive scan CMOS
Effective Pixels : 2592(H)x1520(V)
Scanning System : Progressive
Electronic Shutter Speed : Auto/Manual,  1s~1/100000s;
Min. Illumination : 0.01Lux/F2.0 (Color), 0Lux/F2.0(IR on)
S/N Ratio : More than 50dB
Angle of View : H : 99° ~ 36°, V : 47° ~ 17°
2.Camera Features
Max. IR LEDs Length : 60m
Day/Night : Auto(ICR)/Color/B/W
Backlight Compensation : BLC / HLC / WDR(120dB)
White Balance : Auto/Manual
Gain Control : Auto/Manual
Noise Reduction : 3D
Privacy Masking : Up to 4 areas
3.Lens
Focal Length : 2.7mm~12mm Electric Zoom Lens
Max Aperture : F2.0(F2.0/F2.0)
Focus Control : Auto
Angle of View : 99 ° ~36 °
Lens Type : Fixed lens
Mount Type : Board-in Type
4.Video
Compression : H.265/H.264/H.264B/H.264H/ MJPEG
Resolution : 4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate : Main Stream:2592×1520@20fps;Sub Stream:704×576@25fps;Third Stream:1280×720@15fps
Bit Rate : 196-10240Kb/S
Corridor Mode : Support
5.Audio
Compression : N/A
Interface : N/A
6.Smart Function
Video Detection : Motion Detection;Video Tamper;Defocus Detection
Smart detection : Face Detection;Tripwire;Intrusion;Abandoned/Missing;Scene Changing;Loitering Detection;Crowd Gathering Estimation;Fast-Moving;Parking Detection
7.Network
Ethernet : RJ-45 (10/100Base-T)
Wi-Fi : N/A
Protocol : HTTP;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Compatibility : ONVIF,PSIA,CGI
Max. User Access : 20 users
Smart Phone : iPhone, iPad, Android
8.Auxiliary Interface
Alarm : N/A
9.General
Power Supply : DC12V, PoE (802.3af)
Power Consumption : MAX 11.1W
Working Environment : -30°C~+60°C, Less than 95% RH
Protection Level : IP67
Vandal Resistance : N/A
Dimensions : 72mm×80mmX212.8mm
Weight : 0.65Kg(0.7Kg with packaging)

1.System : NVR2104HS-P-4KS2

Main Processor : Dual-core embedded processor
Operating System : Embedded LINUX
2.Audio and Video
IP Camera Input : 4 Channel
Two-way Talk : 1 Channel Input, 1 Channel Output, RCA
3.Display
Interface : 1 HDMI, 1 VGA
Resolution : HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 ; VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity : 1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display : 1/4
OSD : Camera title, Time, Camera lock, Motion detection, Recording
4.Recording
Compression : H.265/H.264
Resolution : 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc.
Record Rate : 80Mbps
Bit Rate : 16Kbps ~ 20Mbps Per Channel
Record Mode : Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval : 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
5.Video Detection and Alarm
Trigger Events : Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection : Motion Detection, MD Zones: 396 (22 × 18),and Tampering
Alarm input : N/A
Relay Output : N/A
6.Playback and Backup
Sync Playback : 1/4
Search Mode : Time /Date, MD and Exact Search (accurate to second)
Playback Function : Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode : USB Device/Network
7.Third-party Support
Third-party Support : Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
8.Network
Interface : 1 RJ-45 port (10/100Mbps)
PoE : 4 ports (IEEE802.3at/af)
Network Function : HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface : N/A
Max. User Access : 128 users
Smart Phone : iPhone, iPad, Android
Interoperability : ONVIF 2.4, SDK, CGI
9.Storage
Internal HDD : 1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode : Single
eSATA : N/A
10.Auxiliary Interface
USB : 2 ports (1 Rear USB2.0, 1 Front USB2.0)
RS232 : N/A
RS485 : N/A
11.Electrical
Power Supply : Single, DC48V/1.25A
Power Consumption : NVR: <5.3W (without HDD) ; PoE: Max 25.5w for single port, 50w in total
12.Environmental
Operating Conditions : -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions : -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
13.Construction
Dimensions(W×D×H) : Compact 1U, 260mm×224.9mm×47.6mm(10.2" x 8.9" x 1.9")
Net Weight : 0.8kg (1.76 lb) (without HDD)
Gross Weight : 1.6kg(3.53 lb)(without HDD)
14.Certifications
CE : EN55032, EN55024, EN50130-4, EN60950-1
FCC : Part 15 Subpart B, ANSI C63.4-2014
UL : UL60950-1

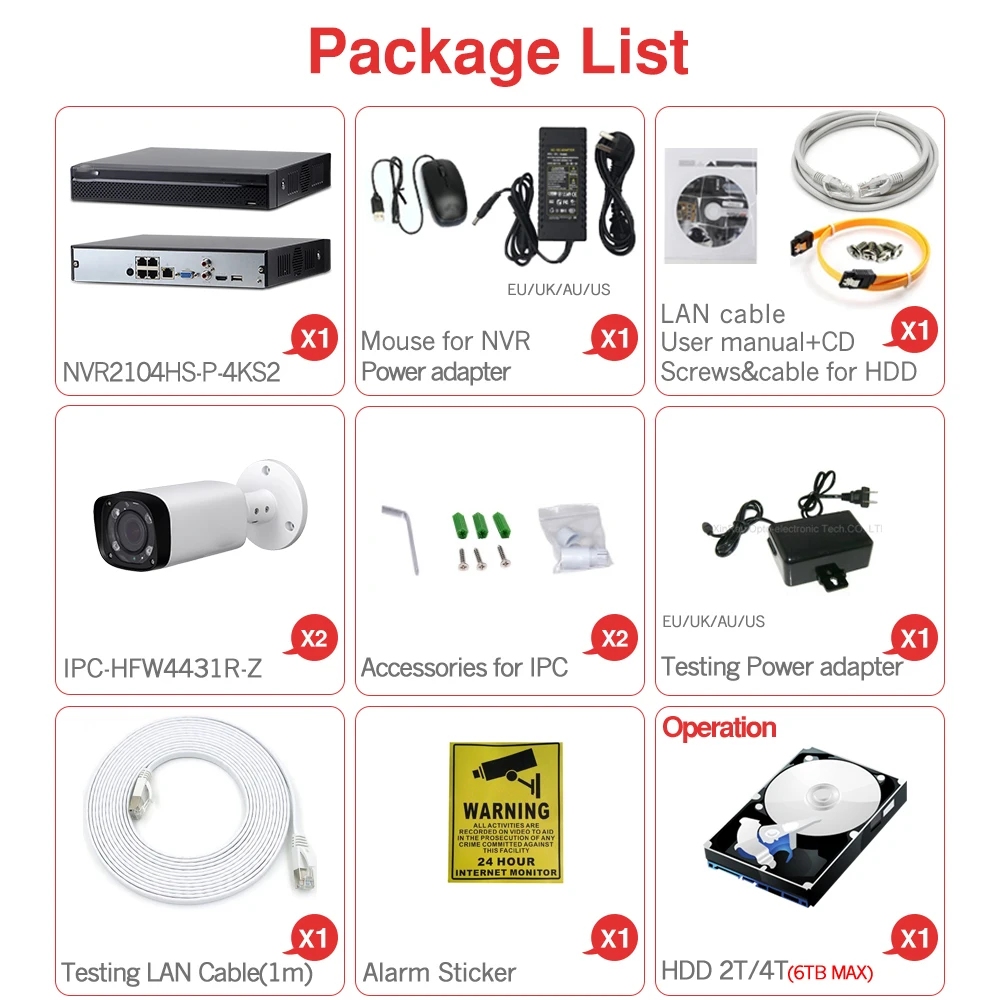

 Package list(2 cameras):

1.Dahua original POE NVR NVR2104HS-P-4KS2*1 ;

2.All accessories for NVR(LAN cable/HDD cable/Power adapter/Screws/User manual/Mouse) ;

3.Dahua 4MP ZOOM Outdoor POE IP Camera IPC-HFW4431R-Z(no logo) *2 ;

4.Network LAN cable for testing(about 1m) *1 ;

5.Power adapter for testing(EU/UK/AU/US) *1 ;

6.Alarm Sticker *1

7.(We also provide HDD 2T/4T operation , please choose the right one if you need .)
