CE 220V M3-M16 Vertical Type Electric Tapping Machine

( Warranty for three years, the machine comes with chucks. If you need JIS or DIN tapping chucks, please contact with us in advance)

​

Electric tapping machine for workpiece materials: electric tapping machine can be in the lead, copper, A3 steel, cast iron, cast iron, Q235, 45#steel, S136 steel, 718 steel, ace, NAK80 die steel and other metal materials for easy tapping operations.

Electric tapping machine is applicable to all machinery manufacturing industry, machine tool, mould machinery, plastic machinery, printing machinery, packaging machinery manufacturers, engineering machinery, automobile motorcycle parts, aviation engines, rolling stock, tobacco machinery and general machinery and other industries.

Machine features

1.The tapping motor of the tapping machine is balanced and perpendicular to the suspension support frame, which can keep the tapping motor moving to any position and can be kept perpendicular to the workbench.

2.The tap of the tapping machine is equipped with overload protection device. With the clamping head of overload protection device, the safety clutch can be adjusted when the tapping exceeds the rated torque, and can avoid damage to the tap.

The machine can be used in single-phase 220V power supply.

3. It has the advantage of high cost performance, lower price and more function than the domestic and international model machines, and many inventions surpass other brands.

4. Advanced mechanical design, all kinds of processes are used in moulding production, with low cost and beautiful appearance.

5. Simple and flexible operation, able to quickly locate and accurately process complicated and bulky work.

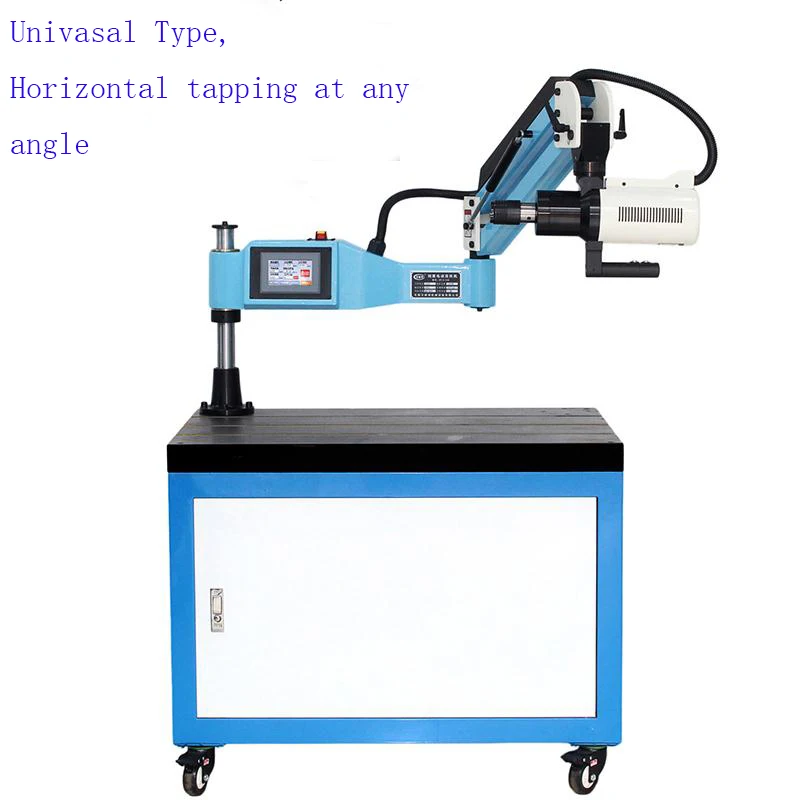

6. Can (optional) universal head, the work head can adjust at any Angle, vertical, horizontal, lateral, high and low can tap the silk.

7. The taper sleeve has an overload protection device to ensure that it does not damage the tap, the load balance in the tapping process, the high precision of the screw processing, and the protection of the torsion force.

8. Infinitely variable speed, can adjust any speed, the speed can be set on the controller.

9.manual, automatic and gap three modes of work are your choice.

10.Automatic mode can control the tapping depth effectively, without operation button, it is controlled automatically by the depth controller.

11. Rapid positioning, quick tapping speed and high production efficiency.

12.Servo drive control, overcome the limitations of pneumatic tapping machine, lathe, drilling machine or manual tapping machine.

Parameters

Tapping machine chuck: JIS  OR ISO (please leave us a message which standard chuck you need)

Model: WT-16A

Voltage: 220V

Motor Power: 750W

Electric current: 50HZ

Spindle speed: 0-312/RPM

Working radius: 1100mm (43inch)

Working angle: Vertical type

Chuck type: GT12 (Torque chuck)

Control panel: Touch screen

Tap capacity: M3-M16 (8 Pcs, M2 collet needs additional allocation)

Packing size: 82CM*74CM*21CM

Weight: 42kg

Details:

1.  Equipped with high speed servo motor, the maximum speed can reach 5000 revolutions per minute. Stable performance and long life.

​2.Super wear-resistant planetary reducer, stable performance, low noise. Average life is 20000 hours, noise is less than 60DB. Lubrication: long acting grease. Protection level: 1P65.

3.The right handle handle design, can use the thumb to control the speed switch (ergonomic design), flexible, smooth.

4.Detachable handle on the left, hands operating on the head, positioning is more flexible, accurate and fast.

​5.Tapping machine chuck, (switching clip).

Item include:

1 pcs 220V M3-M16 Vertical Type Electric Tapping Machine(50001)
