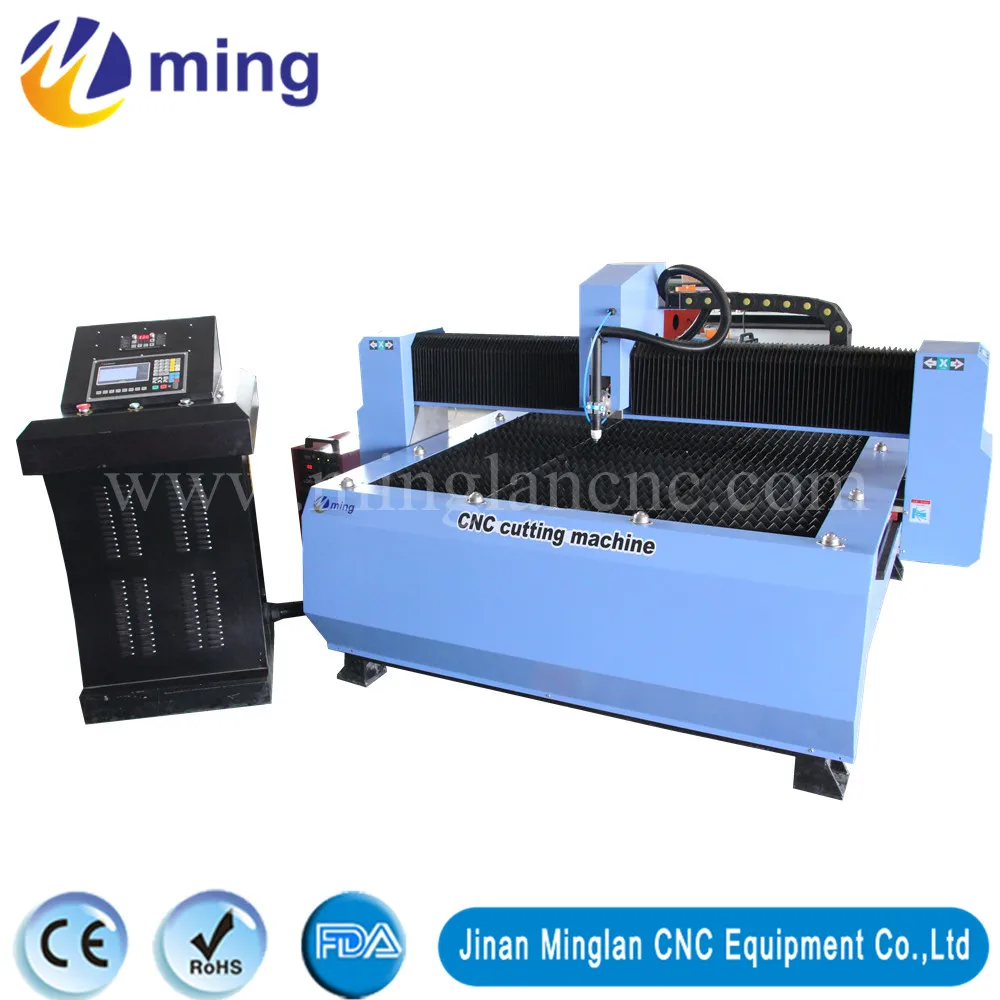

ML-1313P1300mm*1300mm 1313New hot big discount plasma welder cutter / 45A 65A 100A 105A 120A 160A 200A

The machine is too big, so not support transport by Express, the best way is by sea,so please contact us to confirm the freight cost, thanks.

Application:

plasma cutting machine Cutting materials---All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed.

Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates,

and so on like the sheet metal.

Product Features

1.steel structure lathe bed is capable of loading heavy metal sheet of large size.

2.Indine design under table surface makes finished parts and scrap slide down to both side along,

convenient and safe for operator.

3.Beijing START control system with auo metarial saving function ,English operation interface.

Or DSP hand-held control system dedicate for plasma machine,

supports file reading from U disk or downloding from computer,

providing high independence and great convenience during operation.

4.Racks and gears as transmission raise moving speed so that large area cutting can be done in short time.

5.Lower noises ,stable and accurate coordinate movement .

6.Huayuan /American H ypertherm plasma power , higher working strength ,long time use. option 45A,65A, 105A.

7.Working area according to client's need option.

Technical parameter:

Model

ML-1313

ML-1325

ML-1530

Working  Area

1300X1300

1300x2500mm

1500x3000mm

Cutting speed

8-15m/min

Repeat positioning accuracy

±0.05mm

Process precision

±0.35mm

Motor

step motor

Cutting thickness

0-30mm (depends on power supply)

Power

8.5KW

Transmission model

Gear rack drive

Input voltage

3 phase 380V

Power supply

H ypertherm power supply/ Huayuan Power supply

Plasma current

LGK-63A.100A,160A,200A

H ypertherm --65A,85A,105A,200A

Cutting system

Beijing Start cutting system (English)

Transmission system

X,Y Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack

Support software

drawing software--CAD

nesting software--Australia fastcam

ctting path file--artcam, type3 etc

Guide way

Imported square rail

Table-board

Steel blade saw tooth mesa

Steel blade saw tooth mesa

Ray plug drives 860
(Sino-us joint venture large drives)

Working mode

Non-contact arc

plasma cutting machine /Plasma power cutting thickness

1. Import USA H yperther m welder,

45A cut less than 8mm carbon steel, Stainless steel 5mm；

65A cut less than 12mm carbon steel, Stainless steel 8mm；

85A cut less than 16mm carbon steel, Stainless steel 12mm；

105A cut less than 22mm carbon steel, Stainless steel less than 18mm；

125A, cut less than 27mm carbon steel, Stainless steel less than 20mm,

200A cut less than 32mm carbon steel, Stainless steel less than 22mm,

2. China HUAYUAN 63A or HUARONG 63A welder, cut less than 5mm metal,(Machine with DSP control system only can cut less than 2mm metal;)

HUAYUAN 100A cut less than 12mm carbon steel, 6mm stainless steel,

HUAYUAN 120A cut less than 15mm carbon steel, 8mm stainless steel.

HUAYUAN 160A cut less than 25mm metal,

HUAYUAN 200A cut less than 30mm carbon steel and aluminum, stainless steel less than 20mm,

HUAYUAN 300A cut less than 35mm metal.

Samples:

FRQ

1. how i can choose a suitable machine?

Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine

2.How can i get the machine?

CIF:

Almost finish production →order shipment and confirm shipping date→delivery machine to port of loading→declare at customs→shipping→delivery to port of destination.

FOB:

Almost Finish production→tell us your shipping agent contacts and confirm shipping date→delivery machine to port of loading→declare at customs→shipping→delivery to port of destination

DDP:

Almost finish production →order shipment and confirm shipping date→delivery machine toport of loading→declare at customs→shipping→delivery to port of destination-clearance-delivery machine to your place.
