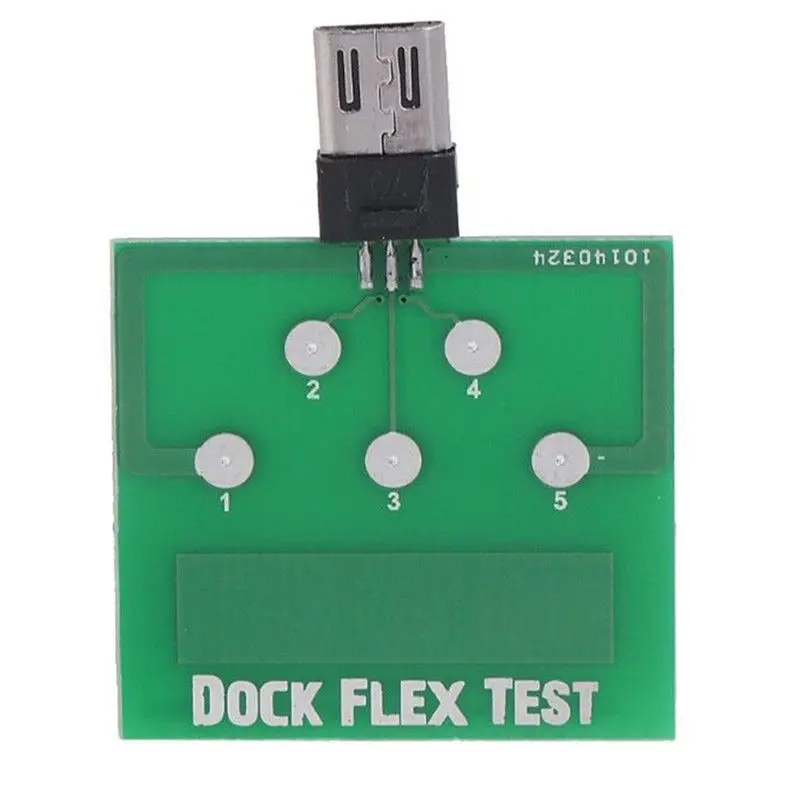

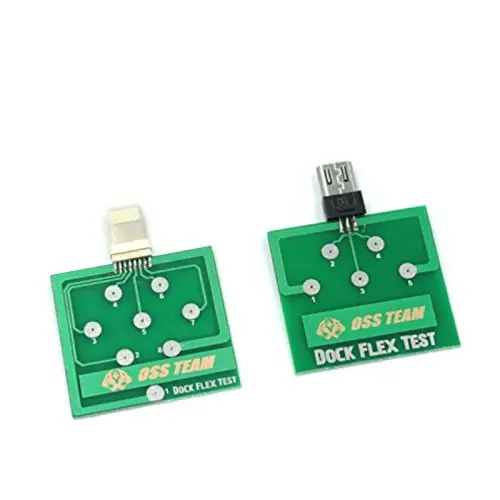

Professional Dock Flex Test Board Repair Diagnostic Tools for Mobile Phone U2 IC / USB Power Charging / Battery.

Compatible with: For Apple iPhone 5 5s 5c 6 6s 6Plus 6sPlus 7 7Plus 8 8Plus X IOS System etc.

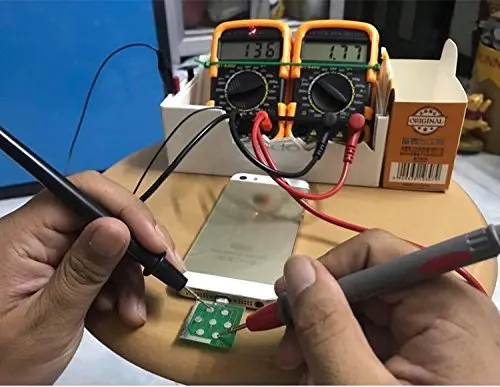

It is used for testing the mobile phone U2 IC, battery and charging port good / bad performance.

No need dismantle cell phone parts removal neccessory, you can plug the test board to tail plug directly.

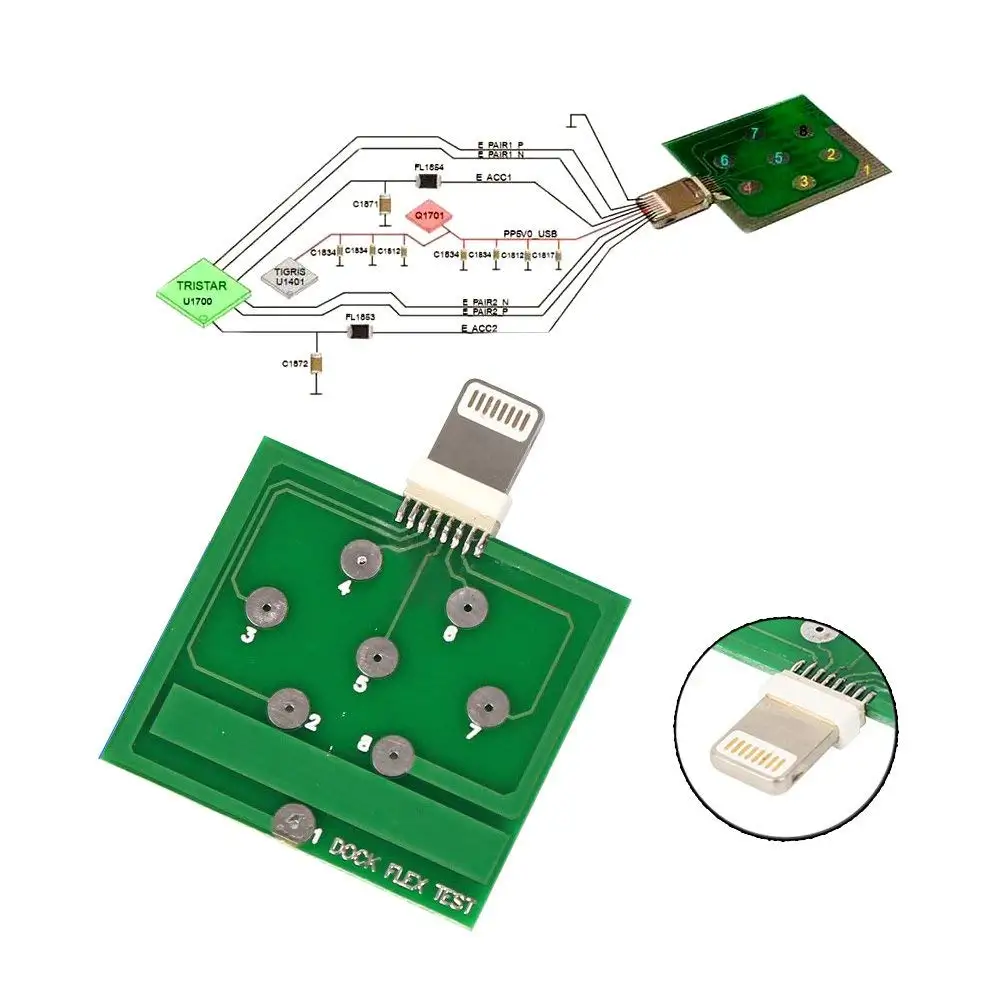

Pin Definition: 1- identification / control; 2- channel 1 negative; 3- channel 1 positive; 4- power / battery; 5- identification / control 0; 6- channel 0 negative; 7- channel 0 positive; 8- grounding.

Specification:

Material: Plastic

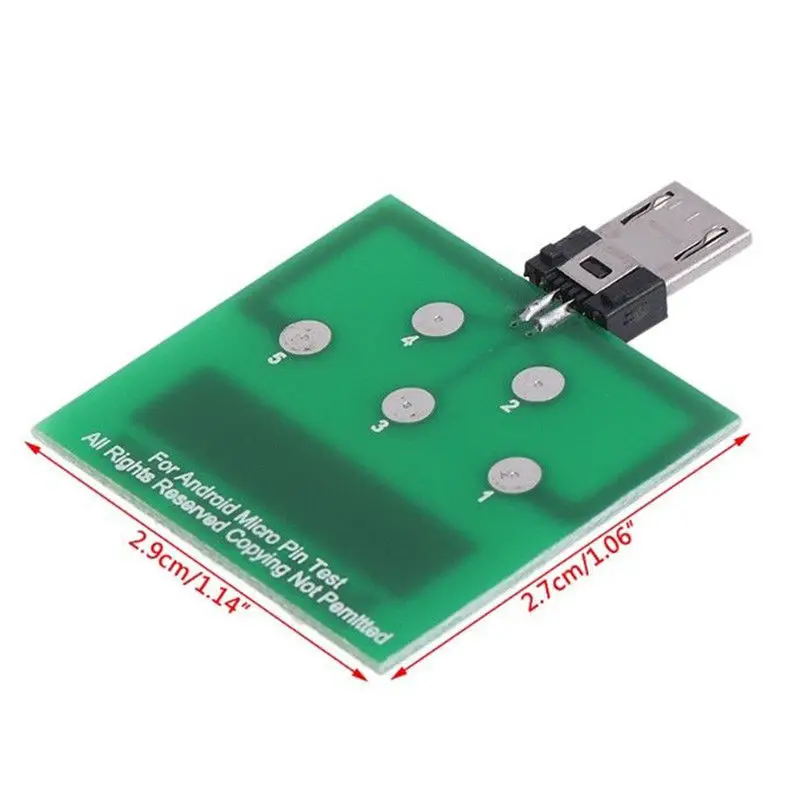

Size: 38mm*29mm/1.50inx1.14inch

Before purchasing, please check whether the products are compatible with your products; and after receiving, please check the packages as below, including quantity, color, and so on. If you have any problems, please contact us via eBay messaging at any time.

Package Includes:

1 Piece Phone Dock Flex Test

Note:

1.Please allow 0.1-0.3cm differences due to manual measurement, thanks.

2.Please understand because of the light irradiation or computer display difference, so I can't guarantee photos and real color is 100% the same.
