BJ-1 BJ-2 BJ-3 Intelligent Disintegration Time Limit Checker for checking solid preparations   【Product introduction】   The disintegration time limiter is a drug testing device for detecting the time limit of disintegration of tablets, capsules, and pills according to the Chinese Pharmacopoeia. Applicable standards: "Pharmacopoeia of the People's Republic of China" 2015 edition of the enterprise standard "disintegration time limit tester" Q / 12XQ0188-2013 Industry standard "disintegration instrument" JB/T20077-2005.

Technical indicators

BJ-1

BJ-2

BJ-3

Temperature prefabrication range

Room temperature ~ 50 ° C, display display resolution of 0.1 ° C

Temperature control accuracy

±0.3℃

Flat bottom beaker volume

1000ML

Timing prefabrication range

1min～900min

ime control accuracy

±0.5min

Working noise

＜60db

Number of lifting baskets

1 set

2 set

3 set

Basket lifting frequency

(30~32) Times/minute

Basket lifting distance

（55±1）mm

Minimum spacing from screen to cup bottom

（25±2）MM

Screen aperture

Standard 2mm, (0.425mm, 1mm aperture can be selected)

otal power

220V50Hz

Dimensions

(260*300*440)mm

(400*320*440)mm

(540*320*440)mm

weight

11kg

16kg

22kg

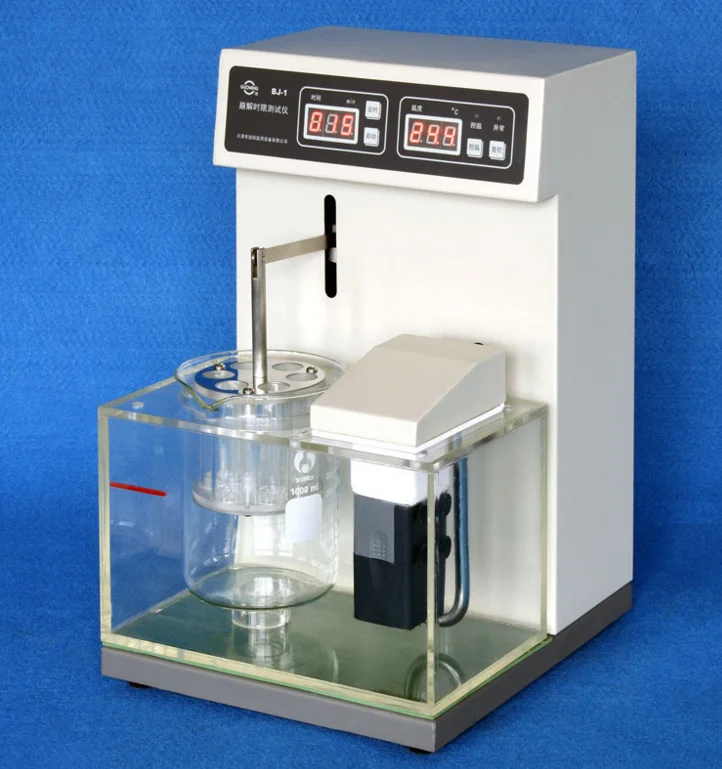

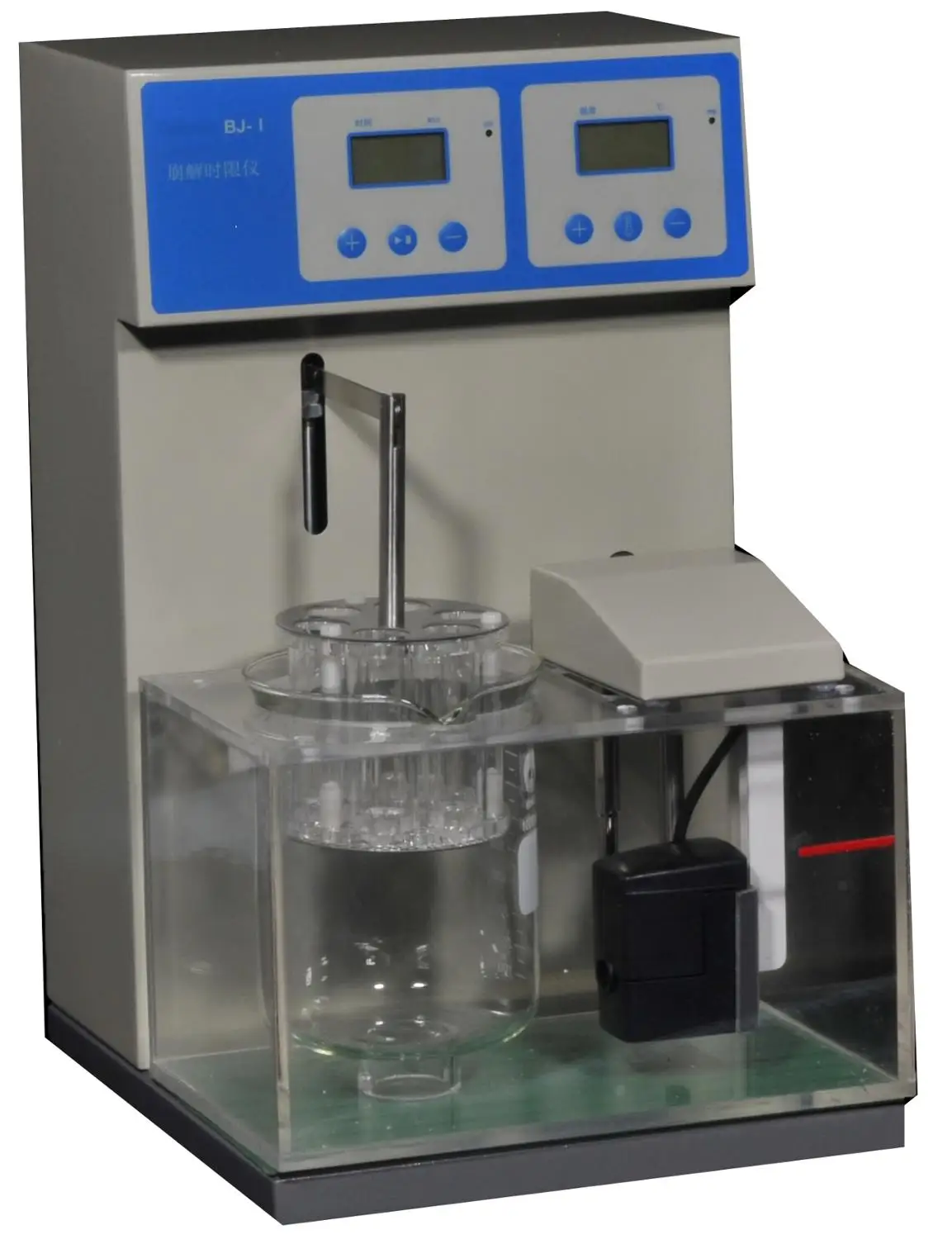

  Main features of BJ-1:   1 set of hanging baskets. 2 The instrument automatically controls the water bath temperature to 37.0 ° C (specified by the Pharmacopoeia). High-precision digital electronic sensor ensures high precision and high accuracy of water bath temperature without calibration. 3 The instrument automatically sets the lifting and lowering time of the basket for 15 minutes, and can also be reset at will. 4 Using computer control technology with single chip as the core, intelligently control two performance parameters of water bath temperature and working time. 5 The instrument has a monitoring water bath temperature overheat alarm and automatic protection.     Main features of BJ-2:   ◎ Double basket working position system to determine the time limit of disintegration. ◎ 2 sets of hanging baskets, which can be independently disintegrated. ◎ Electronic temperature sensor can display and monitor the temperature in each point and beaker in the water bath. The high-precision digital electronic sensor ensures high precision and high accuracy of the bath temperature without calibration. ◎ The instrument automatically controls the water bath temperature to 37.0 ° C (specified by the Pharmacopoeia). The preset temperature can be reset at any time. ◎ The instrument automatically sets the lifting time of the basket for 15 minutes, and can also be reset at will. ◎ Using computer control technology with single chip as the core, intelligently control two performance parameters of water bath temperature and working time. ◎ The instrument has a monitoring water bath temperature overheat alarm and automatic protection.   Main features of BJ-3:   ◎ 3 basket working position system to determine the disintegration time limit. ◎ 3 sets of hanging baskets, 3 channels running separately, can be controlled separately. ◎ Electronic temperature sensor can display and monitor the temperature in each point and beaker in the water bath. The high-precision digital electronic sensor ensures high precision and high accuracy of the bath temperature without calibration. ◎ The instrument automatically controls the water bath temperature to 37.0 ° C (specified by the Pharmacopoeia). The preset temperature can be reset at any time. ◎ The instrument automatically sets the lifting time of the basket for 15 minutes, and can also be reset at will. ◎ Using computer control technology with single chip as the core, intelligently control two performance parameters of water bath temperature and working time. ◎ The instrument has the function of monitoring the water bath temperature overheating alarm and automatic protection.
