industrial motherboard Intel Celeron N2930 RAM 4GB Onboard 4G Module For The SIM Card Italy | Компьютеры и офис

Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store Bulk Order !!! contact, whatsApp +86 13691870644 More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

Tablet PC Motherboard Intel Celeron J1900

Quad Core Processor

Orderssssssss!!!!!!​





  Product Description

The motherboard features Intelreg Bay Trail chipset, integrated quad-core Intelreg Celeronreg J1900 processor, Intelreg Seventh Generation graphics engine and media codec engine to provide enhanced image processing performance and 3D video performance. And with a wealth of I / O functions, widely used in ATM / KIOSK, POS, game and automation field of Tablet PC and digital signage.



Features Model Name PCM3-N2930 Mechanical Dimensions 156times119(mm) Power supply 9V-25V Watchdog timber 0-255s Net weight 0.45kg(Including heatsink) Thermal methods Fanless Working Temp Working Temperature:-40℃-80℃.Working Humidity:5% - 95% Storage Temp Storage Temperature:-40℃-80℃.Storage Humidity:5% - 95% System CPU Intel Celeron J1900,2.0GHz,10W

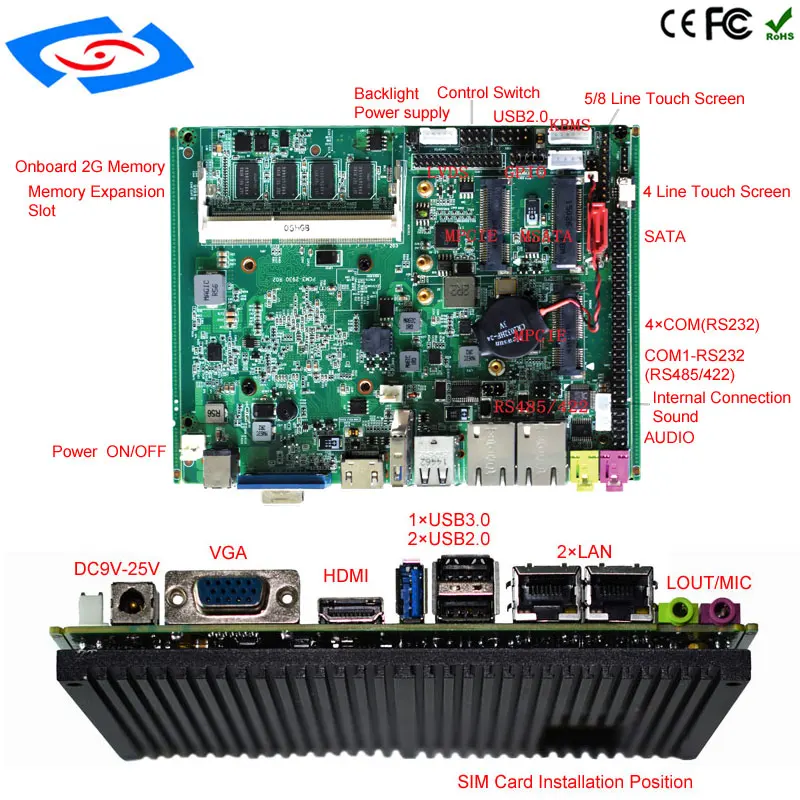

(Default) Intel N2930,1.83G,7.5W Chipset Intel Bay trail SOC Memory RAM Onboard 4G Optional DDR3 4G MAX 8G SATA 1timesSATA,1timesM-SATA/SATA System /Win7/Win8/Win10/Linux I/O Lan Integrate RTL8111G,2times10/100/1000Mbps RJ45 Serial ports 4timesCOM(1timesRS485/422 PIN,3timesRS232 PIN) USB Onboard 1timesUSB 3.0/2timesUSB2.0/Inner 2timesUSB 2.0(Pin) GPIO 1timesGPIO 8 Bits(4in/4out) PS/2 1timesKB/MS2 Inner connector Display Onboard 1timesVGA/1timesHDMI/1timesLVDS(18/24 Bits inner) Audio Onboard 1timesMIC-in,1timesLine-out,Integrate sound card ALC662,
2times2W AMP connector (inner) Touch function 1 (4/5/8 Wire) Others Fan connector, 2timesmin-PCIE(Wifi/3G/4G),1timesSIM slot Warranty 1timesGPIO 8 Bits(4in/4out) 12 months Order information Model Name PCM3-N2930 Standard Configuration Intel Celeron N2930 CPU Quad Core 1.83GHz/RAM 4G Onboard/
1timesVGA/1times LVDS (18 Bits)/3timesUSB/1timesHDMI/2timesLAN/2timesUSB(Inner)
1timesGPIO(8 Bits)/1timesSATA/1timesMSATA/2timesMPCIE/4timesRS 232/
1timesPS2/1timesSIM slot/AUD
Power connector (Pin)/Audio input and output port,Power hole(9V-25V) Standard Accessories Heat sink, Serial port extension cable,Sata cable,switch,Power connector Optional Intel Celeron N2930 CPU Quad Core Wifi/3G/4G/RAM 8G/SSD 16G/32G/64G

About packing:

1,Modular packaging,all motherboard are in box,scientific packaging design, each part carefully protected to ensure safe arrival.





About feedback:

1,If you are satisfied with panel PCS,please leave a positive feedback to us. Thanks in advance

2,If you are not satisfied for any reason,please contact us before leaving feedback,we will work with you to help you solving any problem until you are satisfied.

​
