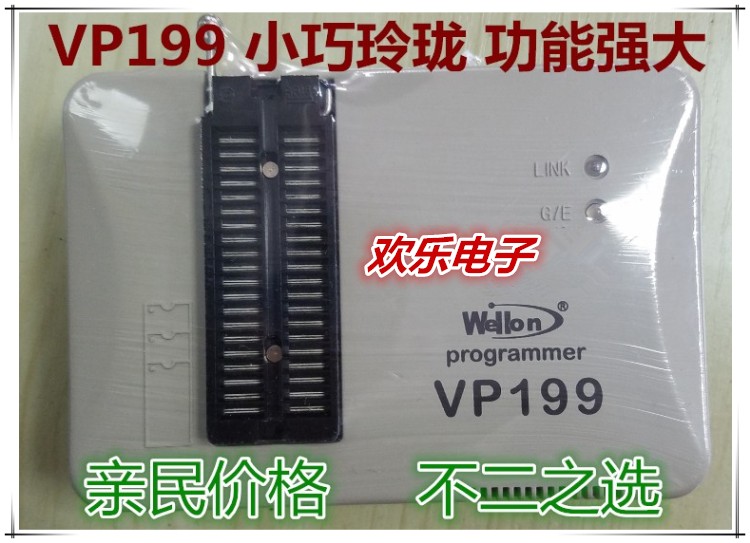

VP-199 is a high level universal programmer with high reliability, fast speed and high performance price ratio. Integrated menu interface, supporting 7 languages. Support WindowsXP/Vista/ Windows 7 (32bit and 64bit) operating system. It is very convenient to load, edit and save the files. It supports thousands of PLD, E (E) PROM, FLASH, MCU and other thousands of programmable devices produced by dozens of manufacturers. It can test TTL & CMOS standard logic device and memory. This programmer is suitable for electronic product development, batch burning chips and so on. The hardware characteristics of the programmer External size: 115 * 79 * 18mm; net weight: 130g. Power supply specifications: input AC 110-240V 50/60Hz output DC 9V/0.6A It adopts lead-free soldering, and the shell uses ABS material with flame retardant function which meets the environmental protection standard. The programming module can program or test 4 core to 40 pin DIP devices. Through the adapter option, we can support 4 core to more than 44 core packages. 40 pin lock socket. The algorithm is fully implemented by software, and the USB interface has the function of automatic online upgrading, which can effectively protect user investment interests. There is a perfect overcurrent protection circuit which will not damage the programmer due to short circuit of the chip. When connecting USB port communication, most chips can be read or written without external power supply. The built-in high-speed single-chip microcomputer automatically checks data to ensure system reliability. The software features of the programmer It supports 8 languages: Simplified Chinese, traditional Chinese, English, Italian, Holland, Korean, Poland and Portuguese. The chip data are very detailed, including package diagram, chip type naming and adapter data. The factory logo is provided in chip selection, which helps users to find chips faster and faster. Chinese and English online help system is convenient for users. The maximum capacity of the support chip is 8Mbit. Automatic identification of file format. It can automatically detect chip inserting, inserting faults, poor contact between pins and internal short circuit breakers. It has automatic programming function after setting chip contact reliability, and is convenient for mass production. The programming parameters can be modified, and the programming parameters can be determined according to the specific conditions of the chip. The serial number of the chip is automatically added. Choose the manufacturer according to the manufacturer's choice type or type according to the model, and select the device automatically. Fast buffer editing, block copying, block filling, high and low byte switching, string search and other functions. It provides flexible file and cache management functions. It can realize automatic file loading and memory cleaning, multi file splicing and loading. Support file format: JEDEC, BINARY, MOTOROLAS, TEKTRONIX, INTEL, HOLTEK, EMC (.CDS), INTEL HEX16 format. It supports automatic separation of byte (BYTE), word (WORD), and double word (DOUBLE WORD) format data files. TTL & CMOS standard logic devices can be tested. The model of the standard logic device can be automatically determined. The test vector editor contains a test library structure that is open to users. Users can add test devices themselves. Perfect self inspection function, and ensure the hardware is perfect. The programmer can be tested for function.
