KOPPACE 3.5X-90X Binocular Stereo Lndustrial Microscope Eyepiece WF10X/20 WF20X/10 Rocker Bracket Mobile Phone Repair | Инструменты

KOPPACE 3.5X-90X Binocular Stereo Lndustrial Microscope Eyepiece WF10X/20 WF20X/10 Rocker Bracket Mobile Phone Repair | Инструменты

Model

KP-7045-FLB-0390

Optical Enlargement

3.5X-90X

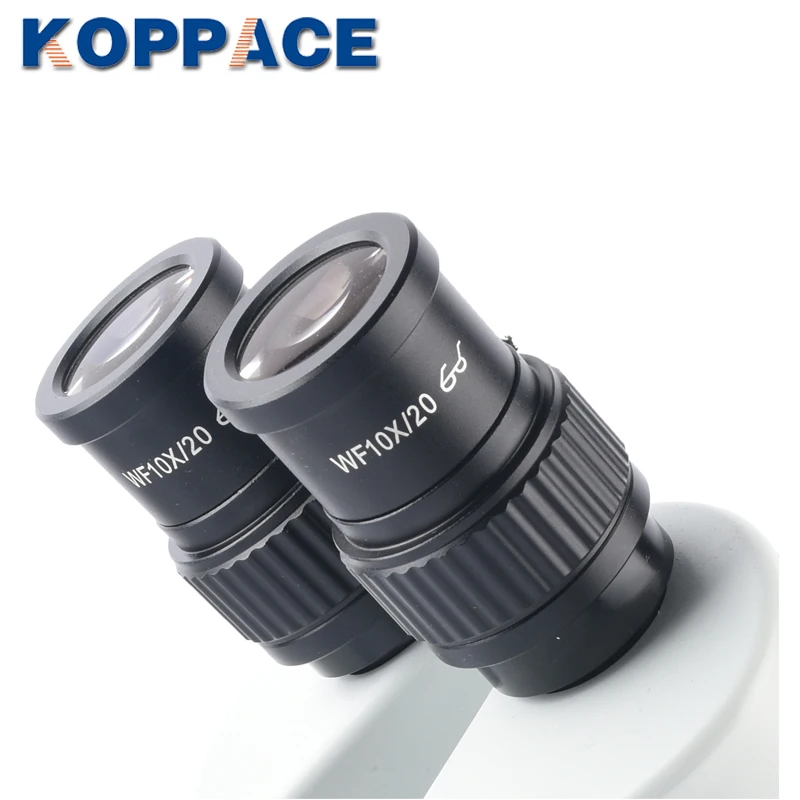

Eyepiece

High eyespots wide-field eyepiece WF10X/20,WF20X/10

Objective lens

0.7X-4.5X

Viewing Head

Binocular stereomicroscope view head  inclined at 45°.

The pupil distance adjusting range 54mm-76mm

Working Distance

100mm-165mm

Focusing bracket

Focusing handwheel tightness is adjustable,lifting range 50mm

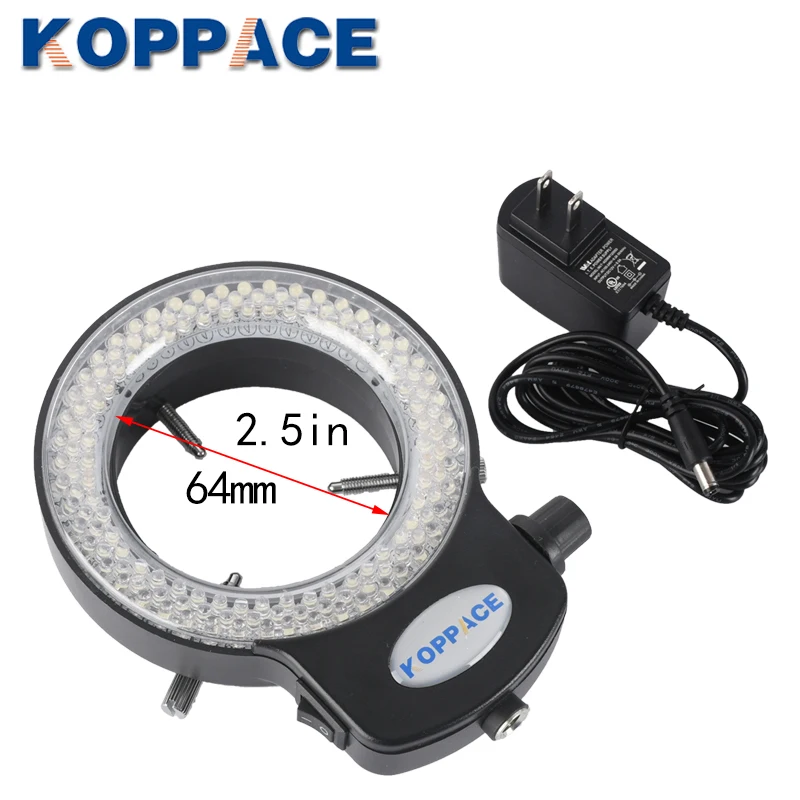

LED light source

LED Qty 144,Internal diameter size 64mm,Diameter size 94mm,Input voltage AC90—240V,Maximum output power 4.5W,Voltage 12V0.5A

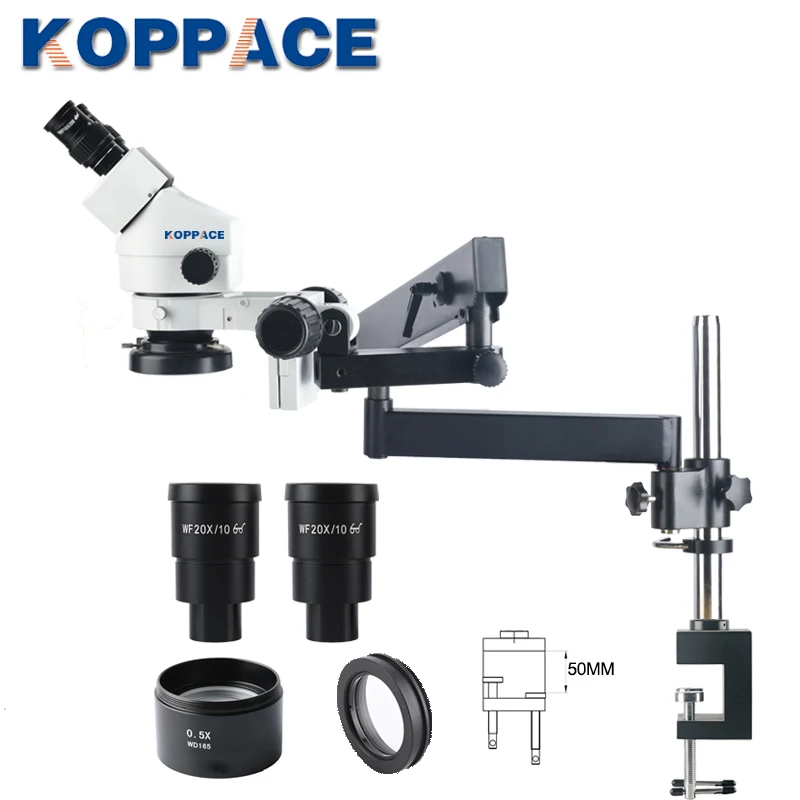

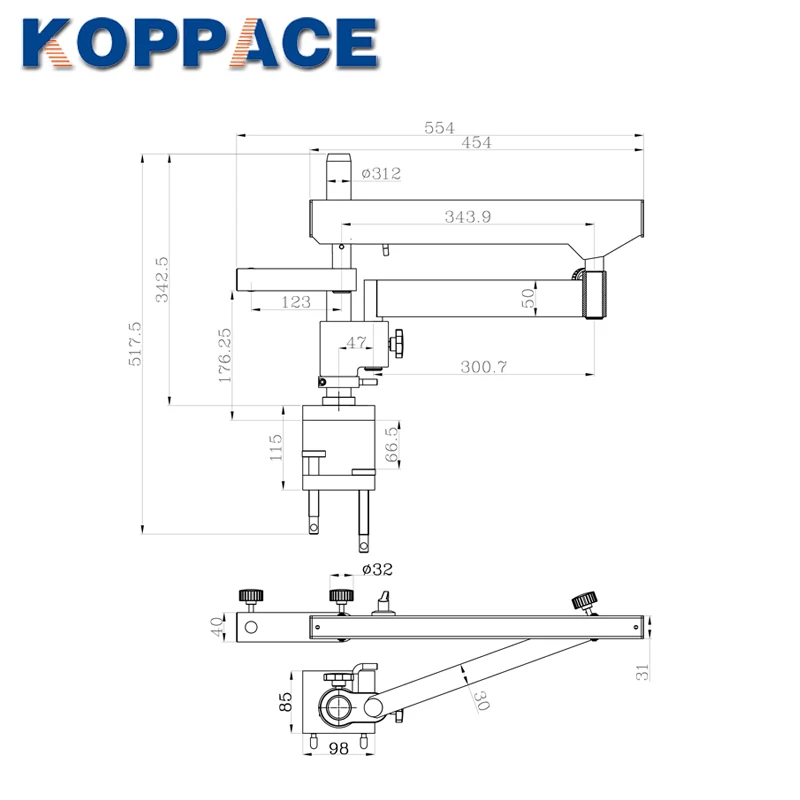

Rocker bracket

Column height 348mm,column diameter Φ32mm,vertical and horizontal joints
vertical double hole joint, cross arm type rocker arm,cross arm length 343.9mm,
 horizontal rotation range 360° rotation

Auxiliary lens

0.5X/165mm,1X oil proof mirror

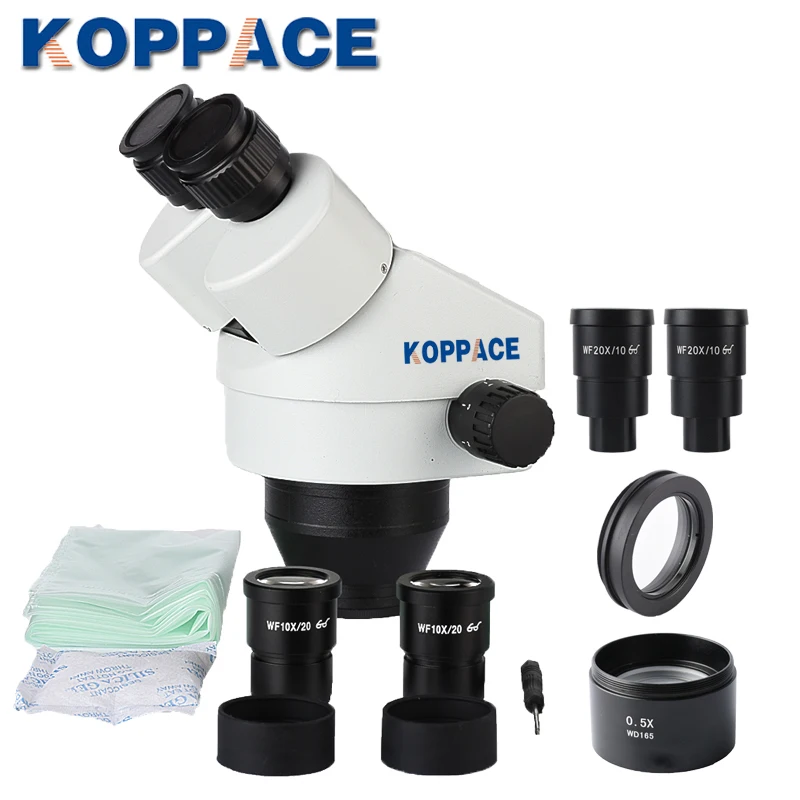

Packing List :
1、Eyepiece WF10X/20 one pair
2、Eyepiece WF20X/10 one pair
3、Focus rack *1
4、Eye guards one pair
5、0.7X-4.5X Binocular zoom lens *1
6、LED ring light *1
7、Rocker bracket *1
8、Dust cover *1
9、0.5X Auxiliary lens *1
10、1X oil proof mirror *1
