New product 1300*2500mm wood laser cutting machine on sale

Wood,acrylic,perspex,glass,stone,marble,gravestone,rubber,leather,fabric,paper,cloth,

MDF,plywood

1. 3mm Cold-rolled steel welded machine bed, strong and running stable.

2. Honeycomb: to process soft materials like cloth, paper, leather;

    Blade table:to process hard materials like wood acrylic MDF board.

3. The window is made to be fireproof, guaranteeing the security.

4. The machine adopts Reci laser tube, one of the best in China. The tube has a more stable beam mode and a long service time over 8500~10000 working hours.

5. The laser power can be adjusted from 75w -150w for engraving and cutting different materials and thickness.

6. Three reflection mirrors and one focus lens are imported from Singapore. High transmittance, good focusing capability make sure the high precision in cutting and engraving.

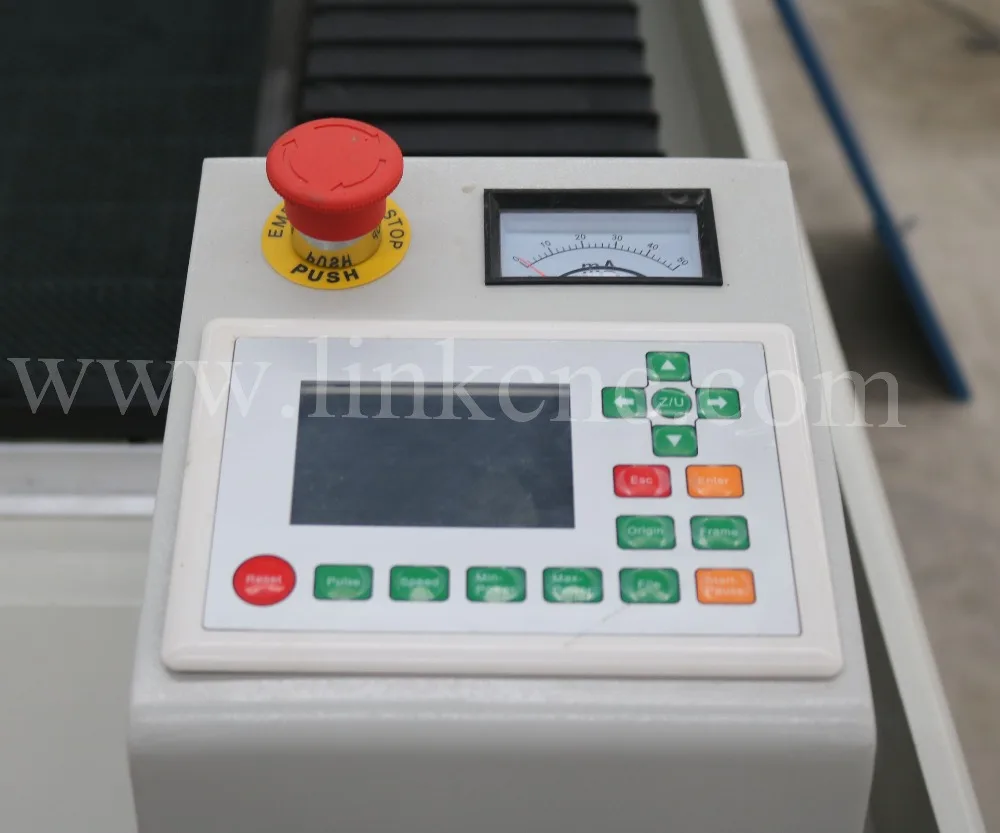

7. The machine adopts Ruida or Leetro Controller. USB interface supports online/offline working, English language system; the cutting or engraving route can be displayed on the screen.

8. The machine adopts yako driver and leadshine stepper motor. Servo motors are also available.

9. Transmission system includes taiwan linear square guide rails and taiwan dongfeng belt. The moving is ensured to be accurate and fast.

Name:

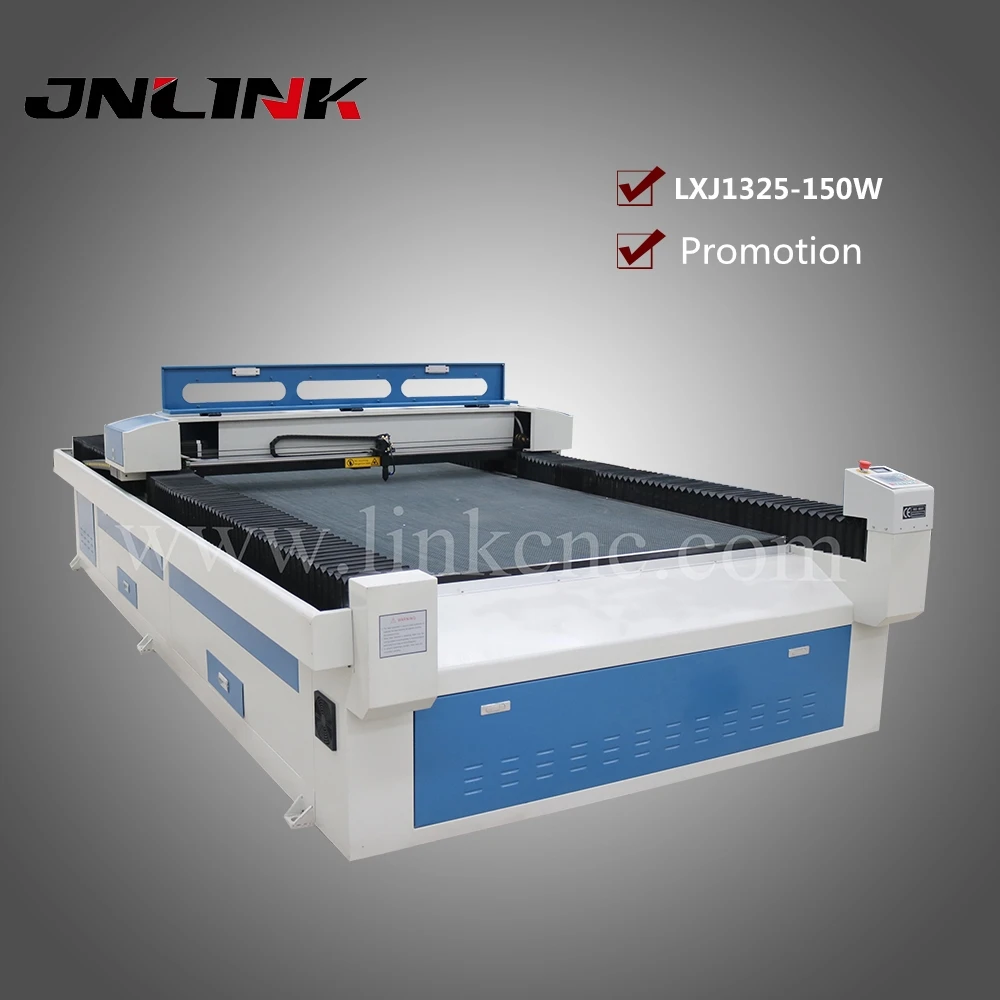

 laser cutting machine LXJ1325

 Processing area

 1300mm*2500mm

 Laser power

 Beijing Reci W8(150-180W)

 Laser type:

 Co2 glass laser tube

 Software:

 RDworksV8

 Machine Dimension:

 3650x1910x1080mm

 Engraving speed

 1000mm/s

 Cutting speed

 500mm/s

 Cutting thickness

 determined by materials

 Position

 4000DPI

 Position system:

 Red dot

 Interface:

 USB

 Resolution Accuracy:

 ±0.1mm

 Support graphic format

 DST, PLT, BMP, DXF

 Gross power

 1000W

 Driving mode:

 DC0.8A 24V stepper motor

 Cooling mode:

 Circulation water cooling

 Working voltage:

 AC220V/50HZ or 110V/60HZ or depend on customer

 Operating temperature

 0-45C

 Operating humidity:

 5-95%

 Packing:

 wooden box

 Guarantee time:

 2 year

Pre-sale

1)Professional sales team and engineer team provide professional technical Support

2)18 hours on line service each day,you can contact us by Alibaba Trade manager,Email,Whatsapp,skype,Wechat ,Phone number,and so on.

3)Test video and Sample support

4)OEM support

5)Certificate support: CE, FDA, FTA

In-sale Service
1)In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish , our engineer will make 24 hours test constantly and ensure the machine reach to the best performance.

2)Shooting working video and machine pictures for customers’ confirmation.

Shoot delivery video , parts pictures in every detail and save on file so that our after sale team can help customer solve question faster

After-sale

1.2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge

when if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.18 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk and manual was included. If there is also any questions, pls kindly tell me

Q:How long is the delivery time?

A: For standard machines ,it would be 7-12 working days ,For non-standard machines and customized according to clients specific ruquirements, it would be 15 to 30 days

Q:How about the documents?

A: After shipment, we'll send all orginal documents to you by DHL,including, packing list, commercial invoice ,B/L ,and other certificates as required by clients.

Q: How about Guarantee & After Sales Service?

A:1)The machine guarantee is 24 months. 2) 24 hours technical support by phone, email or skype etc.

Q:If some problems happened to this machine during warranty period,what should i do?

A: We will supply free parts in machine warranty period if machine have some

problem.While we also supply free afterservice forever, so any doubts,just let us know,

we will give you solutions in 24 hours.

Q:I want more information abou the machine,what should I do?

A:You can contact me online.,or send me the email,I will wholeheartedly at your service!
