Stepper motor servo governor pulse generator controller knob speed adjustment set | Motor



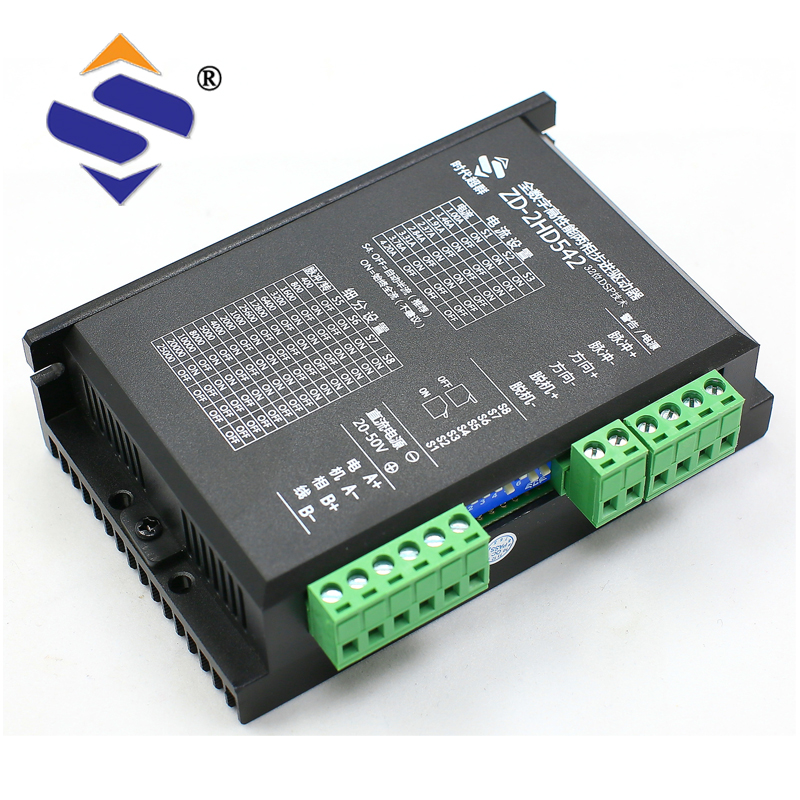

Wiring diagram

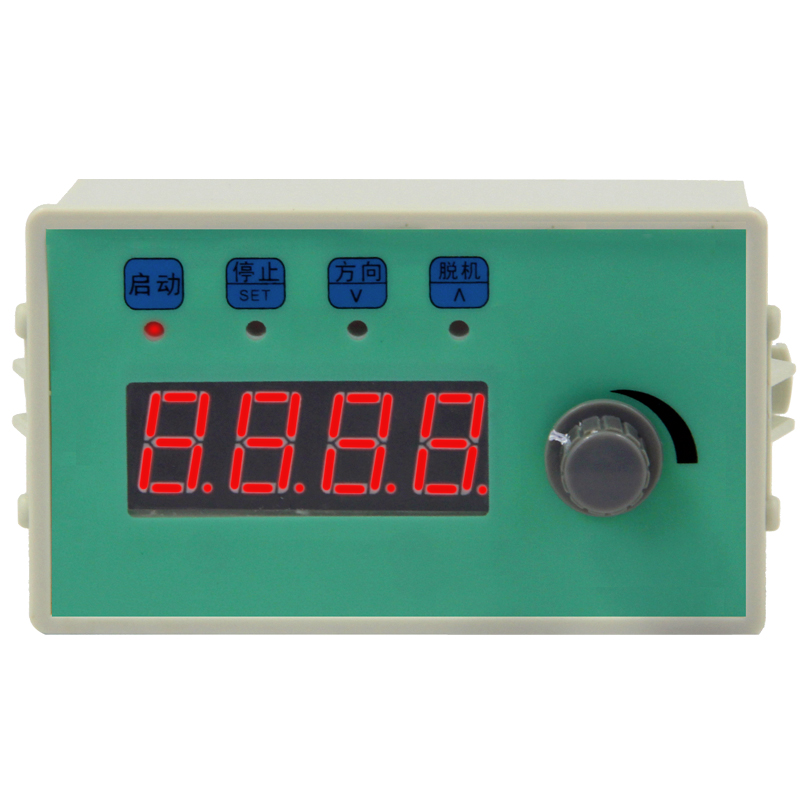

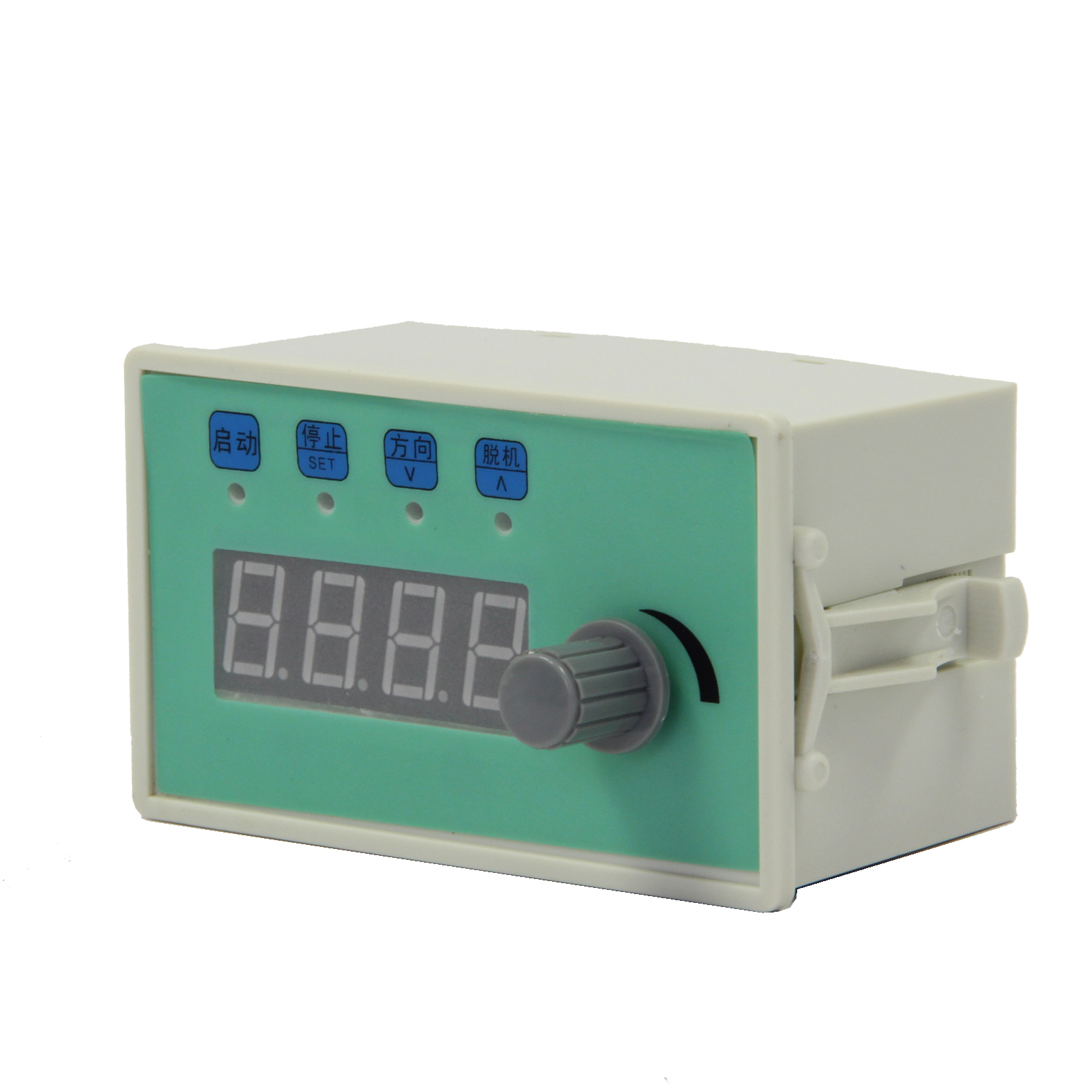

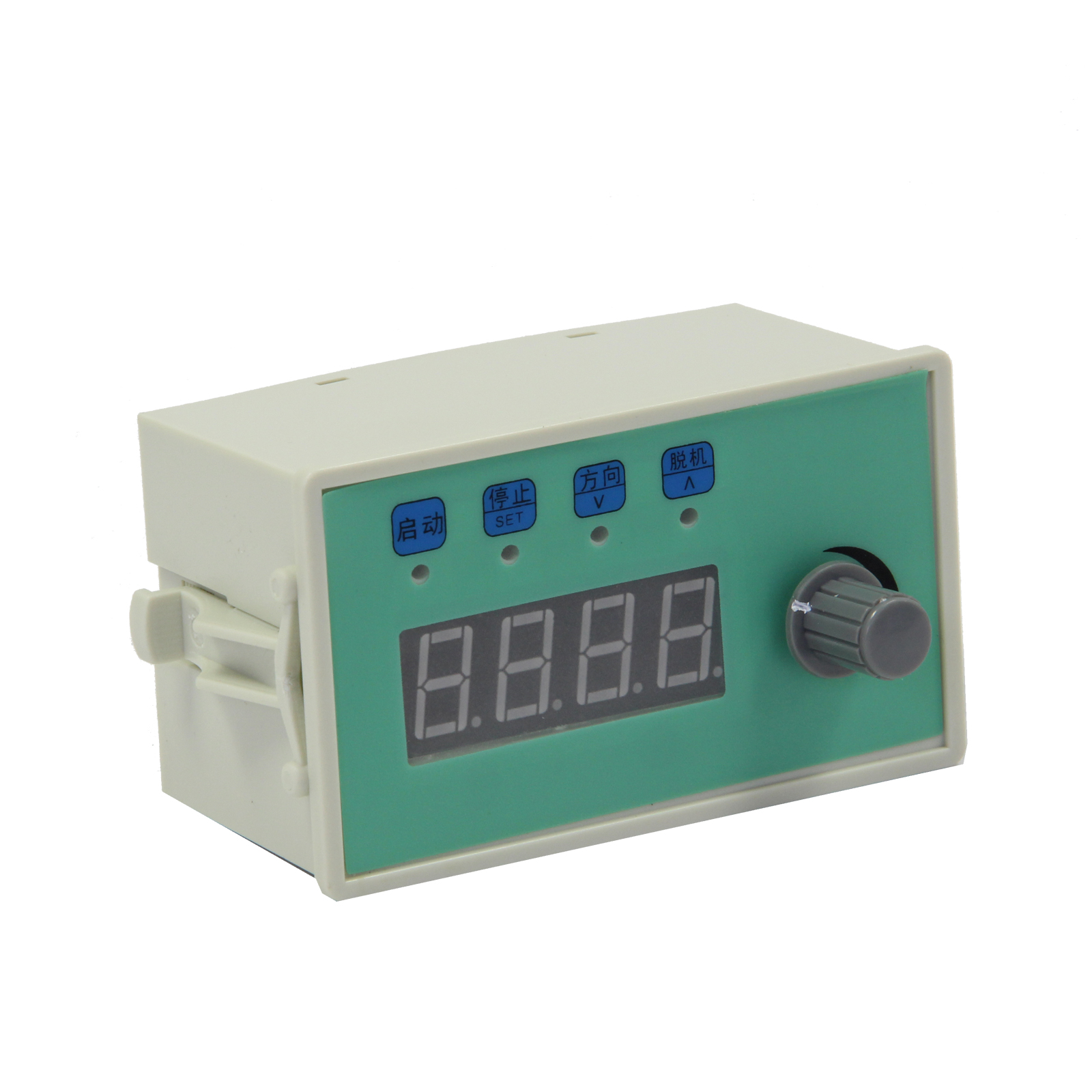

Product introduction CS10-3 pulse generator can control stepper motor, servo motor, motor speed 0 0-1000 turn per minute, square wave, infinitely adjustable. External connection Open and stop, direction can achieve external control. It has the function of speed regulation and fixed length. Operation description 1. shows: in the running state or stop state, the digital tube displays the current speed value, the unit turns / divides. Setting the parameter code or parameter value of the state display settings. 2. parameter settings: in the stop loading state, the long button, ACC, and then press the key to appear ACC parameters, press and key to modify, modify the confirmation, back to the ACC state, key button Appear tAb, press Modo again, press Model again, press back to ACC parameter and set ACC, press button to exit. The parameters are set to the stop state, ACC acceleration setting (1-99) 1 fastest, 99 fastest, load reset slower, default value 5 TAb fine fraction setting (1-64). This value is set according to the driver, and should be consistent with the driver setting. The speed displayed when setting the same is true. Intertime speed, default value 10. Mod0 mode 0 (0-1) is set to 0 when the power on is stopped, set to 1 when power on is running, the default value is 0. Mod1 mode 1 (0-4) default value 0 0 the connection terminal 3 is connected to start, disconnect and stop, and the direction is terminal 4. 1 wiring terminal 3 Click to start, then click stop, the direction is terminal 4, click stop. 2 the wiring terminal 3 starts by pressing, and the terminal 4 is pressed to stop. 3 connecting terminal 3, press the positive turn to start, press again stop, press line 4, click reverse turn on, then click stop. 4 the connection terminal 3 is connected to the positive turn start, the disconnection stops, the wiring terminal 4 is connected to turn on the start, the disconnection stops. Mod2 mode 2 (0-3) 0 speed control, 1 fixed length control, 2 continuous control, 3 round trip control, default value 0 In the fixed length mode, the stop state is set P-01 by stopping key, and the long stop button is d1A, D1b. In the continuous mode and the round trip mode, the stop state is pressed by the stop key to set P-01, P-02, P-03 In speed control mode and round trip mode, the X1 and X2 limit is valid, and the direction will be reversed. P-01 length value, pulse number =P-01*d1A/d1b doub: multiplying set default 10-1000 turn adjustable The P-02 delay value is set to 20-2000 turns in unit milliseconds. P-03 times, continuous running sub value set to 30-3000 turn adjustable. 3. operation instructions: the panel starts or the external terminal starts, and the governor adjusts the speed when running. If the panel stops or the external terminal stops, the stop will display 0. If the stop state needs to be displayed, the current adjustment speed of the potentiometer should be displayed. You can press the offline key, when the offline light is on, stop the state, adjust the potentiometer to modify the speed value, change the direction, press the key in the direction of the panel. External connector

---
