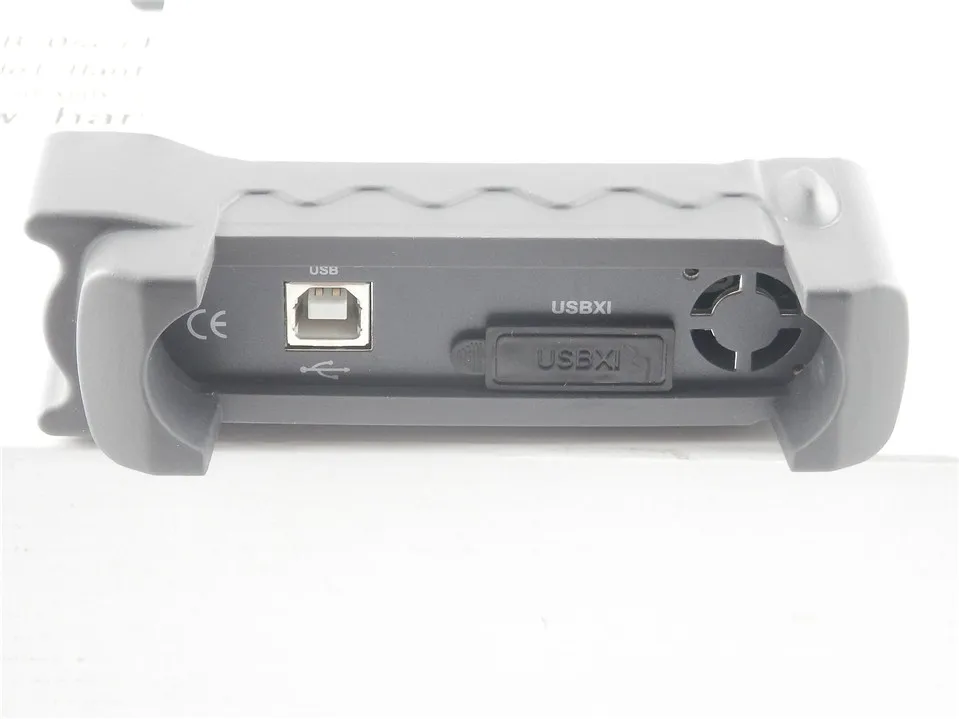

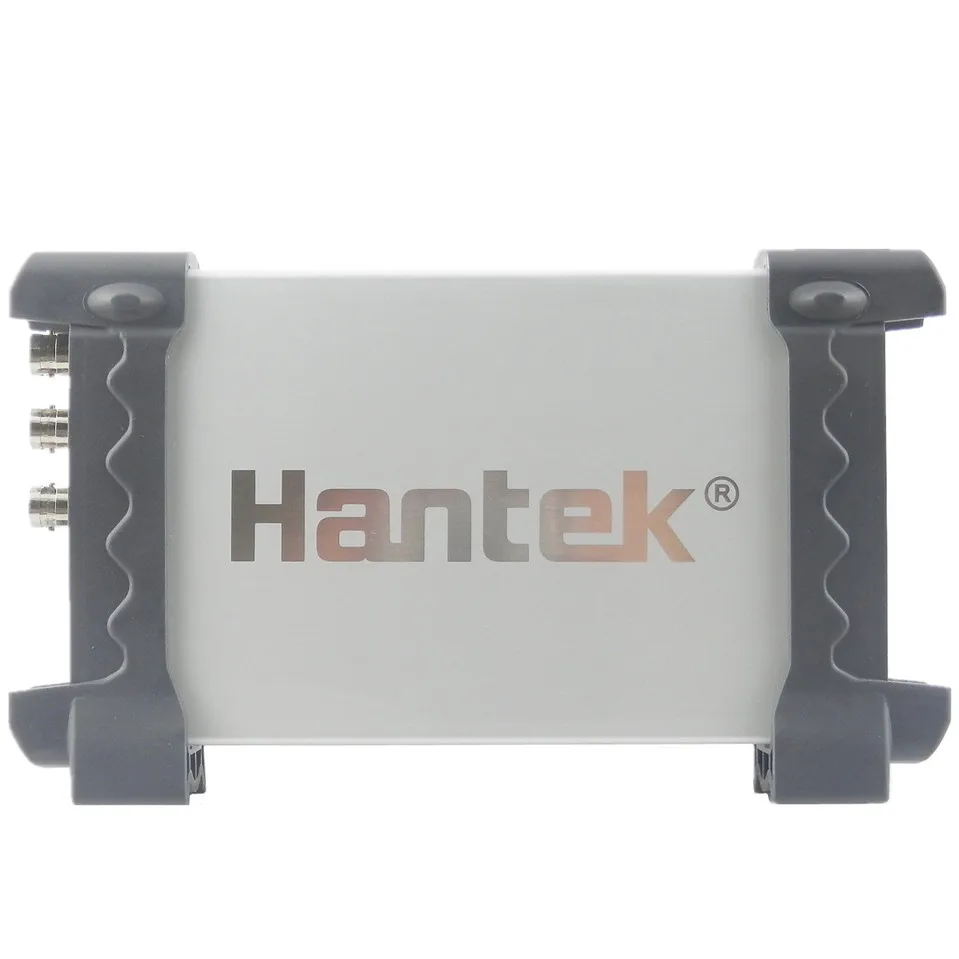

6082BE Hantek Automotive Oscilloscope USB 2Channels Digital Oscillograph 80Mhz PC Based Oscilloscopio Portatil Diagnostic-tool 1.Features: *Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.  *Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.  *USB2.0 interface, no external power source required, easy to use.  *Be suitable for notebook computer, product line maintenance,be used easily on business.  *Dimensions (mm):205(L) x120(W) x35(H), be carried easily.  *High performance, 250MS/s real-time sampling, 80MHz Bandwidth,  *Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.  *23 measurement functions, PASS/FAIL Check, be suitable for technical application.  *Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.  *Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.  *FFT  *One computer can connect many DSO, extend channel easily.  *Labview\VB\VC\Delphi\C++Builder Second Design instance.   2.Software: Operating system: Windows 7,8, Windows NT, Windows 2000,Windows XP, VISTA 3.Second Design: Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support. 4.Specification: Channel 2 Channels Bandwidth 80MHz Input Impedance 1MΩ 25pF Max. Sample rate 250MS/s Coupling AC/DC/GND Vertical resolution 8Bit Gain range 10mV-5V, 9Steps DC accuracy ±3% Timebase range 4ns-1h, 38 Steps Vertical adjustable Yes Input protection Diode clamping X-Y Yes Autoset Yes (30Hz to 80MHz) EXT. input Yes Trigger Mode Auto, Normal and Single Trigger Slope +/- Trigger level adjustable Yes Trigger Type Rising edge, falling edge Trigger Source CH1, CH2, EXT Pre/Post trigger 0-100% Buffer size 10K-64KB/Channel Sampling selection Yes Waveform Display port/line, waveform average, persistence, intensity Network Open/Close Vertical mode CH1, CH2, Dual, ADD Cursor measurement Yes Math FFT, addition, subtraction, multiplication, division. Cursor Frequency, Voltage Data Samples 10K-64K/Channel Accessories S/W CD, probes, manual, USB cord Package (airbubble envelop): 1 x 6082BE oscilloscope 2 x oscilloscope probe 1 x USB cable 1 x CD (manual etc.)
