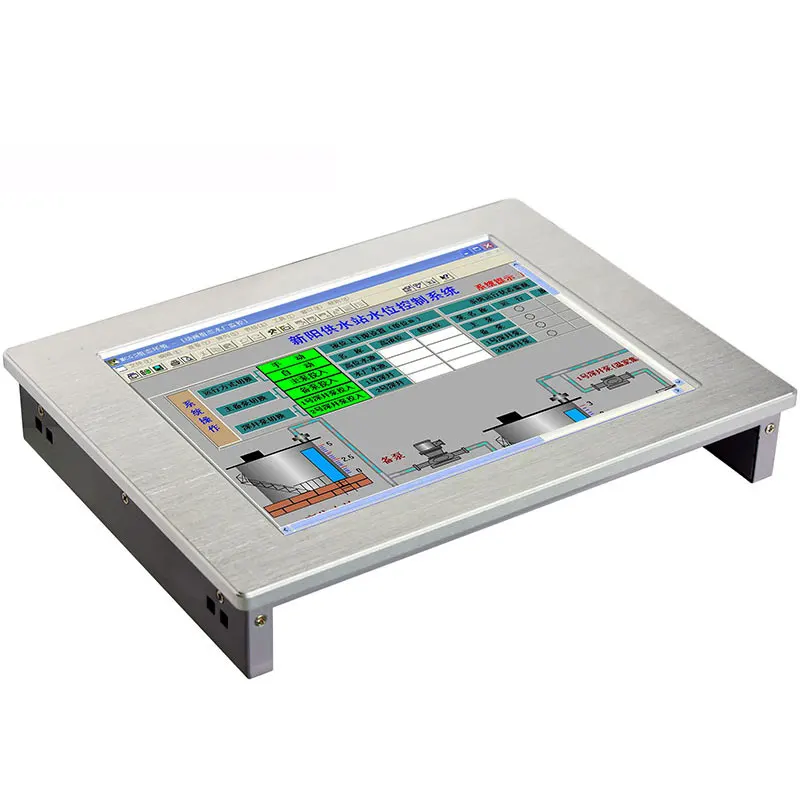

12.1 Inch Fanless Industrial Panel PC With Resistance

 Capacitive Touch





  Product Description   1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape, no cable is good at shockproof, and high performance at low power consumption, can be used in hard environments. It supports wireless 3G/WIFI for optional .   2. With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multi-solt and easy to expand characteristics, so it is widely used in industrial control,vehicle control, environmental control ,Miliary control,Monitoring system,Network security,Digital signage,Date storge and other automation applications.   3.With 12.1inch resistive touch screen, brightness and contrast can be adjusted, and also have standby energy saving mode.It with integrated industrial-grade low-power embedded motherboard, support Windows XP(Pre-install), Windows XP/ win7 system ,CF,HDD,SDD, multiple I/O interfaces.     Features Model Name PPC-121P Display Size 12.1" Resolution 800×600 Brightness 350cd/m2 Contrast 400：1 Touch Screen 5-wire China Resistive Touch Screen LCD screen Industrial LCD Display System CPU Intel Atom N2800 Dual Core 1.86GHZ CPU Power Consumption 6.5W Chipset Intel Atom N2800+NM10 Memory RAM Onboard 2G DDR3 2G MAX 4G Storage SSD 32G（Up to 64G/128G/256G），Optional 2.5 Inch SATA HDD 320G/500G/1TB etc. System XP/Win7/Win8/Win10/Linux I/O Lan 2×10/100/1000Mbps RJ LAN,Lan chip RTL8111E Serial Port COM1×RS485/RS422（default RS485 with Optical isolation）;
COM2-COM3×RS232/485（default RS232）；
COM4×RS232（optional add 2 RS232） USB 4×USB2.0,（optional add 2×USB2.0） Display Integrated Intel GMA3650，1×VGA、1×HDMI Audio Integrated ALC662, optional 1×MIC-in,1×Line-out/2W Built-in speaker Others 1×GPIO（optional）, 1×LPT（optional）, 1×PS/2（optional） Patulous Option 1×SIM，2×min-pcie(WiFi/3G Optional） Watchdog Timer 1-255s，Programmable Thermal methods Fanless Consumption Less than 20W Working Temp. -20℃-60℃，Humidity 5%-90%（Non-condensing） Storage Temp. -20℃-60℃，Humidity 5%-90%（Non-condensing） Power Wide voltage 9V～25V，12V/5A Power adapter Switch ON/OFF Switch Shell Material High-strength aluminum brushed pane;IP65；Spray painting Color Silver Net Weight 3.95kg Installation Embedded mounted、VESA rack mounted Dimensions(mm) 344×263×55.7 Hole size（mm） 314.4×239.6 Warranty Warranty 12 months Order information Model Name PPC-121P Standard Intel Atom N2800 Dual Core CPU 1.86GHZ/RAM 2G/SSD 32G
Win7 32Bits OEM/4×USB/4×COM/2×LAN/1×VGA/1×HDMI Accessories 12V/5A Power Adapter，Power Line，4 Sets Embedded Install Button,RS485 Connector Optional RAM 4G/SSD 64G/128G/256G  3G/WIFI  LPT/PS2  Audio
Built-in speaker etc.







About packing:

1,Modular packaging,all Panel PC are in box,scientific packaging design, each part carefully protected to ensure safe arrival.
