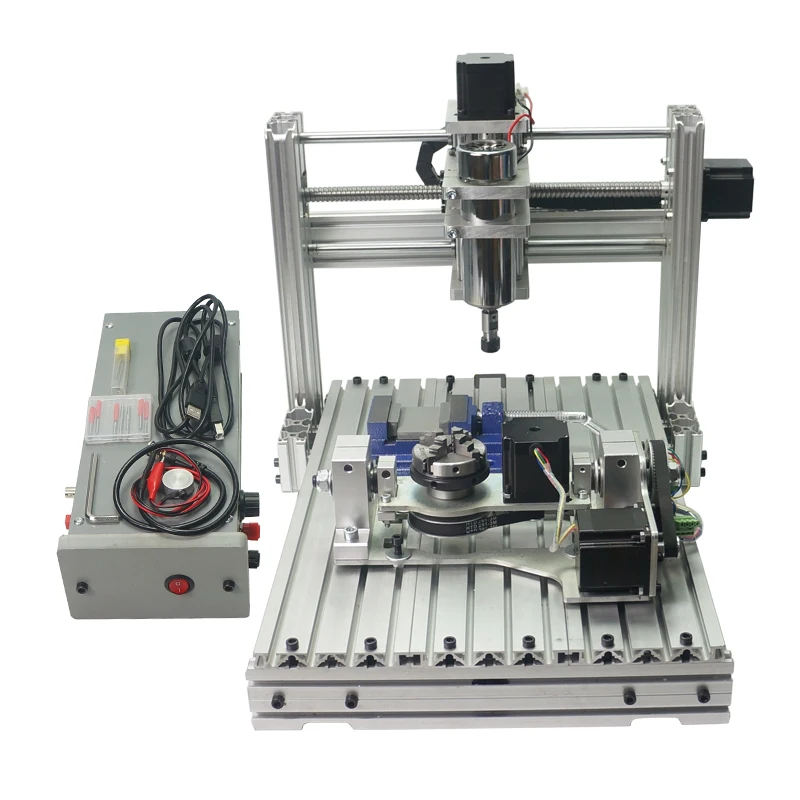

400W CNC Engraving Milling Machine DIY 3040 5 axis Router for Woodworking | Инструменты

400W CNC Engraving Milling Machine DIY 3040 5 axis Router for Woodworking | Инструменты

CNC Router Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

CNC Router Warranty

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty

CNC Router Model and Technical Parameters

MODEL

3040 metal

Attribute

5axis

Axis

5axis

Interface

USB Port

Spindle Motor:

400W

Weigh

35

Max. working stroke

XYZ=290*390*95mm

Acceptable material thickness

≤120mm

Rail type

X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis

Spindle motor

400W  DC spindle , 0-9000r/min

Collet type

ER11,1/8"(3.175mm) Collet

Stepper motor and drive

57HS56

Repeat positioning Accuracy

0.02mm

Communication interface

USB Port

System requirements

Win-XP / Win 7 Win 8 Win10

Software Co

patability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt

Machine weight

35kg

5 Axis

Description:

Optional:

3 Axis

4 Axis

The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N)

The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N)

Four jaw chuck 60MM

The clamping: Positive direction:40mm; In the opposite direction:70mm

Fourth axis Center height: 55MM

The fifth axis higher than the 4th axis 44 mm

Bottom fixed hole distance: 150mm x 85mm
