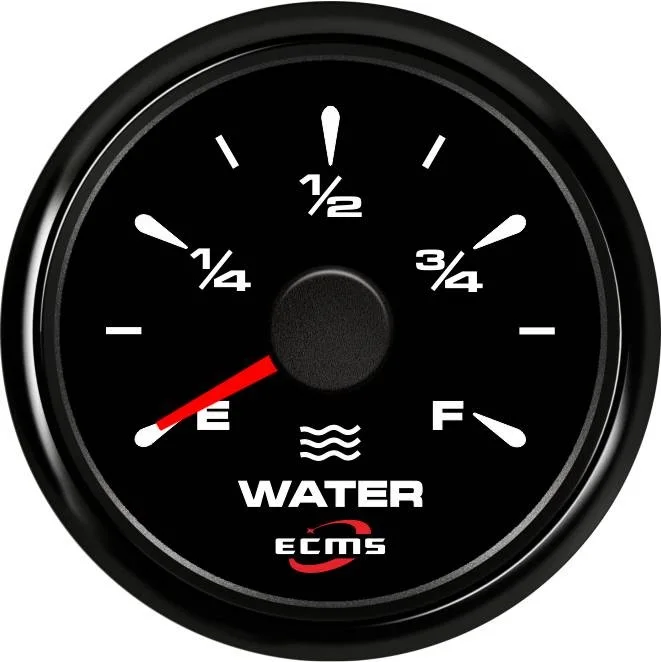

New Design Marine Boat Yacht Automotive Water Level Gauge E-F 9-32V 52mm 2 Inch 316L Black Bezel Black Dial 802-00010

ECH Series Gauge Features:

316L stainless steel for long-term use even in acid-base, humid environment.

IP67 waterproof and dustproof grade

Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision.

With curved glass (with anti-fog function)

With ultra-wide working voltage design (long-term operating voltage: 9-32V,

Maximum up to: 36V (≤ 1 minute).

Gauge with multi-color LED light of back-lit illumination (red, yellow, green, blue, purple, white), can be customized according to customer's requirements

Products can be used in the engines / generator, engineering machinery, agricultural machinery, automotive modification, etc.

Specification:

Brand: ECMS

Part Number: 802-00010

Installation Diameter: 52mm 2 Inch

Working Volt: 9-32V

Range: E-F

Bezel: 316L stainless steel

Bezel Color: Black

Dial Color: Black

Operating Voltage:9~32VDC,

Operating Current:≤100mA(24V);

Operating Temperature:-30~+75℃

Storage Temperature:-40~+85℃

Gauge connection wiring is supplied

Gauge owner’s manual is supplied

Backlight Color Adjustment:

1)Press the Set button (less than 1 second) to change the backlight color: Backlight changed in sequence: red (default) →

green → blue → white → yellow → yellow green → orange → Purple → (automatic).

2) Automatic: As the gauges was set with the automatic, the backlight will be off for 2 seconds then lighten up, and will switch the

backlight color as above sequence.

Users could select the input resistance as down below operations if you have Fuel /Water/Sewage level gauge. Hold the Mode button for 3 seconds to enter the setting mode, back light flickering for a while. The needle point at the ''E'' position, and you could select the corresponding parameter via pressing the button as down below form.
