 CE standard portable cnc plasma cutting kits machine 1300*2500mm

* Advertising CNC Plasma Cutting Machine adopt bench-gantry structure, welding after the vibration aging treatment to eliminate stress, so that in the long-term use of no deformation;

* All mechanical drive system using rolling bearings and precision machining accuracy as 6 GB of precision gears mesh with the rack

* Planetary reduce drive system, its input and output error of only 16 arc minutes, at the same time, in the horizontal and vertical structure of the gear drive, an increase of automatic clearance compensation device so that it can accurately drive the structure of the implementation of the directives issued by the CNC

* Take the initiative to end beam: vertical track for the introduction of automatic clamping device-oriented structure and there is no eccentric clamping structure, relying on automatic detachable power-oriented structure to make it two. In the track combined with the smooth running of the department will not have a wheel clamp tight or lax-phenomenon.

Applicable Industries: heavy industries, pipe, sheet plates, shipbuilding industry and other industries
Applicable Materials: steel, iron, copper, galvanized sheet, plated steel and other electrically conductive material.Used for cutting plane to be equipped with rotation (extra billing).

Model

LXP1325

Working area

Cutting method

Plasma cutting / Flame cutting

Plasma power

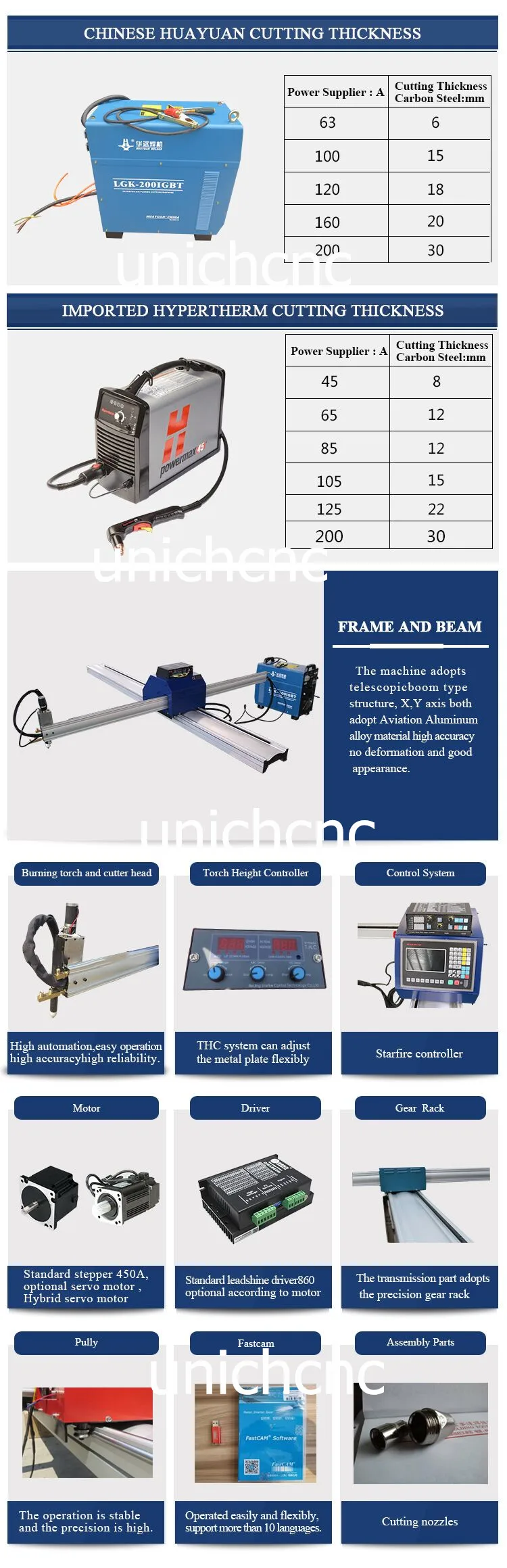

Chinese Huyuan 63/100/120/160/200A

(USA hypertherm 45/65/85/125/200A for choose)

Control system

Starfire controller and torch height controller(THC)

Fastcam

Cutting thickness

 0-30mm according to different plasma laser power

30-150mm flame cutting

Resolution

0.03

Repeatability

0.05mm

Max running speed

0-32000mm/min

Max working speed

0-10000mm/min

Stepper motor and leadshine driver

Command

G code (*uoo,*nc,*mmg,*plt)

Working supply

380V, 3 phase,50/60HZ(220V for option)

Guarantee

2 year

Optional

Rotary / Drilling head

We have posted many products to worldwide safe and sound, including USA, Europe, Eastern Europe, South America, Middle East and so on. When our customers receive the our machine, they operate the machine for a long time, they send their feedback to us.

JINAN UNICH MACHINERY CO., LTD is mainly engaged in research, development, manufacture and sales of CNC equipments. Our main products include: CNC router, laser engraving machine, plasma machine etc. Besides we can produce machines according to your special requirements in this field.

1. 2 yearsquality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if there is any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

5. On line service each day, free technical support.

6. Machine has been adjusted before delivery , operation disk was included. If there is also any questions, please kindly tell us.
