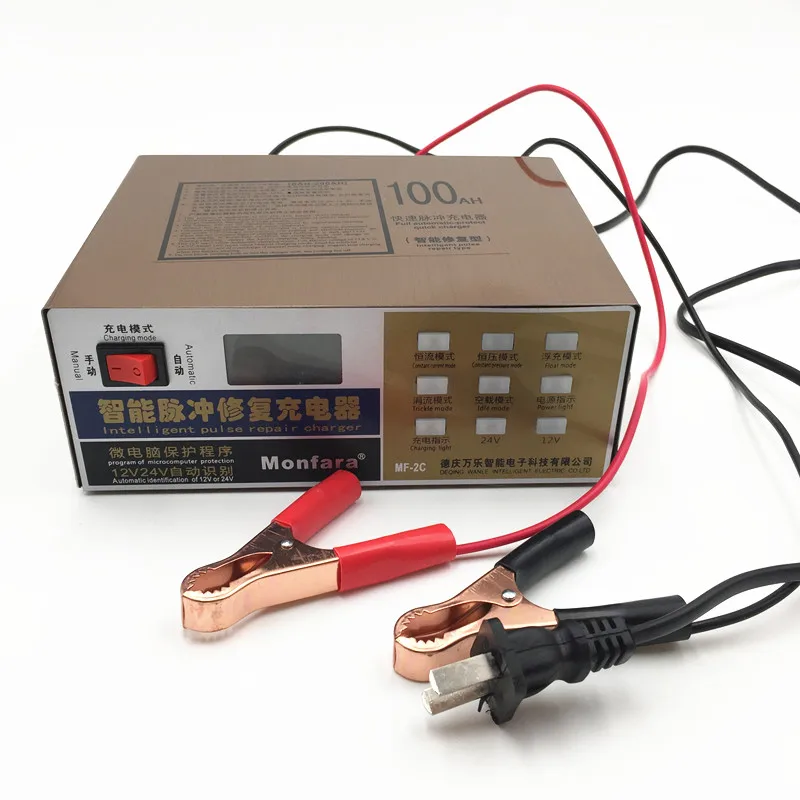

Automatic 12V/24V Car Battery Charger LED Display 5-stage Intelligent Pulse Repair for All Lead Acid 20-100AH | Мобильные телефоны

Automatic 12V/24V Car Battery Charger LED Display 5-stage Intelligent Pulse Repair for All Lead Acid 20-100AH | Мобильные телефоны

Introduction of 5-stage mode

No-load mode: when there has no load connected with charger,the LED Screen will show voltage only,the power is about 2W;

Constant current: means the battery voltage is lower than the set voltage of charger,then the charger supply constant charging current to maintenance both battery and battery charger;

Constant Voltage: advanced pulse width modulation (PWM) technology,control the charger’s current and output voltage accurate,avoid overcharge;

Floating charge mode: when the battery is going to be charged full,the charger will stop charging,but still supply constant floating voltage and small current to battery;

Trickle charge mode: when the battery voltage and current is approaching the set voltage and current,it will turn to trickle floating charge from automatic mode,it means charge full,also can be charged with floating mode.

This item can be used both 110V/220V of input AC power.

The original plug is EU and US plug,we will send you the right pulg if not available for your country!

Parameters

Input Voltage: 110—230V

Output voltage: 12V/24V

Current:10A peak for 12V,8A peak for 24V

Suitable capacity: 20-100AH

Power:160W

Frequency: 50-60HZ

Length of output wire:65cm

Length of input wire:125cm

dimension: 14*19*7cm

Gross weight: 0.9kg

Application: best suitable for 40-120AH lead acid batteries(including wet and dry)
