New designed cnc router machine using Hiwin linear sqare rails

whatsapp:0086-159-667-607-90          skype/email:export03(at)unichcnc.com

 Application

♦  It can be used for 2D&3D engraving and cutting hard wood, rosewood,

insulation, plastic and chemical, PCB, PP, PE, PVC, MDF, acrylic, aluminium,

brass and so on.

Industry

Products

Furniture Industry

1) doors           2) cabinets

3) tables             4) chairs

Advertising Industry

1) signage;2) Logo;3) Badges; 4) display board

5) meeting sign board; 6) billboard

Artwork and Decoration

1)wood crafts; 2)gift box; 3)jewelry box

Parameter

Technical parameters

NO.

Description

LXM1325

1

X,Y,Z Working Area

1300*2500*200mm

2

Dimension(L*W*H)

2120*3200*1840mm

3

X,Y,Z Traveling Positioning Accuracy

0.03/300mm

4

X,Y,Z repositioning Positioning Accuracy

0.05mm

5

Table surface

T-slot structure

6

Frame

welded steel structure

7

X-Y Structure

Hetical gear

8

Z Structure

Imported ball screw

9

Max. Rapid Travel Rate

10000mm/min

10

Spindle Speed

0-6000mm/min

11

Spindle Power

Water cooling spindle

12

Spindle Speed

0-24000RPM

13

Drive Motors

Stepper System 450B

14

Working Voltage

110/220/380V

15

Command Language

Standard G code

16

Operating System

Mach 3 conrtoller

17

Interface

USB

18

Software compatibility

Type3 Software, Ucancam

software, Artcam Software,Artcut Software

Samples

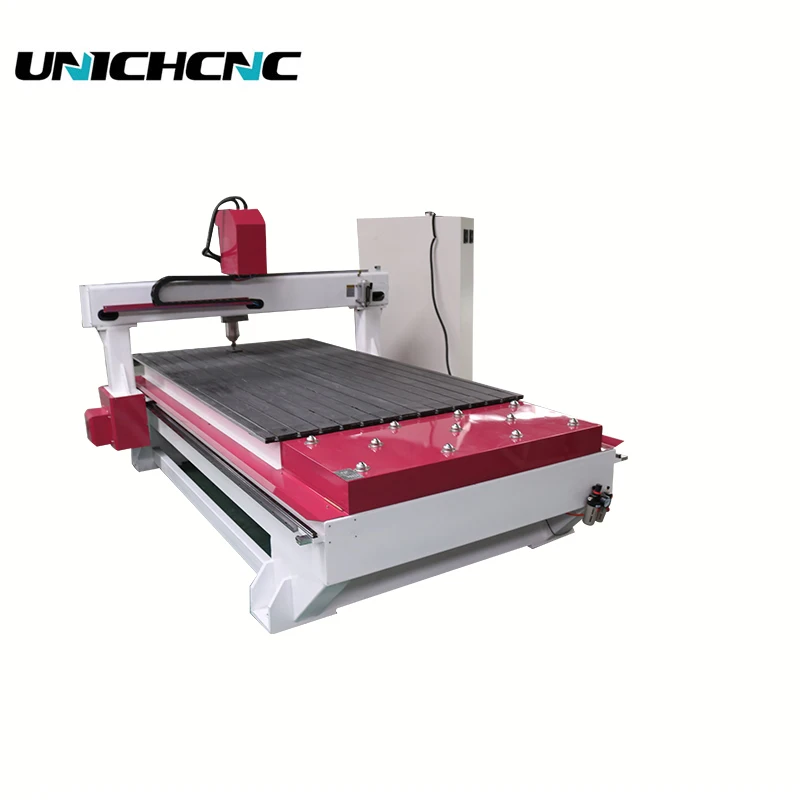

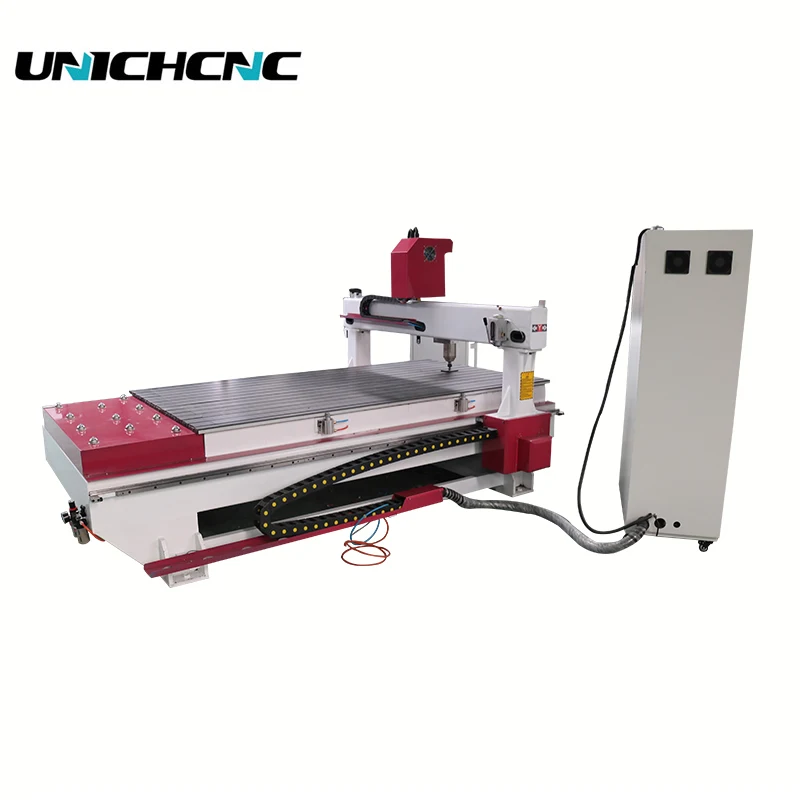

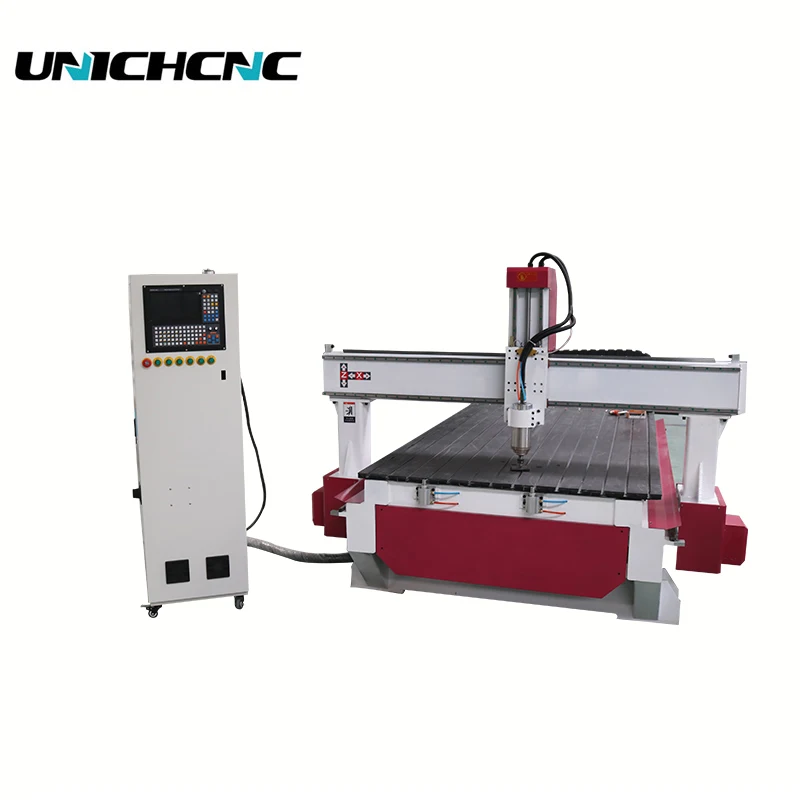

Machine show

Some standards

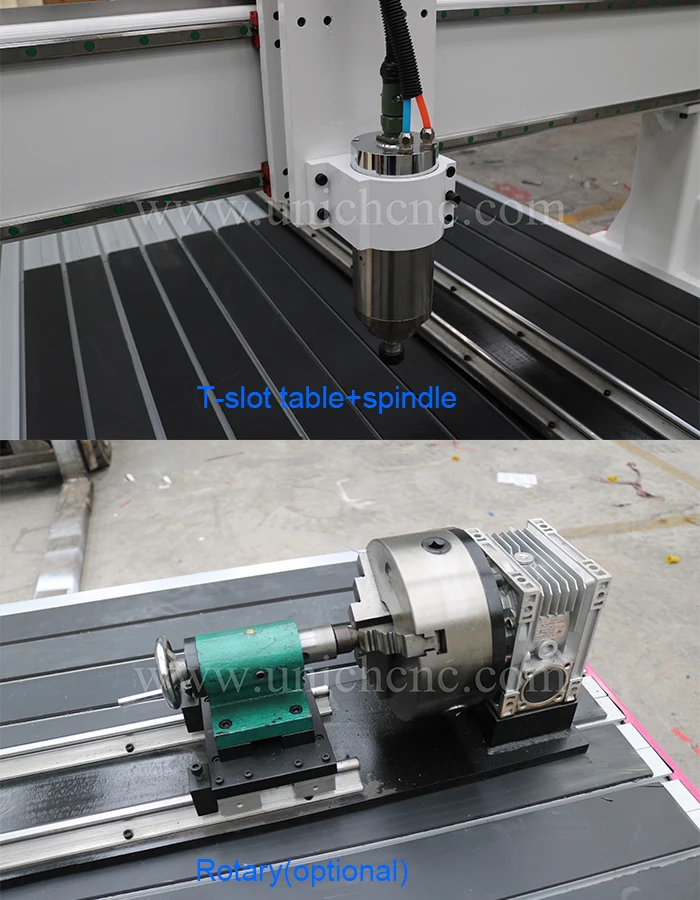

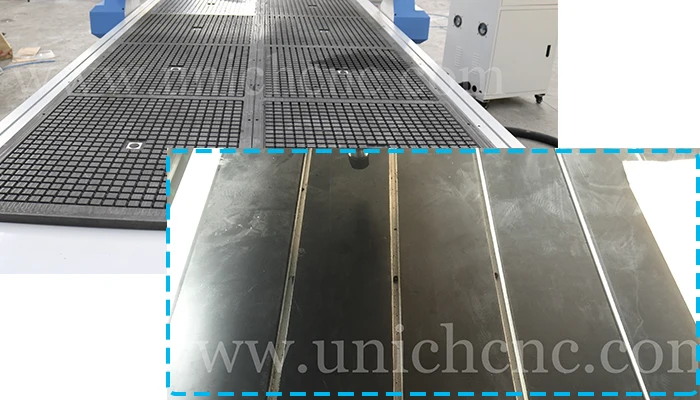

Welded machine frame/t-slot table

Hetical gear transmission/hiwin linear square rails

Z axis with ball screw transmisson

Mach 3 controller+CPU controller box

Spindle water cooling 3.0kw/fuling inverter 3.7kw

Stepper motor 450B/leadshine driver M860H

Advantaves

bed: the first use of gantry planer roughing, using large gantry CNC

machining centers for the rail station, the rack face milling and CNC drilling.
Beam: heat annealing, stress relieving - acid, phosphate and other

surface treatment -CNC machining center for milling, drilling.
machined components: all vertical machining center.
Through the above processing strong protection foundation precision parts.

 Features

Machine features

1. LXM1325 wood cnc router machine is used for engraving on wooden doors, cabinets and other furniture board.

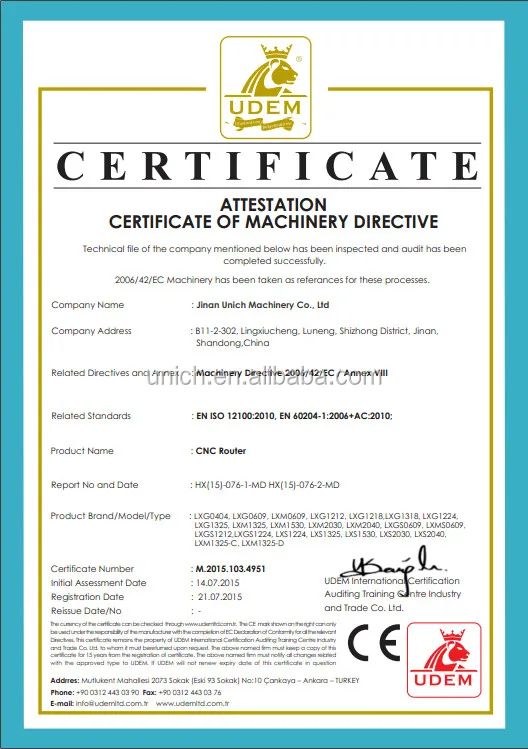

2. CE standard, Heavy duty frame, Machine frame steel pipe 10mm.

3. Whole body thick wall welded steel structure, the vibration aging treatment, durable, not easy to deformation.

4. Inported  high precision Taiwan Hiwin rails, double four ball slider, loading capacity, smooth poeration, high precision, long service life.

5. Y axis dual motor drive, selecy matching, to ensure, smooth movement, raise speed.

6. Gantry movement, strengthen the surface, durable,  long-time use is deformes, to make sure that positioning accuracy more precision.

 Other choice

Company information

Jinan Unich Machinery Co,.Ltd is a professional cnc equipment modernized company.

Started 2002, now is the 14 years. We integrating manufacture, research, marketing

and service and takes the "quality, integrity, innovation, service" spirit, always adhere

to the customer demands as the guide, it was well welcomed by almost all customers

with its high-quality product and good after-sales service.

FAQ:

Q: What should I do when I have some problems or questions?

A: Pls don’t hesitate to contact us via Skype, WhatsApp, or email, we will reply u ASAP.

If u are not satisfied with someone’s service, u can complain to our Boss.

Q: How about the quality?

A: Before we pack each machine, we will test it first. If machine has problem

in your place, our worker will take responsible for his mistake. And we will

solve your problem.

Q: Which is the most suitable model machine for me?

A: Pls tell us your materials, thickness, size and business industries.

Q: How about the documents after shipment?

 A: After shipment, we'll send all original documents to you by DHL, including

Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Our Customers

Service

1. Guarantee for 2 years exluding comsumable parts .Extra fee is paid if out of date.

Any damage to the machine caused by improper use will be charged.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. We will provide the consumable parts at an agency price when you need replacement.

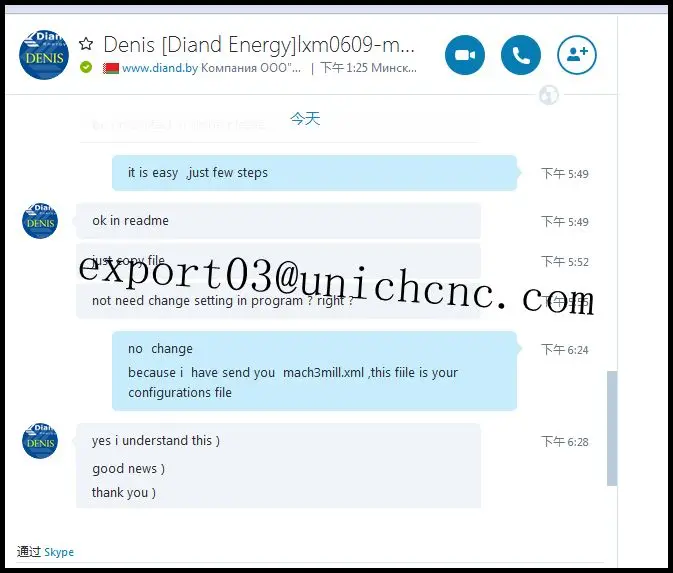

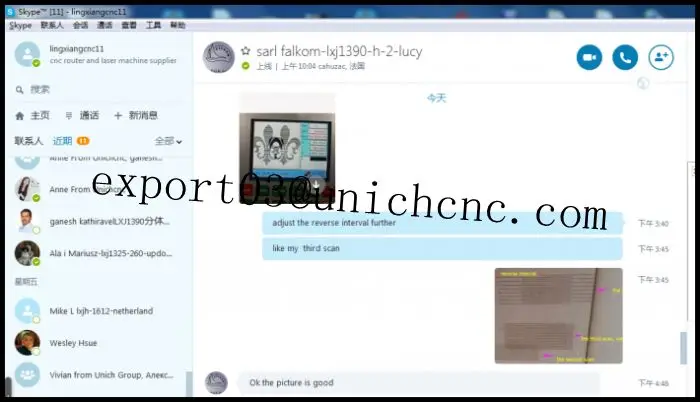

5. 24 hours on line service each day, free technical support.

6. Machine has been adjusted before delivery , operation disk was included. If there is

also any questions, pls kindly tell me

7. We have manual instruction and CD (Guiding Videos) for Software's Installing amd

Operateion and Machine's Using and Maintaining.

8. Free installation and fully test before sending and free training for operators, When

you got the machine, you can use it directly.

 Working video

//www.youtube.com/watch?v=XVuAZQh65Eg

 Before buy you need know:

If you not sure which model is suitable for your work please provide the

following information:

1.What is main products you process?

2.The main material and max length and width.

3.Mainly do engrave or cut, how about the thickness.

4.Your destination port, to check shipping price.

A feasible machine quotation will send you first, then we will talk further more

about machine function details.

We pay attention to any details of our every set cnc laser machine.

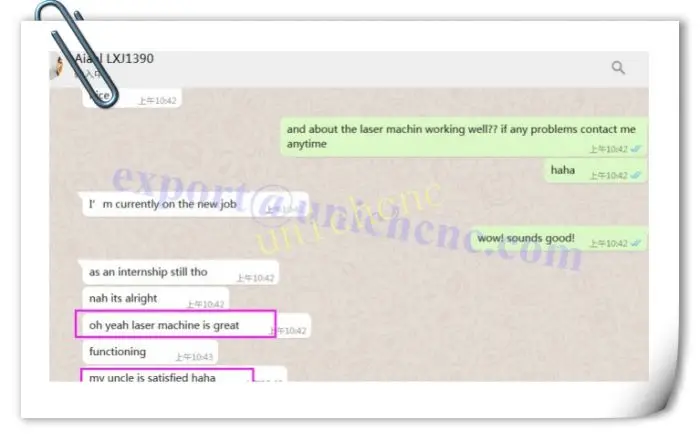

After-sale evaluation
