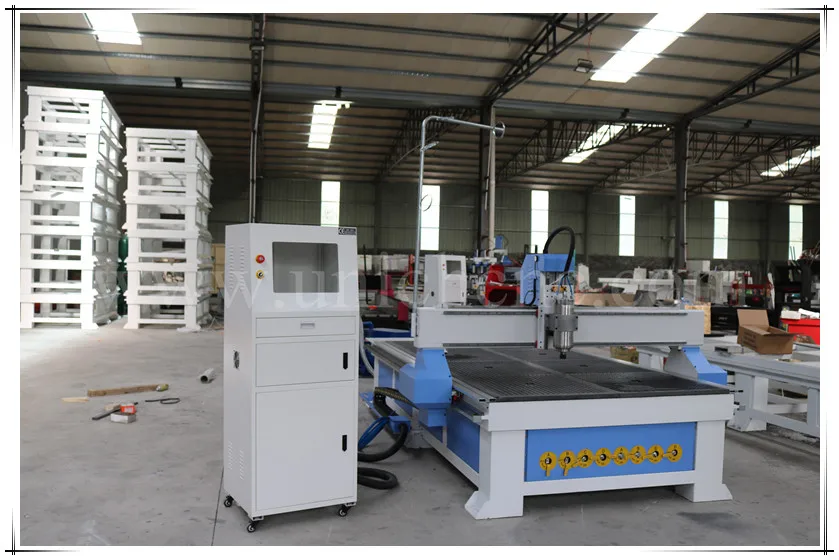

High technology unichcnc 1300*2500mm cnc machine for stone wood

whatsapp:0086-159-667-607-90                                                       skype:export03_15

Application

♦  It can be used for 2D&3D engraving and cutting hard wood, rosewood, insulation,

plastic and chemical, PCB, PP, PE, PVC, MDF, acrylic, aluminium, brass and so on.

Industry-------------------------

Products

Furniture Industry-------------

1) doors           2) cabinets

3) tables             4) chairs

Advertising Industry----------

1) signage;2) Logo;3) Badges; 4) display board

5) meeting sign board; 6) billboard

Artwork and Decoration-----

1)wood crafts; 2)gift box; 3)jewelry box

Working video:

//youtu.be/RtHxqTwHB7o

//www.youtube.com/watch?v=N7BUx3G6te4

Parameter

Technical parameters

NO.

Description

LXM1530-A1

1

X,Y,Z Working Area

1500*3000*200mm

2

Dimension(L*W*H)

2120*3200*1840mm

3

X,Y,Z Traveling Positioning Accuracy

0.03/300mm

4

X,Y,Z repositioning Positioning Accuracy

0.05mm

5

Table surface

T-slot structure

6

Frame

welded steel structure

7

X-Y Structure

Hetical gear

8

Z Structure

Imported ball screw

9

Max. Rapid Travel Rate

10000mm/min

10

Spindle Speed

0-6000mm/min

11

Spindle Power

Water cooling spindle

12

Spindle Spee

0-24000RPM

13

Drive Motors

Stepper System 450B

14

Working Voltage

110/220/380V

15

Command Language

Standard G code

16

Operating System

NK 105 conrtoller

17

Interface

USB

18

Software compatibility

Type3 Software, Ucancam

software, Artcam Software,Artcut Software

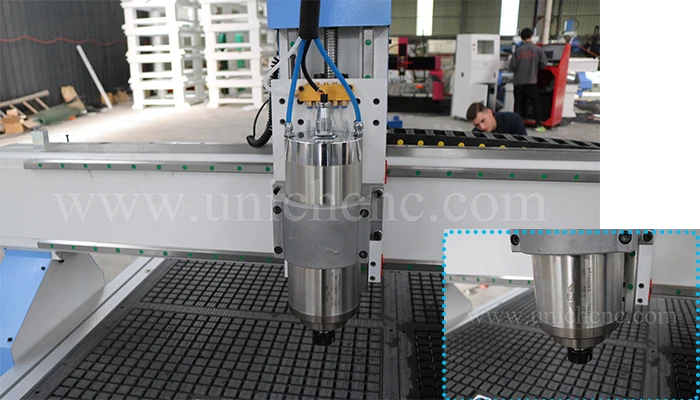

1. spindle

    3.0 KW water cooling spindle (air cooling)

    add spindles according to your needs

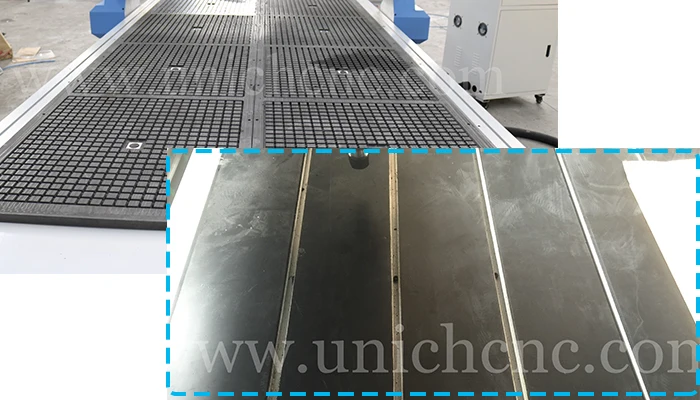

2. Vacuum table (T-slot table)

   mist cooling system

   save time
   improve efficiency

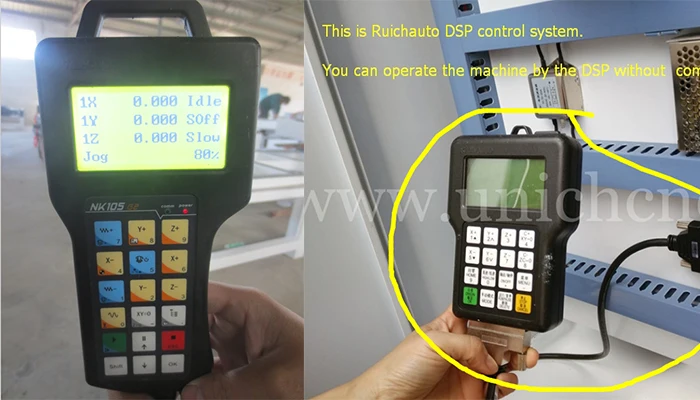

3. Control system
    NK 105 DSP//Ruichauto DSP
    more quickly
    more popular

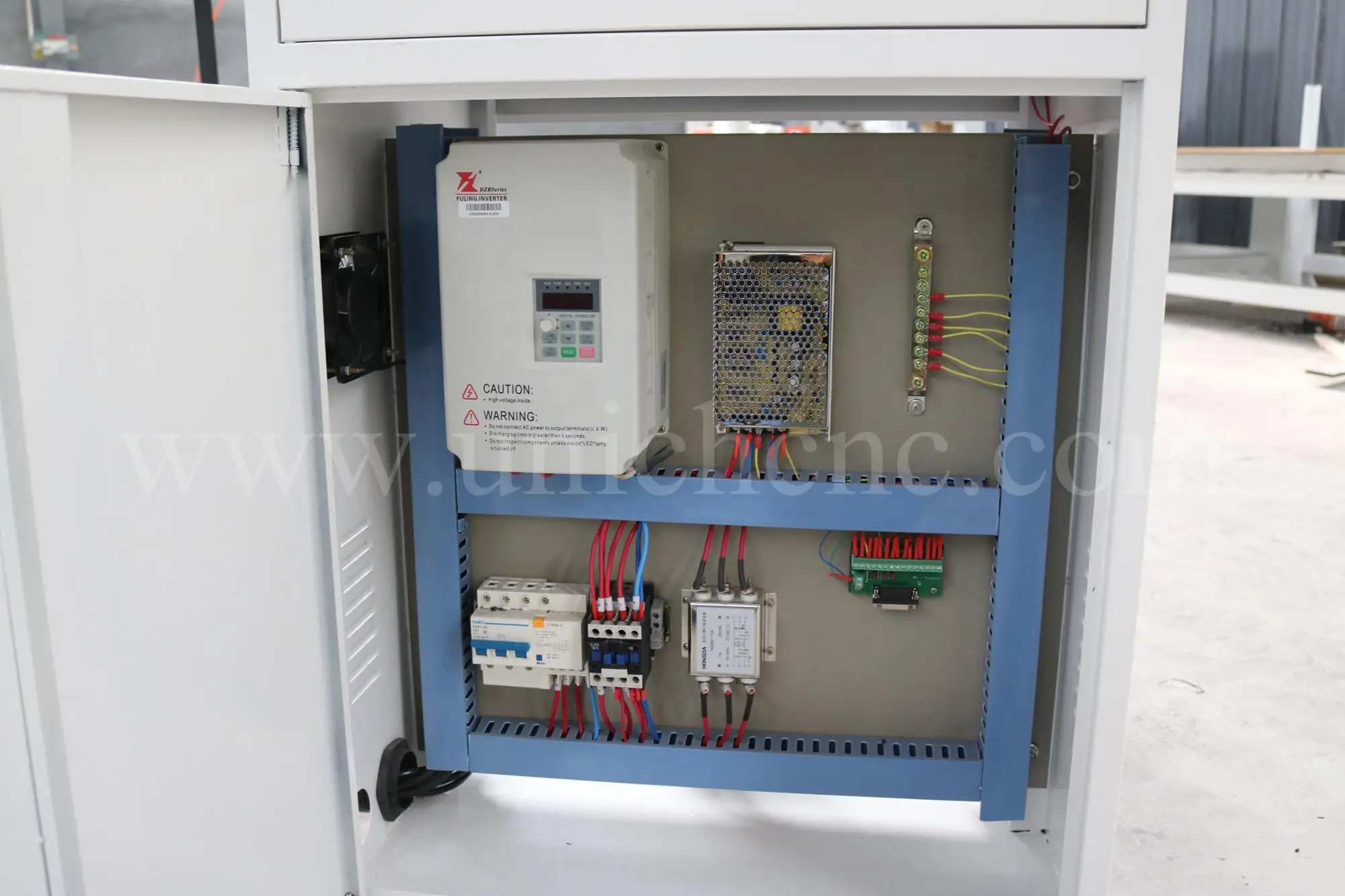

4. Fuling inverter
    engraves without any ripple
    guarantees high speed and high accuracy

Features

1. Whole machine is welded with seamless steel structure, with aging treatment.

2. Three axes adopt Taiwan high precision linear orbit. Z axes adopt Taiwan ball screw,

X,Y by Gear transmission with high precision and long life time.

3. Well compatibility: CAD/ CAM designing software e.g. Type 3/ ArtCam/

Castmate/ Wentai etc.

4. Low price CNC router carving/ cutting  machine 1530 for sale has the function

of re-carving after break point and power failure. Has the function of

forecasting process time.

5. Low price CNC router carving/ cutting  machine 1530 for sale can choose updated

 DSP or original NC Studio computer control system.

6. Perfect oil-inject system makes maintenance much easier.

7. Good duct-collection function and Considerate Oil plate to keep the table always clean.

8. With Fumigation-free IPPC wooden case for packaging.

9. We provide the DSP operating instruction in English, a set of cutters, software,

necessary tools and accessories for free.

 Other machine

wood/MDF

big power

big working area

wood/MDF

big power

small working area

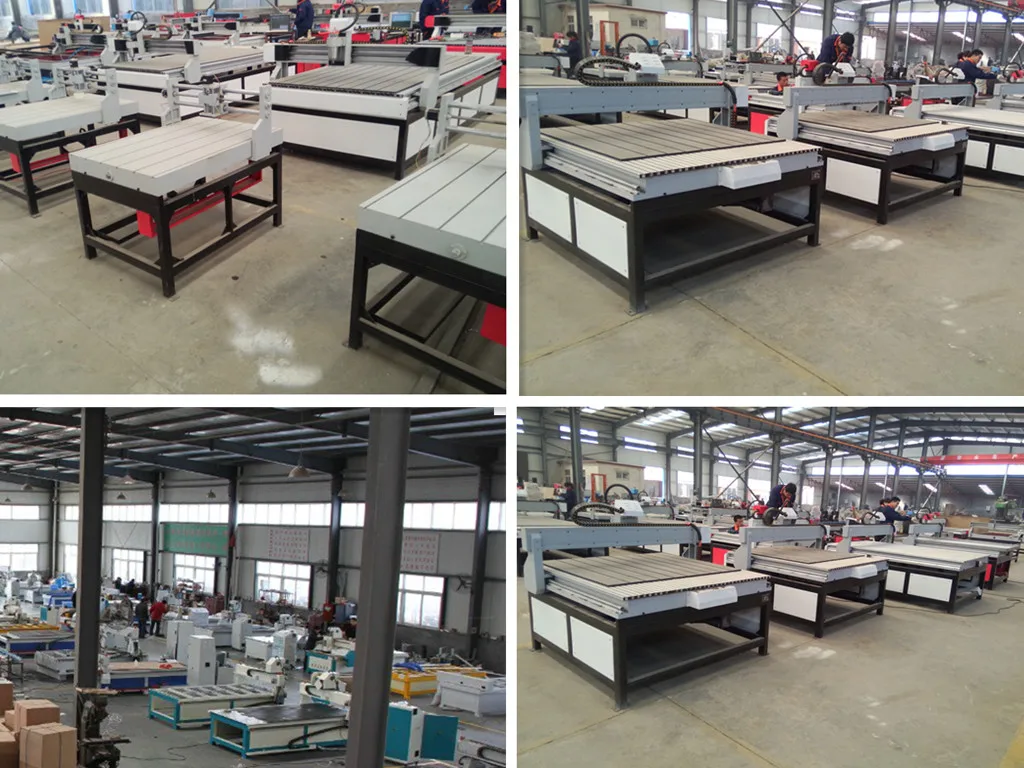

Our factory

After service and Guaranty of our factory:

1. 2 years quality guaranty, the machine with main parts(excluding the consumables)

shall be changed free of charge when if any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. 24 hours on line service and email each day, free technical support.

5.Machine has been adjusted before delivery. We will take machine photos and

make machine working image for you ,after getting your agreement,

then we will book a ship.

6. Provide technical services to the door(We have professional engineers to offer machine

installation commissioning and maintenance) if customers pay the charges of ticket.

7. If you have any problem during your use. you need our technician to judge where the

problem is and help you to solve it. We can provide team viewer and skype with cam

till all of your problems solved.

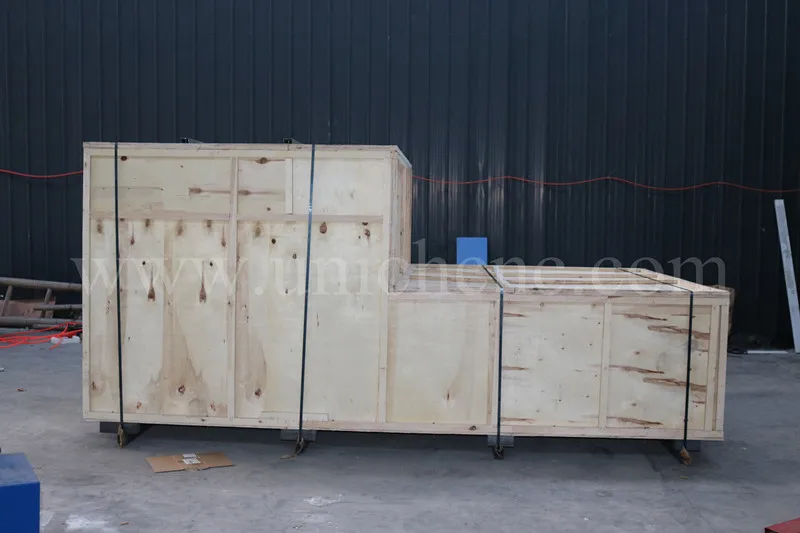

Package

Before buy you need know:

If you not sure which model is suitable for your work please provide

the following information:

1.What is main products you process?

2.The main material and max length and width.

3.Mainly do engrave or cut, how about the thickness.

4.Your destination port, to check shipping price.

A feasible machine quotation will send you first, then we will talk further more

about machine function details.

We pay attention to any details of our every set cnc laser machine.
