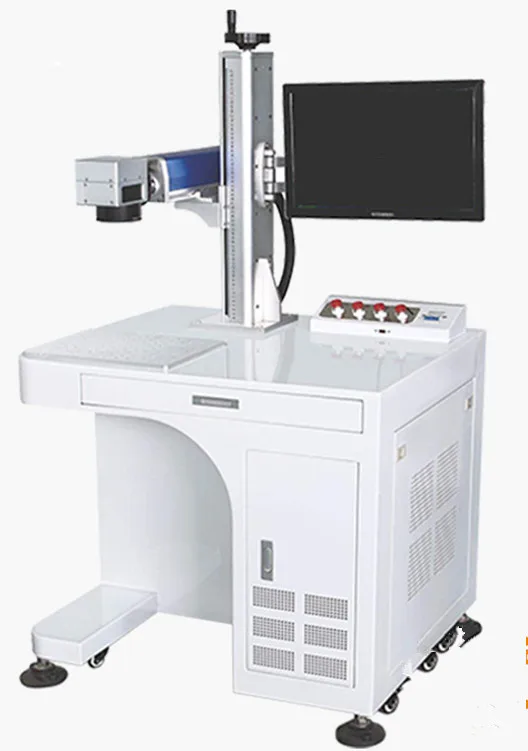

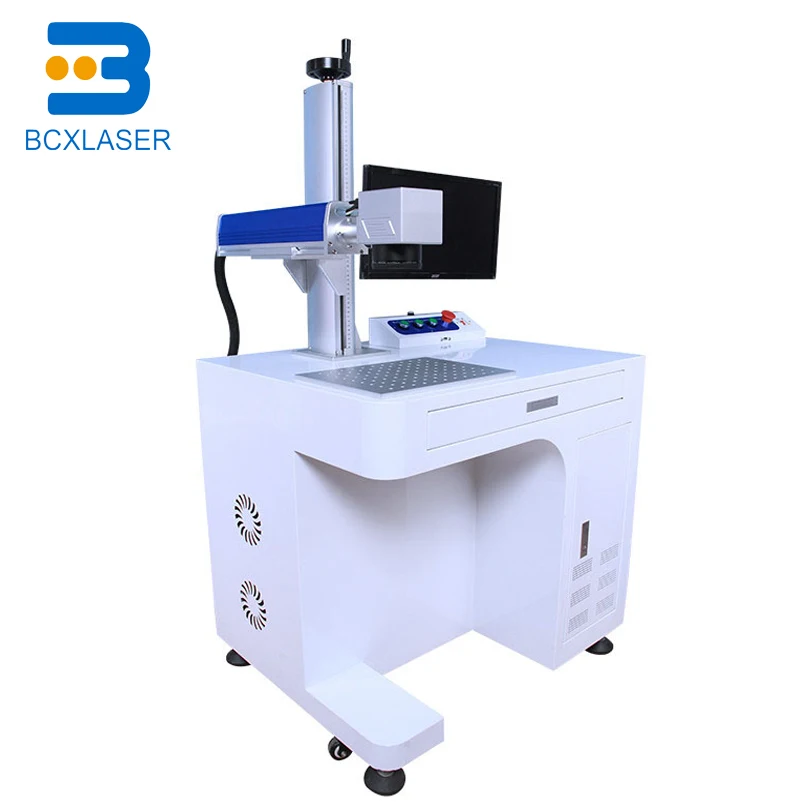

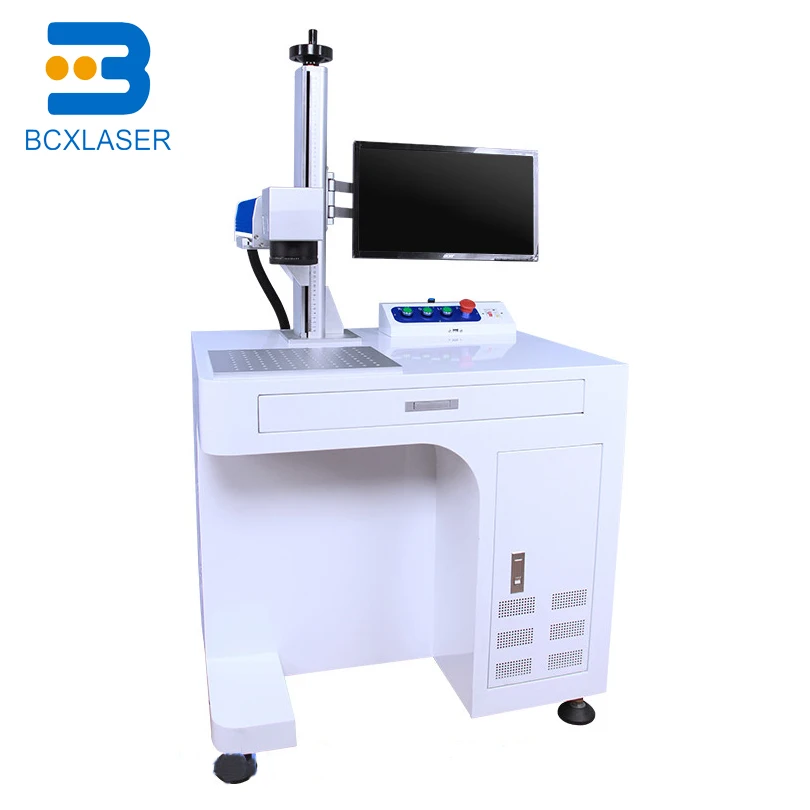

The portable fiber laser marking machines  series fiber laser marking machine adopts a top-notch fiber laser and an excellent scan system with high-speed vibrating mirrors, leading to stable output power, high-quality laser beam, fast marking speed and extraordinary overall performance. This fiber laser marking machine is delicate in appearance and handy to operate, with low cost of depreciation, free from any maintenance and without any consumable or malfunction in a long-time continuous running, perfectly satisfying clients in need of large-scale production.

Technical Parameters of Laser Marking Machine

Model

BCX-F20/30/40/50/70/100

Laser Power

20W, 30W,40W, 50W 70W,100W(optional)

Wavelength

1064nm

Fiber Laser Source

IPG, SPI, Raycus, Max. JPT (optional); Lifetime: 100, 000 hours

Engraving Area

Max. 110mmx110mm; Max. 200mmx200mm; Max. 300mmx300mm (optional)

Min. Line Width

0.03mm

Min. Character Size

≤0.5mm

Engraving Speed

≤16000mm/s

Pulse Width

≤60us≤60us

Repetition Positioning Accuracy

10urad

Positioning Way

Red Light

Power Supply

Single Phase AC 220V, 50/60HZ

Marking Samples of Laser Marking Machine

Portable fiber laser marking machines

1. This industrial marking machine enjoys an excellent manual focusing system and user-friendly operating structure.

2. The imported fiber laser is protected with an isolated layer, effectively lifting its stability and extending its service life.

3. The laser beam is top-quality consistently both inside and outside, much more excellent than those of traditional laser markers.

4. The laser beam TEM00 mode of the fiber laser has a less than 200um focus spot diameter and 1/4 more expanded angle than YAG-DP, resulting in stunning performance in marking small and subtle labels.

5. The laser has a high rate of converting input electric power into output light power, leading to less than 500W electric consumption in total, accounting for 1/10 of the electric consumption of YAG laser.

6. The fiber laser marking machine with a small body, a long service life, and a maintenance-free guarantee is suitable for any working environment.

7. Its performance in fast-speed marking is remarkable, tripling or even quadrupling the marking speed of traditional ones.

8. It supports various marking software and formats like CorelDraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP, SHX, TTF, etc, and has auto-coding ability for serial number, batch number, date, bar code, etc.
