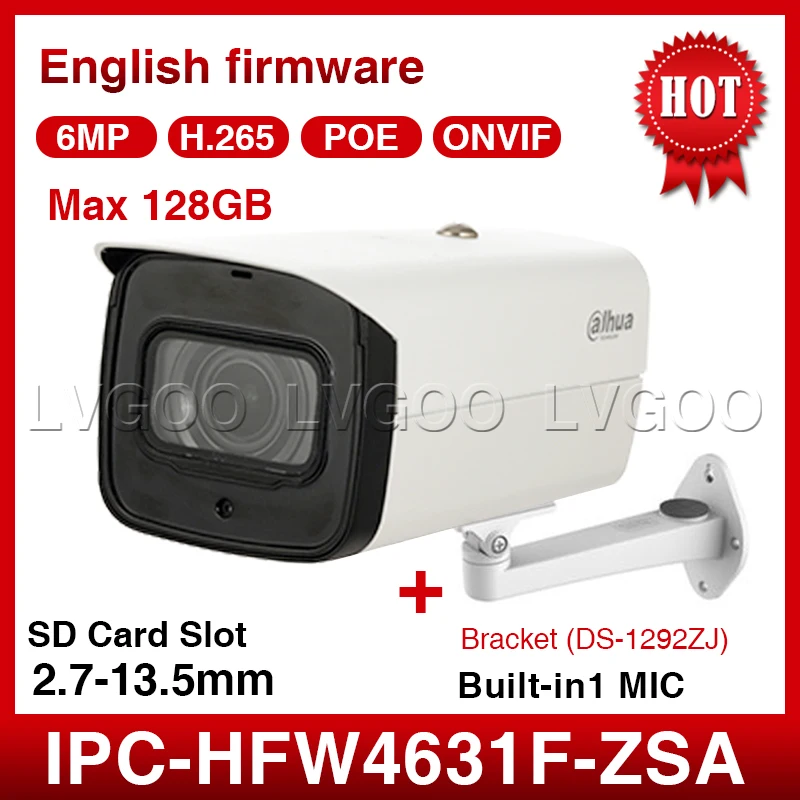

Dahua 6MP Network Camera IPC-HFW4631F-ZSA 2.7-13.5mm VF lens Bullet with Microphone SD Card Slot | Безопасность и защита

Dahua 6MP Network Camera IPC-HFW4631F-ZSA 2.7-13.5mm VF lens Bullet with Microphone SD Card Slot | Безопасность и защита

As different country has different shipping rules.We will choose the express method for you according to our experience. Besides,if your shipping cost is too high,Hope you kindly understand that we could not remove the shipping cost for you.

Note

1.The camera has POE function and NO Power adapter in the original package,If you need a Power adapter for the camera , please Click POE 48V 0.5A And DC12V 2A to buy and pay.

2.Please DO NOT update the camera with any other firmware. Normally, the firmware installed can't be upgraded. All the Chinese version cameras with brown box sold here are the same.

Technical Parameters

Model

IPC-HFW4631F-ZSA

Camera

Image Sensor

1/2.9 " 6Megapixel progressive scan CMOS Aptina company

Effective Pixels

3072 (H) x2048 (V)

Scanning System

Progress

Electronic Shutter Speed

Automatic / manual, 1/3 (4) ~1 / 10000S

Min. Illumination

0. 002Lux (color mode); 0.0002Lux (black and white mode); 0Lux (infrared light on)

S / N ratio

More than 50dB

Video output

1

Camera Features

Maximum. Infrared light length

80 meters

Day / night

Auto (ICR) / color / B / W

BLC

BLC / HLC / WDR

White balance

Automatic / manual

Gain Control

Automatic / manual

Noise Reduction

3D

Privacy masking

Up to four areas

Lens

Focal length

2.7~13.5 mm  Motors Zoom Lens

Maximum aperture

F1.6~F3.13

Focus Control

Autofocus page in IE

FOV

Diagonal: 121.8 ~ 31.4 Horizontal: 95.1 ~ 25.7 Vertical: 64.3 ~ 18.1

Lens Type

Electric / auto iris (DC)

Mounting Type

Plate

Video

Compression

H.265; H.264;MJPEG

Video frame rate

PAL: the main stream (3072 × 2048 @ 20fps), the main stream (3072 × 1728 @ 25fps), the main stream (2592 × 1944 @ 25fps); the main stream (2688× 1520 @ 25fps), the main stream (2560 × 1440 @ 25fps), the main stream  (2304 × 1296 @ 25fps) ,the main stream  (1920 × 1080 @ 25fps),the main stream  (1280 × 1024 @ 25fps),the main stream  (1280× 720 @ 25fps),

NTSC:  the main stream (3072 × 2048 @ 20fps), the main stream (3072 × 1728 @ 25fps), the main stream (2592 × 1944 @ 25fps); the main stream (2688× 1520 @ 30fps), the main stream (2560 × 1440 @ 30fps), the main stream  (2304 × 1296 @ 30fps) ,the main stream  (1920 × 1080 @ 30fps),the main stream  (1280 × 1024 @ 30fps),the main stream  (1280× 720 @ 30fps),

Frame rate

Mainstream

6MP(1~20/25fps)/5MP/4MP/3MP/2MP/1.3MP/1MP(1~25/30fps)

Sub-stream

D1 / CIF (1~25 / 30fps)

Bit Rate

H2.65 / H.264 /MJPEG: 32K~8192Kbps

Audio frequency

Compression

G.711a/ G.711Mu/ AAC/ G.726

Interface

Built-in MIC

Network

Ethernet

RJ-45 (10 / 100BASE-T)

Wifi

N / A

Agreement

The IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP is, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP filtering, Quality of Service, Bonjour

Compatibility

ONVIF, PSIA, CGI

Maximum. User Access

20users

Smartphone

The iPhone, iPad, Android's

Auxiliary Interface

Memory slots

Built-in TF slot ,Max Support 128GB SD card

RS485

N / A

Call the police

N / A

PIR sensor range

N / A

General

Power supply

DC12V, POE (802.3af standard)

Power consumption

Maximum 10.5W (motorized lens: + 2W)

Work Environment

-40 ~ + 60 , less than 95% RH's

Protection class

IP67

Riot resistance

N / A

Size

186mm x  87mm x 85mm

Weight

0.9 KG (0.7 kg including packaging)
