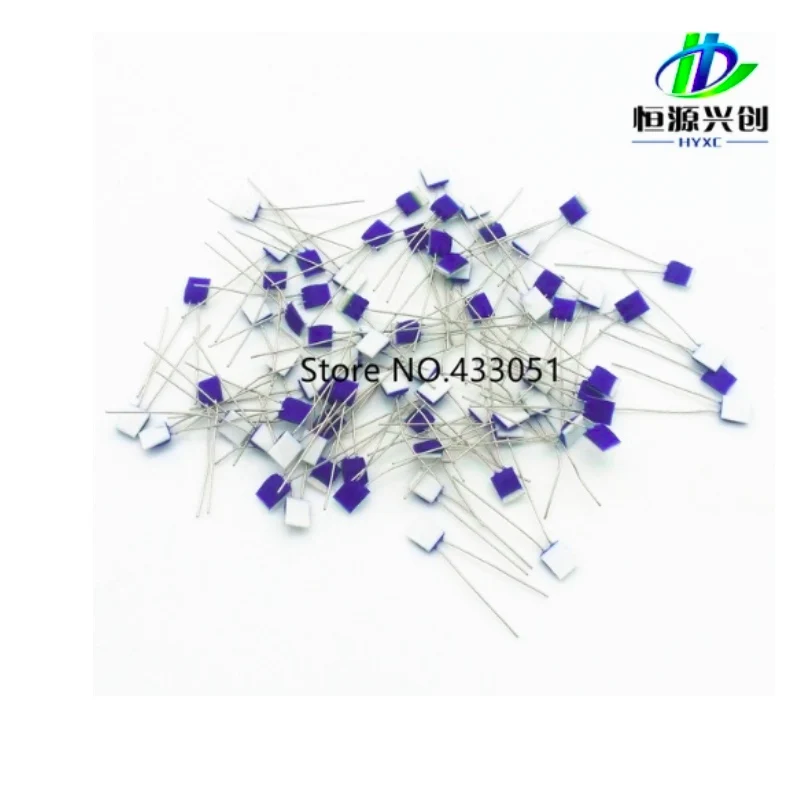

Free Shipping 100 pcs Pt100/PT100/PT500 thin-film platinum resistor chips Temperature Sensor | Инструменты

Free Shipping 100 pcs Pt100/PT100/PT500 thin-film platinum resistor chips Temperature Sensor | Инструменты

                          Welcome to Global electronics wholesale

           We provide low price & high quality and best service.

           100% Customer satisfaction is our goal

          Please note that we are Wholesale products.

         If you need products in large quantities,

         Please contact us, to negotiate! Cooperation Happy!!

M-series PRTDs are designed for large volume applications where long term stability,interchangeability andaccuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC,Energy management, Medical and Industrial equipment.

Nominal

Resistance R0

Tolerance

DIN EN 60751

1996-07

Tolerance

DIN EN 60751

2009-05

100 Ohm at 0℃

Class C

F 0.1

Class A

F 0.15

Class B

F 0.3

Class 2B

F 0.5

1000 Ohm at 0℃

Class C

F 0.1

Class A

F 0.15

Class B

F 0.3

Class 2B

F 0.5

The measuring point for the nominal resistance is defined   at 8mm from the end of the sensor body.

Temperature range:          70℃ to +500℃ (continuous operation)(temporary use to 550℃possible)

                                               Tolerance Class B/2B: -70℃ to +500℃

                                               Tolerance Class A: -50℃ to +300℃

                                               Tolerance Class C: 0℃ to +150℃

(Temperature range:  -200~600℃-----Buy here       -70~850℃------Buy here           -196~150℃-----Buy here  )

Temperature coefficient:      TC = 3850 ppm/K

Leads:    Pt clad Ni- wire

                 Recommended connection technology:

                 Welding, Crimping and Brazing

Lead lengths (L):      A/B/C:10mm ±1mm

                                        2B:5mm ± 0.5mm

Long-term stability:        Max. R0 drift 0.04% after 1000h at 500℃

Vibration resistance:         At least 40g acceleration at 10 to 2000 Hz, depends on installation

Shock resistance:           At least 100g acceleration with 8ms half sine wave, depends on installation

Environmental conditions:   Unhoused for dry environments only

Insulation resistance:    ＞100 MΩ at 20℃; ＞2 MΩ at 500℃

Self heating:         0.6 K/mW at 0℃

Response time:        Water current (v= 0.4m/s): t0.5 = 0.04s

                                                                                     t0.9 = 0.12s

                                    Air stream (v= 2m/s): t0.5 = 2.2s

                                                                          t0.9 = 7.0s

Measuring current:       100Ω: 0.3 to 1.0 mA

                                           1000Ω: 0.1 to 0.3 mA (self heating has to be considered)

Note  Other tolerances, values of resistance and wirelengths are available on request.

PT500 technical parameters

PT500M-series PRTDs are designed for large volume applications where long term stability, interchangeability andaccuracy over a large temperature range are vital. Typical applications are Automotive, White goods, HVAC,Energy management, Medical and Industrial equipment.

Nominal

Resistance R0

Tolerance

DIN EN 60751

1996-07

Tolerance

DIN EN 60751

2009-05

500 Ohm at 0℃

Class B

F 0.3

he measuring point for the nominal resistance is defined   at 8mm from the end of the sensor body.

Temperature range:          70℃ to +500℃ (continuous operation)(temporary use to 550℃possible)

                                               Tolerance Class B: -70℃ to +500℃

Temperature coefficient:      TC = 3850 ppm/K

Leads:    Pt clad Ni- wire

                 Recommended connection technology:

                 Welding, Crimping and Brazing

Lead lengths (L):     10mm ±1mm

Long-term stability:        Max. R0 drift 0.04% after 1000h at 500℃

Vibration resistance:         At least 40g acceleration at 10 to 2000 Hz, depends on installation

Shock resistance:           At least 100g acceleration with 8ms half sine wave, depends on installation

Environmental conditions:   Unhoused for dry environments only

Insulation resistance:    ＞100 MΩ at 20℃; ＞2 MΩ at 500℃

Self heating:         0.4 K/mW at 0℃

Response time:        Water current (v= 0.4m/s): t0.5 = 0.05s

                                                                                     t0.9 = 0.15s

                                    Air stream (v= 2m/s): t0.5 = 3.0s

                                                                          t0.9 = 10.0s

Measuring current:       500Ω: 0.1 to 0.7 mA

Note  Other tolerances, values of resistance and wirelengths are available on request.
