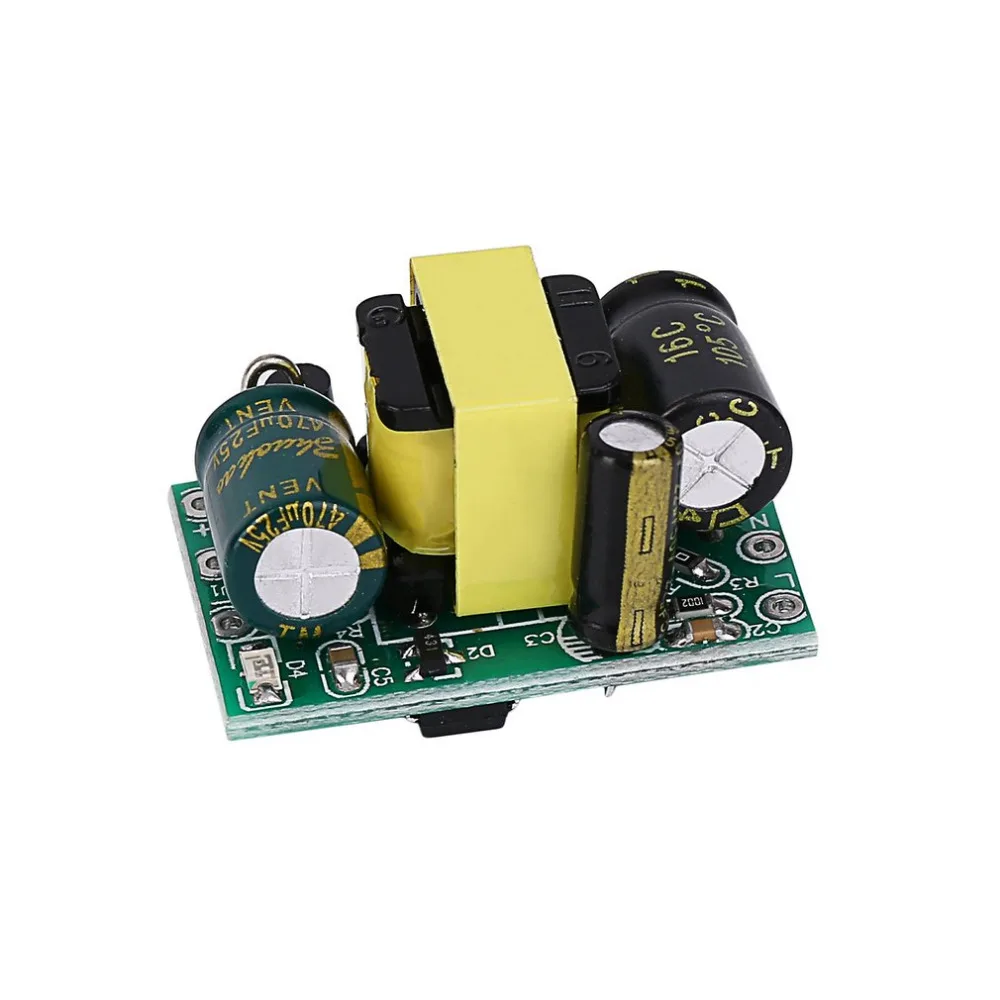

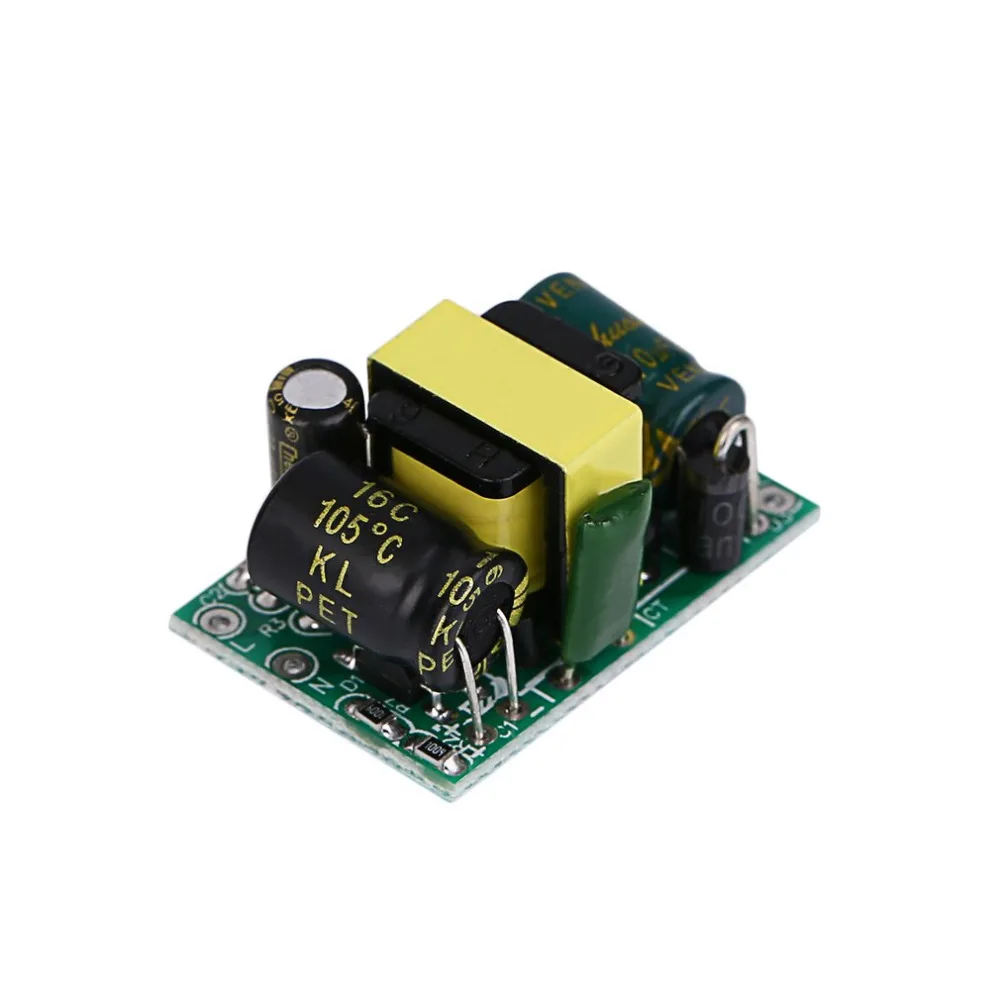

ACEHE 450mA 5W AC-DC DC 12V 500 mA Power Supply Buck Converter Step Down Module Precision AC-DC Buck Converter

Features:
Step Down Module
Condition: New
With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC12V output

Specifications:
Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
Input current: 0.0273A(AC110V) 0.014A(AC220V)
Input Inrush Current: 20A
Output voltage: DC 12V (+ / - 0.2 V)
Output current 500 mA
Operating temperature -20~60Deg.C
Relative humidity 40-90%RH
Output 12V, min current 0a, max current 500mA, peak current: 600mA, output range:11.80~12.1V, ripple wave: 150mV
Output power:0-6W(DC current)
Output efficiency: 80%
Switch machine overshoot: MAX 10%
Output voltage rise time: MAX 100MS
Output over voltage: 11.8-12.1V, recovery:Lock, restart after recovery
Output over power protection:YES ,recovery:Lock, restart after recovery
Short-circuit protection: YES, automatic recovery after problem solved
Temperature protection: YES,recovery:Lock, restart after recovery
Overcurrent protection: YES,recovery:Lock, restart after recovery
Size: 3 x 2 x1.8cm

Package includes:
2 * Step Down Module
