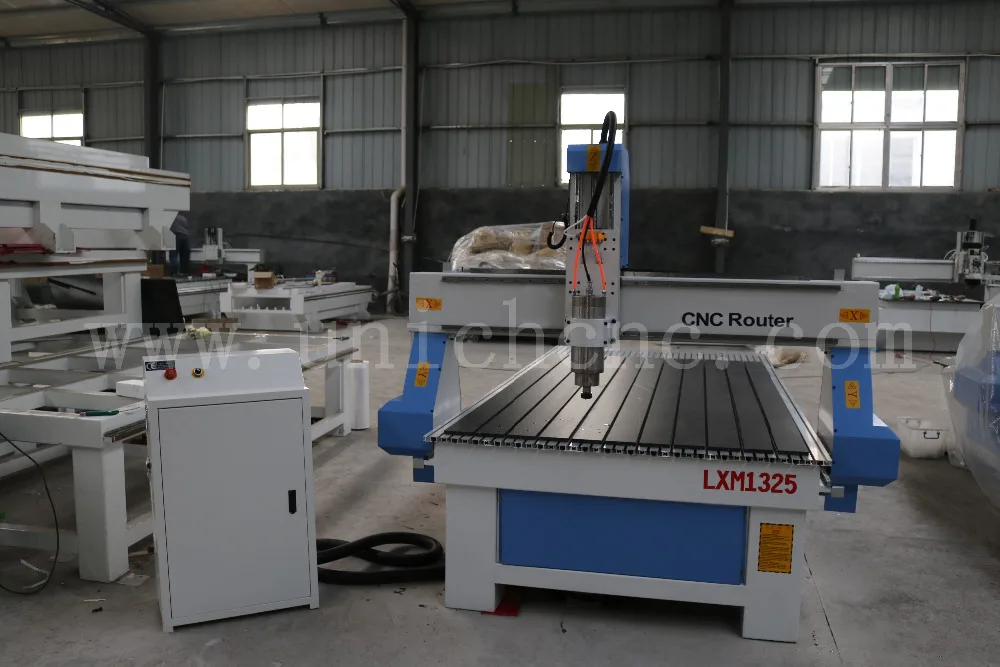

UNICHCNC woodworking cnc router machine 1325 for wood with good price

My skype: unicnc07

My whatsapp: 008615069006875

My email: export(@)unichcnc.com

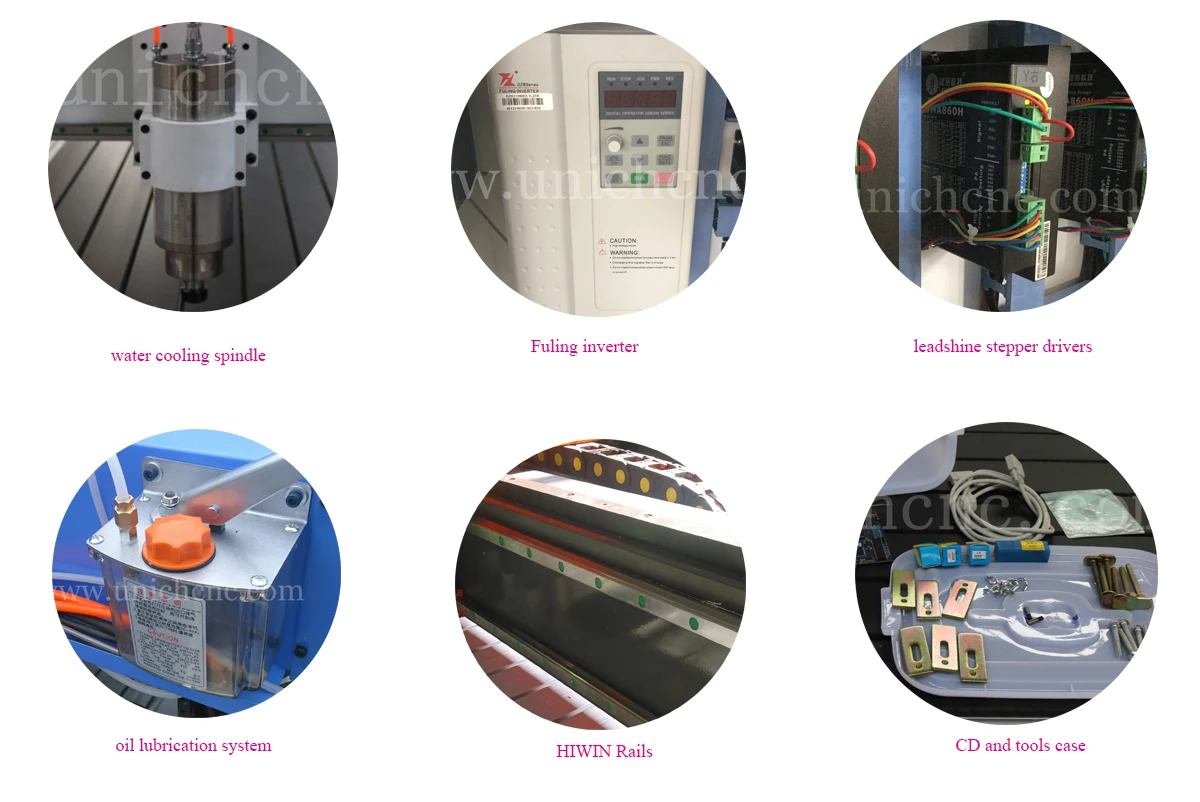

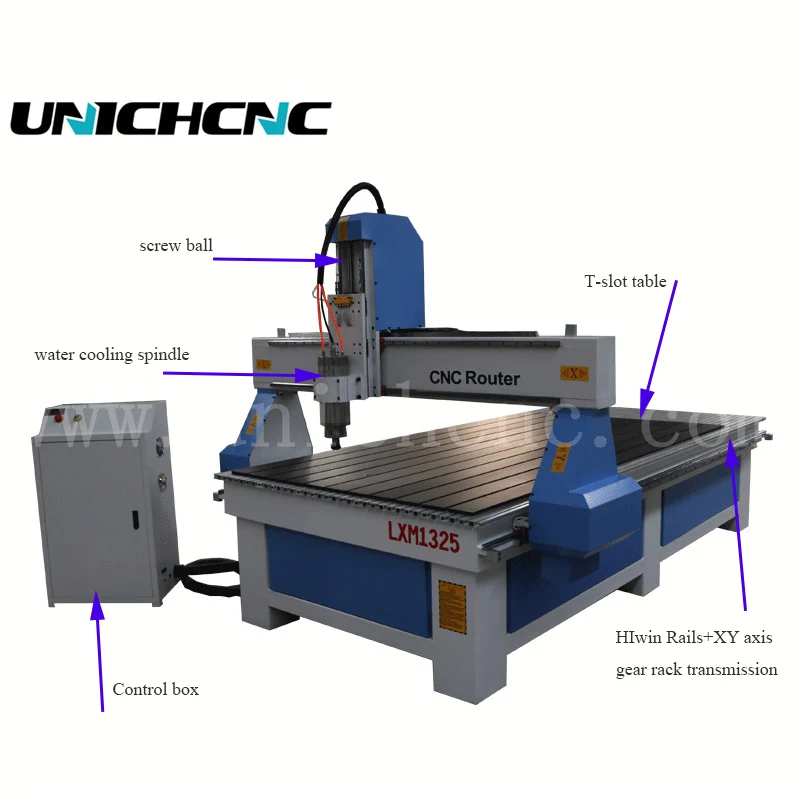

1. The machine body is strong, rigid, high precision, reliable and durable.

2. Imported high-precision square rail linear gap, smooth movement, to ensure that the

machine tools high-precision

3. Using well-known domestic brands of water-cooled spindle, low noise, strong cutting

ability, to ensure the long time working.

4. Good three-axis structure to ensure that the machines longer service life.

5. High-performance driven motor to ensure that the machines high speed and accurancy.

6. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.

7. Breakpoint specific memory, power outages continued carving, processing time forecast,

and other functions to ensure that accidental processing.

8. Compatility, compatible Type3/ Artcam/ Ucacam and so on a variety of CAD/CAM design software.

CNC Routrer parameter

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Table Size

1300×2500mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

Vacuum and T-slot working table

Frame

Welded Structure

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Max. Power Consumption

(Without Spindle)  3.2Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

9kw Italy HSD atc air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

leadshine stepper motor and drivers

Working Voltage

380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)

Command Language

G Code

Operating System

Taiwan SYNTEC control System

Computer Interface

USB

Rotary device

300mm diameter*2500mm length

Collet

ISO30

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

CNC Router application

Stone processing factories, Furnace (fireplace) making, Tombstone processing industries,

Advertisement industries for Molding art craft works, Home & Outdoor Product making

industries, Architectural decoration industries.

2D engraving, 3D engraving, line engraving, cutting, edge inversing, milling, drilling

on kinds of mould materials.

Molding industries, automotive foam molds, wooden ships molds, aviation and train wood

molds. Shoe soles mold and model processing, doll mold, large instruments and shaping.

Firstly, packed the machine with plastic sheet for clearing and damp proofing.

Secondly, then put the machine in the plywood case for safety and clashing.

Thirdly, transport the plywood case into the container.

Lastly, put the machine on train or ship, deliver to your port.

Jinan Unich Machinery Co.,Ltd is specialized in the production of cnc router, cnc laser, cnc plasma for 13 years. UNICH laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.

How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, Pay on Alibaba, West Union, Paypal ect.

Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

How about Guarantee & After Sales Service?
The machine guarantee is 12 months. 2) 24 hours technical support by phone, email or MSN, skype etc.

If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.

What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
