  This is a great kit with USB input where you can upgrade the program with a USB stick your self. Easy operated!

   If you want to have the "picture view" function from the USB input with a USB stick, you need a remote controller and IR receiver , please contact us.

   Please don't try to lock the keyboard via menu option, else you will need to buy a remote controller and IR receiver to unlock it.

Important Notes:

   1. Please make sure that your LCD is ok before bidding this item, else you will be responsible for the incompatibility.

  2. If you concern much about resolution setting, please reconsider before bidding!

  3. If you are not specialized in electronics or have doubts in operation, please contact us for instruction, as we are not able to responsible for wrong operation.

  4. After finishing the connecting, please don't rush to power on! First, use multi-meter to test whether the GND of the LCD is connected with the GND of the controller board. If not, please check the connection again. If yes, please test whether there is a short circuit between the red wires and black wires of the LVDS cable. If there is a short circuit, it means opposite connection or other errors. Any problem, please feel free to contact us. DIY needs a certain professional knowledge, please kindly take the responsibility of the risk. No metal contact is allowed when powering on the controller board, otherwise short circuit may occur, which may cause unavailability of the controller board.

  5.( Please don't set the voltage jumper on the controller board wrongly, please don't connect the lvds cable wrongly, wrong setting of the voltage and wrong connection of the lvds cable can get your lcd burnt, if you are not sure, please feel free to contact us before inputting power. The controller board is based on 12V circuit, so the power supply to the lcd controller board has to be 12V, and the current will depends on your lcd's size, for 8.9"-22" lcd, we suggest 12V,4A power adapter)

 We have collected a list of lcd model numbers in the belowed table for reference, if your lcd model number is in the list, you can buy this kit and pay it directly, but please remember to leave us a message of your lcd model number, so that we can prepare the right kit for you. If your lcd model number is not in the list, please feel free to contact us for suggestion , as the list is not with all lcd model number listed.

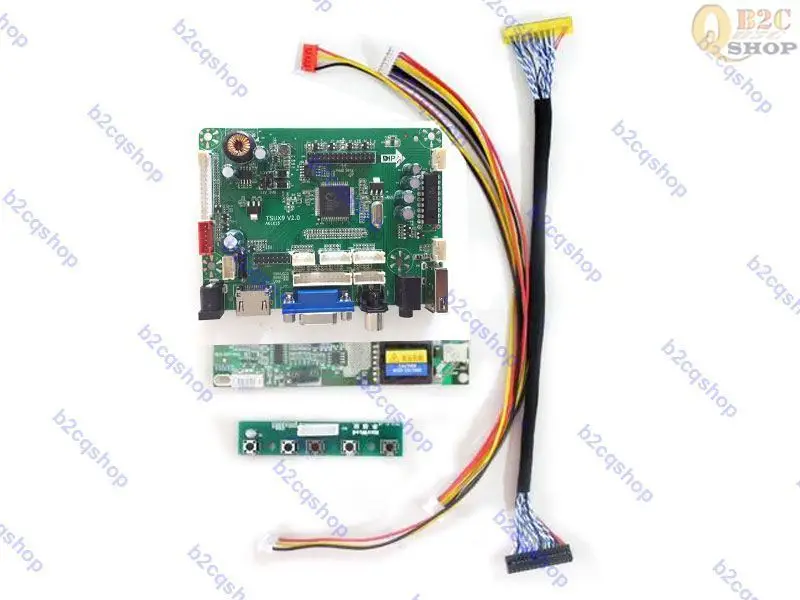

Package Include:

As we need to select the right inverter and lvds cable to match your lcd for you, and also the supplier may update of the lcd controller boad a little,so they may be not the same as that shown in the picture. Hope for your understanding.

    Welcome to customize your own kit!

Notice : Customs Duties
Import taxes and Customs Duties in your country are NOT INCLUDED in the item price or shipping charges . These charges are the buyer's responsibility.
If you have trouble in your country's Customs about your parcel , please contact with us!
