This is a great set of easy-reassembling LCD controller kit which is used to turn a unused LCD panel into a desktop/PC
monitor. It will be a surprise that your unused LCD will be of good use, and no longer be a waste.  Or it is a very interesting
things to make a monitor successfully by yourself.  It supports most of the LCD panel from 12.1" to 55" with a LVDS
interface and a resolution than 2048x1152, plug & play kit, need soldering is not needed.

Description:

 M.NT68676.2A is a monitor control board, which supports LED/LCD panels with resolution up to 2048X1152.

 M.NT68676.2A can synchronize with computer automatically. Synchronization requires the synchronous signal which

 horizontal and vertical sync are separated.

 M.NT68676.2A supports dynamic contrast control, headphone input and digital volume control simultaneously.

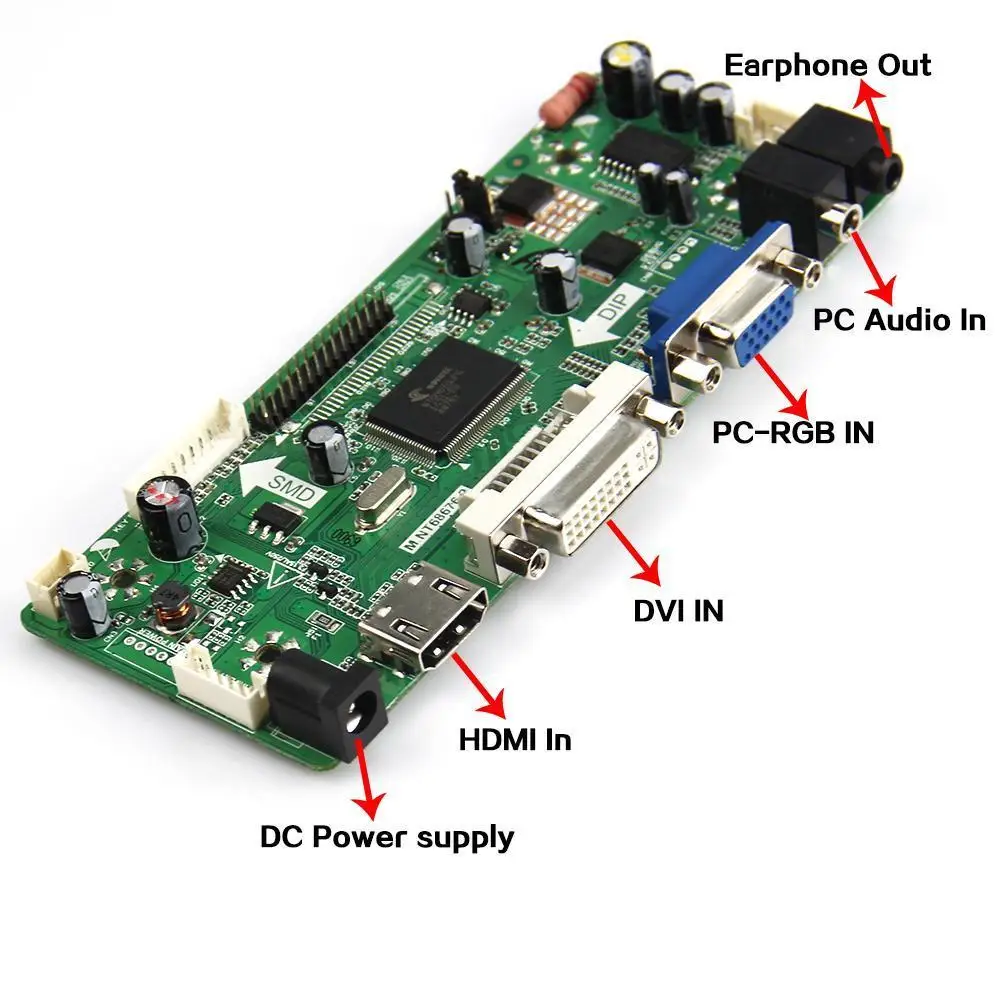

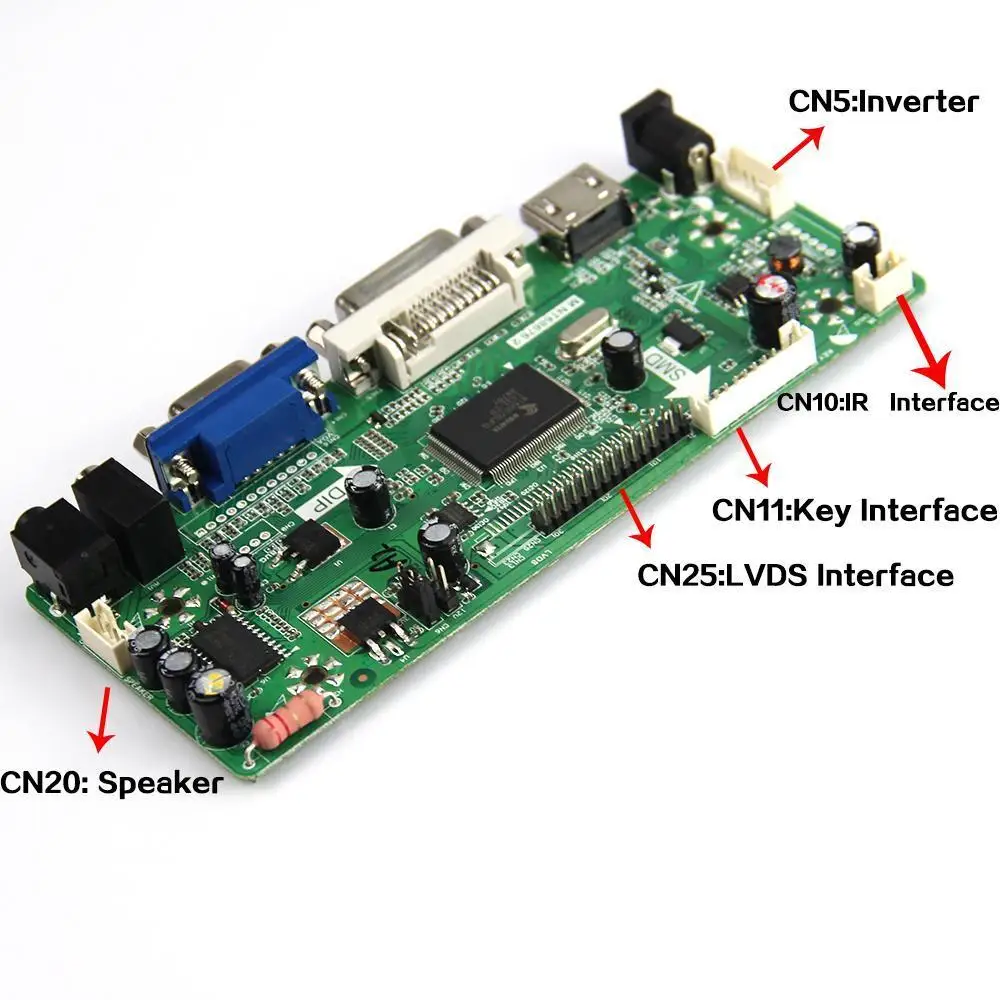

M.NT68676.2A is with interface show in below:

 Board Size:5.47in(L)*2.28in(W)*0.67in(H)

 DOWNLOAD the specification of controller board

Buyer Tips:

 Please make sure the vertical and horizontal driver inside your LCD still works,this board can not fix it if it doesn't work.

 * Please order directly if your LCD model number is same as our title, or please DO leave us a message with your LCD
    model and version when you are ordering.

   Q: How to find my LCD model number and version number?

   A: Normally the label on LCD backside includes information such as LCD model and  version number.

 * Please prepare VGA cable/DVI cable/HDMI cable and power adapter for the controller board you bought.
    They aren't included in the kit.

 * This board requires DC 12V 3.3A input power for LCD size under 17inch, and DC12V 4A for LCD between 17 to 22 inch.
    The LCD cannot be lit up if the power current is not applied as stated.

Please pay attention to the working supply for controller board as the following:

The supply as left picture showed can work but the right one doesn't!!

 * To protect this board from damage, high quality power adapter is recommend, you can buy from our store as well with
    clicking below links:
    12VDC 3.3A power adapter: Click here

     12VDC 4.0A power adapter: Click here

Install Tips:

 * Keep the backside away from metal subjects when the power is applied, or it may cause short-cut or damage of main IC.

 * Since the driver and voltage varies from different LCDs, please do not any change jumpers on the board, or use the kit for
    other LCD with different model number , otherwise you may damaged your LCD.  Please consult us if you have any other
    question or want to use the kit for other LCD panel.

 * link the key button board, (starts from left side, and leave some pins on the right blank)

 * Connect LVDS with the LCD connector and control board (connect the marked LVDS area with 1st pin), and then insert
   the VGA or HDMI or DVI input  signal(Default VGA input, please use the key buttons to switch for HDMI / DVI input) .

 *Apply with DC 12V power

 *Complete connecting kit.

 Here is the assembled LCD set:

 Now enjoy the success of DIY monitor, our professional engineer will always be happy to support you
 if there is any question, thank you!

 You can also view our video guide on youtube, thank you!

  The link of introduce : //youtu.be/s9xpn80muEk

 Note:

 Please leave a message of your LCD model and version when you make the payment ,thanks !

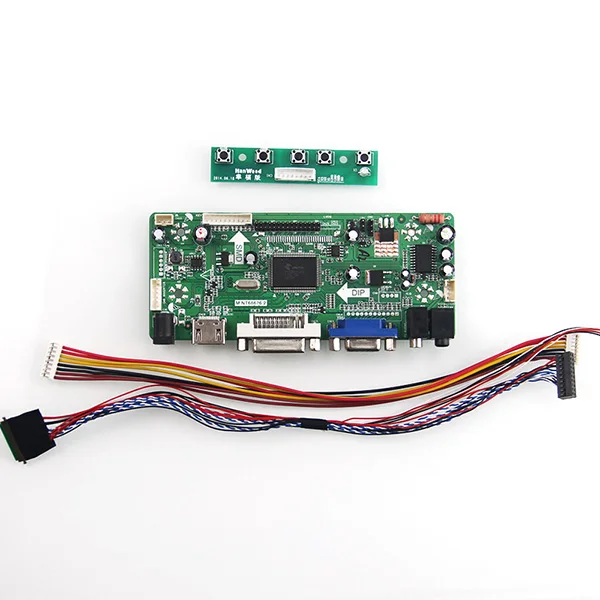

Package Including:

  1x LCD/LED Controller Board(M.NT68676 2.A)

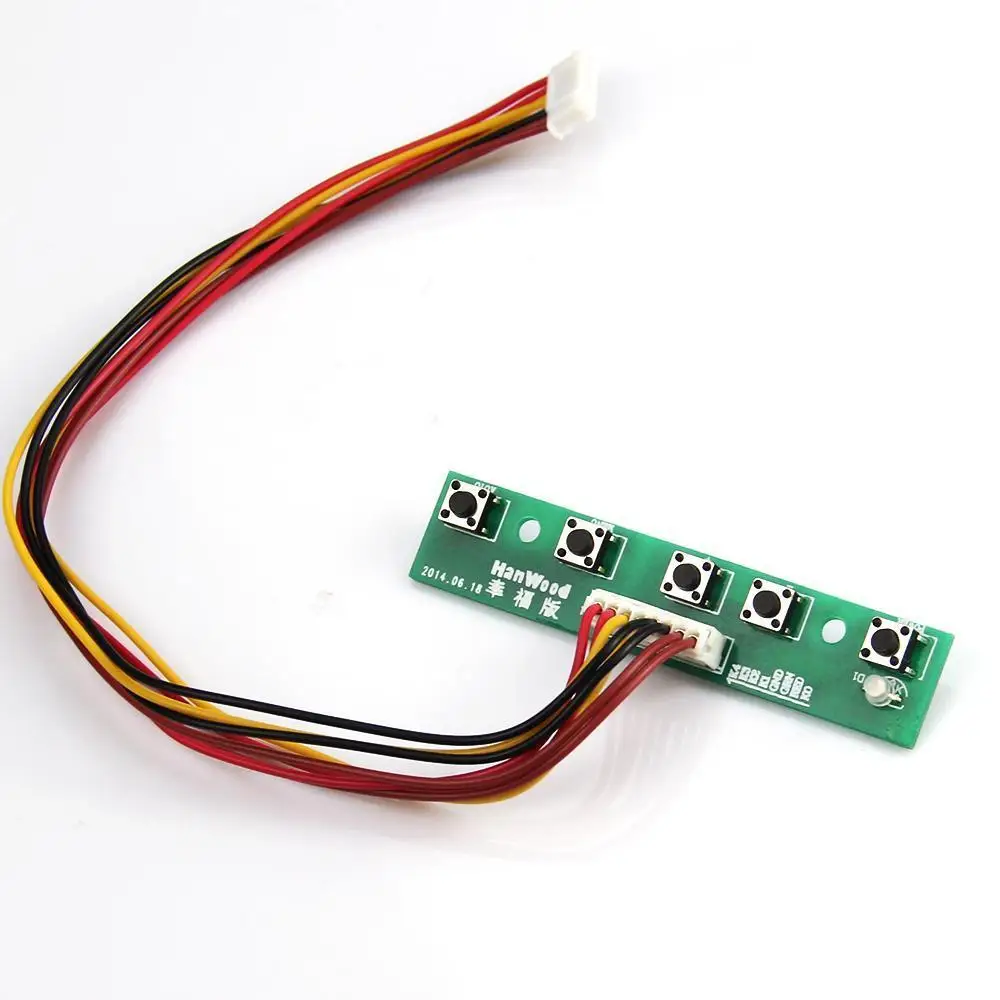

  1x Keypad with Cable

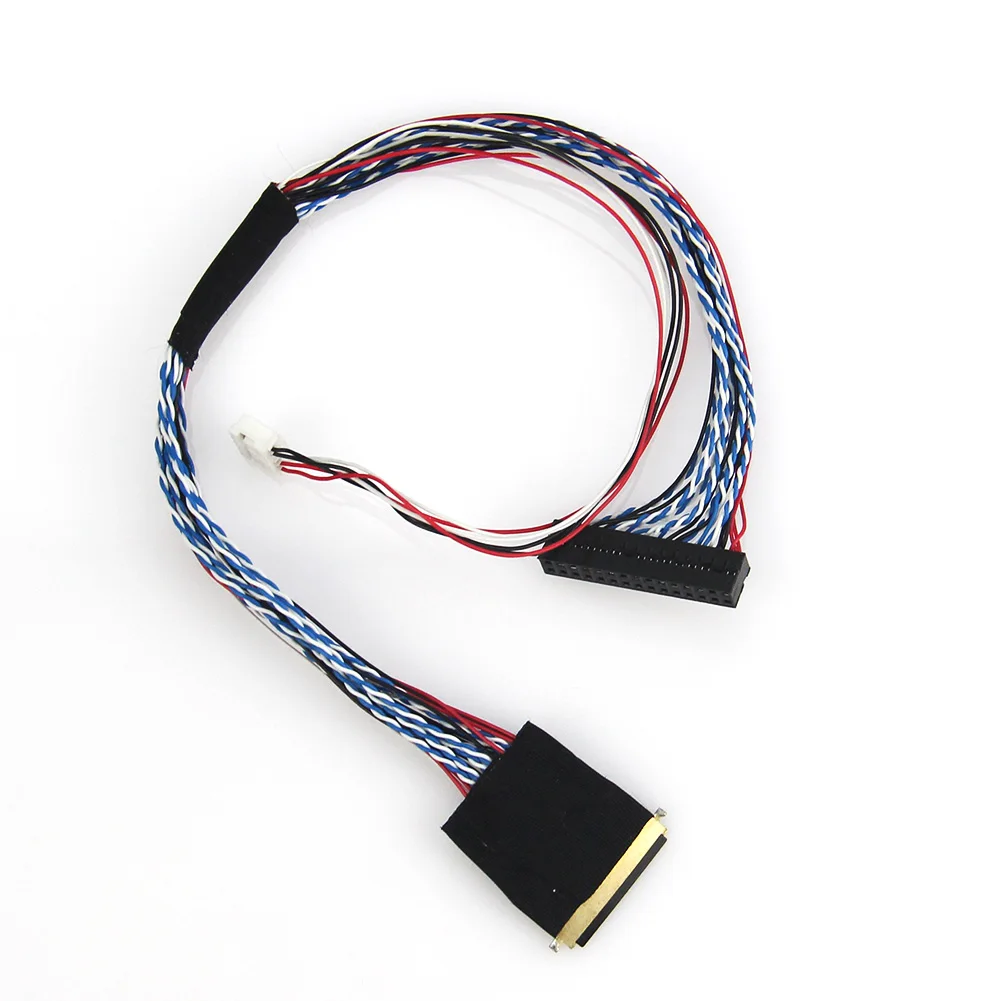

  1x LVDS Cable

DEMO:(TFT LCD display screen is not included in this package.)
