Double color metal EDM machine SG-1 double color metal spark engraving

pen hand electroengraving machine 220V  50W

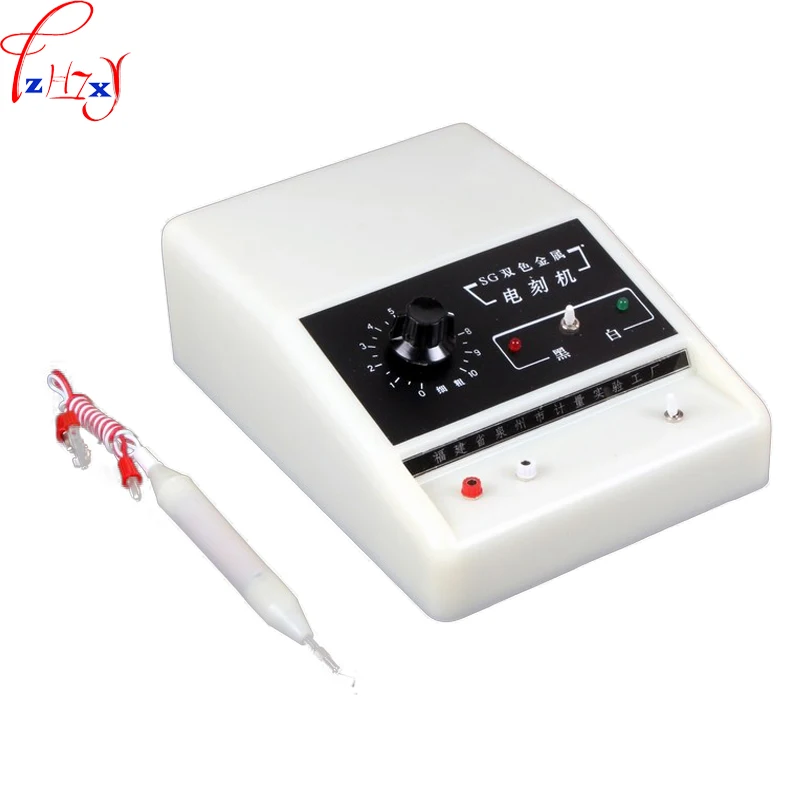

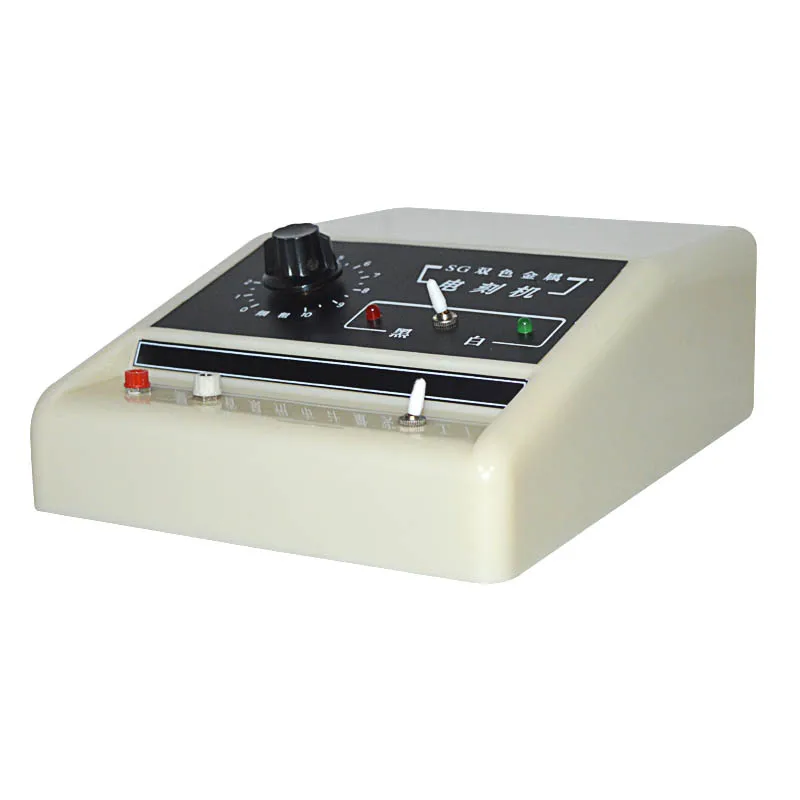

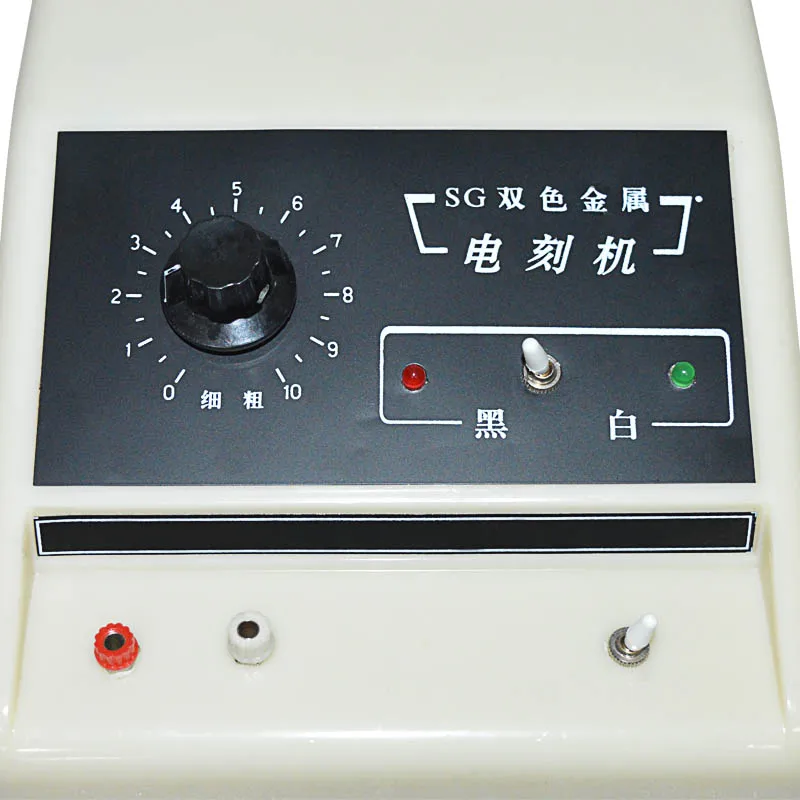

Picture showing:

Principle:

    The use of EDM principle engraved on the metal surface black or white logo. Be able to

easily engrave ultra-high hardness of the material, without affecting the flatness of the

workpiece. Electric engraving machine for all kinds of workers, folders, blade, volume, molds

and various metal parts black and white color lettering, numbering;

The main purpose:

    This machine can engrave black and white two kinds of different color patterns or letter

symbols on all kinds of metal surfaces. Also in the fixture manufacturing marking lines, pattern

size, width and depth can be arbitrarily adjusted in order to get a clear, perfectly symmetrical

lines ideal results.

    The machine is flexible and easy to operate, the use of completely reliable, is not engraved

workpiece deformation damage, has been in the instrument manufacturing, precision bearings

and precision machinery parts processing and the electronics industry, measurement,

materials management sector widely used by the majority of users Welcome.

Typical application:

Measuring tools, fixtures, cutting tools, molds, tools and other lettering number.

Main feature:

1. Any surface conductive metal (such as copper, steel, iron, chrome, galvanized, etc.) surface Lettering.

2. Marking high temperature corrosion resistance, a certain nature.

3. Not subject to the limitation of metal hardness, such as lettering on cemented carbide.

4. As the logo is almost no depth, it will not affect the flatness of the metal surface.

Instructions:

1. The surface of the workpiece to be engraved must be clean and dry to ensure good contact.

2. When you choose the color you need, the ground grip fixed workpiece, connected to the power.

3. When operating, engraved pen should be kept vertical with the workpiece, slowly moving,

nib and the workpiece should have the appropriate clearance, adjust the output of large and

small to the pattern, the lines are completely clear so far.

4. Electric engraved in aluminum, please use copper tips (customers can bring their own).

Technical Parameters:

Input voltage: 220V 50HZ

Power consumption: 50W

Overall dimensions: 250 × 180 × 50mm

Net weight: 2.7KG

Precautions:

1. Engraving, electric engraving pen must be perpendicular to the surface of the workpiece,

and leave a certain gap for the nib vibrate;

2. When writing, the pen nib can not stay a little longer, or it may damage the pen

3. When not in use, please avoid touching the metal parts of the nib with any crocodile clips

connected to the metal object, so as to avoid damage to the plotter.
