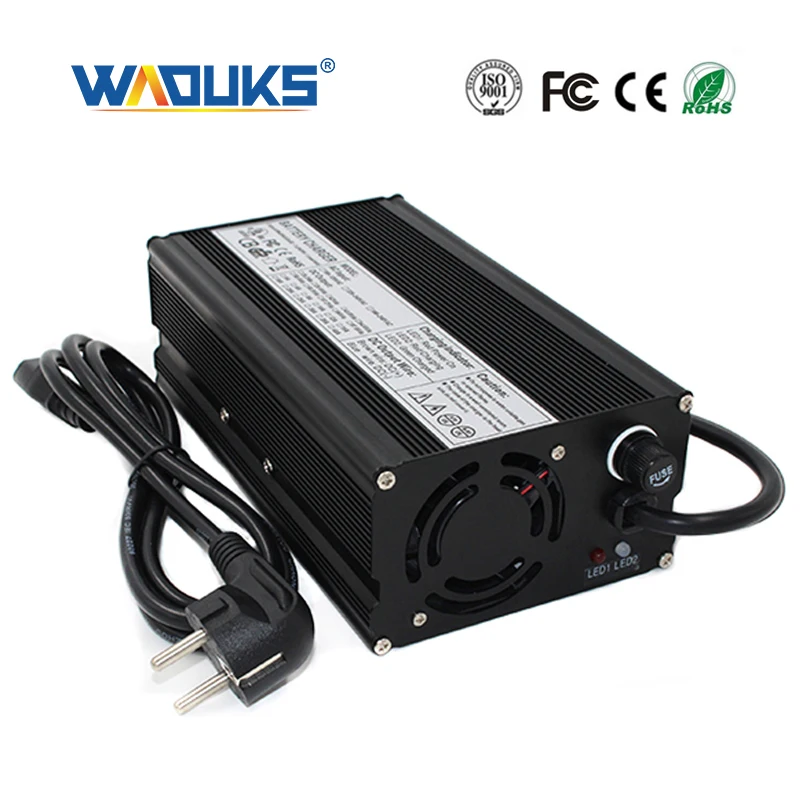

50.4V 8A lithium battery charger for 12S 44.4V pack electric bike | Электроника

Item No.:  WA600-50408B Input:  100-120V/220-240V (50~60HZ) Output Voltage : 50.4V  Output Current: 8A  Used for: 12S 44.4V Lipo/LiMn2O4/LiCoO2 Battery Pack Charging Mode: 3 Stages, CC, CV, Trickle Material: Aluminum Alloy Dimension: 210*120*70mm Net Weight: 2.2kg Color: Black Various Protection: Over current, Over Voltage, Over Temperature, Short Circuit and reverse polarity. Remarks Porduct can be Customized!     No.     Spec   Constant oltage Constant Current Transition   Weight   Size Cut-off Lead Acid Li-ion LiFePO4 Max(A) Lead Acid Li KG MM 1 12V 14.7V 16.8V 14.6V 20 4 1.0         2.2         210*120*70 2 24V 29.4V 29.4V 29.2V 12 2.4 0.6 3 36V 44.1V 42.0V 43.8V 8 1.6 0.4 4 48V 58.8V 54.6V 58.4V 6 1.2 0.3 5 60V 73.5V 75.6V 73.0V 5 1.0 0.25 6 72V 88.2V 84.0V 87.6V 4 0.8 0.2   1 Full automatic Transition of CC.CV And Float/cut-off 2 Limit pressure and current. Fully charged. Avoid overcharging. 3 Overcurrent, overvoltage, short circuit and reverse polarity protection. 4 Efficiency: 95% to 98%. PFC: 0.96, environment-friendly. 5 Double LED indicator, aluminum case, beautiful and reliable. 6 CE, FCC,ROHS certification. Safety and quality Note: the cut-off point of lithium battery is 5% of CC, which can be set between 5% and 10%.
