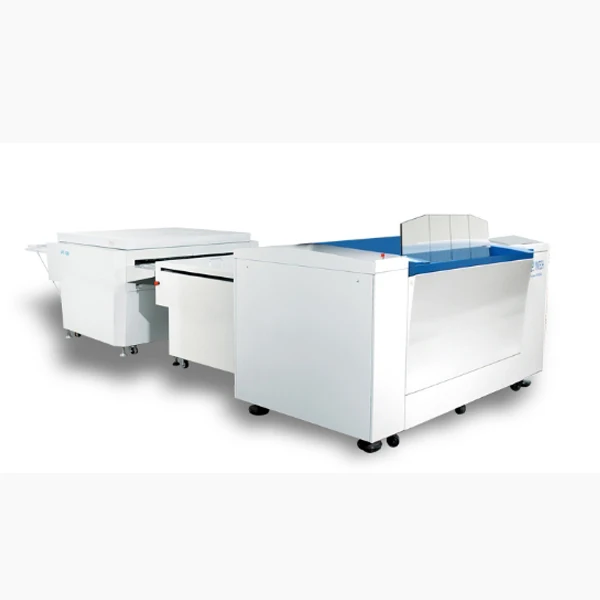

YInber 9300B 32 channels on-line uv plates amsky ctcp machine price 2 years warranty for all parts. If buy the machine with plates from us, we can do the warranty time 5 years.

Please open the following linking to see the machine working video. When you open that linking, please stay there for a moment until the video appear:

On line UV ctcp machine

offline ctp plate making machine video page

amsky ctcp machine price parameters:

Max./Min. Format: 1160x 940mm  (46inchx 37inch/ mini. 350x 400mm (14inchx 16inch)

Model Number: Yinber 9300B

No.of Lasers: 32

Productivity: size 1130x 800mm plates/ hour  17 Pieces

Max./mini. Format: Max: 1160x 940m/ mini. 350x 400mm

Laser Source: 405nm

Resolution: 2400 dpi (Resolution can be customized)

Loading System: Semi-Auto

Plate Requirement: 0.15-0.4mm(UV plates, no brand requirement)

Interface: 1-bit Tiff interface and direct workflow driver, support CIPC/CIP4

Power: AC220-230V,50-60hz, 5.5KVA

Environment: Temperature: 20-25 C degree, Humidity: 40%-80%

Size: 2020mmx 1000mmx 930mm

Net Weight: 1500kg

amsky ctcp machine price advantage:

3. Unlike traditional single-row optical fiber, we arranged our optical fibers in a double-row position , which brings us more saturated dot.

4. The same with Kodak, we adopted real-time auto-focus technology. Auto-focus brings us not only wider adaptability on plates, but also more saturated dot. If the drum happens to deform or plates not flat, auto-focus can make up these flaws.

6. To ensure a high registration accuracy, we adopted non linear correction technology, and we also delayed our light-spot to make it come true.

7. High-power diodes. Unlike most manufacturers used 1w diodes for CTP machines and 70mj (200mW) diodes for CTCP machines, we use 2W diodes for CTP machines and 120mj (300mW) for CTCP machines. Based on usual use, higher power diodes can expect a longer life and not so easy to get aged.

8. Intelligent operation becomes reality. ( Remote diagnose) Through “ Teamviewer”, our technicians can real timely share data with customers computer, thus to diagnose their CTP equipment.

9. We used built-in bearing to support our drum, which brings us higher stability and accuracy when the drum rotates in a high spped, without a big deviation.

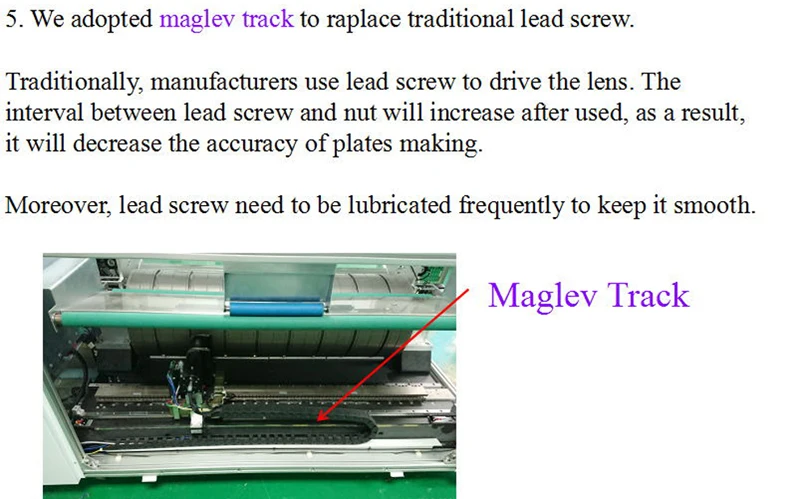

10. We used top-class accessories of the world in all our equipment, which brings our products stable performance and long life. -Fuji motor from Japan; -Lasermech thermal diodes from USA; -Nichia UV diodes from Japan; -Maglev system and bearings from Germany; -Sensors from Spain.

11. Convey plates mechanically. To save the cost, most manufacturers choose to convey plates pneumatically. Air pressure is easy to vary, which often brings problems to the conveying process.

12. We used separate single diodes as laser source. Unlike Kodak making their diodes as a whole, if any one separate single diode got a problem, we just need to replace the broken one, that can save a lot cost.

1 our engineer will come to your address to free installing and training  until your know all details. You just pay his accommodation .

2 Any problem to us, we will solve it within 24 hours.

This machine fromthe factory of Yintech directly.

With over10 years experience we keep adding diversified products and service into printing Industry, providing customers a whole pre-press solution. Integrated R&D, manufacture and marketing as a whole, we also supply clients customized products and service based on a principle of client priority. About management, we insist on “people oriented” to form a normative management mode, which bring us a professional technical team, a dedicated sales team and a efficient service team.

About business, we insist on “integrity, innovation, cooperation, win-win” and improving our manufacture quality and scale, which bring us a firm foundation to seek for further developing. “More efficient, more accurate, more stable” is the promise we give to our customers, which is also all Yintech members’ goals to pursue continuously.

Exhibition:

 1 What is the warranty of your machine?

Answer:  Our warranty of our machine is 2 years for all parts. If you using the plates from us, we can do the warranty 5 years. Any part broken within warranty time, we can send it to your free of charge.

2 What is the delivery of your machine:

Answer:  Usually 15 to 20 days.

3 is a service menu to diagnose and service the machine through the USB port for support engineers, etc…

Answer: Our remotely service similar Kodak devices. Because the CTP machines technology made in china source of Kodak.

 4 What accearies will be with the machine.

Answer: 1 english book, cool machine and other quick-wear parts.

Please be noted that, our price included the processor. If your do not processor, we can do also for your.
