Контроллер температуры CH402 AC85-264V с высокой точностью, умный, цифровой, с функцией PID-регулирования, термостат, реле, вход для TC/RTD.

Контроллер температуры CH402 AC85-264V с высокой точностью умный цифровой функцией PID-регулирования термостат реле вход для TC/RTD.

CH402 AC85-264V High Smart PID Digital Temperature Controller Thermostat Relay TC/RTD Input

Features:

This smart digital temperature controller uses advanced special chip for industrial instruments of high , strong anti-interference ability.

High reliability, multi-type sensor input, using wide range switching power supply.

It has the new fuzzy control combined with the advanced PID control algorithm, good control of rapid change and long lag time.

Advanced non-overshoot self-tuning scheme for convenient use, also with communication function.

The controller has small size and stable performance, easy to operate.

Specifications:

Input: Thermocouple (TC)(K, J, R, S, B, E, N, T), thermal resistance (RTD) (PT100, JPT100, Cu50) standard voltage current signal

Temperature Range: 0~1300°

Basic Error: ± 0.5%±1digit of full range input

Resolution: 1°, 0.1°

Sampling : 3 times/sec

Alarm Output: Relay contact AC250V 3A (resistive)

Control Output: Relay contact AC250V 3A (resistive)

Logic Level: DC 0/12V (with solid state relay)

Crossing Trigger Pulse: Optocoupler SCR output 1A 600V; 0-10mA current output (load resistance is less than 600&;); 0-20mA current output (load resistance is less than 600&;); 4-20mA current output (load resistance is less than 600)

Control Mode: Fuzzy PID control, position control

Power Supply Voltage: AC85-264V (50/60Hz), ( rated 100-240VAC)

100-240V universal switch power supply

Operating Temperature: 0~50°

Operating Humidity: <85%RH

Power Consumption: <5VA

Package Includes:

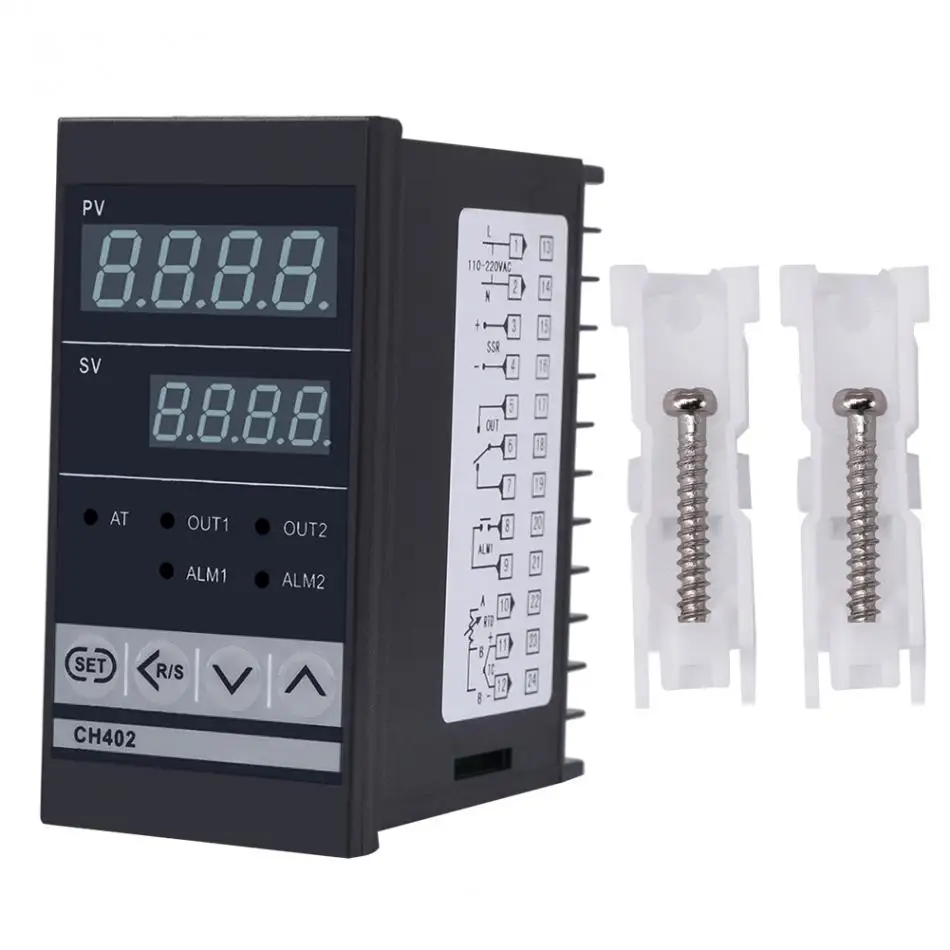

1 x Temperature Controller

2 x Screws

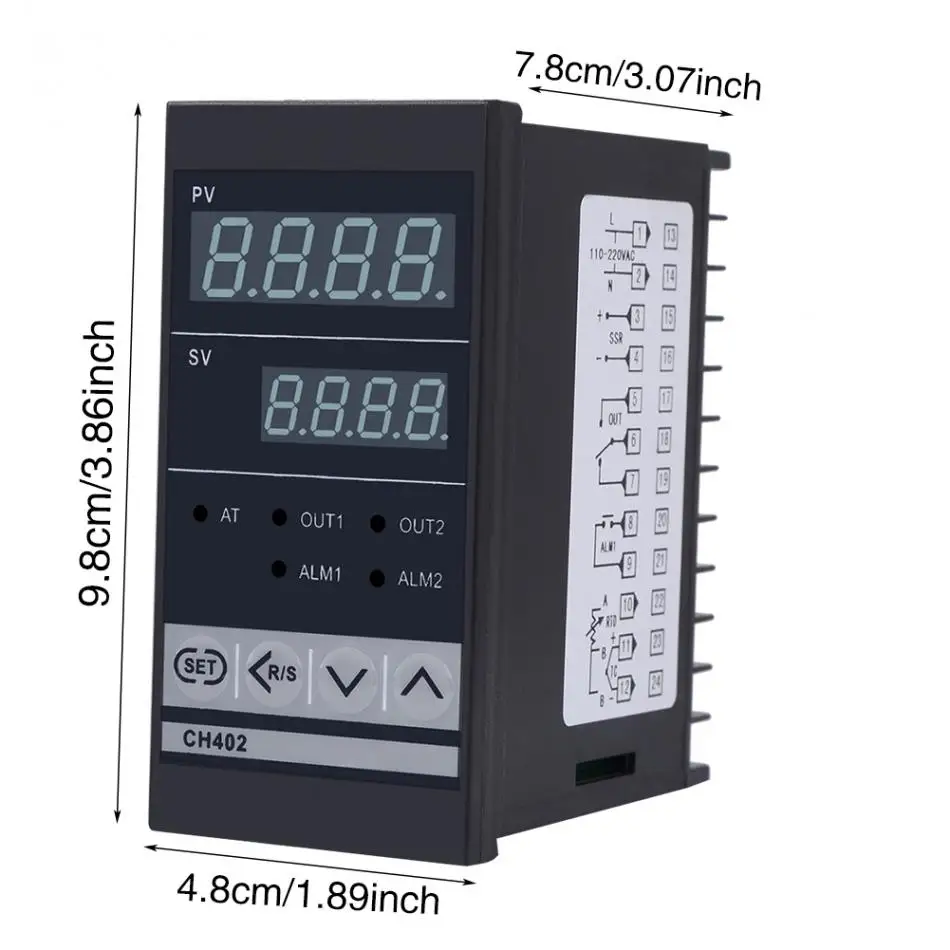

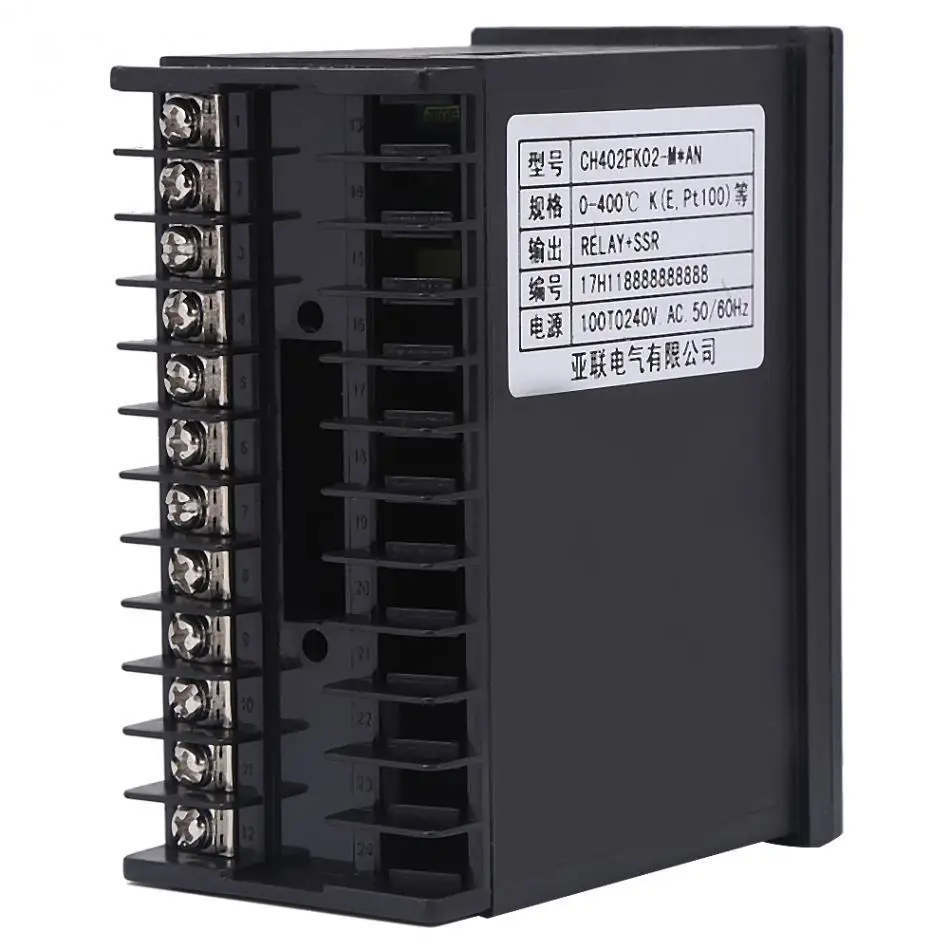

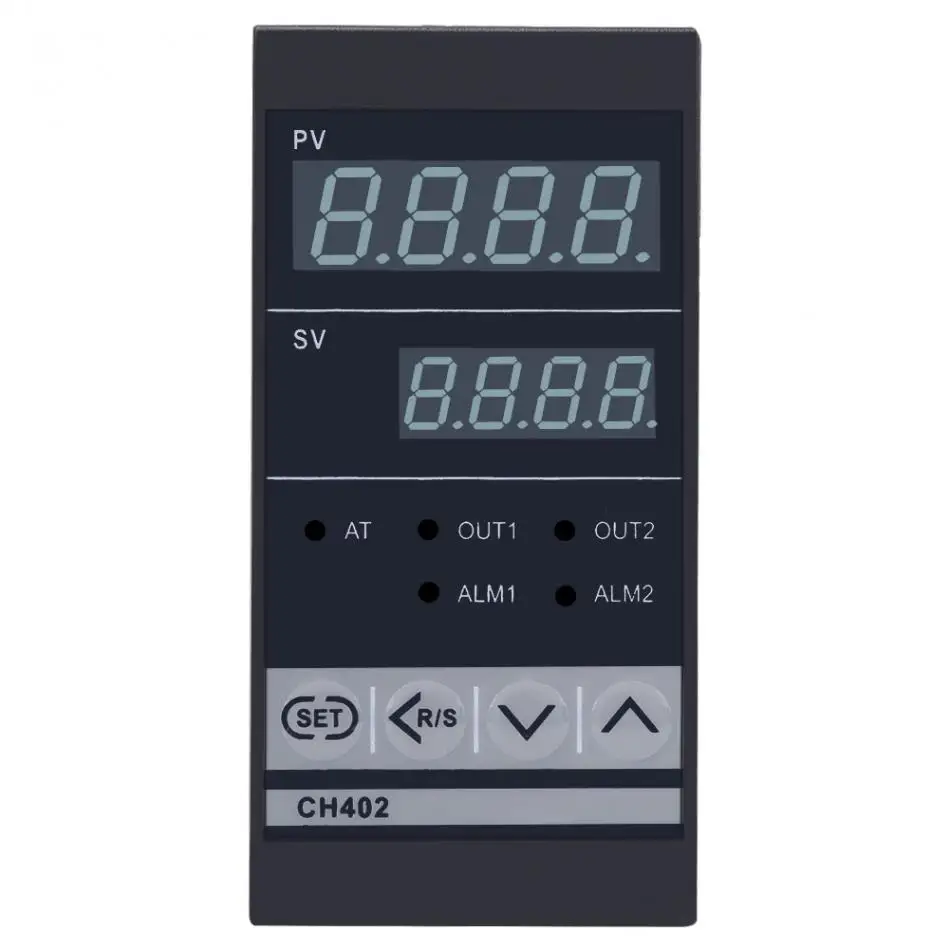

Picture Show:
