1.Brief Intruction

With working area of 1300*2500*200mm, the machine is widely used in furniture industry.

We use high quality components on this machine like 3.0 kw HSD air cooling spindle, 118 big stepper motors and Yako drivers, Taiwan Hiwin linear rails and TBI ball screw, DSP control system and so on.

We also have some optional parts for you to choose: Chinese or Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts on the machine can be changed according to your requirements.

2.Performance parameter for INM1325 Carved Wooden Furniture

NO.

Description

Parameter

1

Table Size

1360×2940mm

2

Traveling Positioning Accuracy

±0.03/300mm

3

X,Y,Z Repositioning Accuracy

±0.03mm

4

Table Surface

Vacuum and  T-slot Combined

5

Frame

Welded Structure

6

Transmission

Rack and Pinion Drive

7

Max. Power Consumption

(Without Spindle)  3.2Kw

8

Max. Rapid Travel Rate

33000mm/min

9

Max. Working Speed

25000mm/min

10

Spindle Power

3.0/4.5/6/7KW

11

Spindle Speed

0-18000RPM

12

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

13

Command Language

G Code

14

Computer Interface

USB

15

Flash Memory

128M(U Disk)

16

Collet

ER25

17

X,Y Resolution

<0.03mm

18

Software Compatibility

Type3/ Artcam Software

19

Running Environment  Temperature

0 - 45 Centigrade

20

Relative Humidity

30% - 75%

21

Packing Size

3200X2100X1980mm

22

N.W.

1000KG

23

G.W.

1170KG

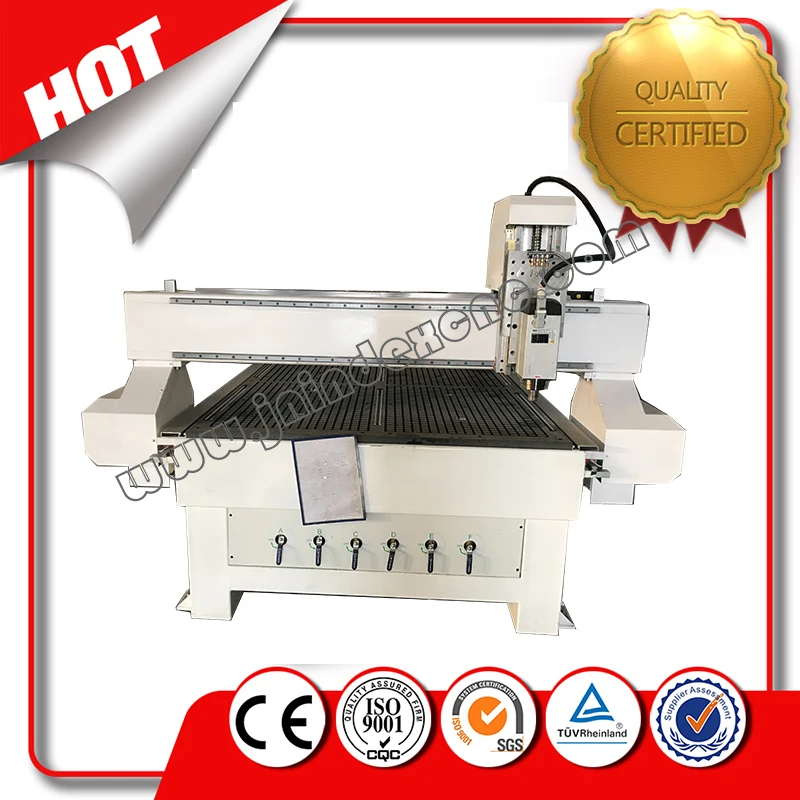

3.Machine photos

4.Samples

Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

Artwork and Decoration

wood crafts; gift box; jewelry box

Relief sculpture and 3D engraving and Cylindrical object.

5.

Generally we will take care of your machine packages well like picture show.

Firstly our worker will make sure your machine clean before package, then add Stretchy film for the whole machine and spare parts for sweet protection, at last we will make export standard strong plywood case package according to your needs.

Guarantee:

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support:

1. Technical support by phone, email or MSN/Skype around the clock

2. Friendly English version manual and operation video CD disk

3. Engineer available to service machinery overseas

After sales services:

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.

Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc
