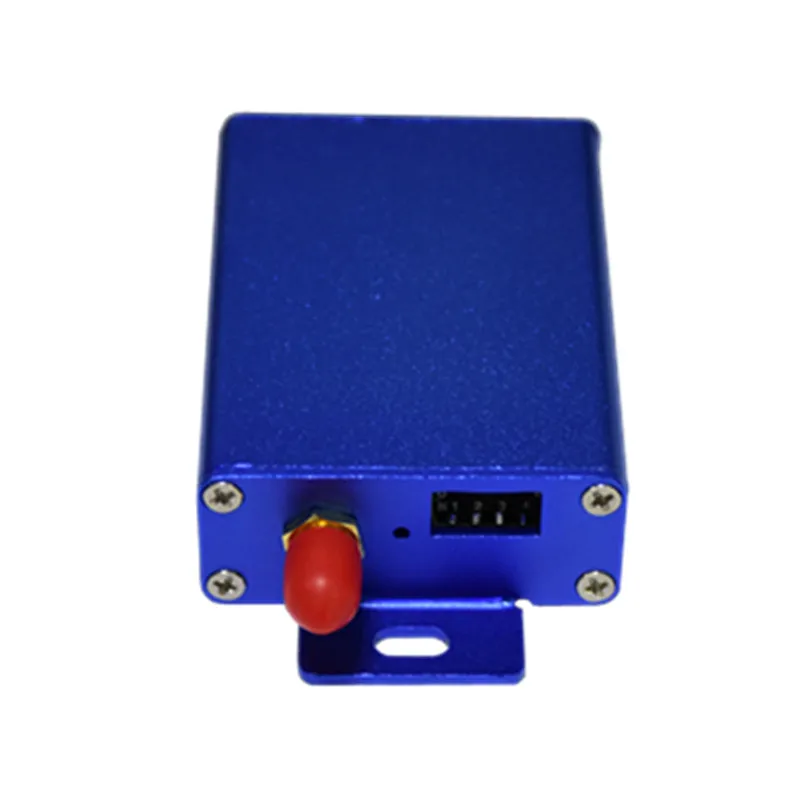

2w wireless digital audio modem 433mhz transceiver rs485 rs232 voice&data simultaneous communication | Мобильные телефоны и

2w wireless digital audio modem 433mhz transceiver rs485 rs232 voice&data simultaneous communication | Мобильные телефоны и

Please confirm which model number (pls read Point 3)you need after placing order.

We set XZ-DA25-L4-D(433.250MHZ,9600bps,rs232&rs485)default in factory before shipping.

Specifications:

1.Main Features

2.Pin Definitions

Pins

XZ-DA25-LXX

Remark

DB9 Male connector

1

VCC

DC：7～36V

2

RS-232/RXD

3

RS-232/TXD

4

GND

Grounding of power supply

5

AGND

Signal Ground

6

RS-485/A

7

RS-485/B

8

9

Definition of 3.5 pin connector (fuselage is female seat)

1

MIC

Voice signal input

2

SP

Speaker output（8Ω@1W）

3

PTT

Voice send Enable, low level active

4

GND

Analog Ground

3.XZ-DA25-LXX Series Model No. Comparison Table

   Model No.

Model Selection

Air data rate(bps)

XZ-DA25-LX-D

Only voice transmission

9600

Voice signal and data are not transmitted at the same time, air data rate is less than 9600bps

XZ-DA25-LX-E

Simultaneous transmission of voice signals and data

19200

Voice signal and data are not transmitted at the same time, air data rate is not more than 19200bps

XZ-DA25-LX-F

Simultaneous transmission of voice signals and data

38400

Voice signal and data are not transmitted at the same time, air data rate is not more than 38400bps

XZ-DA25-LX-G

Simultaneous transmission of voice signals and data

115200

Voice signal and data are not transmitted at the same time, air data rate is not more than 115200bps

XZ-DA25-LX : X means frequency,1:136-174MHZ; 2:220-240MHZ; 4：410-470MHZ

4.Technical Parameters:

Frequency Range

136-174MHZ,220-240MHZ,410-470MHZ

Frequency stability

≤±2.5PPm

Transmit Power

2W(33dBm)

Modulation

GFSK/4GFSK

RF Data Rate

1200～4800bps

Interface

RS232&RS485(TTL customized)

Power Supply

5V@2A(8～36V customized in factory)

Interface Data Format

8E1/8N1/801

Transmission Distance

3km-5km line of sight (if Antenna is put at above 2m height)

Receiving Sensitivity

-123dBm@1200bps/-106dBm@115200bps

Channel Bandwidth

 10KHZ@1200bps/200KHZ@115200bps

Working Temperature

-40℃～80℃ (industrial grade)

Working Humidity

10% to 90% relative humidity, no condensation

Emission Current

≤1500mA(Max Output Current of power supply is not less than 2A)

Receiving Current

≤80mA

Dimension(L/W/H)

86 X 45 X 20 mm

Weight(g)

≤80g

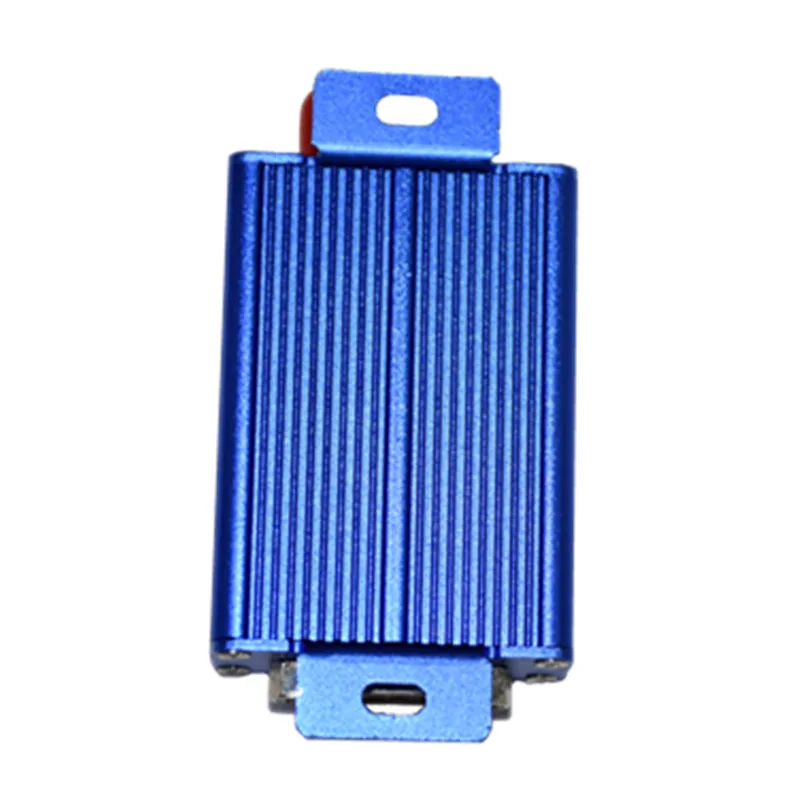

5.Dimension

Remark ：

1, radio power supply requirements: The maximum output current is not less than 2A, and the linear DC power supply is the best choice. If using switching power supply, the power supply with smaller ripple and better EMC characteristics should be selected.

2, the radio must be connected the antenna before the radio is powered on, a long-time antenna open-circuit working may cause damage to the radio.

6.Accessories

1.Standard accessory:

DB9connector

Small sucker antenna (Users can select high gain antennas for better communication results according to actual use.)

3.5 4-band audio plug

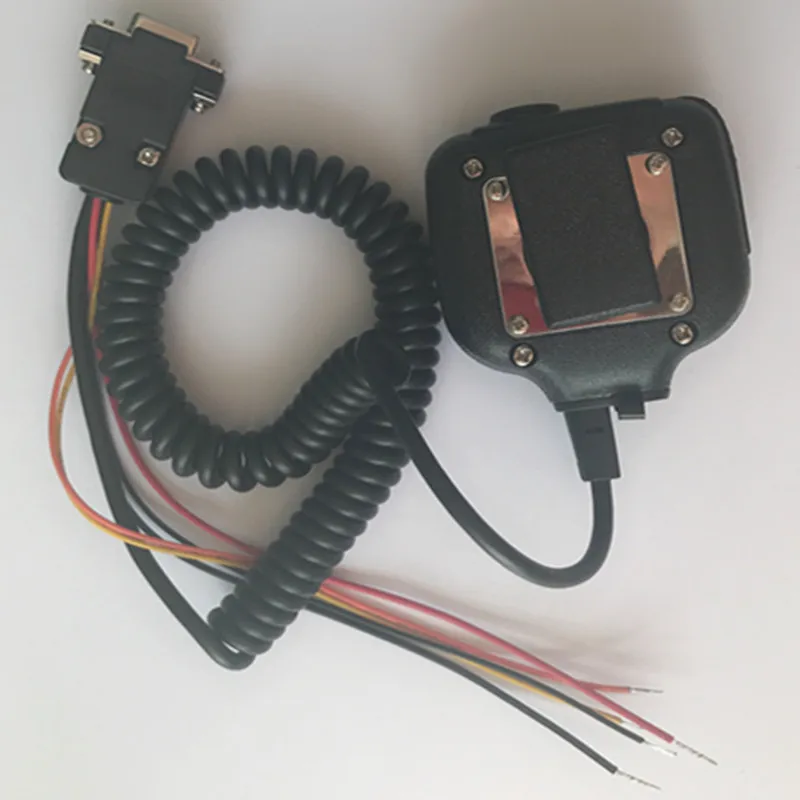

2. Optional accessories (microphone, large clip antenna)

Package includes:2pcs digital voice modem,2pcs microphone,2pcs small sucker antenna,2pcs 3.5 4-band audio plug,2pcs DB9connector

7.Applications

● UAV flight control, sensor and voice transmission

● Robot control, man-machine conversation, sensor data acquisition.

● Voice data transmission of individual soldier system

● Meteorological and geological hazard warning system

● Earthquake, meteorology, environmental protection and urban lighting control

● Railway, transportation, metallurgy, chemical industry and industrial automation process control

● Vessel (UMV) monitoring and control, robot control data link
