12VDC Intelligent ozone generator in water treatment TWO001 0.2-1.0 ppm for vegetable free shipping |

12VDC Intelligent ozone generator in water treatment TWO001 0.2-1.0 ppm for vegetable free shipping |

Our ozonated water device can get rid of chemicals that are accumulated on your fruits and vegetables. It does not leave any harmful residues. The by-product of ozonation is oxygen.

It uses only cold water to maximize your sanitization results. It operates at peak efficiency in high humidity.

PRODUCT FEATURE:

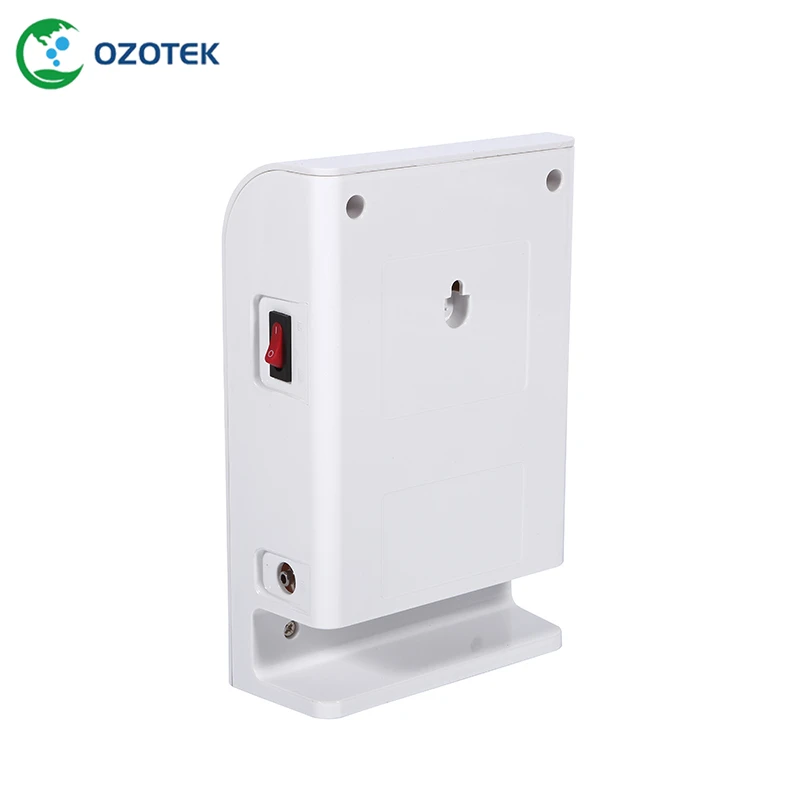

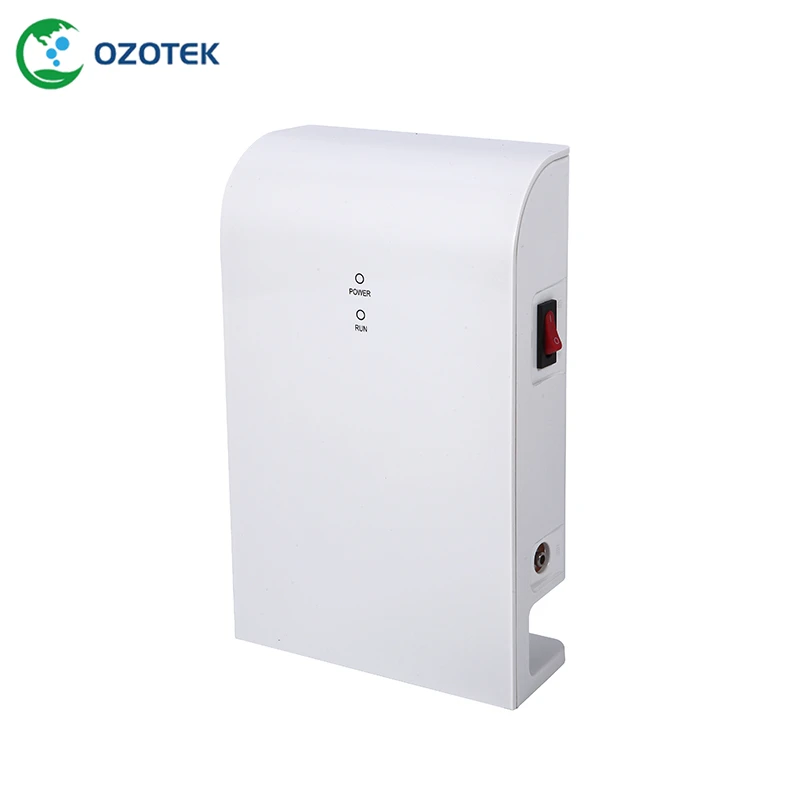

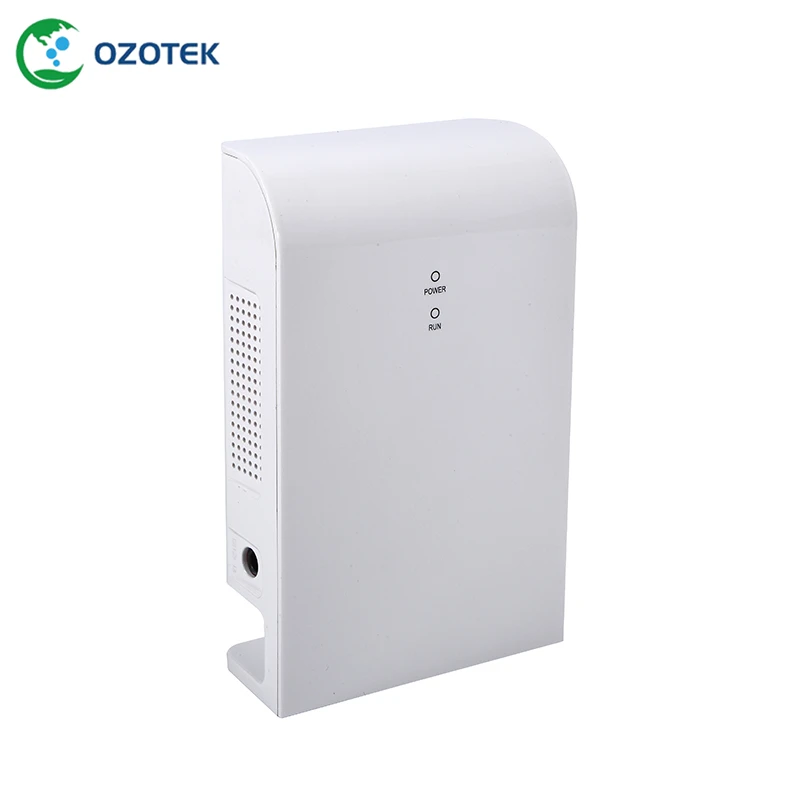

Product name: Intelligent ozone water machine

Model: TWO001

Ozonated water concentration: 0.2-1.0 PPM

Water flow: 200-900L/H

Inlet water: Tap water

Water inlet temperature: 5-30℃

Water outlet pressure: 3.0 Bar

Voltage: 100-240V 50/60HZ

Power consumption: 6W

Unit size: L115 x W50 x H180MM

Net weight: 0.5KGS

Gross weight: 0.9KGS

Color: Silver

Intelligent micro pulse operational control system

Micro gas-water mixer system

Non-contact auto stand-by and sleep system

CE (LVD & EMS) approval;

ROHS Compliant

ADVANTAGES:

Unique mini design

Produce O2 oxygen as byproduct

Higher concentration Ozonated water: 0.2-1.0 PPM;

No consumable parts or oxygen gas needed. Use air and water as material;

Quick and effective removal of pesticides and herbicides, kills mold spores, fungus, bacteria and viruses

No nitrogen oxide (Nox) or toxic by products

Continuously produces ozonated water when operating the machine

Uses DC 12V as control system

Easy to use, no regular maintenance ;

Quiet operation and no noise

APPLICATIONS:

Chef- This is an intelligent ozone water machine designed for kitchen, unique mini design, easy to use. Safety ozone is mixed with water and produce ozonated water to meet need for daily life and restaurant.

Water with high ozone concentration can sterilize food & kitchen ware, disinfect hands, floors, wall, tables,; use as cleaning solution for towels & rags. Oxidize, decompose bacteria and pesticide from fruits and vegetable surfaces keep food fresh, Neutralize hormones and smell from meat, extend usable life and make food safe; Can also remove germs, bacteria and residual chlorine in tap water.

Medical-add the effectiveness of ozone sterilization without the need for consumable oxygen and convert tap water at any faucet to liquid sanitizer. Increase safety and sanitation everywhere that people use water to wash,bathe or irrigate wounds and incisions;

Laundry- eliminate mold, fungus, bacteria and virus, remove pesticides and herbicides, and decompose petroleum hydrocarbon; If used on laundry or washing machine or shower, it need to work with venturi.

INSTALLATION & OPERATION

1. Check all the accessories whether included in the packing;

2. Fasten the tap water gas mixer;

3. Use ozone tube to connect tap water gas mixer with ozone outlet (right side of machine);

4. Plug in DC adaptor with machine (lift side of machine);

5. Press on/off button (right side of machine);

6. Turn on the tap water, the machine will start working.

7. If the machine is not used for a long time, please turn off the switch and take off the adaptor.

Turn on any faucet, laundry or dishwasher that is connected to the TWO 001 and the water is automatically converted to safe, non-toxic liquid sanitizer.

On standby mode, no ozone gas is generated to prevent toxic ambient air levels.

TAP WATER CONNECTION DIAGRAM

PACKING:

1. Carton packing;

2. One unit per carton box;

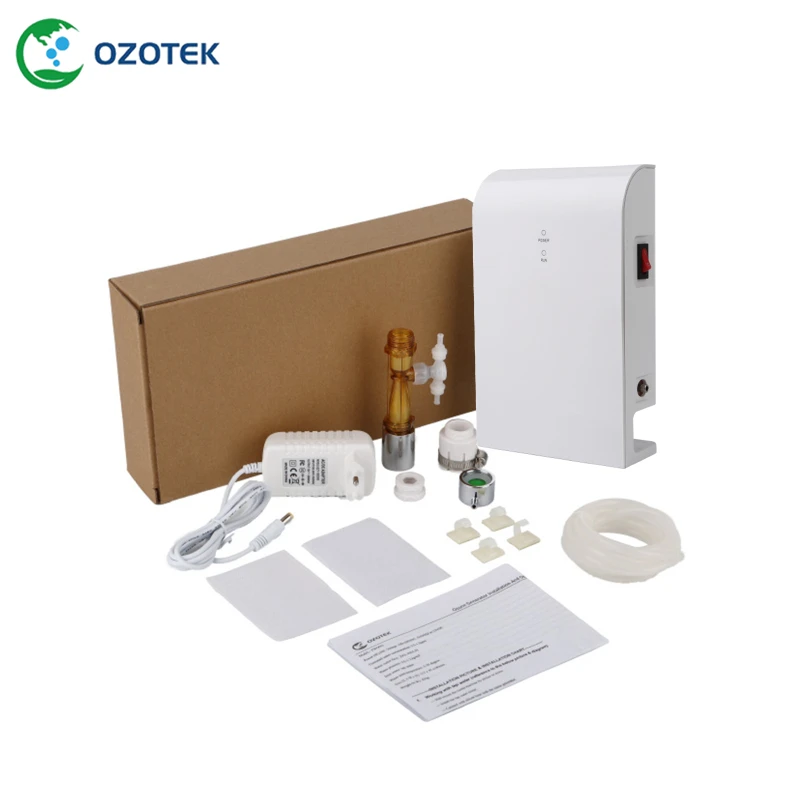

SPARE PARTS INCLUDED:

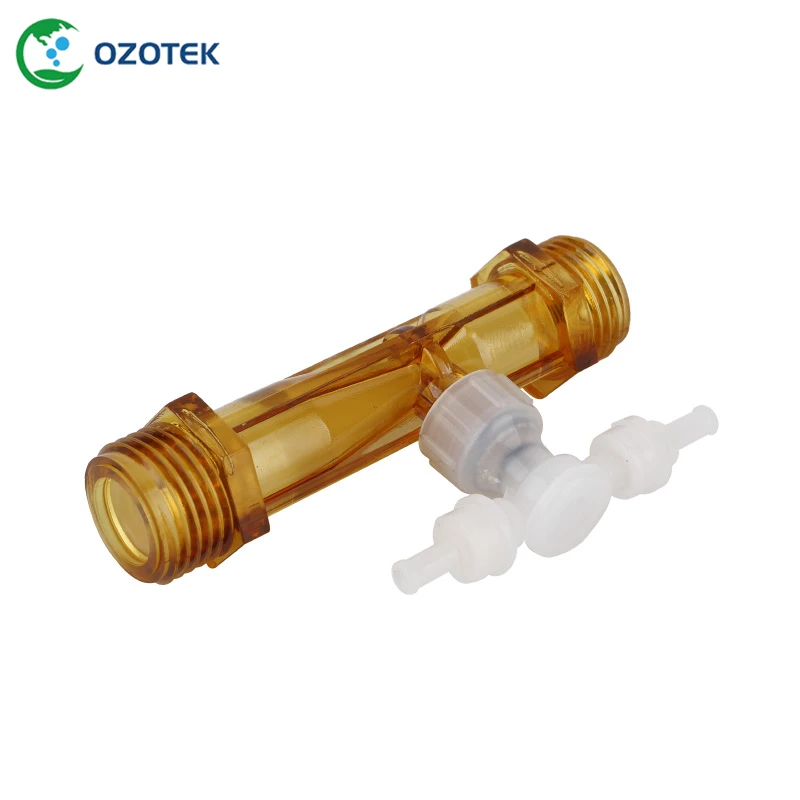

1. Tap water gas mixer

2. Silicon hose

3. Water tap adaptor

4. 12VDC adaptor

5. Operation manual
