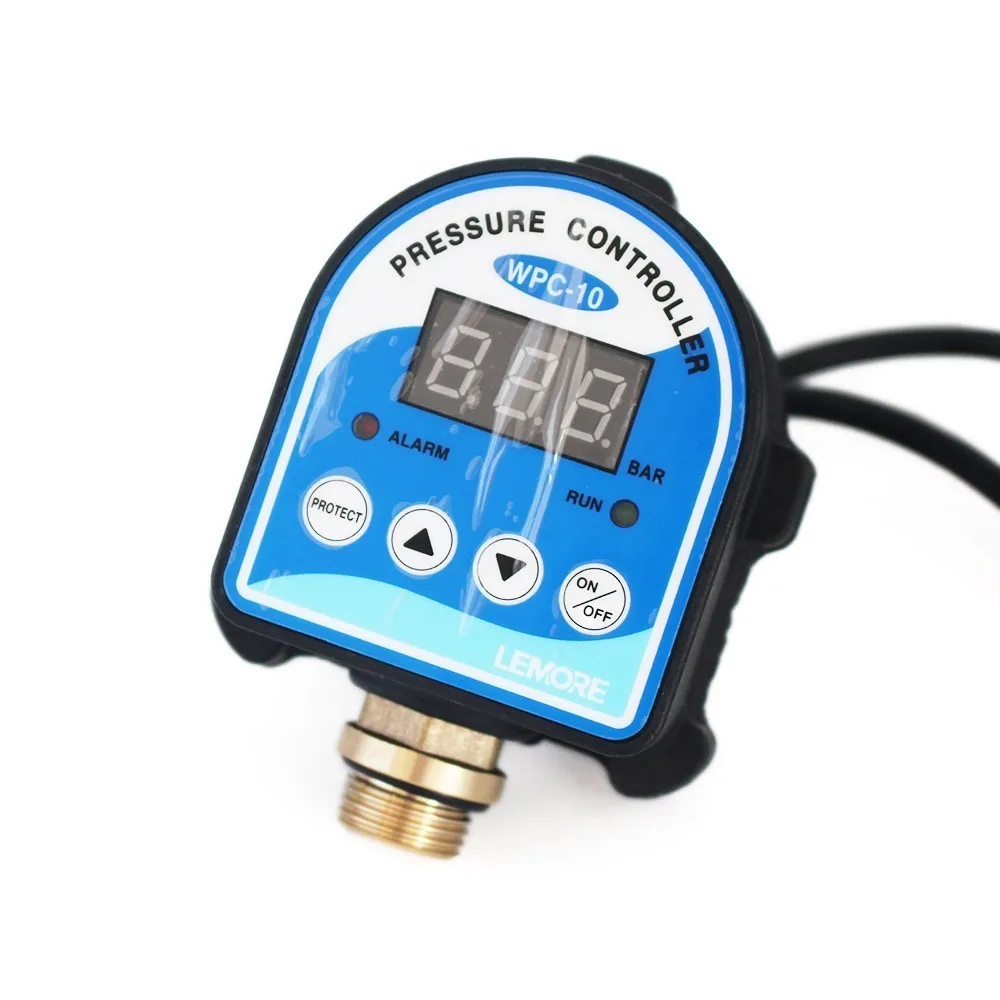

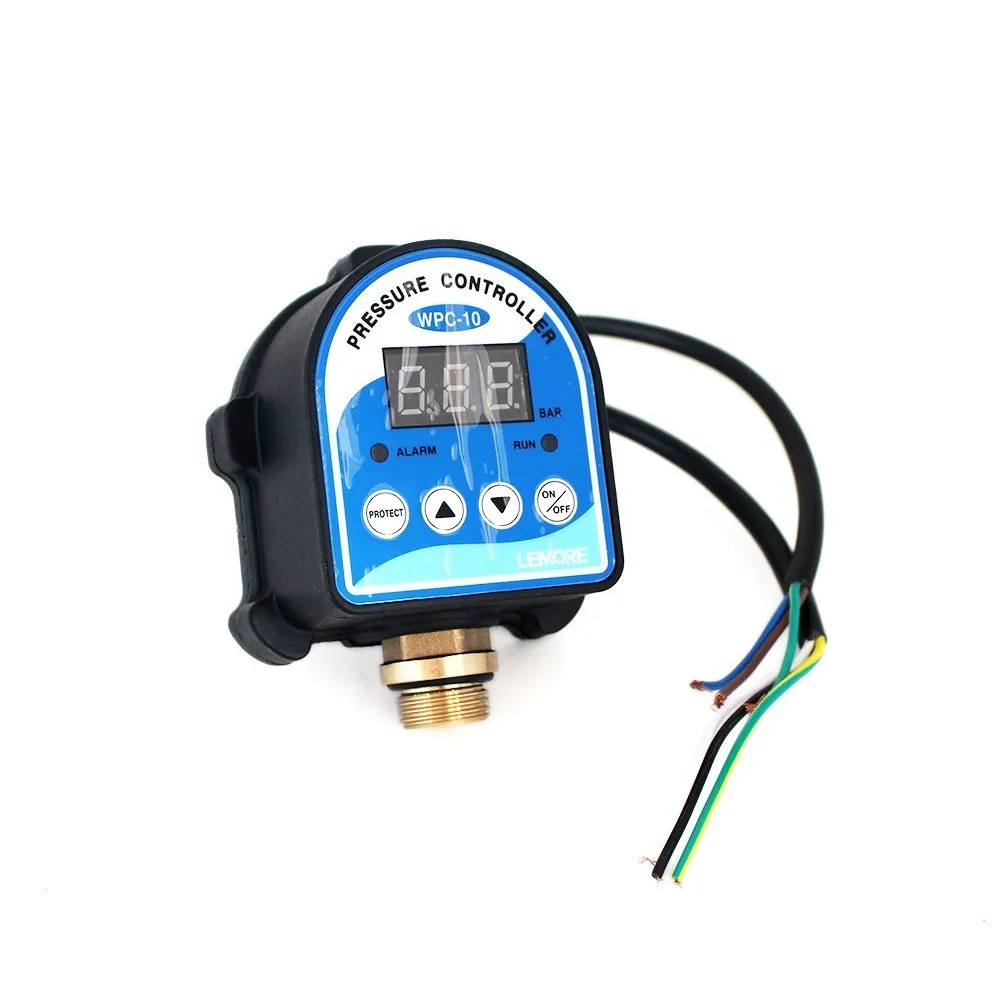

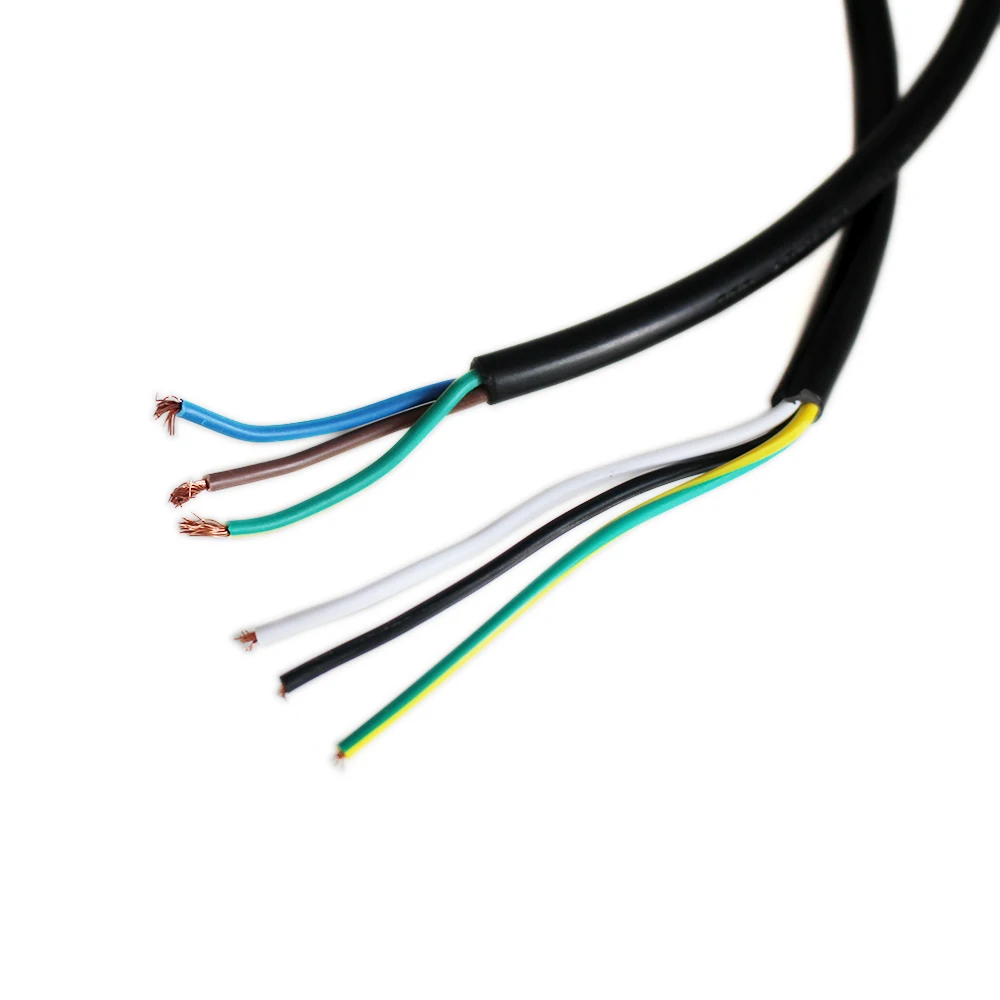

1pc Digital Pressure Control Switch WPC-10 Digital Display WPC 10 Eletronic Pressure Controller for Water Pump With G1/2"Adapter

Technical Parameter:Pressure Range0-10KG/CM2Voltage Supply220Vac(You require a 3 phase AC contactor with 380V pump)Technical Parameter:Pressure Range0-10KG/CM2Voltage Supply220Vac(You require a 3 phase AC contactor with 380V pump)ConnectionG1/2(Standard),it also can be customizedOverload Capacity220V,10A; Pump(≤1.5KW) can be started directlyProduct Feature: environment-friendly:silent designSafe: IP65,water-proof case,water-shortage protectionIntelligent: Preventing the pump automatically restart frequently Reliable: Electronic Design, long-life for using, more than 200,000 times operation,anti-vibrationWidely application:Pipeline Pump,Booster Pump,Self-priming pump,Immersible Pump,Circulating Pump ect.,widely using for solar heat pump,air-source heat pump,WILO home booster pump,Grundfos hot water circulating pump and other relevant pumps.Description of Using:Water Supply from Upstairs to DownstairsPressure relief valveThe position of deviceHeightthe lowest outlet of waterThe Upper Value=The Max. Pressure of Pump -0.5KGThe lower value=0.5KGWater shortage protection value=0.2KGWater Supply from Downstairs to Upstairs:the highest outlet of waterThe Upper Value=The Max. Pressure of Pump -0.5KGThe lower value=H*0.1KG+0.5KGWater shortage protection value  ≤H*0.1KG Immersible pump automatic controlThe position of deviceHeightthe highest outlet of waterthe surface location of waterThe Upper Value=(The Max. Pressure of Pump-H )*0.1KG-0.5KGThe lower value=H1*0.1KG+0.5KGWater shortage protection value  ≤H1*0.1KG REAR THE CODECODEMEANINGHOW TO USEH2.9Upper value,stop 2.9KGYou can set it as instructionL1.5Lower Value,stop 1.5KGYou can set it as instructionF0.2Water shortage protection  0.2KGYou can set it as instructionE-FWater shortage protection Press ON/OFF to restart or waiting for restart automaticallyE-HError,over the pressure range or the sensor damagedCheck the pressure source  The wiringPlease see the back of the WPC-10 pressure control, the left is Chinese word "power", you can supply 220Vac from here, the right is Chinese word "motor", please connect it with the pump 220Vac supply terminal.         Russian Manual!

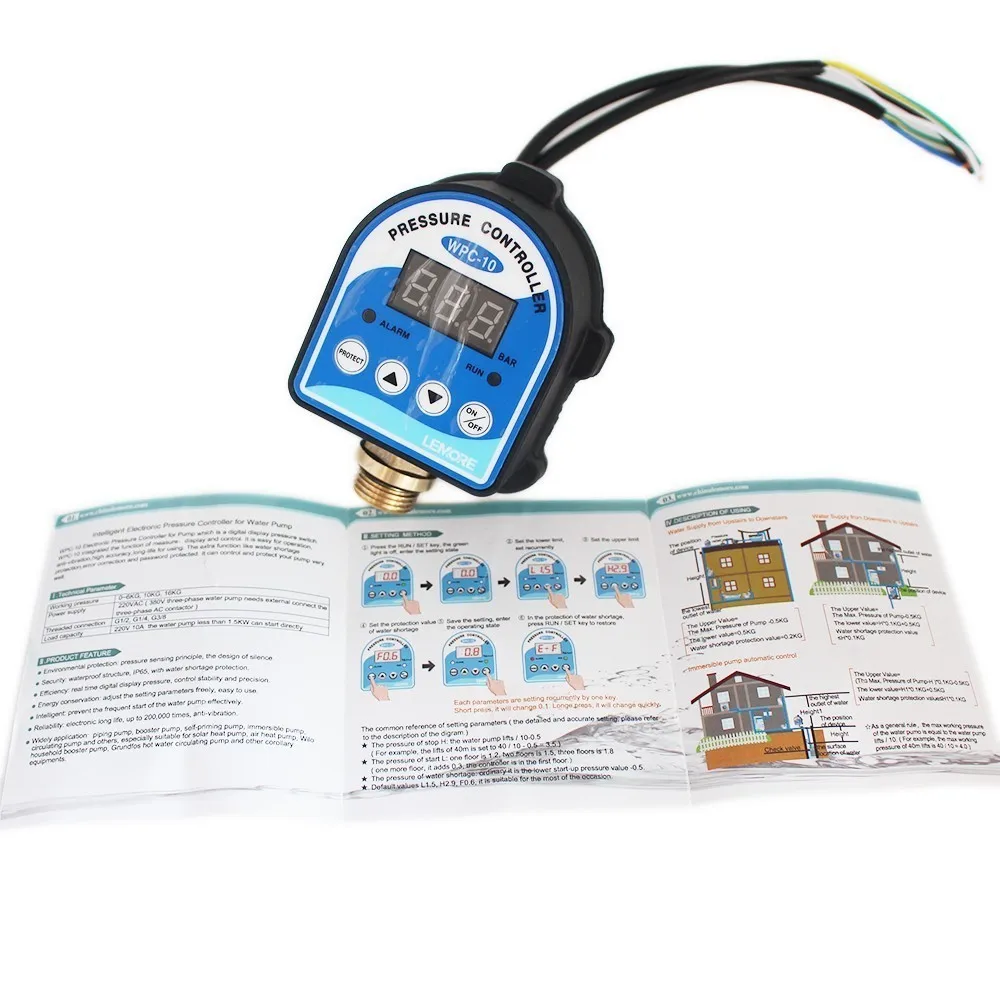

Description Of Using



Water Supply from Upstairs to Downstairs    Immersible pump automatic control



The Upper Value=                           The Upper Value=

The Max. Pressure of Pump -0.5KG            (The Max. Pressure of Pump-H )*0.1KG-0.5KG

The lower value=0.5KG                       The lower value=H1*0.1KG+0.5KG

Water shortage protection value=0.2KG         Water shortage protection value≤H1*0.1KG











Water Supply from Downstairs to Upstairs











The Upper Value=The Max. Pressure of Pump-0.5KG

The lower value=H*0.1KG+0.5KG

Water shortage protection value≤H*0.1KG





Technical Parameter

Pressure Range

0-10KG f/CM

Voltage Supply

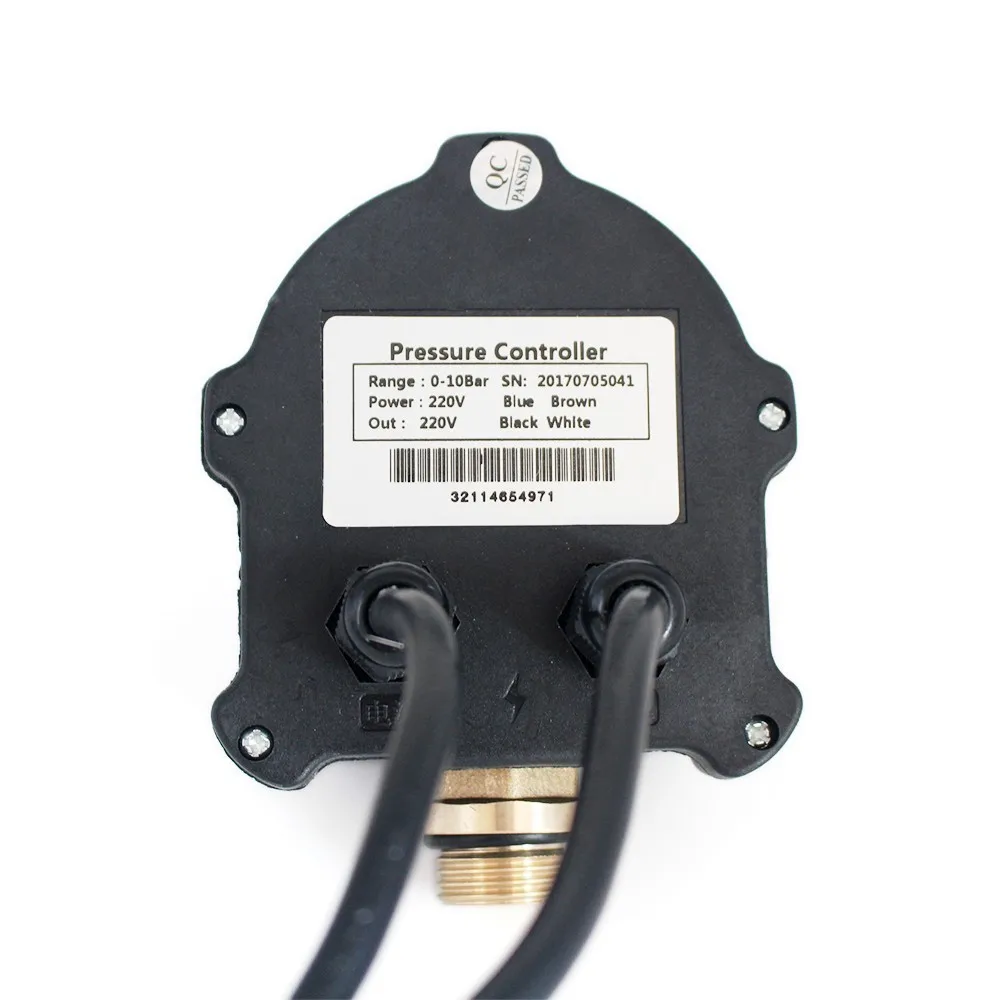

220Vac(You require a 3 phase AC contactor with 380V pump)

Connection

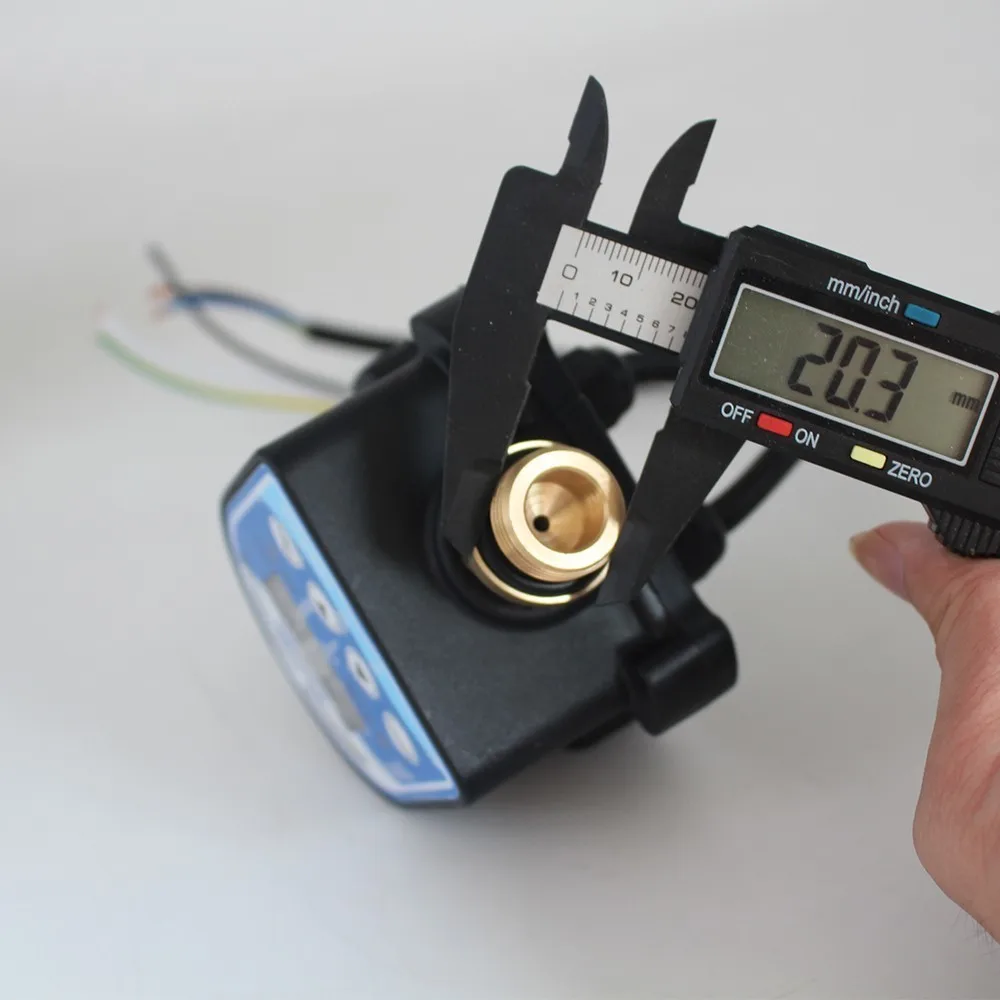

G1/2(Standard),it also can be customized

Overload Capacity

220V,10A; Pump(≤1.5KW) can be started directly





Read The Code

Code

Meaning

How To Use

H2.9

Upper value,stop2.9KG

You can set it as instruction

L1.5

Lower Value,stop1.5KG

You can set it as instruction

F0.2

Water shortage protection  0.2KG

You can set it as instruction

E-F

Water shortage protection

Press ON/OFF to restart or waiting for restart automatically

E-H

Error,over the pressure range

Check the pressure source
