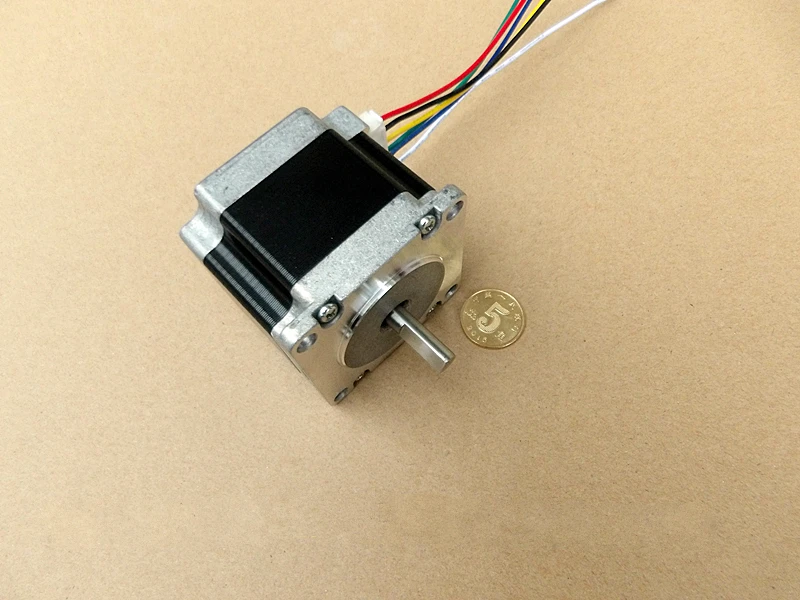

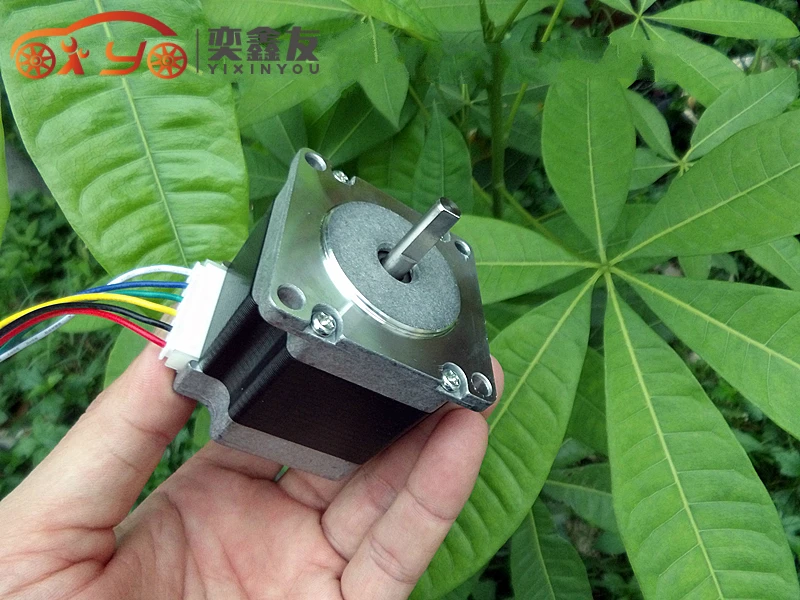

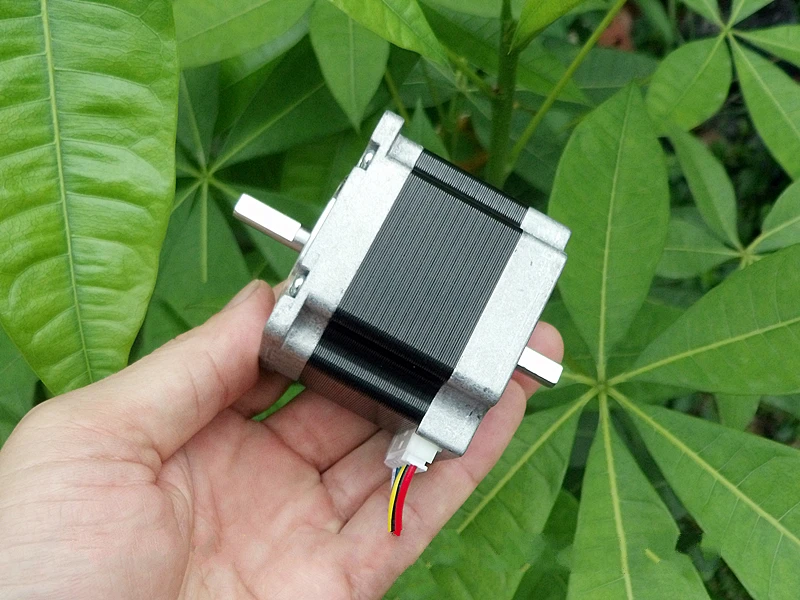

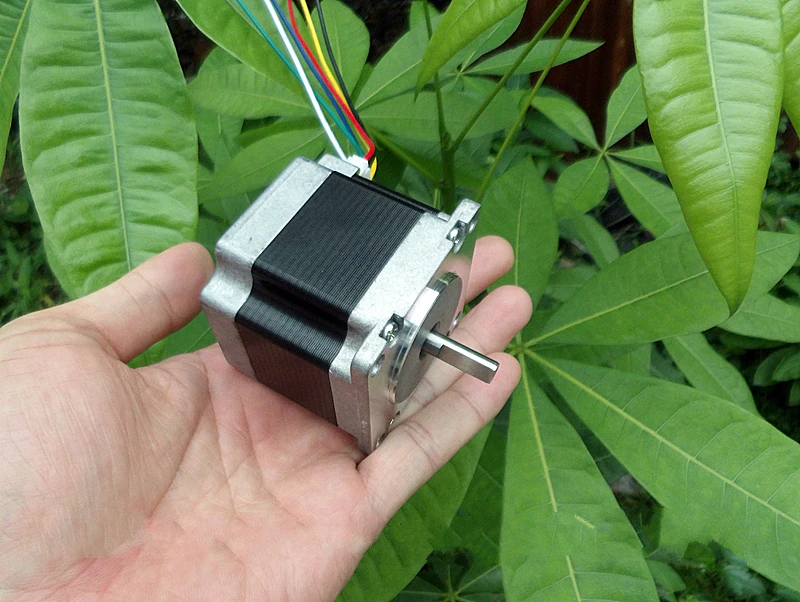

Two-phase four-wire 57 stepper motor
Body height 49.5MM
Shaft diameter 6.35MM
The torque is about 0.8 N.m
Stepping motor specifications: 57 MM
Optical height: 49.5 MM
Output shaft: 6.35 MM (flat 5.35MM)
Output shaft length: front axle 19 MM, rear axle 15 MM
Step angle: 1.8
Resistance: the middle of the tap 0.7 Europe, both ends of the tap 1.4 Europe.
Lead: two-phase six lines
Line length: 130 MM. (Line is sent)
(Which red, black, yellow line is A phase, white, blue, green line is B phase)
6V short circuit current: the middle tap more than 5A, both ends of the tap 3.11A.
Weight: 595 g

Two-phase, six-wire hybrid stepper motor, if there is a suitable match of the six-wire driver, it can be fast response and large torque between the flexible switch, if it is an ordinary two-phase four-wire drive, law:

1. If you need a large torque, then pick the two ends of the tap:
Red line: A +, yellow line: A- (Black line is the middle of the taps, vacant not connected)
White line: B +, green line: B-. (Blue line is the middle of the taps, vacant not connected)

2, if you need high-speed operation, then pick the middle tap:
Red line: A +, black line: A- (Yellow line is not connected)
White line: B +, blue line: B-. (Green line is not connected)

'
