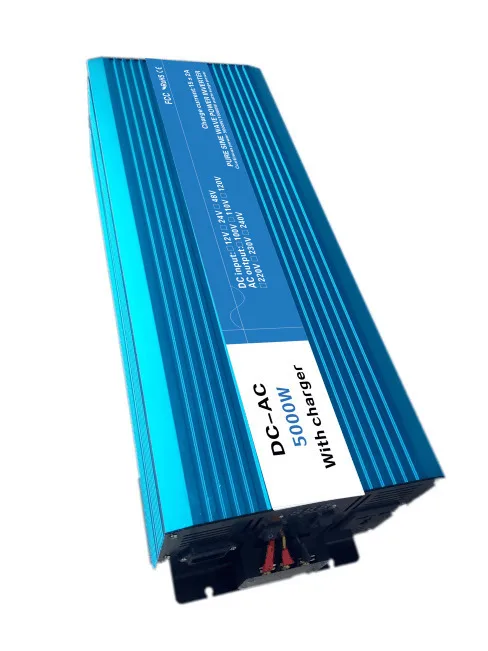

5000W Pure Sine Wave Inverter DC 12V/24V/48V To AC 110V/220V off-grid UPS solar inverter voltage converter with charger and |

5000W Pure Sine Wave Inverter DC 12V/24V/48V To AC 110V/220V off-grid UPS solar inverter voltage converter with charger and |

Be attention please:

- Please leave me the message about the DC input,  AC output, the frequency and the socket type before shipping, I will confirm for you. If the package is returned for customer's fault, the customer need to pay for additional fee, if not, we will pay for additional fee and send the right one at once.

- Please attention if the package is broken before you received it, please don't open the package and show me the photo, I will contact with the express at once.

- If you have any question when you use the inverter, please feel free contact with me, the professional technical  department will help you to deal with the problem.

The inverter with Charge and UPS Intelligent switching

Sometimes,the color of the inverter will be change,Because the production of different batches.

By Default,The inverter is Universal plug,if you need Other standards plug,please Leaving a message.

Pure Sine Wave, as good as the grid power

Full Power

Core Technology, German  Design

Most Advanced Program in Software

Complete Protection  Non Defect Rate,

Better EMC - Electro Magnetic Compatibility,

No Noise for TV or Stereo Sound

SMT- Surface Mounting Technology

All Big Imported Mosfet,Strong Driving Capacity

PCB Thickness :2.00m

LED Display

Compact Design, Less Weight, Full Power,

Single Layer Design, Easy to Repair if any.

Earth Connection for Both Inverter and PCB,

Low No Load Current Draw

Durable quality with 10 years usage,

Alarm and LED Indication Light for error warning. New inevrter with LED display, let you monitor the inverter input voltage and output voltage in time. With this function, you will know about the inverter condition more clearly.

Sufficient Heat Radiation

More Vent Holes on the plates and the bottom for heat radiation

Popular Metal Black Design

Big Current Connector,

All kinds of socket are available

Strong Wiring Row on AC End,

Best quality ever in the market

Factory Price.

Output power

5000W

Peak power

10000W

Input voltage

DC12V

DC24V

DC48V

DC12V

DC24V

DC48V

Input voltage range

9.55-15.5V

19.8-30.2V

40.2-60.4V

9.55-15.5V

19.8-30.V

40-60.4V

Output voltage

100VAC or 110VAC or 120VAC ±5%

220VAC or 230VAC or 240VAC ±5%

No-loadcurren

less-than

3.2A

1.6A

0.8A

3.2A

1.6A

0.8A

Output frequency

50HZ±1HZ or 60HZ±1HZ

Output wave

Pure sine wave/Pure sine wave

Charging current

10A/20A

10A

10A/20A

10A

Transfer Time

≤8MS

Battery priority

                                                                                     Optional/Default Battery priority

USB

5V 1000MA/2000MA

Max. working efficiency

93.80%

Operating temperature range

-10°- +50°

Storage temperature

-30°- +70°

Humidity

                                                                                        Max. 90%, non-condensing

Dimensions(W*H*D)

548*200*155mm

Starting

bipolar soft start

Low voltage alarm

10V±0.5V

21V±0.5V

42V±1V

10V±0.5V

21V±0.5V

42V±1V

Low voltage shut down

9.5±0.5V

20V±0.5V

40V±1V

9.5±0.5V

20V±0.5V

40V±1V

Low voltage recovery

13±0.5V

24V±0.5V

48V±1V

13±0.5V

24V±0.5V

48V±1V

Over voltage shut down

15.5±0.5V

31V±0.5V

61V±1V

15.5±0.5V

31V±0.5V

61V±1V

Over voltage recovery

14.8±0.5V

29V±0.5V

59V±1V

14.8±0.5V

29V±0.5V

59V±1V

LED Lights

Blue indicator light (inverter output, normal operation); the red indicator flashes (under / over voltage, overload, temperature, short circuit)

Protection

Battery over under / over voltage, overload, temperature, AC short circuit

protection (positive and negative polarity protection)

Fuse

DC short circuit protection

Display

LED high-definition digital display

Circuit Topology

Frequency link

Cooling way

                                                                               Intelligent cooling, built-in cooling block

1.Short circuit production.9 kinds of protections:

When the load is short circuit, the inverter will stop working.

2. High temperature production.

When the use environment is stuffy, the heat of the inverter can not be radiated. The temperature is above the rated temperature, the inverter will stop working.

3. High voltage protections.

The battery voltage is above the rated voltage of the inverter, the inverter will stop working.

4. Low voltage protections

The battery voltage falls during the usage. When it is lower than the rated voltage, the inverter will automatically cut the input voltage for the self protection.

5. Surge protection.

It can avoid the DC high voltage surging attack upon the electronic components inside.

6. Overload protection

When the appliances power is higher than the inverters power, the inverter will stop working for self protection.

7. Over current Protection

When the appliances current is  bigger than the inverter current, the protection components on the board will be cut automatically for self protection.

8.Fuse protection.

When the appliances resistance is bigger than inverters, the fuses on the socket will be automatically cut off for self protection.

9. Reverse protection

It can avoid the accidents of burning the inverter if the positive and the negative poles are reverse connected.

The resistive load applications and  the inductive load applications

For resistive load applications:

If you need the inverter to run the resistive load (like laptop, TV, electric cooker, LED light), please choose the inverter with continuous power higher than the appliance's rated power.

For example, for the power inverter with continuous power 2500w,it is suggested to run the appliance with rated power less than 2500w. It is best to use 80% of the rated power.


For inductive load applications:

If you need the inverter to run the inductive load (for appliance such as compressor, motor, water pump), please calculate the power of inverter 3 to 7 times higher than the rated power of your appliance.
