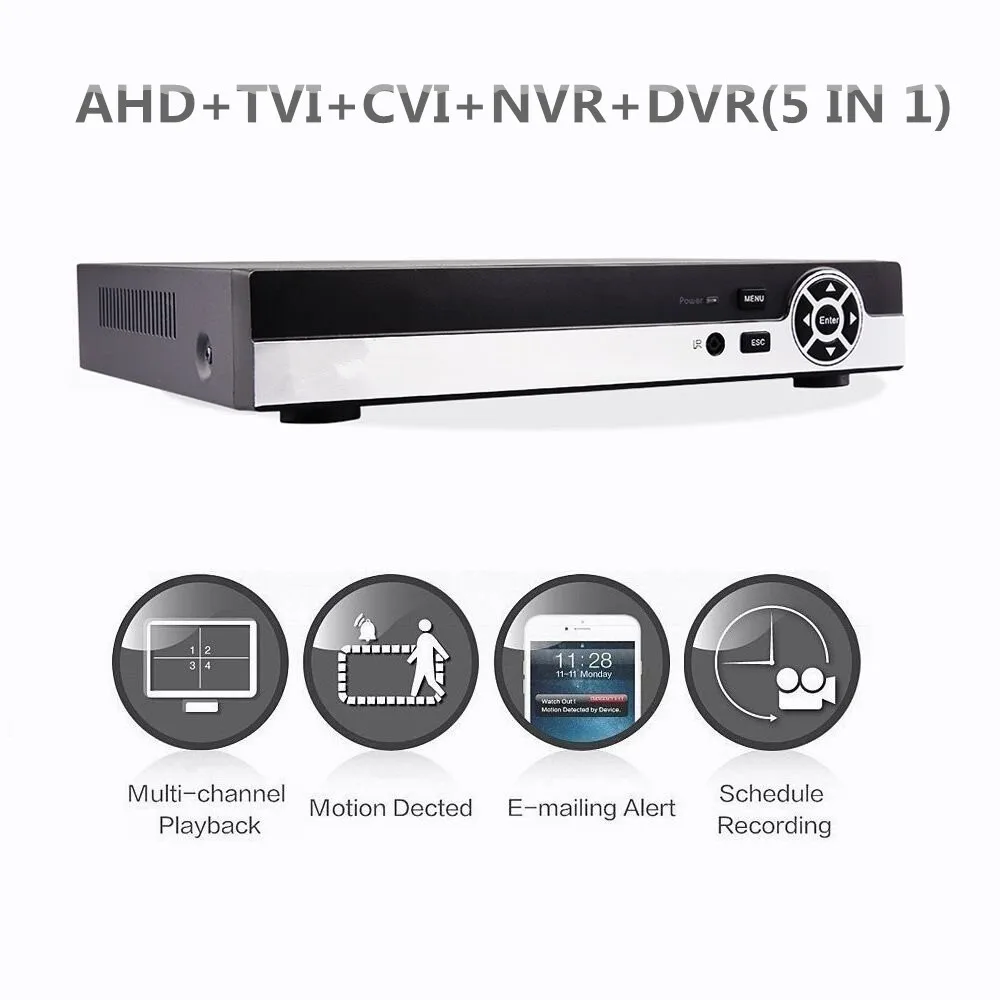

8CH Hybrid 1080N 5-in-1 AHD DVR (1080P NVR+1080N AHD+960H Analog+TVI+CVI) CCTV digital recorder HDMI Output 1 SATA HDD Post |

8CH Hybrid 1080N 5-in-1 AHD DVR (1080P NVR+1080N AHD+960H Analog+TVI+CVI) CCTV digital recorder HDMI Output 1 SATA HDD Post |

4CH / 8CH / 16CH 1080N XVR Features:

All supports VGA, HDMI hd output

Support ONVIF protocol can meet the third party equipment (network)

Support for multiple cloud technology, to implement the network penetration, before and after the docking, alarm information push to mobile phones, and other functions

Supporting Web, CMS, center platform management software

Support all kinds of mobile phone monitoring (iPhone, Android)

Remote access to their own domain name service function (ARSP), enable remote monitor and control a key

5 in 1, in addition to Analog + Digital, also supports AHD TVI CVI and two high-definition input

Specification

Video standard

PAL (625 line, 50 / s); NTSC (525 lines, 60 games/s)

Decoding ability

4Ch: 4*1080N  (25fps) /
8Ch: 8*1080N  (15fps)  /
16Ch: 16*1080N (15fps)

4Ch Multi-modal input

Analog :4*1080N

Hybrid :2*1080N(Analog)+2*1080P(Network)

Network:4*1080P

8Ch Multi-modal input

Analog:8*1080N

Hybrid :4*1080N(Analog )+4*960P(network);

             2*1 080P(Analog)+2*1080P(network)

Network:8*1080P;  4*3M

16Ch Multi-modal input

Analog:16*1080N

Hybrid :12*1080N(Analog)+4*1080P(Network);

           8*1080N(Analog)+8*1080P (Network)

           4* 1080N(Analog)+12*1080P(Network)

Network:16*960P;4*3MP;4*5MP

The connection method

Double cloud

Motion detecting

Per frame can be installed 192 (16 x 12) detection area; Can be set up multi-level sensitivity

Video mode

Manual > dynamic detection alarm >> time

Local playback

4Ch playback

Video query

Time to retrieve, calendar retrieval, events, retrieval, passage retrieval

Take up the space

 1080P  30G /day  720P  20G/day ;960H 12~20G/day*channel ;

 Audio :691.2M/day*channel

Recorded on

The local hard disk ,network

backups

Network backup, USB mobile hard disk, USB recorders

Video input

4ch BNC / 8ch BNC /16ch BNC

Video output

1ch VGA output,1ch HDMI output(support 1920*1080P)

Audio input and output

4Ch / 8Ch: 4Ch Input, 1Ch Output
16Ch: 2Ch Input, 1Ch Output

Audio formats intercom

G.711A, Intercom:support

Alarm input

NO

Alarm output

NO

The network interface

RJ45 10M/100MAdaptive Ethernet front-end ports

Yuntai control

One RS485;Support for multiple Cloud agreement

The USB interface

Two USB interface

Hard disk interface

1* SATA interface; Maximum 4 TB

Packing List

1x 4Ch / 8CH / 16CH 1080N XVR (Not Included HDD)

1x Power supply

1x USB Mouse

1x CD Software & User Manual

1x Screws

Remote Viewing Anywhere and Anytime

View live video of the system from anywhere and anytime via you smarphone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy

      Multiple Viewing Options (HDMI 1080P Output)

View on HDMI Monitor

Easily display video through the HDMI port of your computer monitor to take full advantage of the security system's

clarity. (HD Cable Not Included)

View on TV or PC Monitor

For added convenience, the DVR also comes with VGA and BNC connections for standard resolution viewing options.

VGA or BNC to RCA cable is not included.

Instant Alert Function

No matter day or night, 24 hour monitoring prevents theft.
