Description

Pneumatic marking machine main consumables:
Printing needle (usually 1 year to replace one, according to using frequency and workpiece hardness; the customer is available on the fine oil stone or grinder grinding, it can greatly prolong the life time of the printing needle actually.)Our printing pin with overall imported tungsten alloy, abandon the practice of the Chinese traditional Mosaic cemented carbide, so life is very long, basic consumption does not occur.

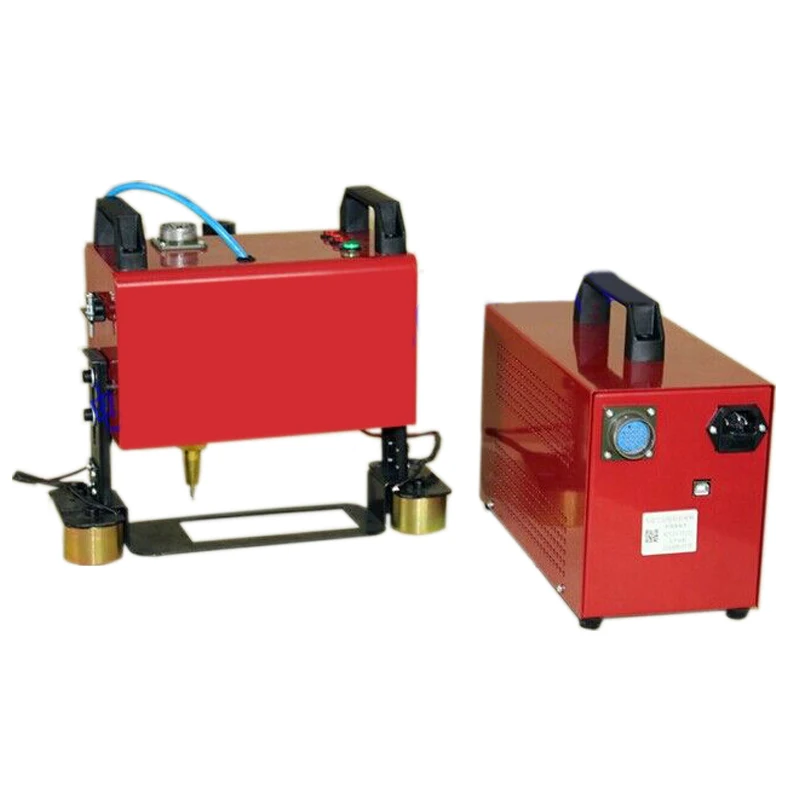

Portable code printer light weight, small volume, easy to carry, applicable to the wild open operation, large workpiece and is widely applied in all kinds of special automobile works limousine bus a large, heavy duty truck frame GaiHao car sales company code, the DMV engine manufacturing repair and GaiHao print, and mining machinery, petroleum machinery, shipbuilding and other industries, can be printed "vehicle identification code management rules" provisions of the state of the VIN code quality standards in line with the * * department released vehicle marking requirements!

Specification:
Marking area: 120*40mm
Marking depth: 0.01-2mm (according to the material)
Marking speed: 30-40mm/s
Pressure: 0.3-0.6Mpa (industrial gas source or Air compressor)
Power: 220V 600W
Material hardness: <=HRC60
Power source: 220V+- 10%  50Hz+-1%
Pump Modules: G /M/Z

More parameters can be found in the English manual
