Free Shipping 1pc 85mm 0-35knots GPS Speedometers 9-32v Speed Mileometers 0-40MPH COG with Red Backlight Antenna for Boat Yacht |

Free Shipping 1pc 85mm 0-35knots GPS Speedometers 9-32v Speed Mileometers 0-40MPH COG with Red Backlight Antenna for Boat Yacht |

Technical Data:

GPS speedometer fit for auto,boat,motorcycle,yacht,RV etc.

Material:stainless steel 316L bezel+anti-fog glass+pvc

Install diameter:Φ85mm or 3-3/8"

Indication range:0~35knots/0~40mph

Working voltage:9~32vdc

Connection type:row insert

Input signal:gps antenna

Backlight color:red

Operating current:≤60mA

Operating temperature:-30℃~+75℃

Storage temperature:-40℃~+85℃

Protection grade:IP67,back cover is IP5

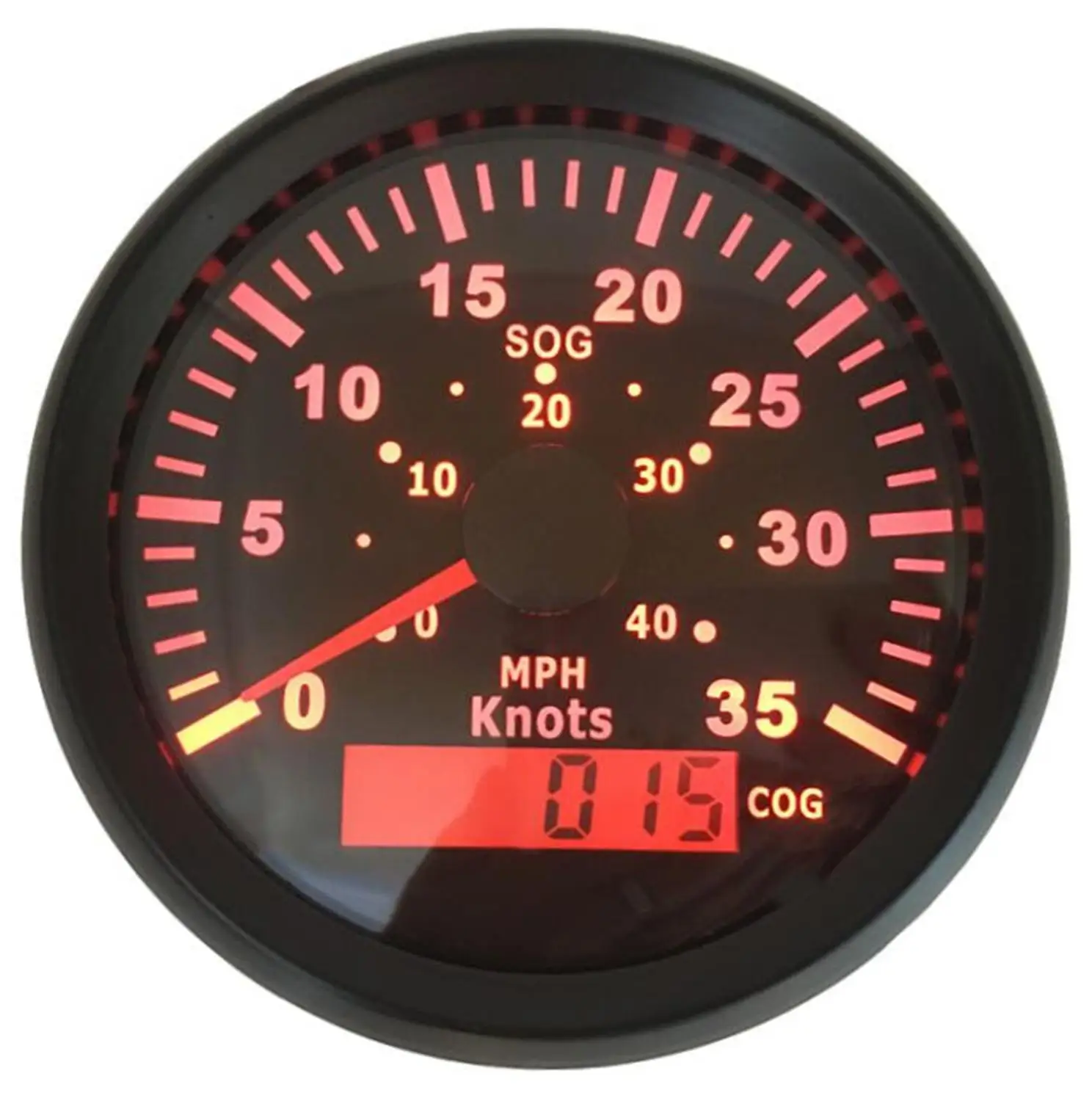

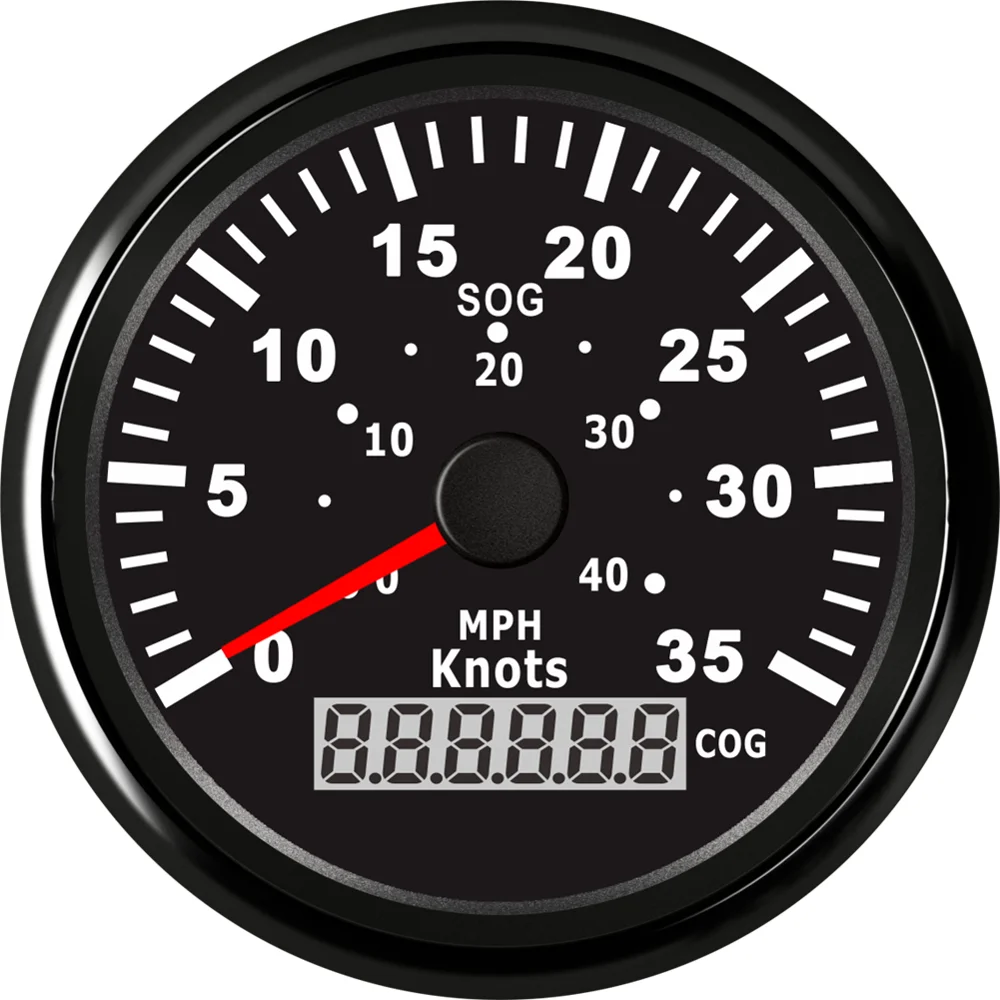

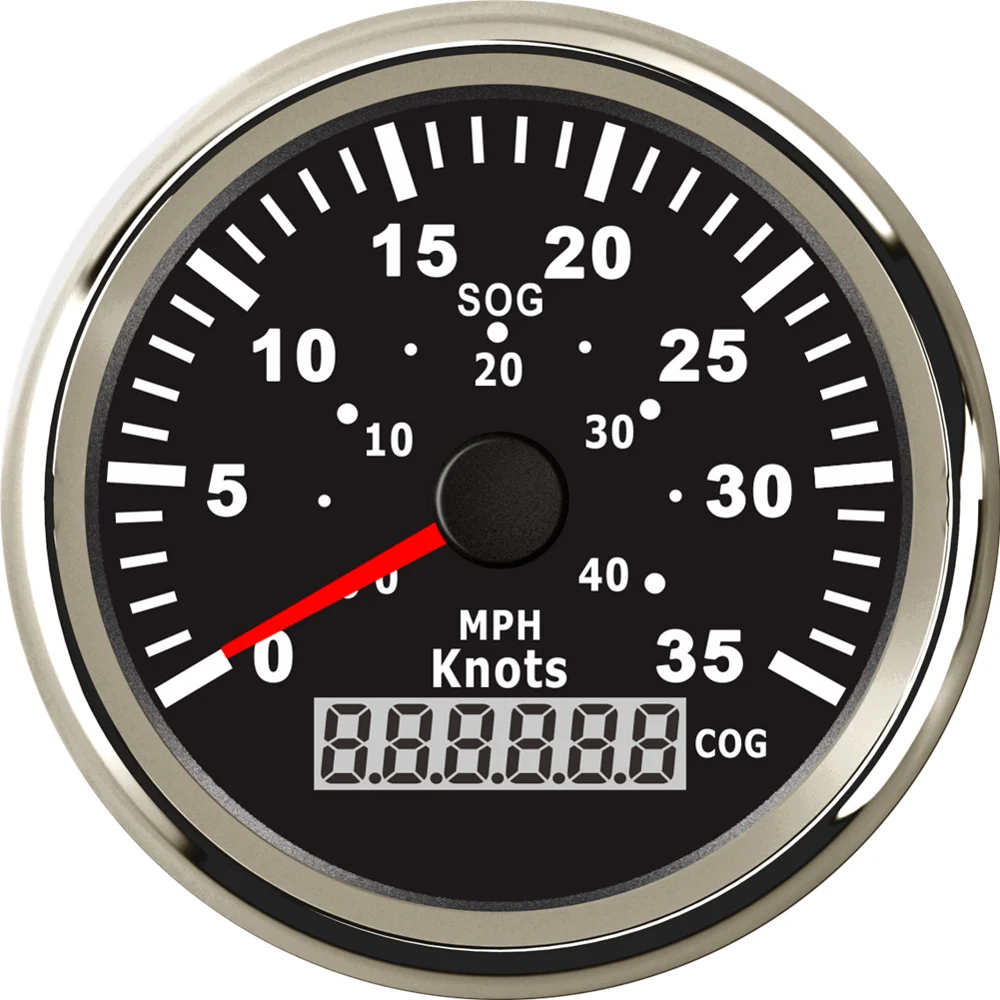

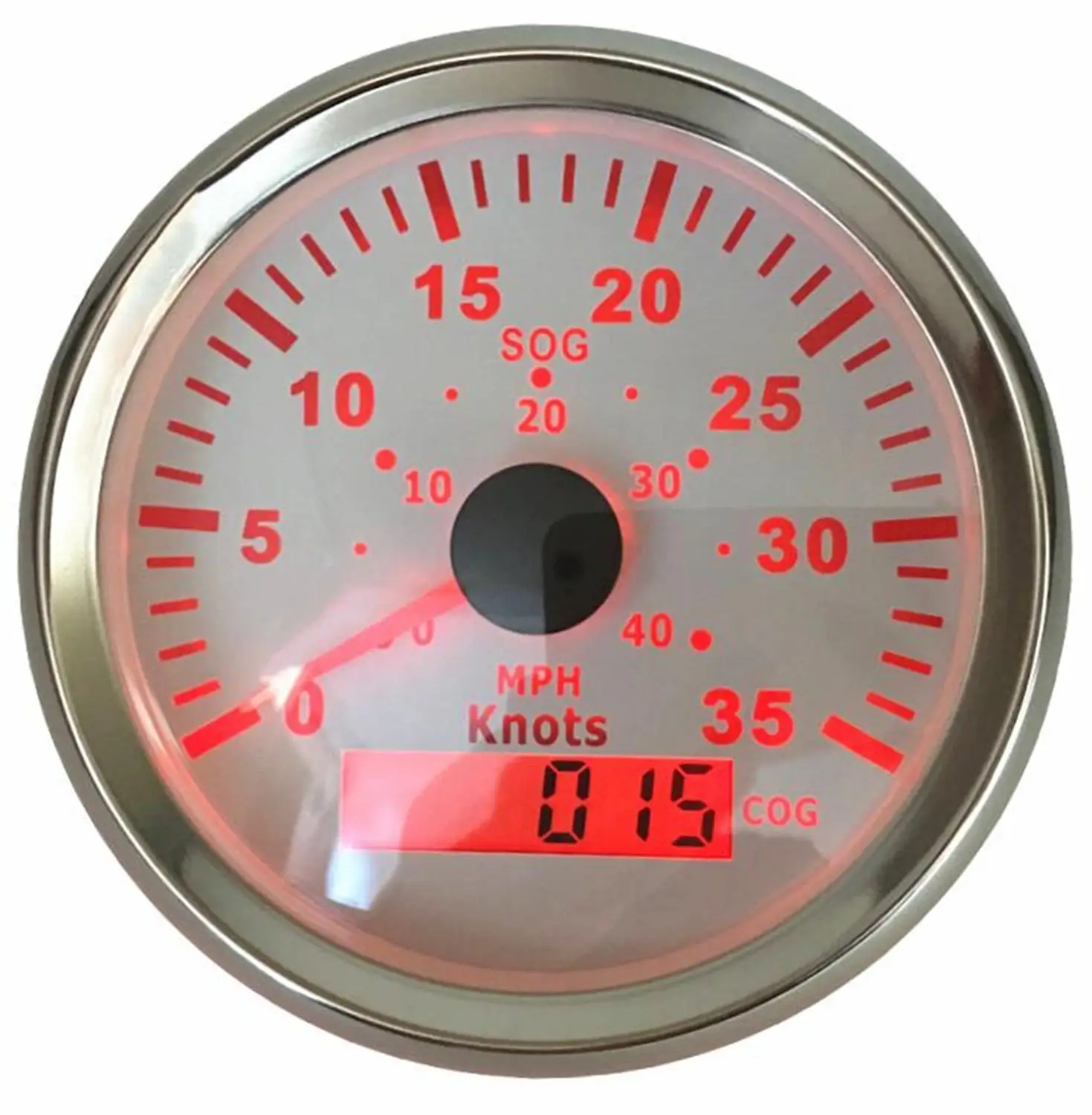

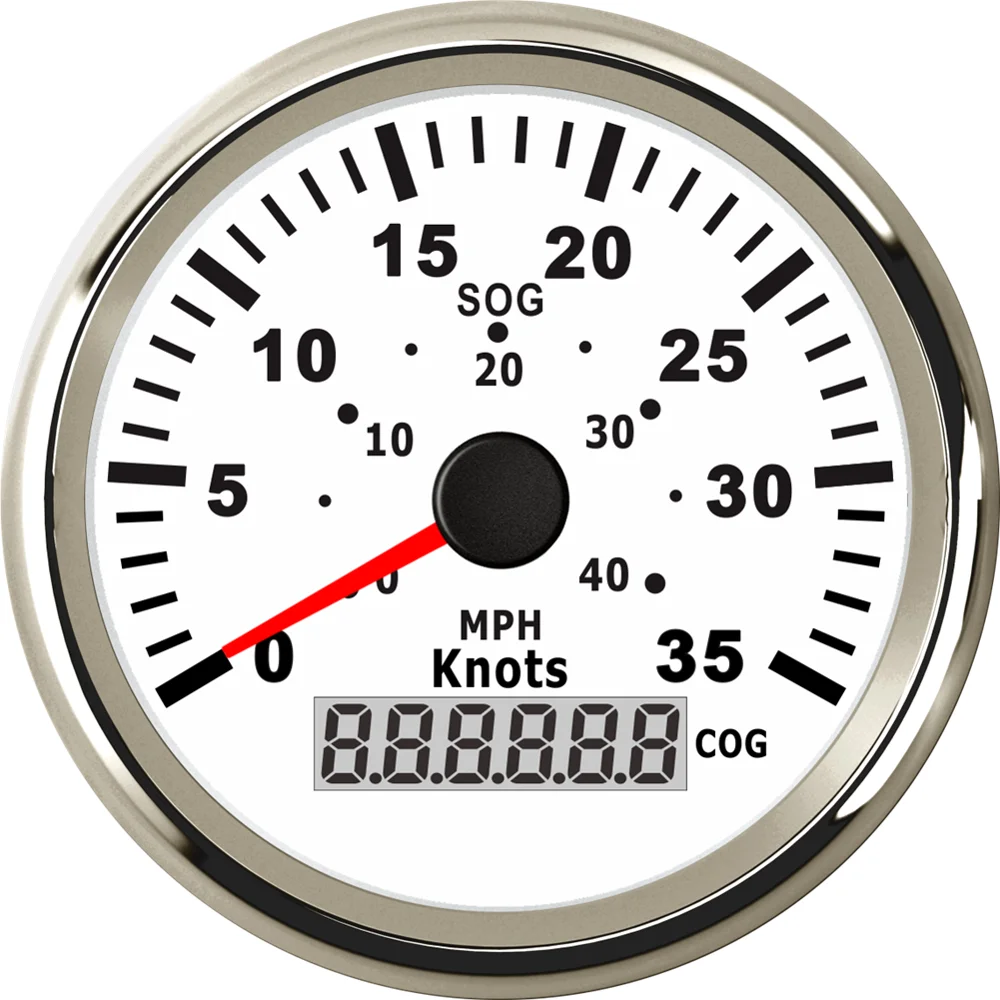

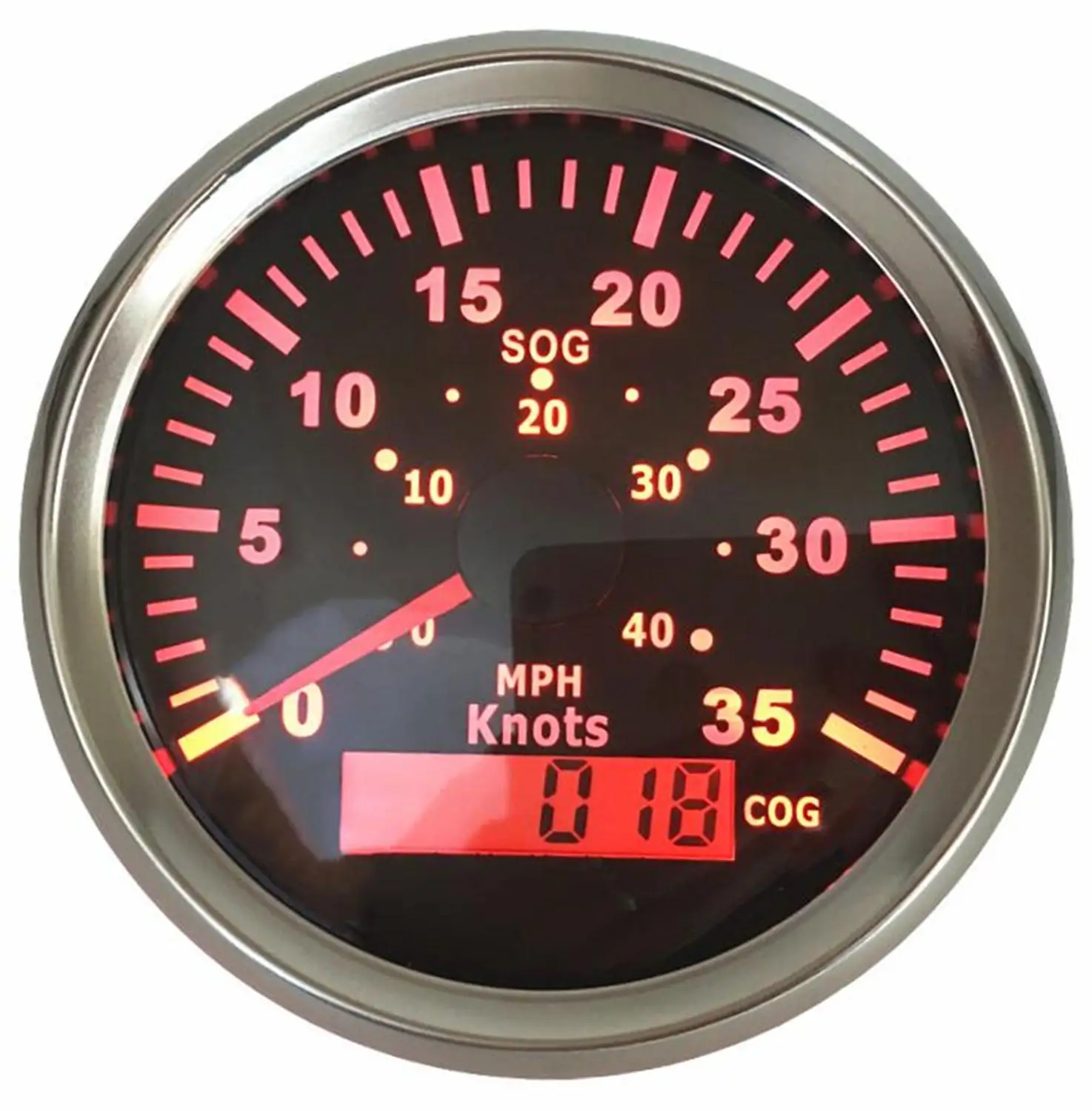

Item color:black dial with black bezel,black dial with chrome bezel,white dial with chrome bezel

Item condition:new

Package method:white box

Place of origin:China

connection method:red wire connect positive pole,blue wire connect negative pole,black signal wire connect sensor,orange backlight wire connect positive pole

Pls note:for this speedometer,we suggest buyers to connect gps antenna firstly and then connect power,can not connect power firstly and then connect gps antenna,otherwise it will be easy to make gps mould damaged

Features:

316L stainless steel for long-term use even in acid-base,humid environment

IP67 waterproof and dustproof grade.

Stepper motors used for full range of stepping gauges,great feature with its less power consumption,longer life,higher precision,etc.

With curved glass (with anti-fog function).

With ultra-wide working voltage design (long-term operating voltage:9-32v,maximum up to:36v).

Backlight for standard is red,but various backlight could be customized according customers’ requirement.

Customized color for stainless steel is provided.

Fast delivery time,better for releasing your pressure of stockage and liquidity.

There is a snap together with the harness connector,for best and firmly connected,in order that the gauges could work even in strong viberation,products can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification,etc.

Installation Instruction:

 ●Opening a hole in the panel (your cabin board and dashboard) with a diameter of 85mm,insert meter into the hole,the panel corresponding to the instrument panel is marked with a convex table,and open a small notch in this location,to ensure that there is at least 85mm (3 3/8") of the instrument panel at the back of the instrument

●After the instrument is mounted in the panel,screw down with a fixed ring

●Connect the wire,the instrument housing is directly connected to the 12/24v power supply

●Insert wire harness,firmly locked in the table

1pc x GPS speedometer

1pc x GPS antenna

1pc x Wiring harness

1pc x Instruction manual
