1.advantages and features:

2.Technical parameters:

Format

Length(mm)

Wave length()mm

Volt(v)

Power(w)

Dia(mm)

Single tube

280-1200

200-1120

220-240

200-2000

10/12/14/15

Twins tube

With 1 side connection

185-1085

100-1000

115/120

100-1500

23*11/33*15

385-1585

300-1500

220-240

800-3000

785-2085

700-2000

380-480

1500-6000

Twins tube

With 2 sides connection

185-1085

100-1000

115/120

200-3000

23*11/33*15

385-1585

300-1500

220-240

800-12000

785-2085

700-2000

380-480

1000-12000

- HZ: 50-60 HZ

- Electricity saving ratio: 30%

- Infrared normal direction radiant ratio: over 94%

- Electric heat transformation ratio: over 98%

- Highest heat temperature endured: 1100C

- Surface temperature: 500-900C

- Continuous servicing hour: over 5, 000H

3.Application Area:

IR heaters are used in industrial manufacturing processes including curing of coatings,shrink tunnels, heating of plastic prior to forming, plastic welding, processing glass,and cooking and browning food. They are used when high temperatures are required, fast responses or temperature gradients are needed or products need to be heated in certain areas in a targeted way. Their application is difficult for objects with undercuts.

They are also used to provide warmth to suckling animals as well as to captive animals in zoos or veterinary clinics, especially for lizards and other reptiles, and tropical animals such as birds.

4.Comparation between 4 types of heater :

Contrast Item

Infrared heat emitter from yuancheng

Milk white heat emitter

Stainless heat emitter

High infrared emitter

Medium wave heat emitter

Heating element

Tungsten alloy wire/

Carbon fiber

Ni-Cr alloy wire

Iron-nickel wire

Iron-nickel wire

Structure and sealing

Transparent quartz

glass filled with Inert

 gas by vacuum way

Encapsulated directly

in Transparent

quartz glass

Encapsulated directly

in Milk white

quartz glass

Encapsulated directly

in Stainless pipe

or Iron pipe

Thermal efficiency

Highest

Higher

High

Low

Temperature control

Best

Better

Good

Bad

Wavelength range

Short,Medium,Long

Medium,Long

Medium,Long

Medium,Long

Average life

Longer

Longer

Long

Short

Radiation attenuation

Less

Little

Much

Much

Thermal inertia

Smallest

Smaller

Small

Big

Temperature rise speed

Faster

Fast

Fast

Slow

Temperature tolerance

1000 Degrees C

800 Degrees C

Under 500 Degrees C

Under 600 Degrees C

Corrosion resistance

Best(Besides

hydrofluoric acid)

Better

Good

Worse

Explosion resistance

Better(Do not burst

 when contact with

cold water)

Better(Do not burst

 when contact with

cold water)

Worse(Burst easily

 when contact with

cold water)

Good(Do not burst

 when contact with

cold water)

Insulation

Better

Good

Good

Bad

Targeted heating

Yes

Yes

No

No

Mechanical strength

Good

Good

Bad

Best

Unit Price

Higher

High

Cheap

High

Overall

economic efficiency

Best

Better

Good

Customize according to your requirement !!!

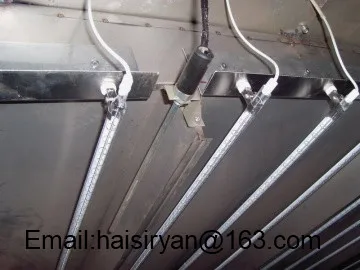

Application of infrared heater

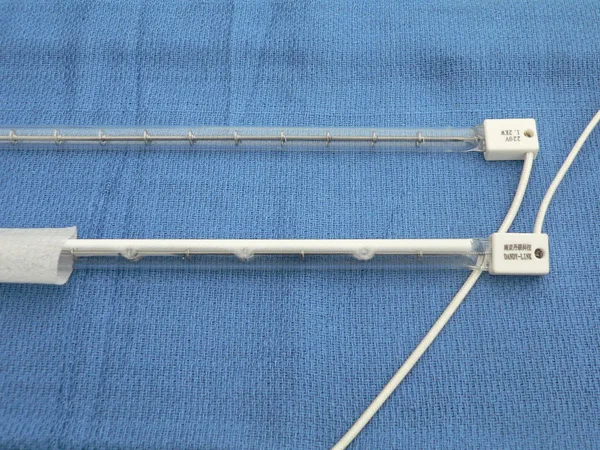

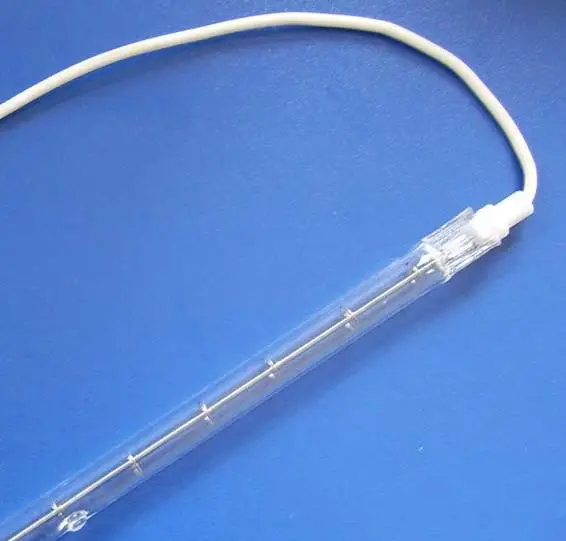

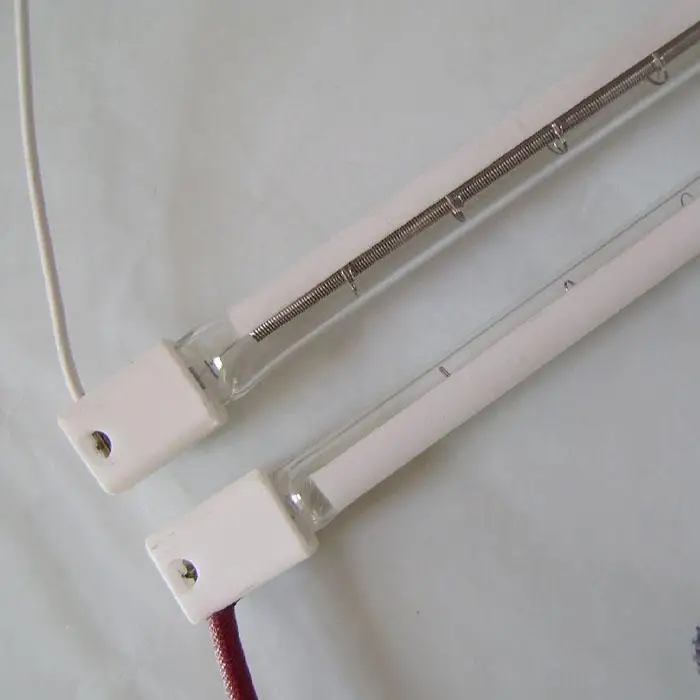

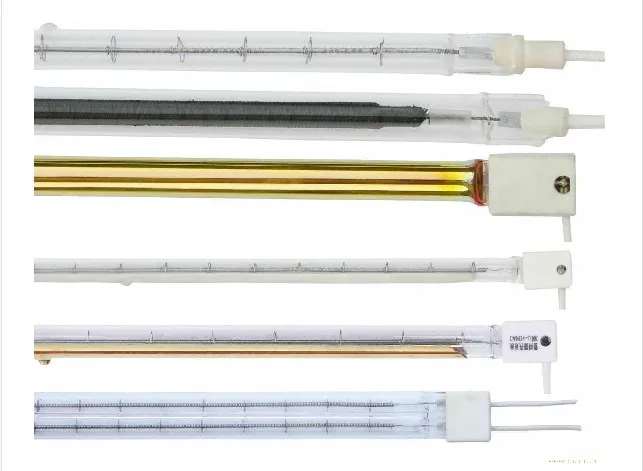

IR Lamps Display

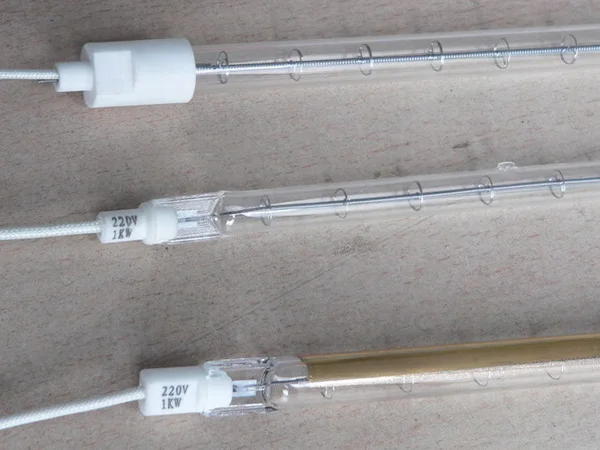

Gold reflector IR lamps

Packing of IR Lamps

​
