Calendar real time clock function

You can set the normal password can also set the super password, powerful super password, enter the super password can not be decrypted, only clear the PLC memory to clear the super password (clear PLC memory, program and password will be cleared together), super password, better Protect your labor outcomes. 1. Comprehensive, the system of anti-jamming processing, power circuit after a number of anti-jamming design, without fear of a variety of harsh electromagnetic interference working environment. 2. Use the powerful 32-bit high-speed ARM core CPU; can use the programming software FXGPWIN and GX Developer and GT-Works2 can be programmed to download \ upload \ debug \ monitor \ encryption \ connect text or touch screen \ PLC memory clear \ data Cell storage space clear \ bit component storage space to clear (no software conversion, and regular PLC download the same way)

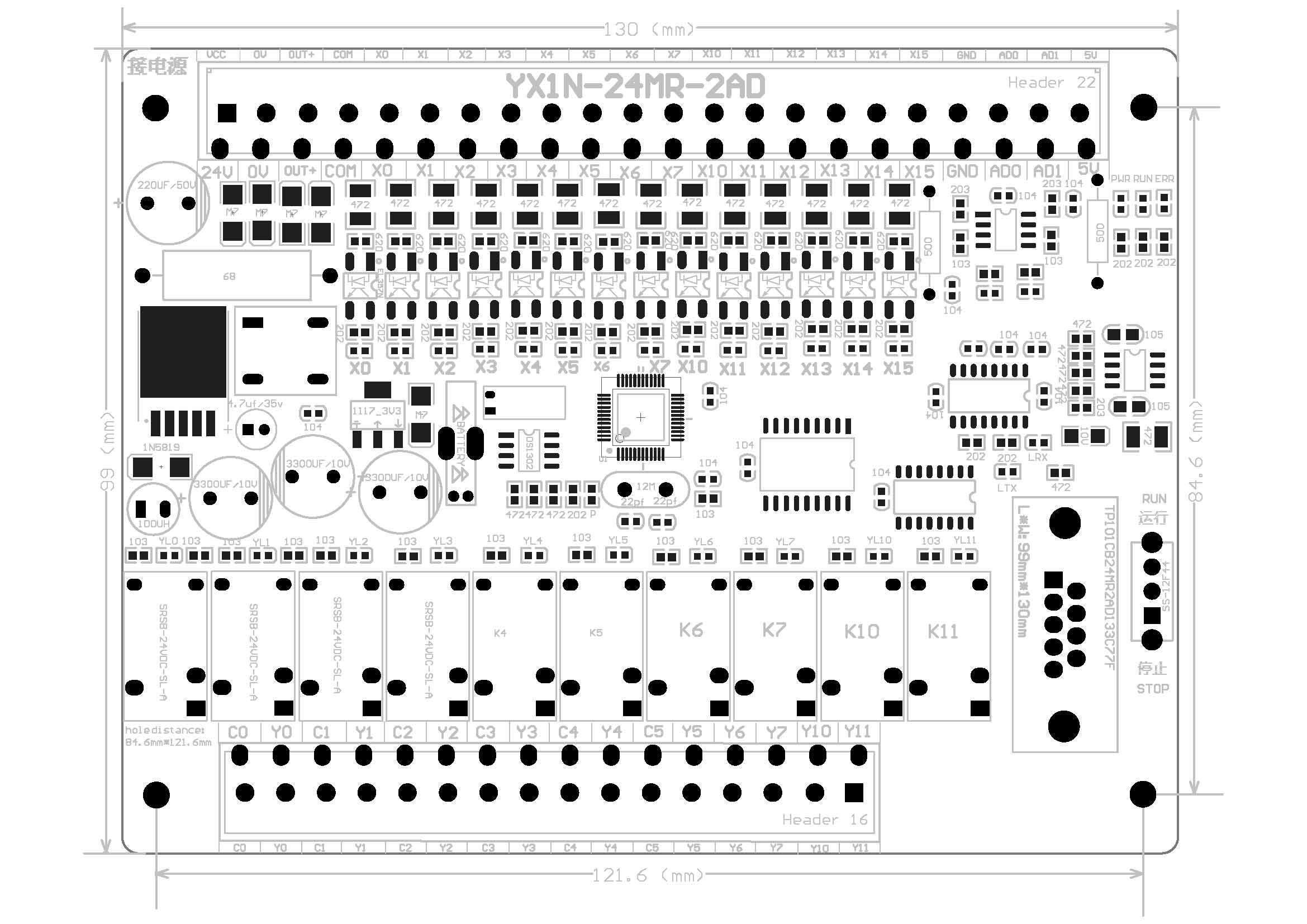

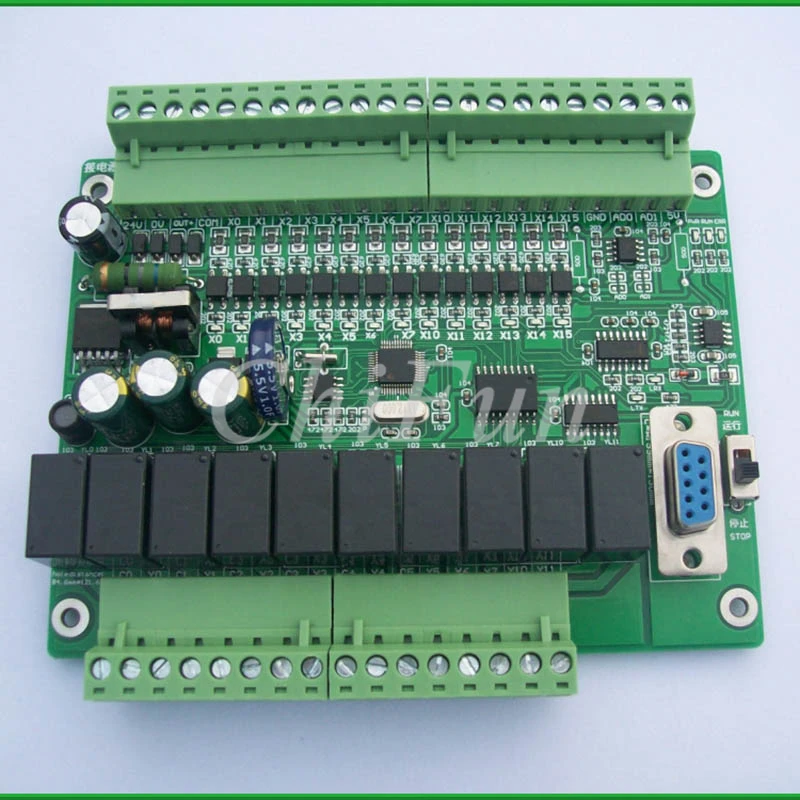

3.PLC board: Dimensions 99mm × 120mm × 25mm, the installation of screw hole diameter 3.2mm

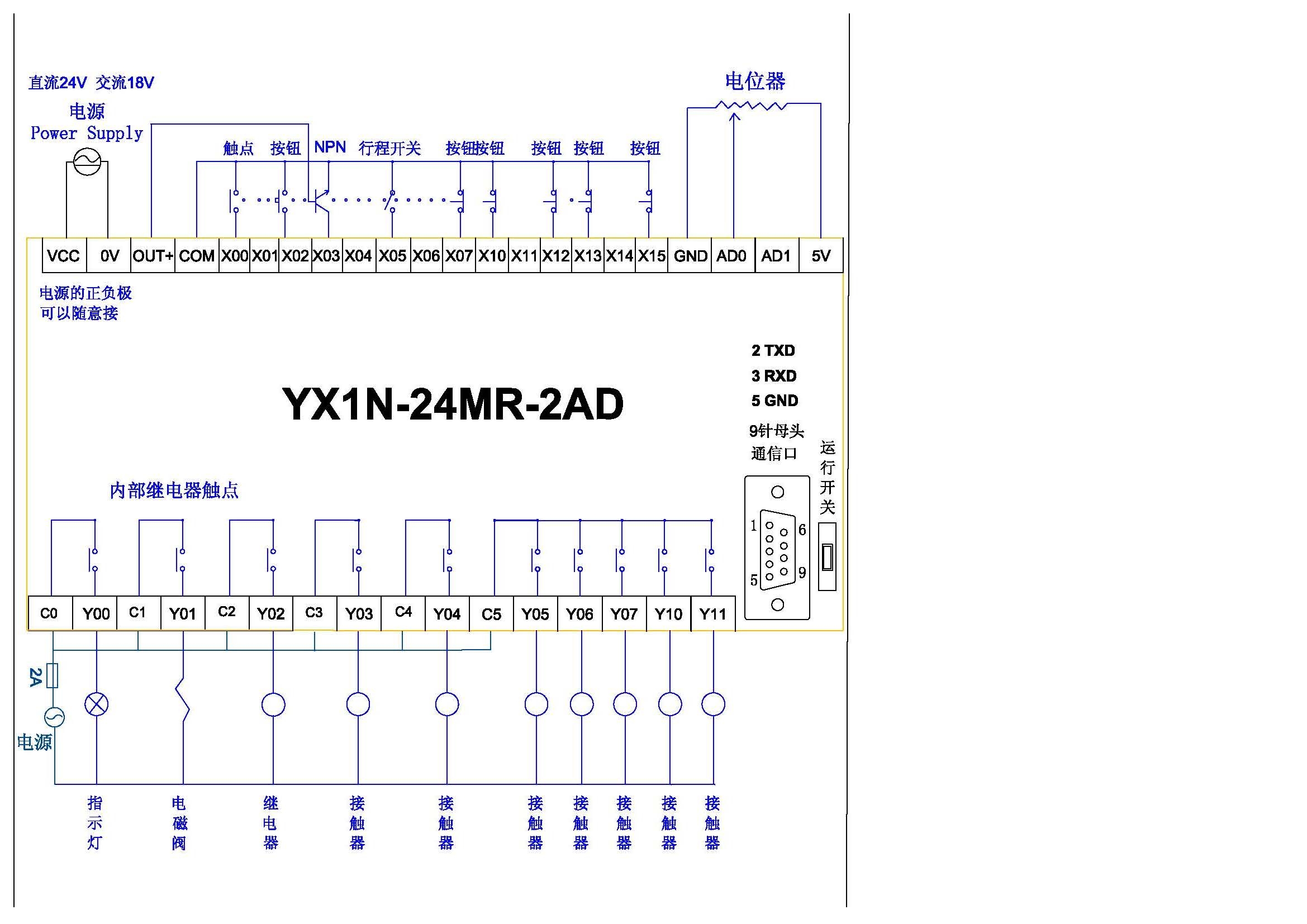

7. The internal control of the internal control board with full-wave rectifier and filter circuit can be used DC power supply can also be used to AC power supply, the power of the positive and negative can be arbitrarily connected then bad.         24V power supply: DC 24V AC 18V                  8. Type FX1N. Input: X0-X15 a total of 14 points, the output: Y0-Y11 a total of 10 points, two analog input. Maximum memory capacity: 8000 steps (the board has been sprayed with three anti-paint, better adapt to the complex application environment)   9. Analog input 0 (AD0) data In the special register D8030, the analog input 1 (AD1) data in the special register D8031.   10. Analog input type:        Voltage input type:           0-3V: analog data range 0-1275;         0-5V: analog data range 0-2080;         0-10V: Analog data range 0-4095;     Current input type:         4-20mA (0-20mA): analog data range 0-4095; Special devices:     M8000 (running monitoring contact), M8001 (running monitoring reverse contact).     M8002 is (initialization pulse contact), M8003 (trans contacts initialization pulse).     M8004 (error indication contact).     M8011 (10 msec clock pulse), M8012 (100 msec clock pulses), M8013 (1 second clock pulse), M8014 (1 divided clock pulses).     Wiring diagram:
