Xhorse V5.2.0 VVDI PROG Programmer

>>VVDI Prog Software Version 5.2.0
>>VVDI PRO Multi-Language: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish, Chinese
>>VVDI Prog support to read For BMW ISN (Suggest purchase with For BOSCH ECU Adapter)

Good News: Buy More Save More

Xhorse VVDI Prog With PCF79XX Adapter,Only $465

Xhorse VVDI Prog With for Bosch ECU Adapter,Only $528( Read ISN For BMW)

Top 9 Reasons to Get VVDI Prog:

1. Built-in update software: Make VVDI Prog firmware update timely.

2. High-speed USB communication interface: Make software automatically connect.

3. Smart operation mode: possible causes of error will be listed

4. Reserve ports: For future update.

5. Self-test function: Check if the machine works well or not.

6. Power supply: Through USB cable, software will automatically prompt if the external USB power supply is needed

7.Newly Add Bosch ECU Adapter functions, Support Reading ISN from BMW ECU N20 N55 B38 B48

but need to buy VVDI Prog Bosch ECU Adapter.

8. Multi-language: English, French, Italian, Spanish, Arabic, Cezch, Polish, Portuguese, Russian, Turkish, Chinese

9. Get free ISN read function for BMW and NEC, MPC, Infineon etc chip continously update service

Please Note:

1.VVDI Prog Read ISN For BMW.If it supports to read ISN for BMW, after click read, it will show the ISN automatically like follow picture shows.

vvdi prog read isn for BMW

2.DO NOT click firmware upgrade in VVDI Prog software, its firmware is always 2.0 version, no need to update. Or it will get communication server error.

3.Please do wiring 100% same like the connection diagram in VVDIProg software, DO NOT lengthen the connection lines with other parts. Or will fail to read.

VVDI Programmer Function:

Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series, MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries and most eeprom chips etc .

Support chip data verify, check blank function

Support data file compare function

Free Pin code calculation service by Dump for various models

Support R&W N20 For BMW, N55 ECU (show ISN directly)

Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)

Support renew PCF79XX remote, currently support E/F series for BMW (Please Note PCF79XX adapteris optional)

Lots of connection diagram

AIRBAG List:
For BENZ, For BOSH, for BUICK, for CHANGAN, for Chery, for CHEVROLET, for Citroen, for FAW, for Fiat, for Ford, for GEELY, for GM, for Halma, for HAWTAI, for HONDA, for Hyundai, for JMC, for Land Rover, for LUXGEN, for LYNKCO, for Opel, for OTHERS, for PEUGEOT, for Renault, for SAICMOTOR, for Suzuki, for TOYOTA, for VOLKSWAGEN, for VOLVO, for ZOOT

BOSH-ECU-ADATPER List:
For ABARTH, Alfa Romeo, ASTON-MARTIN, AUDI, BENZ, BMW, BUGATTT-VEYRON, CHRYSLER, Citroen, DACIA-LOGAN, Fiat, Ford, GM, HONDA, Hyundai, Infinity, Isuzu, Jaguar, JEEP, KIA, Landrover, MASERATI, ACLAREN, PEUGEOT, SKODA, Suzuki, TOYOTA, VOLKSWAGEN, VOLVO

Adapters Detailed Description:

16Pin Locking Socket
Function: Read EEPROM chips

Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture); SOP chip need soldering on 16Pin adapter first, then insert the chip follow the image direction:


1.3.2 MCU Reflash Cable V3

Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips, current version is V3

Use method: Soldering the line on pin of chip before read & write

Notes:

(1) Please check all connection lines, ensure correct and reliable connection

(2) Please Don't lengthen CLK and GND-C line, may cause read data failed



1.3.3 ECU Reflash Cable
Function: Read & Write engine ECU

Use method: Connect the ECU and R&W

Notes:

Please check all connection lines, ensure correct and reliable connection



1.3.4  MC9S12 Reflash Cable V1

Function: Read & Write MC9S08, MC9S12 series chips, current version is V1

Use method: Soldering the line on pin of chip before read & write

Notes:

(1) Please check all connection lines, ensure correct and reliable connection

(2) Please Don't lengthen CLK and GND-C line, may cause read data failed

Note:Just as the software update at a high frequency,so that we cancel the CD in the package,sorry for this.But do not worry,we will send you the download link when you place an order,or you can contact me for the newest version,Hope you can understand that!

File : Load data file

Buffer : Support copy, paste, search, fill function

Device : Support chip read, write, erase operation

Window : Compare two data files

Setting : Read&Verify, Write&Verify, Erase&Check Blank configuration

Language : Change the language, current support English, Chinese,Polish, Arabic, Czech, Spanish, French, Italian, Portuguese, Russian,Turkish(You can change the language you want.)

1.2. General options: Provide General function buttons, simple and easy for operation, include: new, open, save, read, write, verify, check blank,erase,calculator & upgrade
1.3. Read range: Parts of chips include several data areas, for example EEPROM, FLASH and etc. click on the button select read range
1.4. Data display: Display the read data or load data, include hex and ASCII format
1.5. Power configuration: Display the status of power ( VCC, VPP, 12V), support change the voltage of VCC and VPP (The default voltage usually not need to change)
1.6. Special function options Provide chips special function, for example parts of chips have read chip ID, set security, reset security etc .
1.7. Chip option Select right option according to type,brand and chip
1.8. Option Information: Display parameter information of current option
1.9. Connection diagram button: Click on button, get the connection diagram of current chip
1.10. adapter Type:Display needed adapter of current option
1.11. Operation Information:Display operation information and saved in "log.bin" file

How To Update VVDI Prog Programmer Online?

This function require internet support

Click the "Upgrade" button enter the upgrade interface, show as following picture

Enter update interface, if software show "communication with server failed", please close your Anti-virus and computer firewall and retry. If software show "unable to find equipment", please reconnect device.

Tip information show the latest software version and upgrade information

Device information show the device SN, device firmware version and the latest firmware version

Firmware Upgrade Steps:

1. Select the firmware version

2. Click“Start Firmware Upgrade”button

3. Don't close or pull out USB cable before upgrade finished

Software Upgrade Steps:

1. Click“Software Link 1" or "Software Link 2" button, download software from the web

2. Extract the file

VVDI Prog FAQs:

Q 1: my vvdiprog fell on the ground my worker didn't pay atention now i plug into usb the drivers in device manager are good but always say device error check usb driver i had installed on both laptops same problem so i dissasembled the device found out that the battery 3v inside was lose negative i soldered again but its the same.

A 1: If battery was removed, security data is gone. You need to send in for repair. There is nothing you can do on your own.

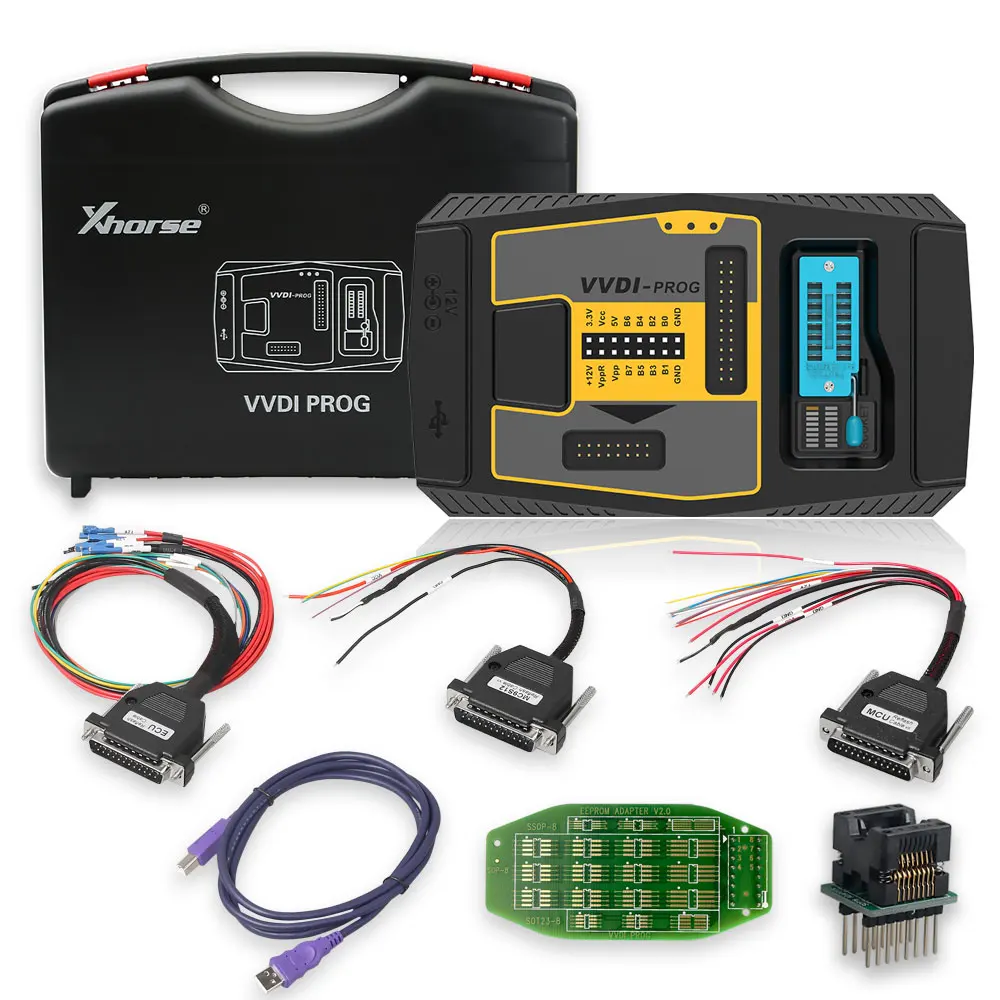

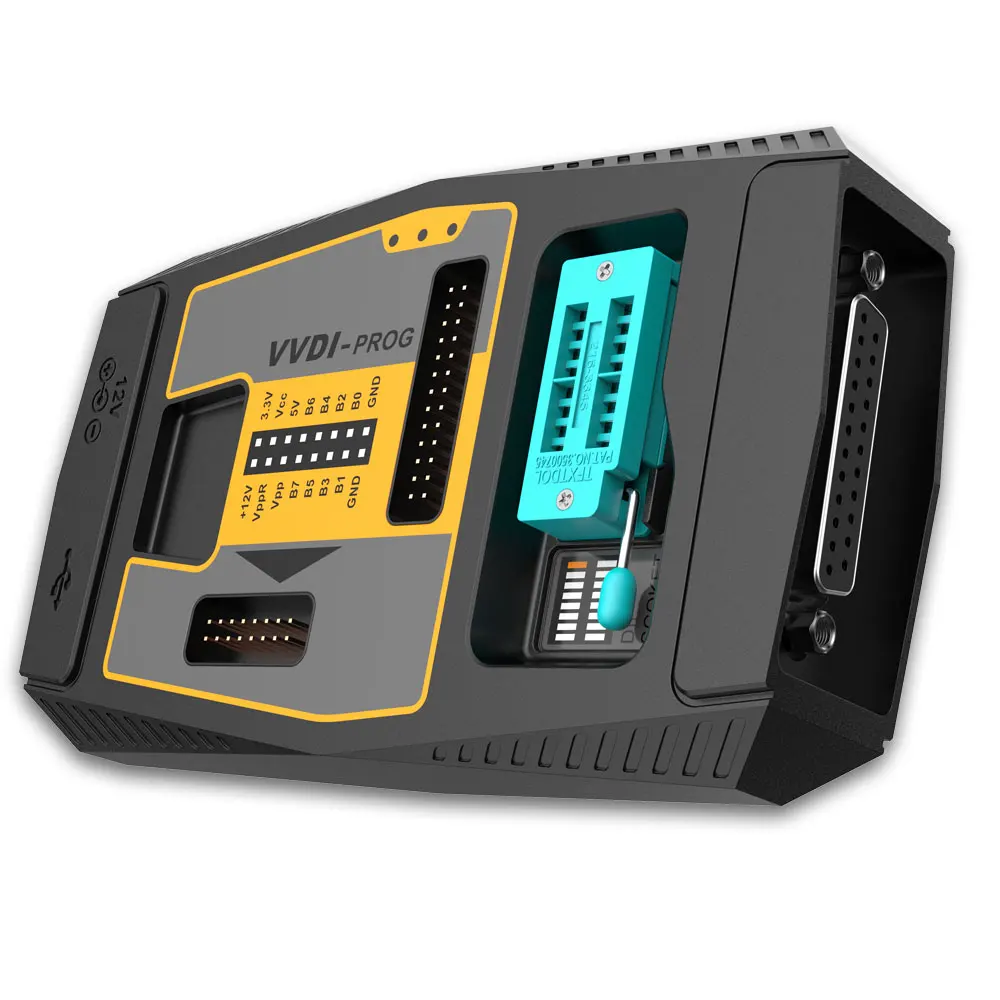

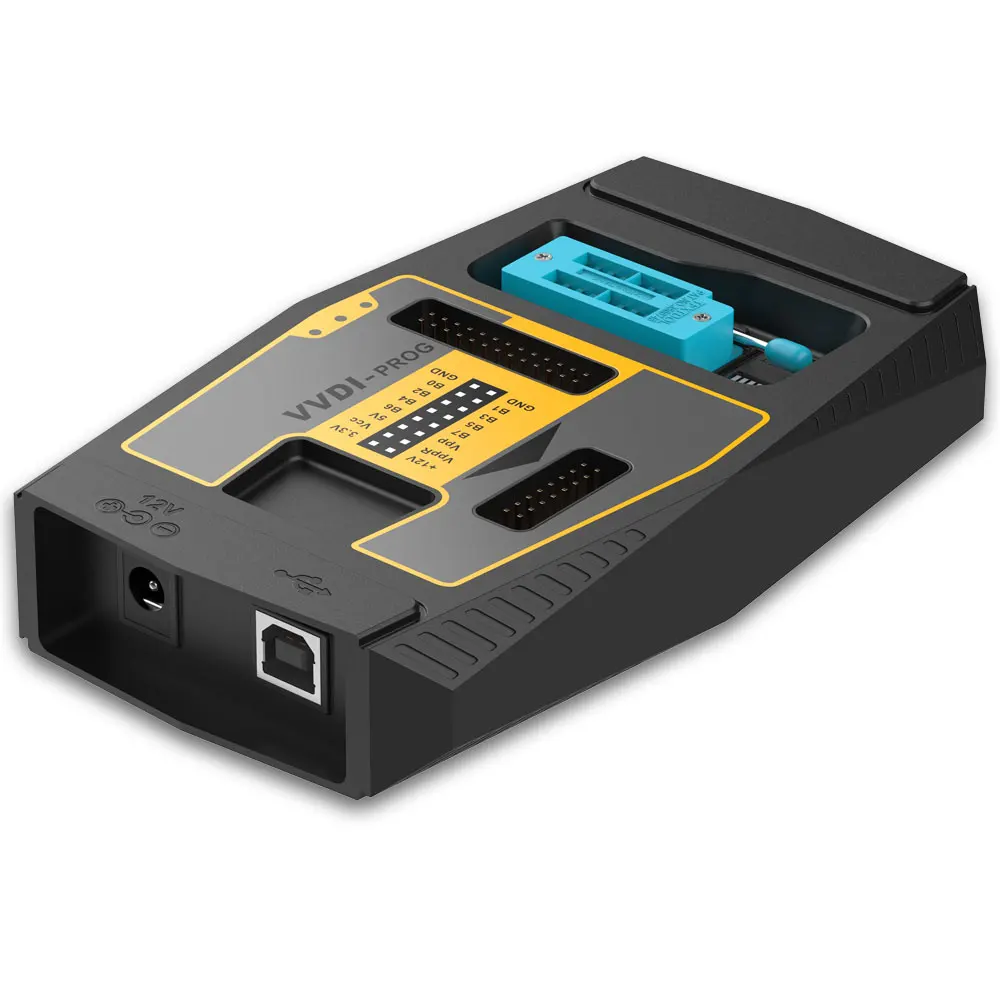

1. VVDI Prog device

2. EEPROM Socket

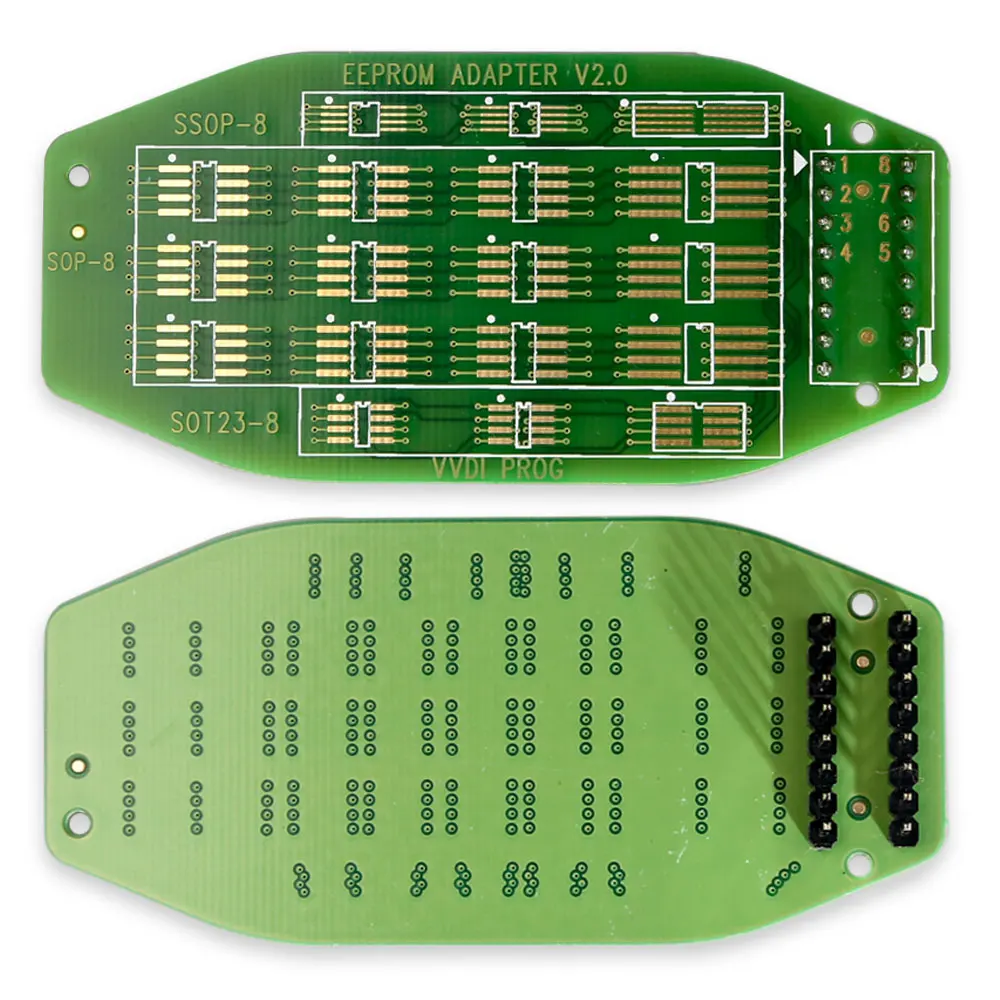

3. EEPROM Adapter

4. MC9S12 Reflash Cable V1

5. MCU Reflash Cable

6. ECU Reflash Cable

7. USB B-Tyte Cable

8.TB28FXXX Adapter (Optional,need to buy separately)

9.PCF79XX Adapter (Optional,need to buy separately)

10.New M35080/D80 Adapter (Optional,need to buy separately)

11.New EWS3 Adapter (Optional,need to buy separately)

12.New EEPROM CLIP Adapter (Optional,need to buy separately)

13.New EWS4 Adapter (Optional,need to buy separately)
