Top quality 20w 110*110mm DIY fiber laser marking machine

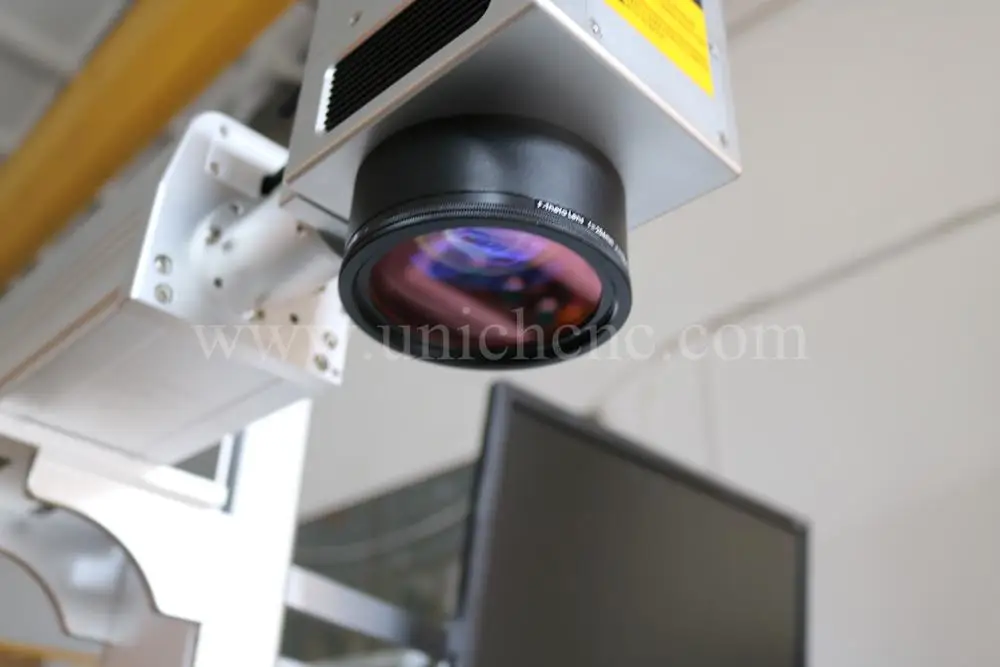

Field lens decide marking size: 110*110mm, 150*150mm, 1750*175mm, 200*200mm,  300*300mm ect.

Fiber laser power decide marking depth and speed: 20W/30W/50W

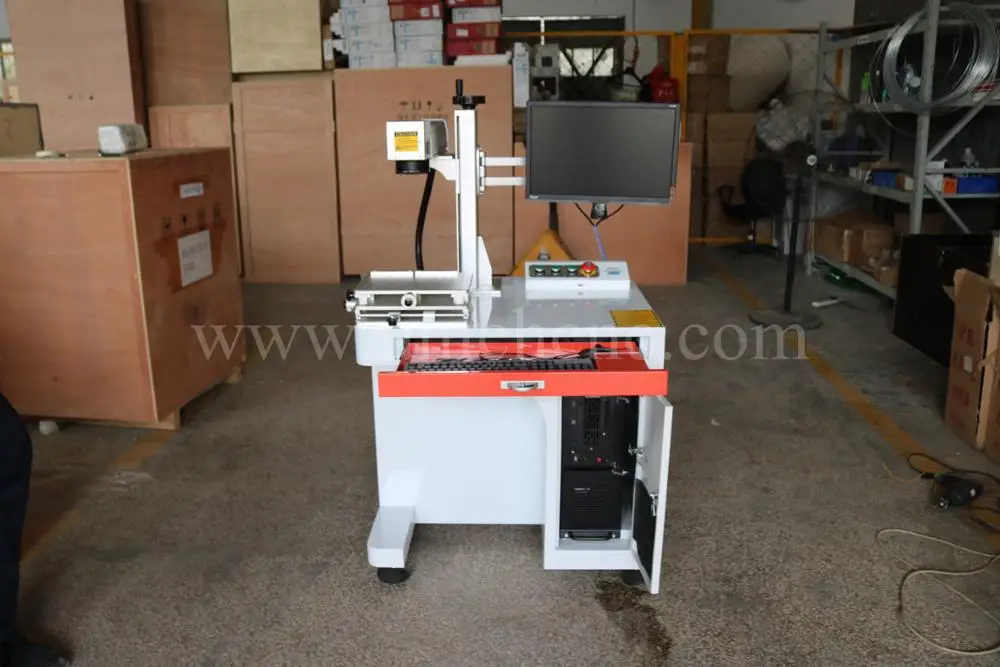

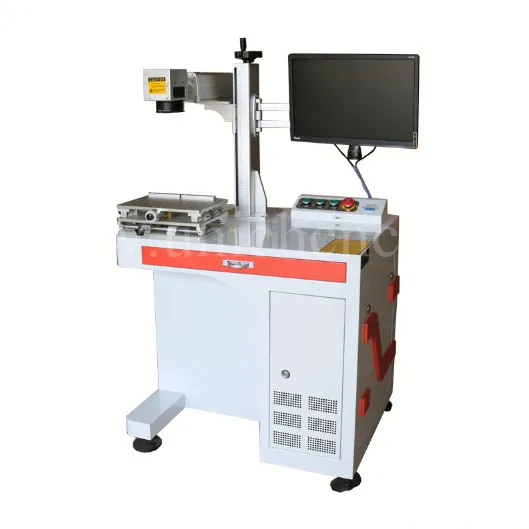

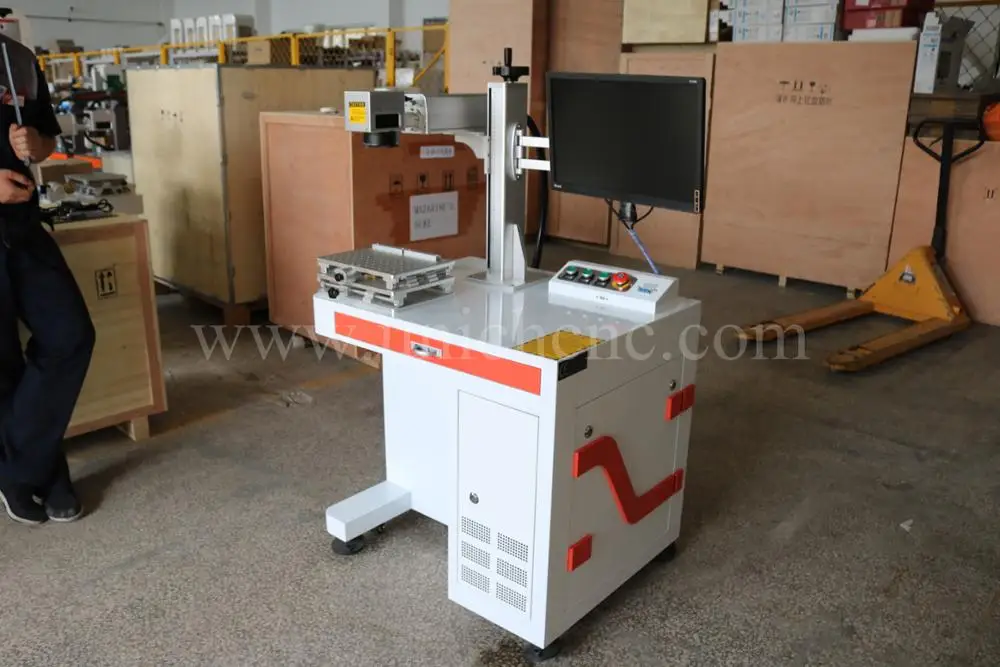

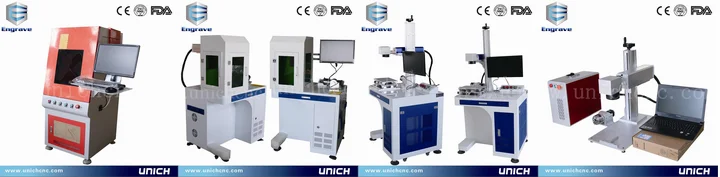

Fiber laser marking machine pictures

machine test videos

color marking:

//www.youtube.com/watch?v=sO_-HxFWGHU&feature=youtu.be

depth marking:

//www.youtube.com/watch?v=oGQbFfXBYqg

normal marking on metal:

//www.youtube.com/watch?v=BII28JzGePU

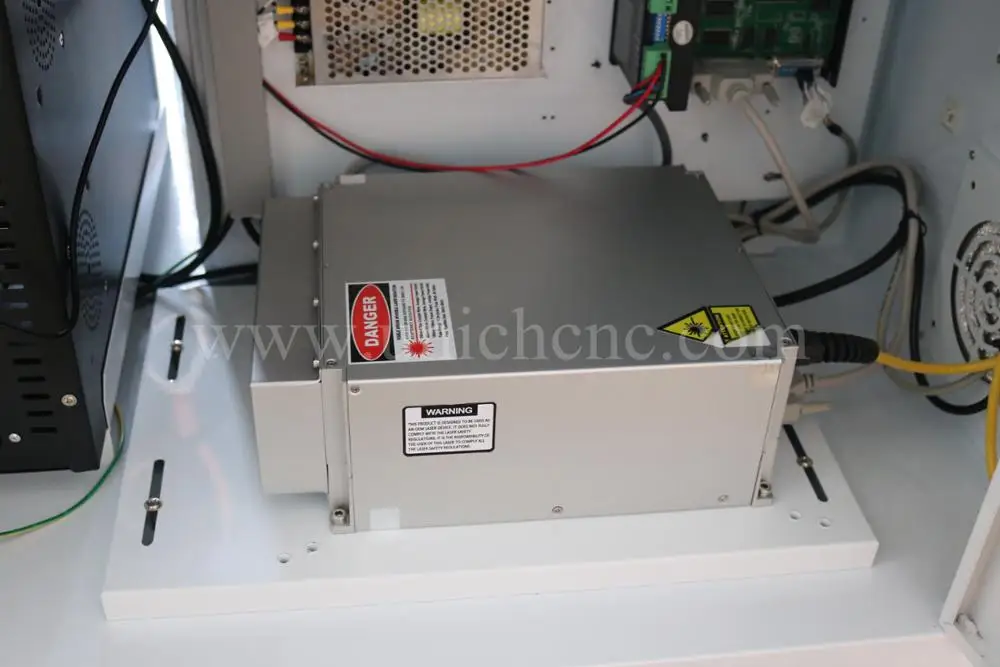

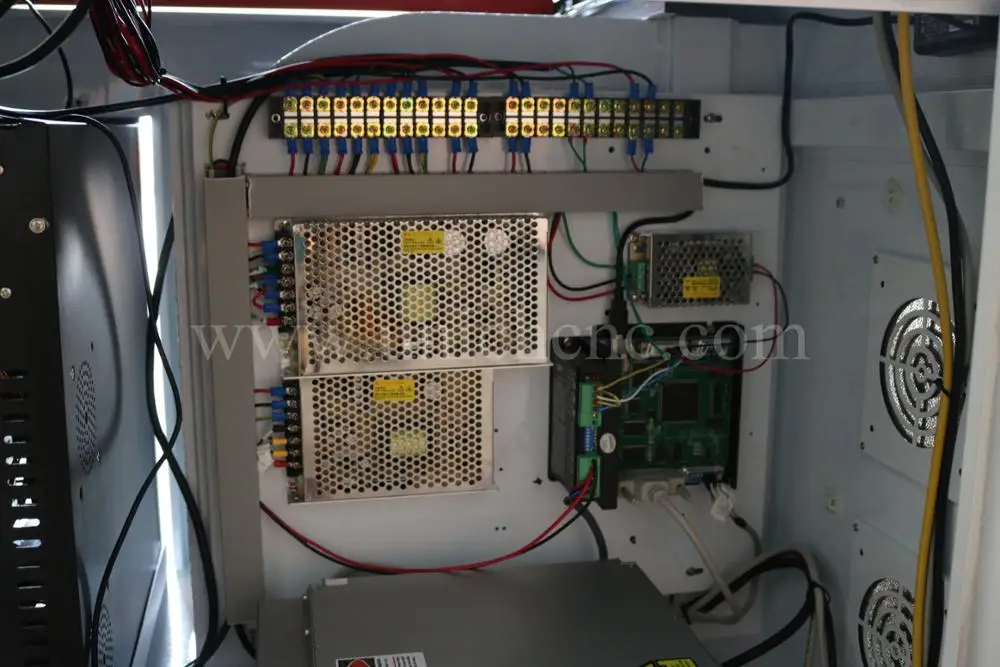

Fiber laser marking machine main parts

Fiber laser marking machine features

*High Speed

Perfect combination of software,hardware and high-speed galvanometer scanner realize high speed marking

*No Consumables

Improved lifetime of laser module,maintenance free and no consumables ensure low maintenance and operation cost.

*Lower Energy Consumption

Significant operation cost reduction due to about 50% photoelectric conversion efficiency.

*Widely Suitable

Pulse frequency can be modulated from 1KHz to 1000 KHZ to satisfy different application requirments of various materials

*High Stability

Optimized design of control system ensures stable processing and yield rate.

*High Reliability

Rapid cache transmission control,choice optical and electronic elements to ensure continuous work in long time and capacity.


Fiber laser marking machine parameter

Item

Specifications

Voltage

110V/220V

Fiber Laser Source

CAS/Maxphotonics/RAYCUS /IPG

Output Power

20/30/50W

Laser wavelength

1064nm

Modulation frequency range

20-100kHz

Speed

0-8000mm/s

Precision

±0.003mm

Minimum line width

0.015mm

Minimum height of characters

0.15mm

Cooling way

Air cooling

Marking range

110x110mm(150x150mm / 200x200mm/300*300mm optional)

Laser power supply

0.5KW,220V/50Hz, 110V/60HZ

Software

Auto-cad, CorelDraw, Photoshop software compatible

Rotary device

Optional

Net Weight

140KGS

Gross weight

150KGS

Fiber laser marking machine application

--Many type of metals:
Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc
--Alloy and metal oxides:
Anodized Aluminum
--Some non-metallic materials & Special surface treatment:
silicon wafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing ink,Plating,Spraying,Coating film.

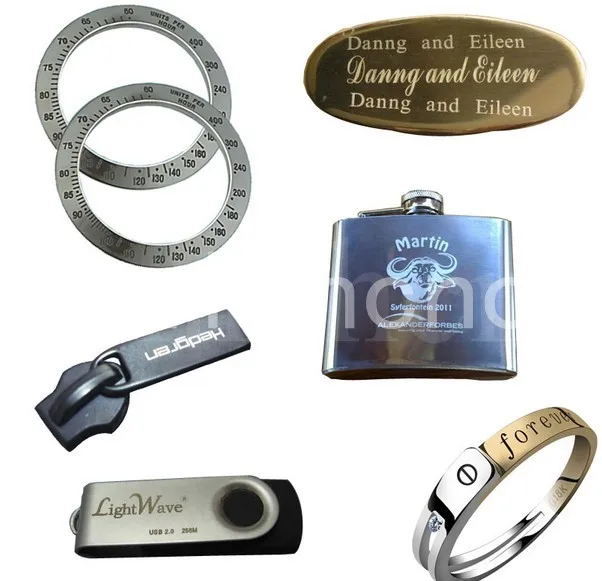

Samples disply

UNICH company information

Jinan UNICH Machinery Co.,Ltd is a professional cnc laser, cnc router, laser marking and cnc plasma machine manufacturer. It takes the "quality, integrity, innovation, service"spirit, always adhere to the customer demands as the guide,it was well welcomed by almost all customers with its high-quality product and good after-sale service.

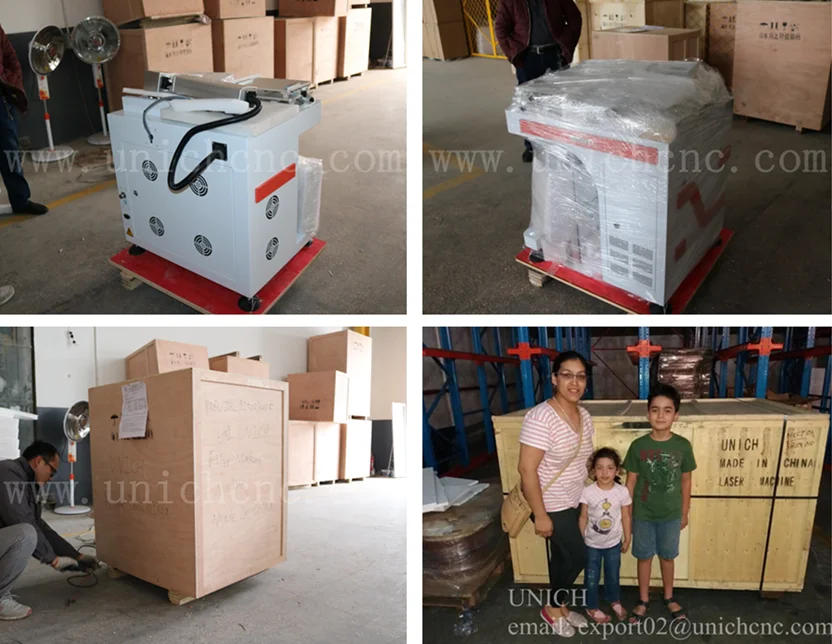

UNICH machine packing

Firstly, packed the machine with plastic sheet for clearing and damp proofing.

Secondly, then put the machine in the plywood case for safety and clashing.

Thirdly, transport the plywood case into the container.

Lastly, put the machine on train or ship, deliver to your port.

UNICH machine warranty and service

1. 24 months guarantee of the whole machine,We will provide the consumable parts at an agency price when you need replacement.

2. Our engineer could support you technology online.

3. Our engineer could train you on at our factory for free.

4. Software: Whole life on update for free.

UNICH machine warranty and service

1.  How should give us payment ?
we accept TT by bank.  you can do30%  prepayment first, then we will start to make production.

when the machine is ready , we will take pictures to you, then you can do the balance.

After got your payment. We will arrange the shipment.

3. Are you a trading company with factory ?

Yes,we aremanufacturer with experience for12years .We sincerely invite you to my factory visit.

4. How can I buy this machine from you? ( Very easy and flexible)

A. Consult us about this product on-line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
 And 100% quality check before shipping.
F. Send your order by air or by sea.
