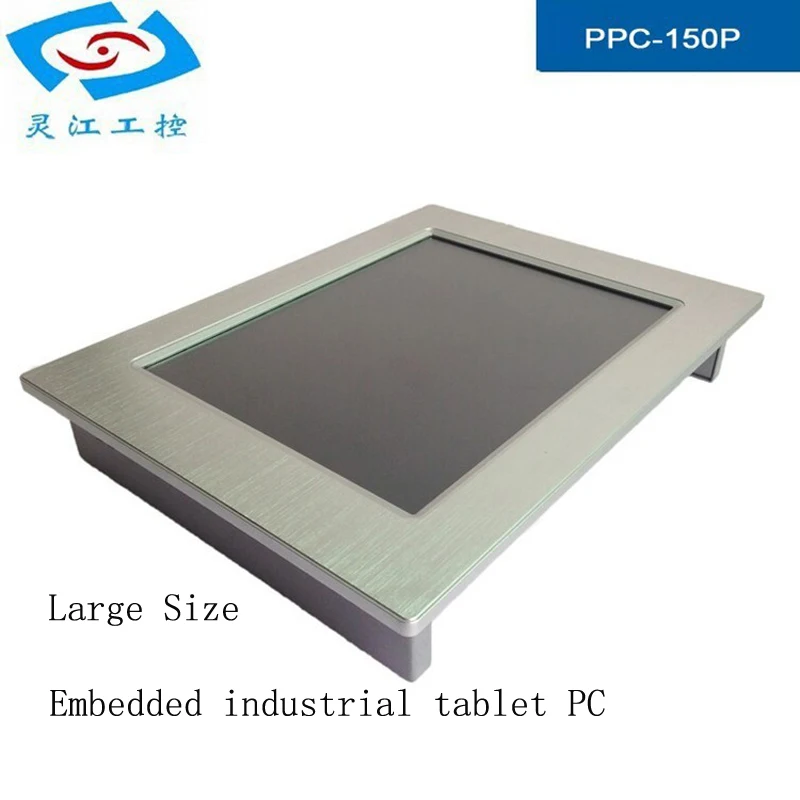

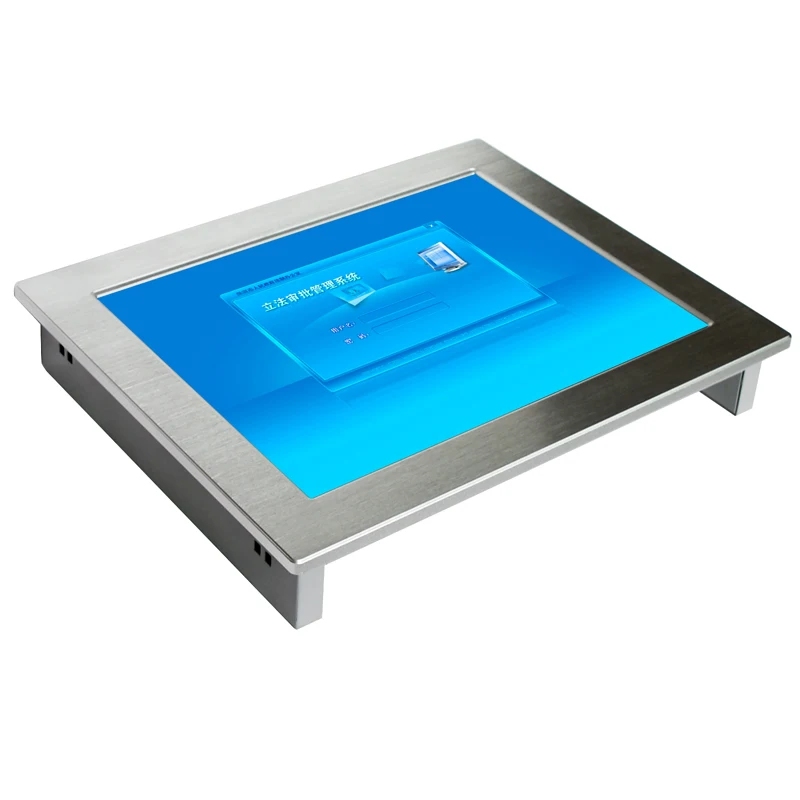

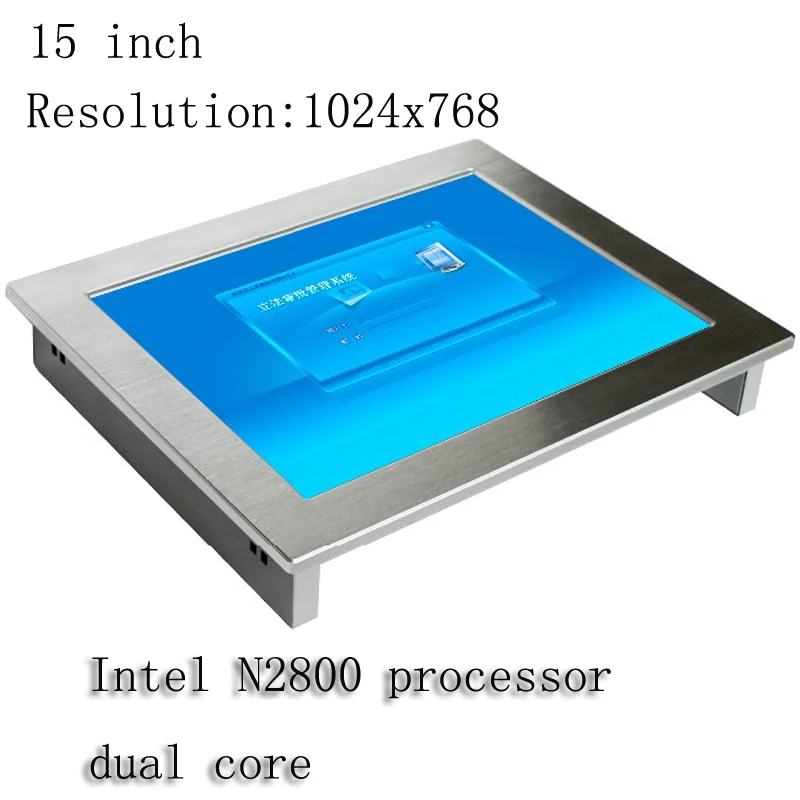

New Original 15 inch industrial touch panel PC Intel N2800 1.86GHz CPU RS232 1024x768 Resolution Industrial Tablet computer

industrial panel pc Advantage:

1. Fanless cooling system.

2. dual-core Intel Atom N2800 processor 1.86 GHz .

3. Built-in 802.11a/b/g/n/ac Wireless LAN+ Blue Tooth

4. 9V~30V wide range voltage DC power supply

5. 2GB DDR3L Onboard RAM

6. Resistive Touch Supports Touch Function

industrial panel pc Specifications

Model

PPC-150P    285x215x46.8mm

LED size

AUO 15 inch

Display area

211.2 x 158.4mm

Resolution

1024*768

contrast

400:1  Typ

Scrscreen colors

262K/16.2M  6-bit / 6-bit + FRC

Display brightness

350cd/m2

Touch panel

Touch panel of resistance

CPU

Intel ATOM N2800 1.86Ghz

RAM

2GB DDR3L Onboard RAM (4Gb Max)

storage

SSD 64Gb ( optional 64GB,128GB,256GB )

Audio

1 x AMP 2W (internal speaker) Optional

SysTem

Windows 7 (Pre-install)   Windows XP/ windows10  / linux

LAN

2*RJ45  Intel RTL8111E 1000Mbps

Wireless (Optional)

IEEE 802.11a/b/g/n/ac

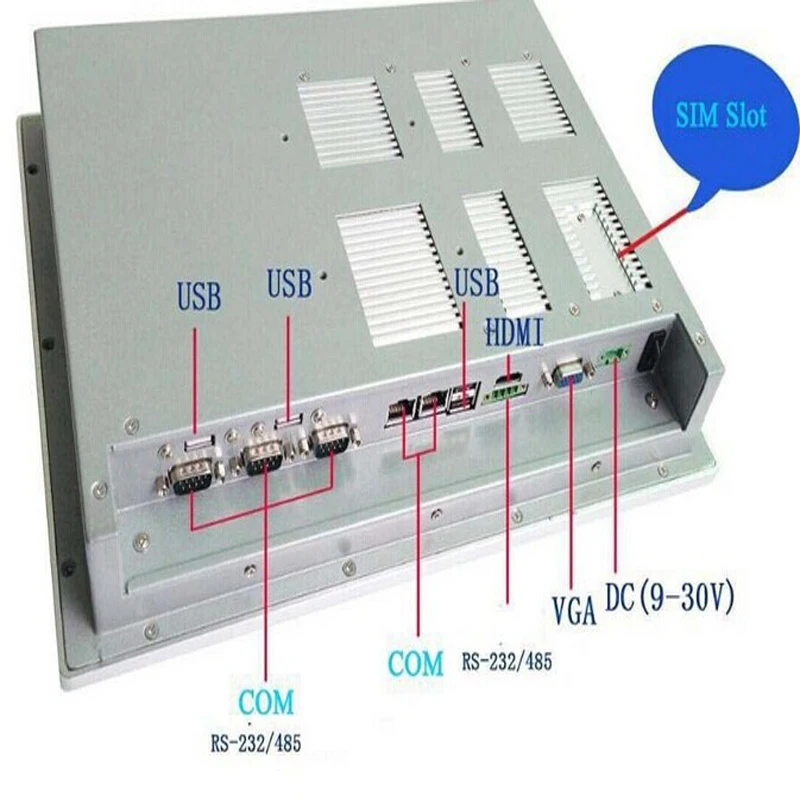

IO

1 x RS-485 COM Port

3 x RS-232 COM port

4 x USB 2.0
2 x Gigabit Ethernet ports (RJ-45)
1 x Power switch
1 x 9 V-30 V lockable DC jack

Microphone Input/output

1 (optional)

IP Level(front panel)

IP 65 front

Mounting

Wall, Panel, Stand, Rack Mounting (VESA 75 mm x 75 mm)

Operating Humidity

5 ~ 90% (non-Condensing)

Operating Temp

-20 ~ 60 Celsius degree

Storage Temp

-20 ~60  Celsius degree

Color

Silver

Power Supply

110V-240V AC

12V/5A  DC

Weight

5.05KG/set

Ordering Information :

Part No:

PPC-150P

Description:

15'' 350 cd/m2 ,1024x768 HD fanless panel PC with Intel  Atom N 2800

dual core 1.86 GHz, Resistive touch screen, on-board 2GB DDR3L RAM

Packing List :

1 x CD Driver

1 x 60W Power Adapter ;Input: 100VAC~240VAC, 47-63Hz , 1A; Output: 12V DC

4 x Mounting Kit

MORE PICTURE:

Shenzhen Lingjiang Computer Ltd. is a professional manufacturer of industrial motherboards,industrial panel PC,industrial PC and so on.

We have 6 years of experience in this field and have a good reputation in this field.

Products have sold to more than 100 country,Europe,Middle East,Southeast Asia, America ect.

Our products have won high praise from customers worldwide.

All our products have CE,RoSH and FCC certificate, warranty is 18 months.
