EM276 Professional Injector Tester Fuel 4 Pluse Modes Powerful System Scan Tool | Автомобили и мотоциклы

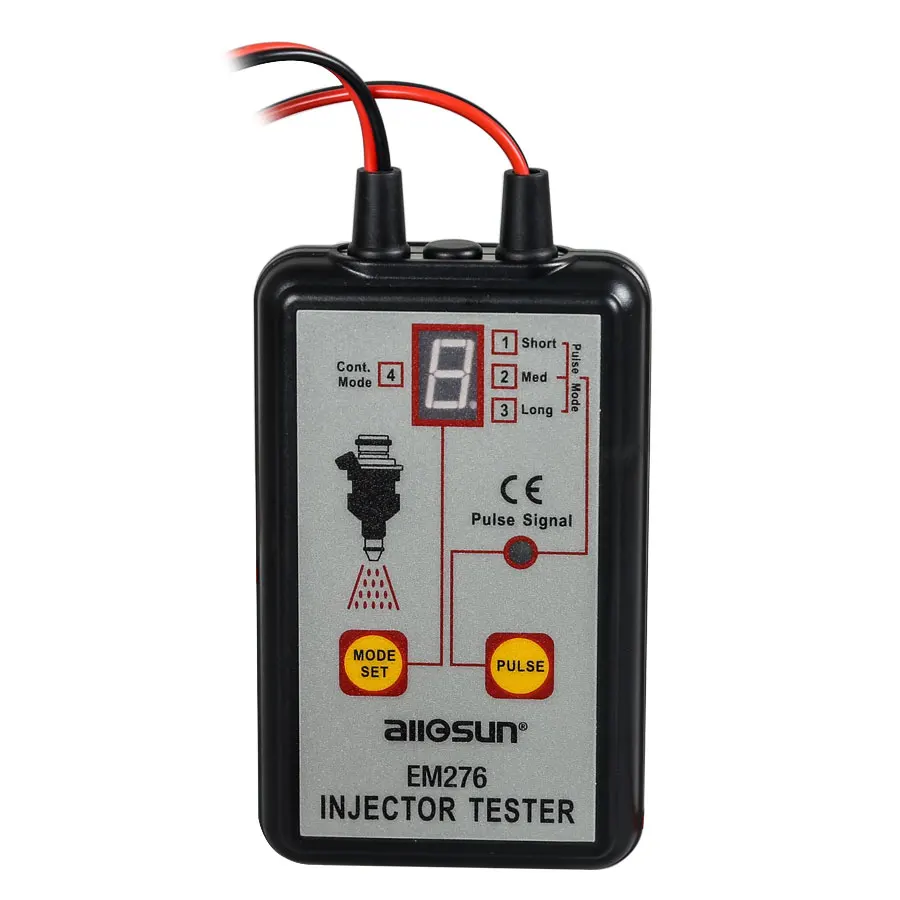

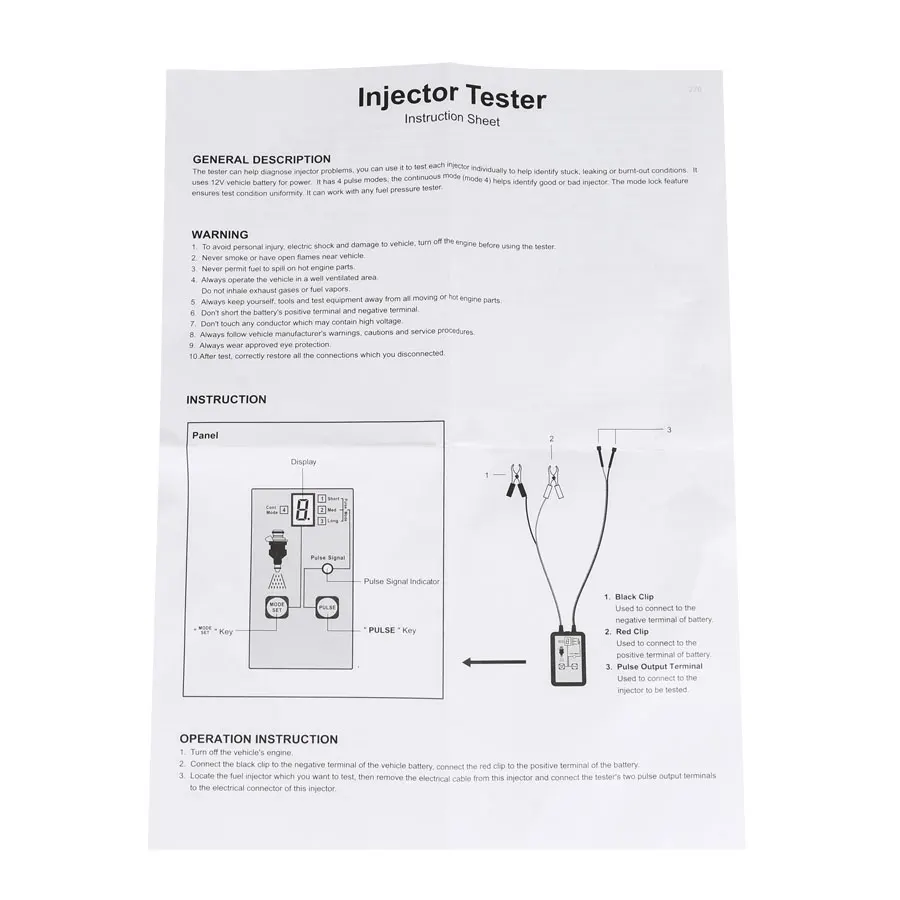

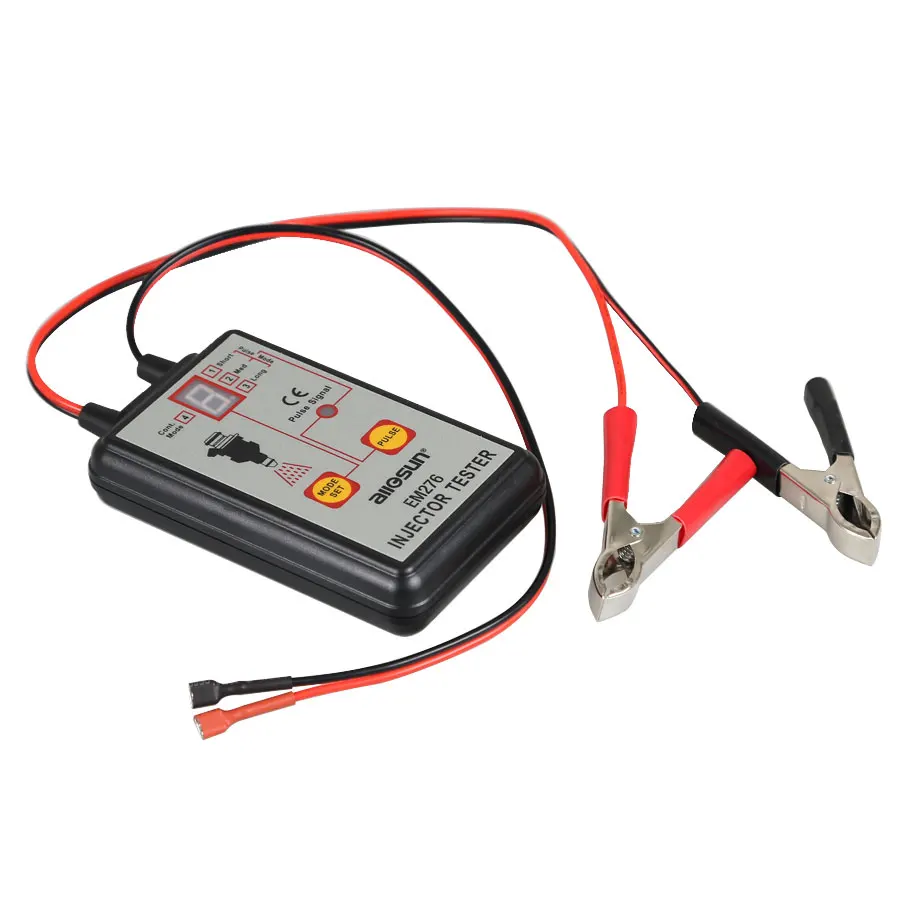

EM276 Professional Injector Tester Fuel Injector 4 Pluse Modes Tester Powerful Fuel System Scan Tool     EM276 Item Feature:  This tester can diagnose injector problems, you can use it on each injector     individually to test stuck, leaking or burnt-out.  It used 12V vehicle battery as power supply.  It has 4 pulse modes and in the continuous working mode ( mode 4 ), it can help    you identify the injector good or not when you switch off the engine.  The lock mode can ensure the testing condition is same. It can work with any fuel pressure tester together.   EM276 Operation Instructions:          Turn off the vehicle‘s engine          Connect Black / Red Clip to the Negative / Positive terminal of battery           Connect pulse output terminal to the fuel injector         Press the "MODE SET" key to select the desired pulse mode         Press the "PULSE" key, the tester will output pulse to the injector, and then the pulse signal          indicator will light as indication                                 Explanations for 4 modes          Mode 1:  the tester outputs 1 pulse, whose pulse width is about 250ms        Mode 2:  the tester outputs 50 pulse, every pulse's pulse width is about 7ms        Mode 3:  the tester outputs 100 pulse, every pulse's pulse width is about 3.5ms         Mode 4:  the tester outputs pulse continuously at the rate of 50 pulses per about 1450ms,                     every pulse's pulse width is about 7ms   EM276 specification:    Power Supply: 12V vehicle battery  Operation Environment: 0 C - 40C, relative humidity < 80%  Storage Environment: -10 C - 50C, relative humidity < 85%  Size: 147x82x29mm (for main body only)   Weight: about 165g     Package Includes:   1pc x Carriable Bag  1pc x  Instruction Manual   1pc x Not Include Batteries
