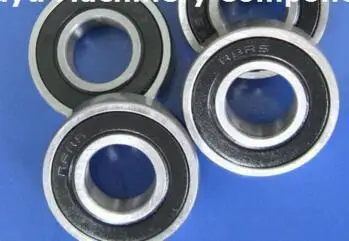

Бесплатная доставка 5 шт. R8-2RS Подшипники 1/2x1 1/8x5/16 дюйма радиальная мяч R8 RS R8ZZ |



Product Description

 Bearing Data

P/N R8-2RS Type Radial Ball Bearings Material AISI 52100 Chrome Steel  Dimension 1/2 x 1 1/8 x 5/16 inch Precision ABEC-1 Vibration V1 Clearance C0 Noise Z1 Closure Type Rubber Sealed Ref. Speed RPM 27,000 RPM Ref. Load Cr N 5,108 Ref. Load Cor N 2,403



Application: cars, compressors, construction, electric motors, food industry, home appliances etc. As a rolling element, it turns the world.

















Main size (mm) Loading (N) Speed (rpm) Model Weight(g) Inner ring Outer ring Thickness Angular dyn. stat. Grease Oil Open Shield Open d D B B1 rs Cr Cor Open Z L 3.175 9.525 3.967 3.967 0.3 645 229 47000 56000 R2 ZZ 1.3 4.763 7.938 2.779 3.175 0.1 219 89 47000 56000 R156 ZZ 0.44 9.525 3.175 3.175 0.1 467 190 44000 53000 R166 ZZ 0.8 12.7 4.98 4.98 0.3 1150 401 39000 46000 R3 ZZ 2.2 6.35 15.875 4.98 4.98 0.3 1460 598 34000 41000 R4 ZZ 4.4 19.05 / 7.14 0.4 2800 1058 32000 38000 R4A ZZ 11 9.525 22.225 5.55 7.14 0.4 3330 1410 29000 35000 R6 ZZ 14 12.7 28.575 6.35 7.93 0.4 5110 2390 26000 31000 R8 ZZ 23 15.875 34.925 7.14 8.73 0.6 6000 3260 22000 25000 R10 ZZ 35 19.05 41.275 7.93 11.112 0.6 9380 5080 20000 23000 R12 ZZ 47 22.225 47.625 9.52 12.7 0.6 10070 5800 16000 18000 R14 ZZ 78 25.4 50.8 9.52 12.7 1 10070 5800 10000 13000 R16 ZZ 87



Because of the most models are not in shop, please contact me for more price lists.
