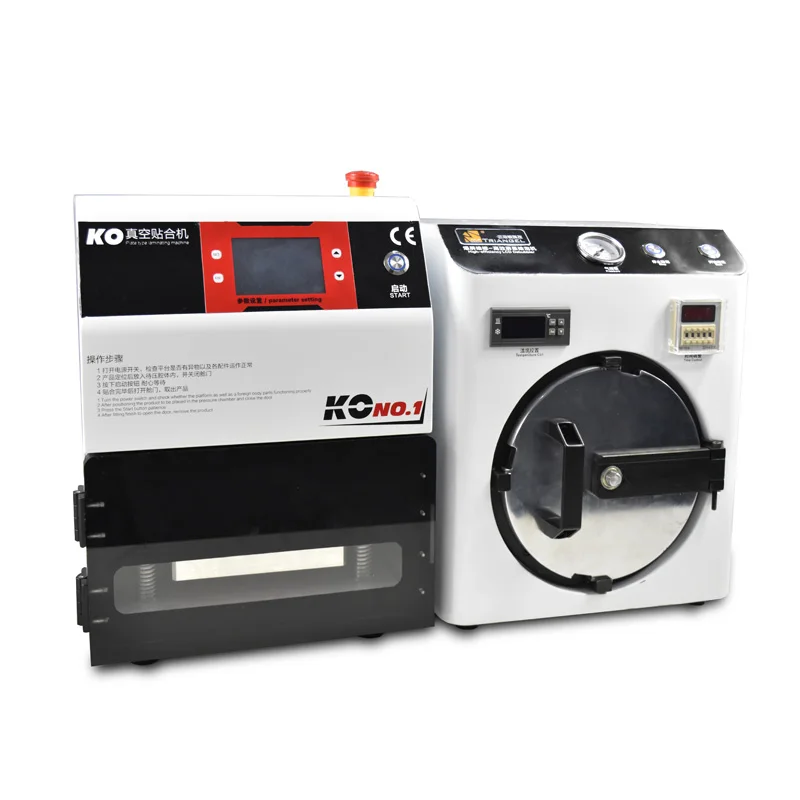

NEW Mini High Pressure OCA Adhesive Sticker LCD Bubble Remove Machine+OCA Vacuum Laminator Machine for 7 inch Screen Repair

Notice:

this machine need Air Compressor and Vacuum Pump ,so if you buy it ,You need to purchase a vacuum pump and Air Compressor

No.1 Laminating Machine

Voltage: AC220V (AC110V Optional)

Working Environment: 20-30 degree, Clean, Dust-free

Heating Mode: Constant temperature heating

Machine Size: 310*310*430mm

Net weight: 35KG

Power: 500W

Bubble Remover

Voltage: AC220V (AC110V Optional)

Working Environment: 20-30 degree, Clean, Dust-free

Heating Mode: Constant temperature heating

Machine Size: 300*330*370mm

Net weight: 16KG

Power: 20W

For laminator, it is recommended to use no less than 300W of the vacuum pump, and not less than 18L of air compressor.

For bubble remover, it is recommended to use no less than 18L of air compressor. ( Laminator and bubble remover can be shared with one air compressor. )

1) NO. 1 laminating machine built-in display parameters controller, operation simple and clear;

2) Bubble remover door design for a second switch, built in air lock with safety device.

1) For laminator: Plug in, and put the vacuum pump triangl plug into the triangl port while put the vacuum tube into the under port. As the photo shows.

2) Insert the air compressor pipe to the pressure regulating valve interface back of the laminator.

Take out the screen and test for it

Rotating left to open the defoaming doors, out the screen inside. Close the door, Rotating it tom the right for locks, press the start button, air compressor stars automatically and the pneumatic cylinder inflated to 0.6 MPa. Wait for the prescribed time, the cylinder will automatic discouraged. Open the door and take out the screen.

Attention: Defoaming time can be set freely, usually for 5 to 10 minutes, depending on the bubble size.

6.Maintenance

Items

Notes

Platform & Pressing Plate

Keep clean, no clutter inside.

Life of machine

For keep it long use, turn off the power when not in use.
